MAX2650: DC-to-Microwave, +5V Low-Noise Amplifier Data Sheet (Rev. 1)10/24/2003133K
Features and Benefits
- Internally Biased
- High Gain: 18.3dB at 900MHz
- 3.9dB Noise Figure
- Single +4.5V to +5.5V Operation
- -1dBm Output 1dB Compression Power
- Low-Cost Silicon Bipolar Design
- Ultra-Small SOT143 Package
The MAX2650 is a low-noise amplifier for use from DC to microwave frequencies. Operating from a single +5V supply, it has a flat gain response to 900MHz. The MAX2650's low noise figure and high drive capability make it ideal for a variety of transmit, receive, and buffer applications.

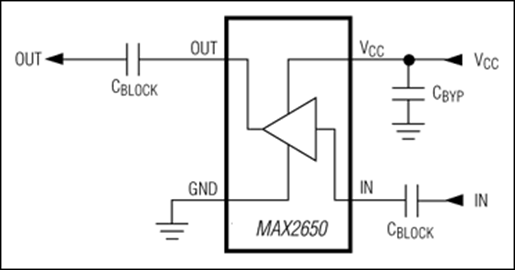

The device is internally biased, eliminating the need for external bias resistors or inductors. In a typical application, the only external components needed are input and output blocking capacitors and a VCC bypass capacitor.

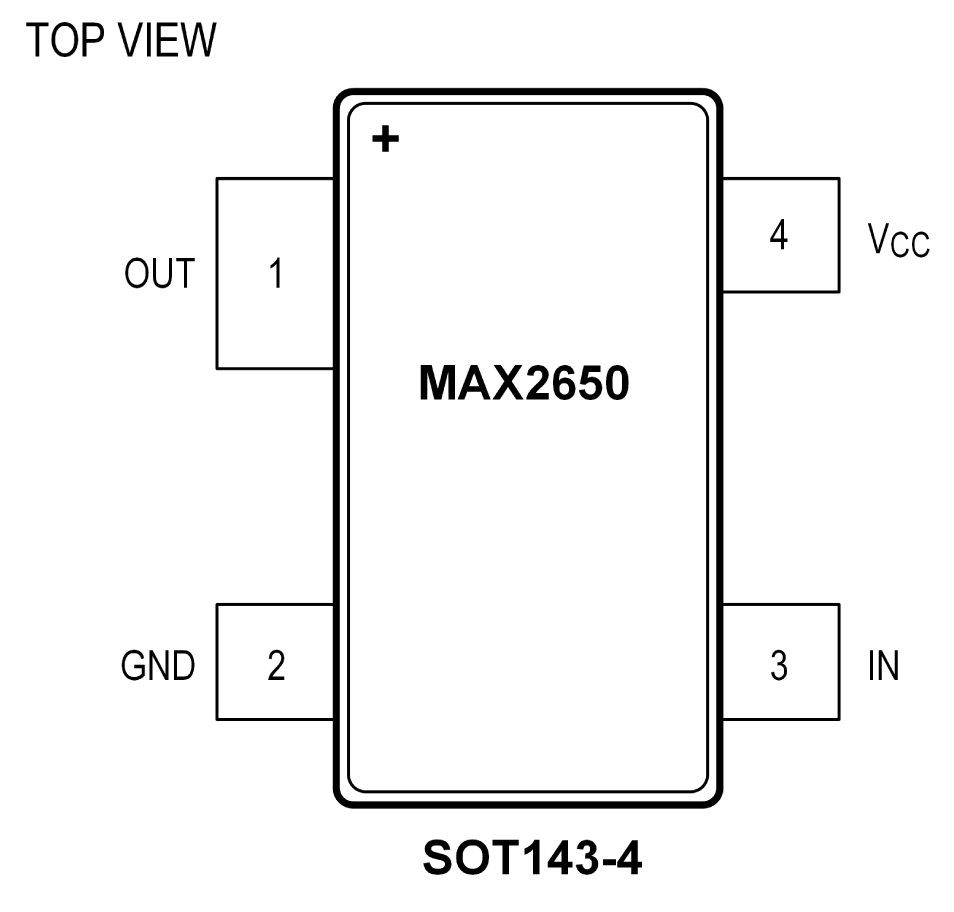

The MAX2650 comes in a 4-pin SOT143 package, requiring minimal board space.
