MAX2644

2.4GHz SiGe, High IP3 Low-Noise Amplifier

Show More showmore-icon

Industry's Smallest 2.4GHz LNA Provides Adjustable IP3 Control

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $2.49
Features
  • Low Noise Figure (2.0dB at 2450MHz)
  • High Gain: 16dB
  • Adjustable IP3 and Bias Current
  • Low-Power Standby Mode
  • On-Chip Output Matching
  • +2.7V to +5.5V Single-Supply Operation
  • Ultra-Small 6-Pin SC70 Package
Additional Details
show more Icon

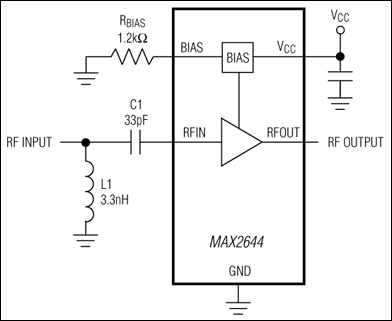

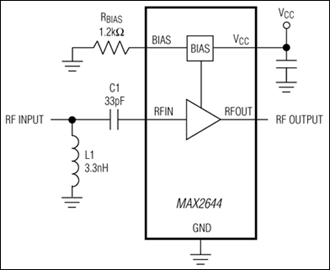

The MAX2644 low-cost, high third-order intercept point (IP3) low-noise amplifier (LNA) is designed for applications in 2.4GHz WLAN, ISM, and Bluetooth® radio systems. It features a programmable bias, allowing the input IP3 and supply current to be optimized for specific applications. The LNA provides up to +1dBm input IP3 while maintaining a low noise figure of 2.0dB and a typical gain of 16dB.

The MAX2644 is designed on a low-noise, advanced silicon-germanium (SiGe) technology. It operates with a +2.7V to +5.5V single supply and is available in an ultra-small 6-pin SC70 package.

Applications

  • 2.4GHz Cordless Phones
  • 2.4GHz ISM-Band Radios
  • 802.11 WLAN
  • Bluetooth®
  • HomeRF
  • Satellite CD Radio
  • Wireless Local Loop (WLL)
Part Models 2
1ku List Price Starting From $2.49

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX2644EXT+
  • HTML
  • HTML
MAX2644EXT+T
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

MAX2644EVKIT

Evaluation Kit for the MAX2644

zoom

MAX2644EVKIT

Evaluation Kit for the MAX2644

Evaluation Kit for the MAX2644

Features and Benefits

  • Easy Evaluation of MAX2644
  • +2.7V to +5.5V Single-Supply Operation
  • Matched to 50Ω at 2450MHz
  • Fully Assembled and Tested

Product Detail

The MAX2644 evaluation kit (EV kit) simplifies the evaluation of the MAX2644 low-noise amplifier (LNA). The kit enables testing of the device’s performance and requires no additional support circuitry. The signal input and output use SMA connectors to facilitate easy connection of RF test equipment.

The MAX2644 EV kit is fully assembled with the MAX2644 and incorporates matching components optimized for a 2450MHz RF frequency operation.
