Features and Benefits
- Synchronous DC-DC Converters with Integrated FETs
- 60V Input for 14V and 24V Systems
- Internal Compensation
- Output Adjustable from 0.8V to 90%VIN
- 200kHz to 2200kHz Adjustable Frequency with External Clock Synchronization
- Programmable Peak Current Limit (1.14A or 1.6A)
- Active-Low RESET Output and EN Input (26V max) Simplify Power Sequencing
- Protection Features and Operating Range Ideal for Automotive Applications
- Programmable EN/UVLO Threshold
- Adjustable Soft-Start and Prebiased Power-Up
- Thermal Shutdown
- -40°C to +125°C Automotive Temperature Range
- AEC-Q100 Qualified

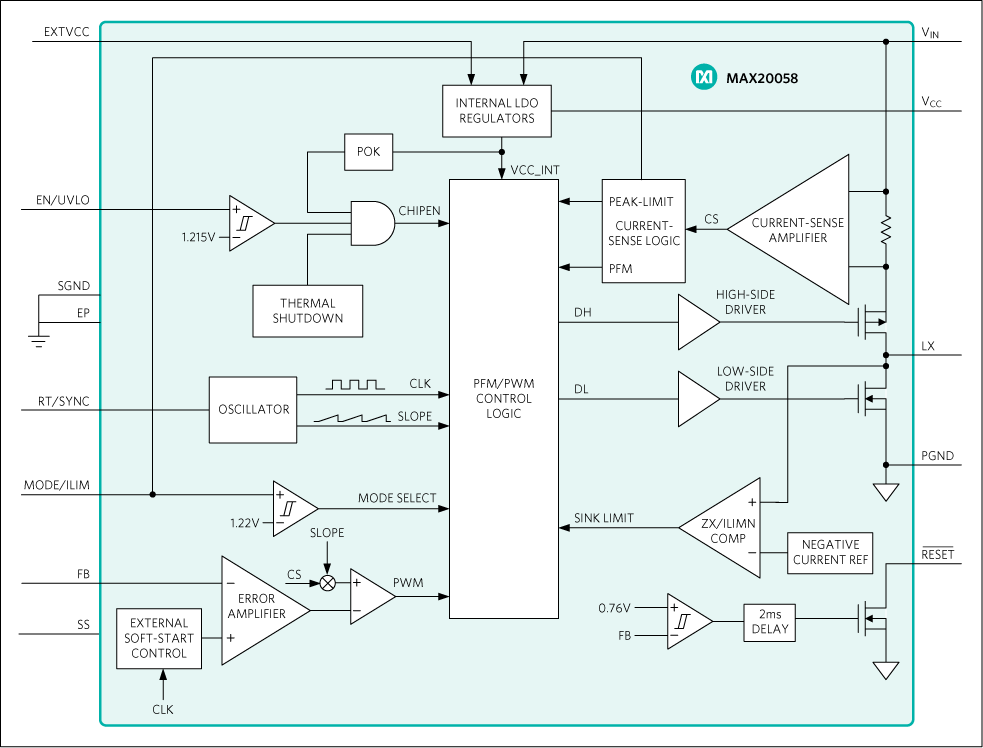

The MAX20058 is a high-efficiency, high-voltage, synchronous step-down DC-DC converter IC with integrated MOSFETs that operates over a 4.5V to 60V input. The converters can deliver up to 1A current. Output voltage is programmable from 0.8V to 90%VIN. The feedback voltage-regulation accuracy over -40°C to +125°C is ±1.5%.
The IC features a peak-current-mode-control architecture and can be operated in the pulse-width modulation (PWM) or pulse-frequency modulation (PFM) control schemes.
The MAX20058 is available in a 12-pin (3mm x 3mm) side-wettable TDFN package with an exposed pad for thermal heat dissipation
- 14V/24V Systems
- Truck Applications
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The MAX20058 EV kit is a proven design to evaluate the MAX20058 high-efficiency, high-voltage, synchronous step-down DC-DC converter in a TDFN package. The EV kit is optimized to generate a 5V output at load currents up to 1A from a 24V input supply and can be reconfigured to meet other system requirements. The EV kit features a 400kHz switching frequency. The EV kit can be used to monitor the IC’s features such as adjustable input undervoltage lockout, adjustable soft-start, adjustable switching frequency, adjustable current limit, open-drain active-low RESET signal, and external frequency synchronization.
- 14V/24V Systems
- Truck Applications
Features & Benefits
- Operates from 6.5V to 60V at 24V Nominal Input
- Meets Stringent OEM Module Power Consumption and Performance Specifications
- 5V Output Voltage at 400kHz Switching Frequency
- Up to 1A Output Current with Adjustable Peak Current Limit
- Jumpers for Quickly Adjusting Peak Current Limit and Mode Selection
- Auxiliary Bootstrap LDO to Improve Efficiency
- Adjustable Soft-Start Time with External Capacitor
- Optimized Application Layout and Components for Quick Design Implementation
- Fully Assembled and Tested
Documentation & Resources
Tools & Simulations
EE-Sim Power® Tools
The EE-Sim DC-DC Converter Tool uses your requirements to quickly create a complete power design including a schematic, BOM with commercially available parts, and time and frequency domain simulations. Your customized schematic can be downloaded for further analysis in the standalone EE-Sim OASIS Simulator, featuring SIMPLIS and SIMetrix SPICE engines.
