Power Studio Designer

Overview

Features and Benefits

Smart Design Assistance

  • Guided workflows for IC-level power supply design solutions
  • Optimized component recommendations (inductors, capacitors, FETs)
  • Export complete Bill of Materials (BOM) with manufacturer details

Deep Technical Validation

  • Real-time calculations across parameters and components
  • Efficiency optimization for power losses evaluation across the circuit
  • Loop gain, phase margin, and load transient visualization
  • Offline simulation with SIMPLIS and LTspice® support

Seamless Experience

  • Unified ADI part catalog shared across ADI Power Studio tools
  • Built with ADI’s new design system for a modern user experience
  • Design integration with ADI Power Studio Planner
  • Cloud-based for easy access and collaboration

How It Works

ADI Power Studio Designer is the next-generation tool for IC-level power supply design. It provides guided workflows, optimized component recommendations, and real-time performance analysis—helping engineers reach reliable solutions faster. Integrated with existing ADI Power Studio tools, it streamlines the path from device selection to analysis.

Guided Solution Explorer

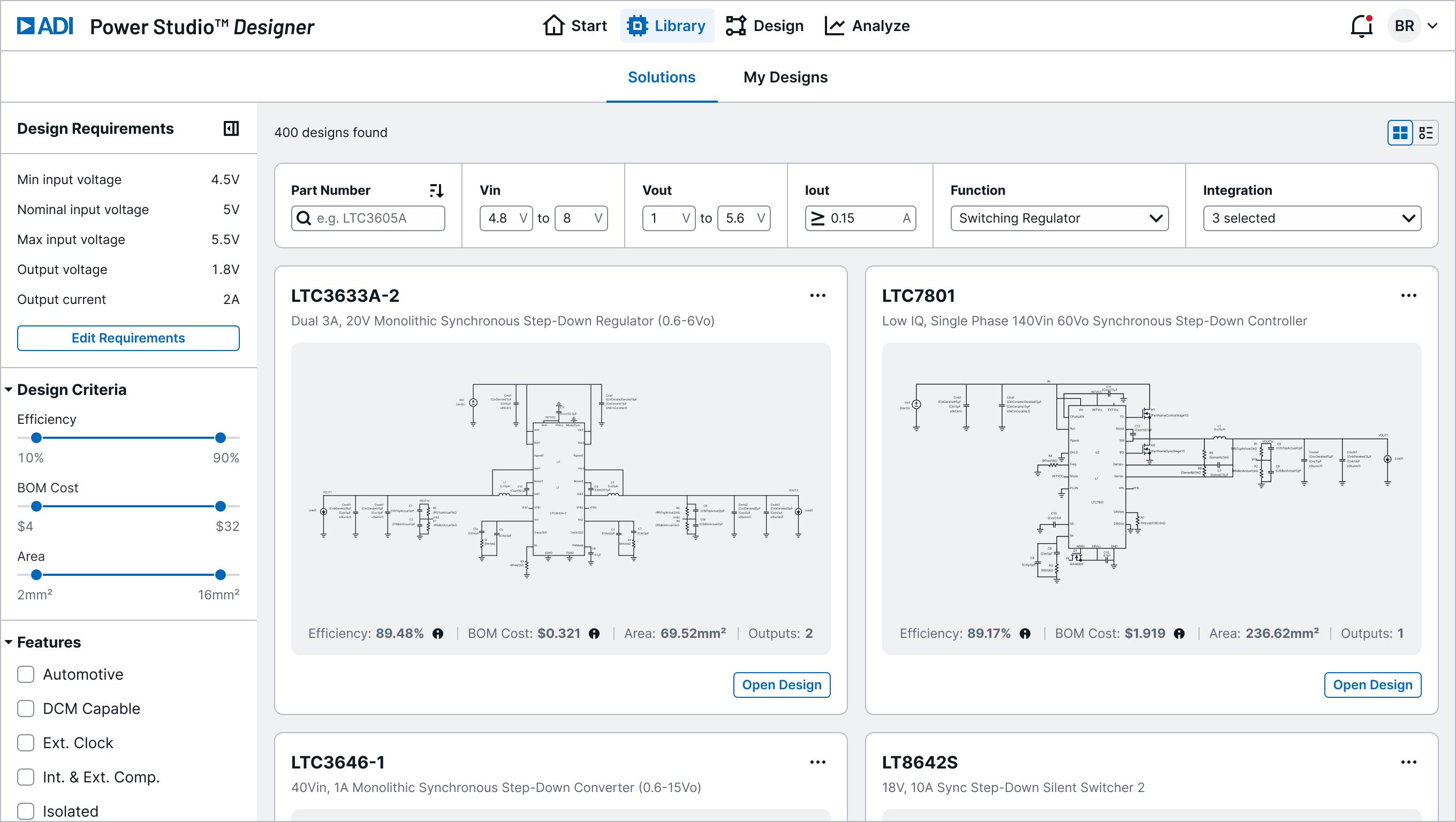

Browse and filter ADI’s unified power supply design IC portfolio with guided workflows. Match requirements to recommended solutions, complete with ready-to-use solutions.

Guided Solution Explorer


Interactive Schematic

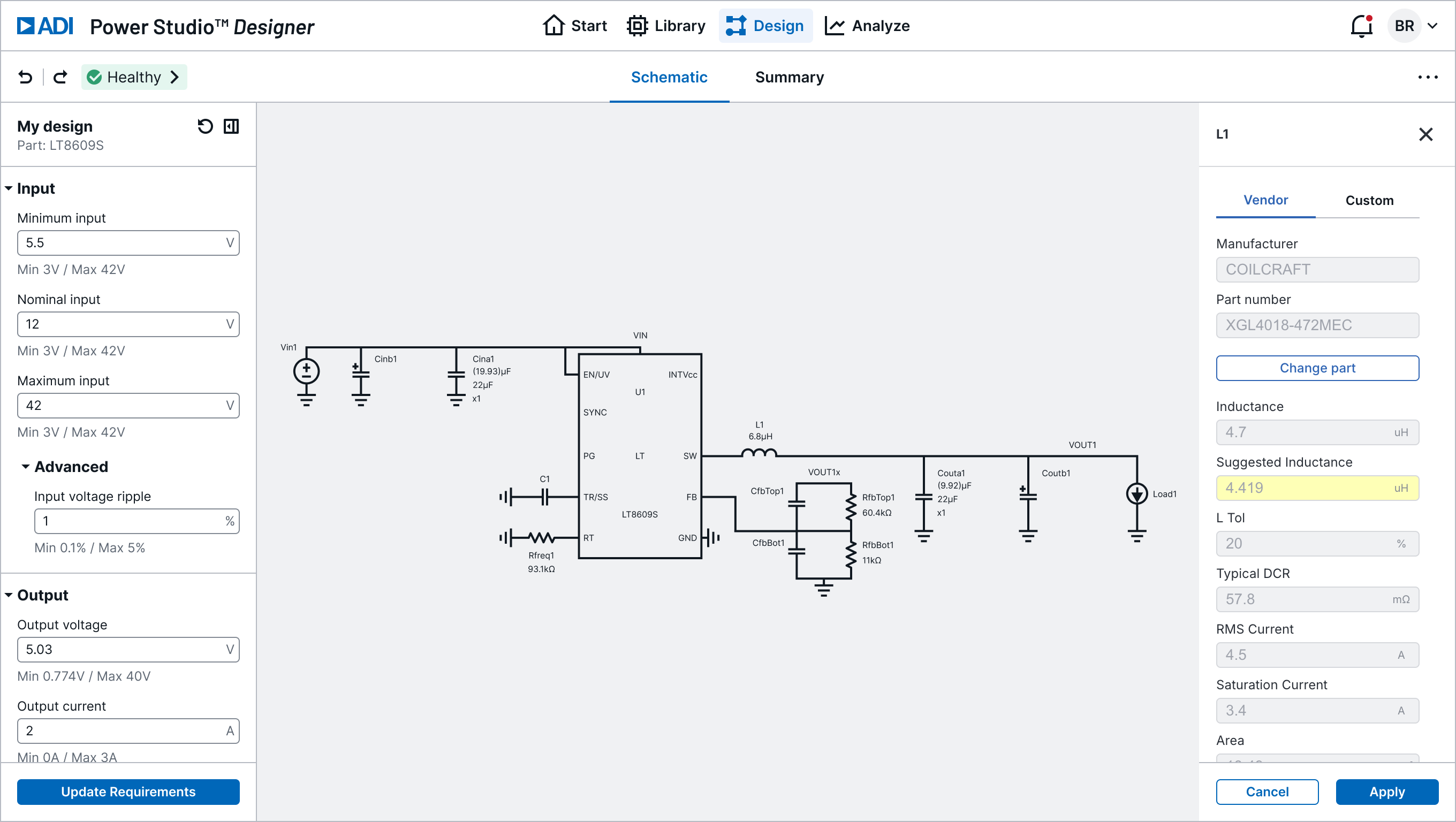

Edit and customize circuit schematics in real time. Parameters, components, and vendor parts update instantly, making design exploration highly visual and interactive.

Interactive Schematic


Efficiency Analysis

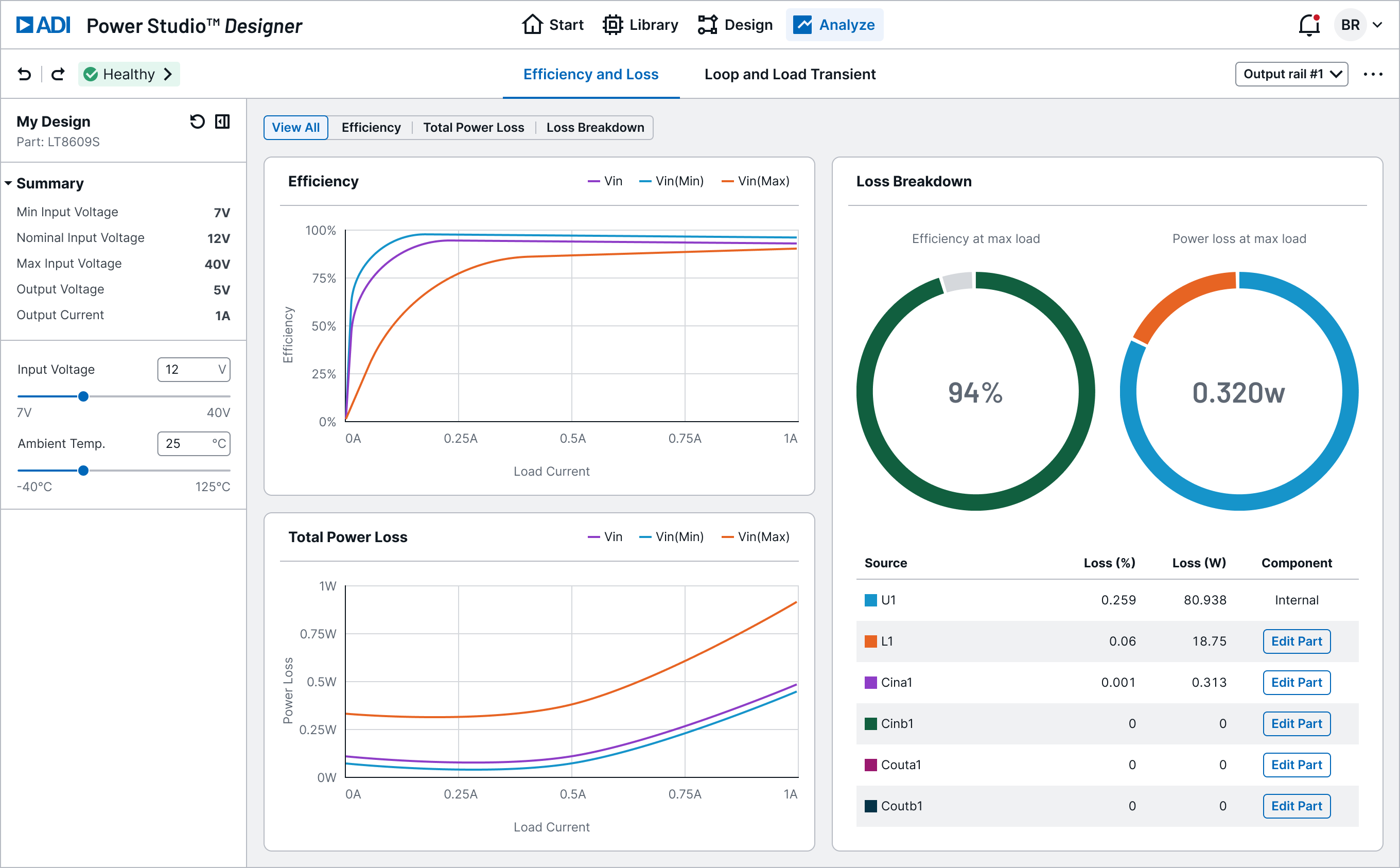

View efficiency, power loss, and loss breakdown at a glance. Charts and visualizations give immediate insight into design trade-offs across operating points.

Efficiency Analysis


Loop and Load Analysis

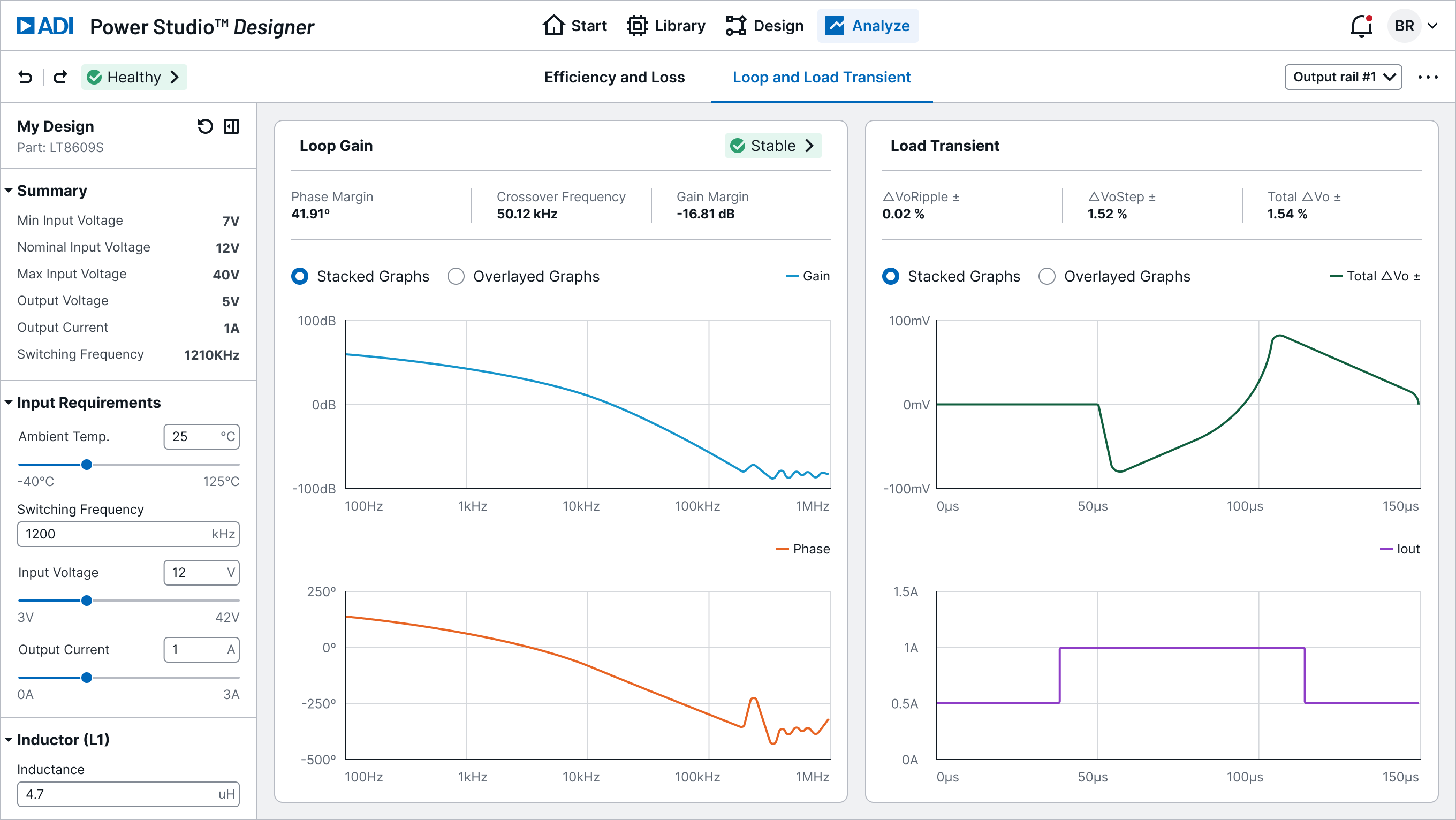

Visualize loop gain, phase margin, and load transients to validate stability and response, ensuring designs meet real-world performance needs.

Loop and Load Analysis



Picture1ADI Power Studio

Have a look at the new tools for your design journey in the new ADI Power Studio suite.

View Power Studio Products

Downloads & Related Software

Design Tool

LTpowerCAD® and LTpowerPlanner®

The LTpowerCAD® program is a complete power supply design tool that can significantly ease of power supply design. It provides recommendations for component values and performance estimates specific to the user’s application with Analog Devices power products. Also included within the LTpowerCAD platform is LTpowerPlanner®, a system-level power architecture design tool.

LTspice®

LTspice® is a high performance SPICE simulation software, schematic capture and waveform viewer with enhancements and models for easing the simulation of analog circuits. Included in the download of LTspice are macromodels for a majority of Analog Devices switching regulators, amplifiers, as well as a library of devices for general circuit simulation.

Systems Requirements

  • Web-based application (no installation required)
  • Free with ADI account login
  • Integrates with ADI Power Studio Planner, LTspice, and other ADI Power Studio tools for deeper validation
