MAX17852

PRODUCTION

MAX17852

14-Channel High-Voltage, ASIL D, Data-Acquisition System with Integrated Current-Sense Amplifier

Industries Leading ASIL D Battery Monitor ASIC with Current Sensing

PRODUCTION

PRODUCTION

MAX17852 Simplified Block Diagram slide

MAX17852 Pin Configuration slide

MAX17852 Simplified Block Diagram

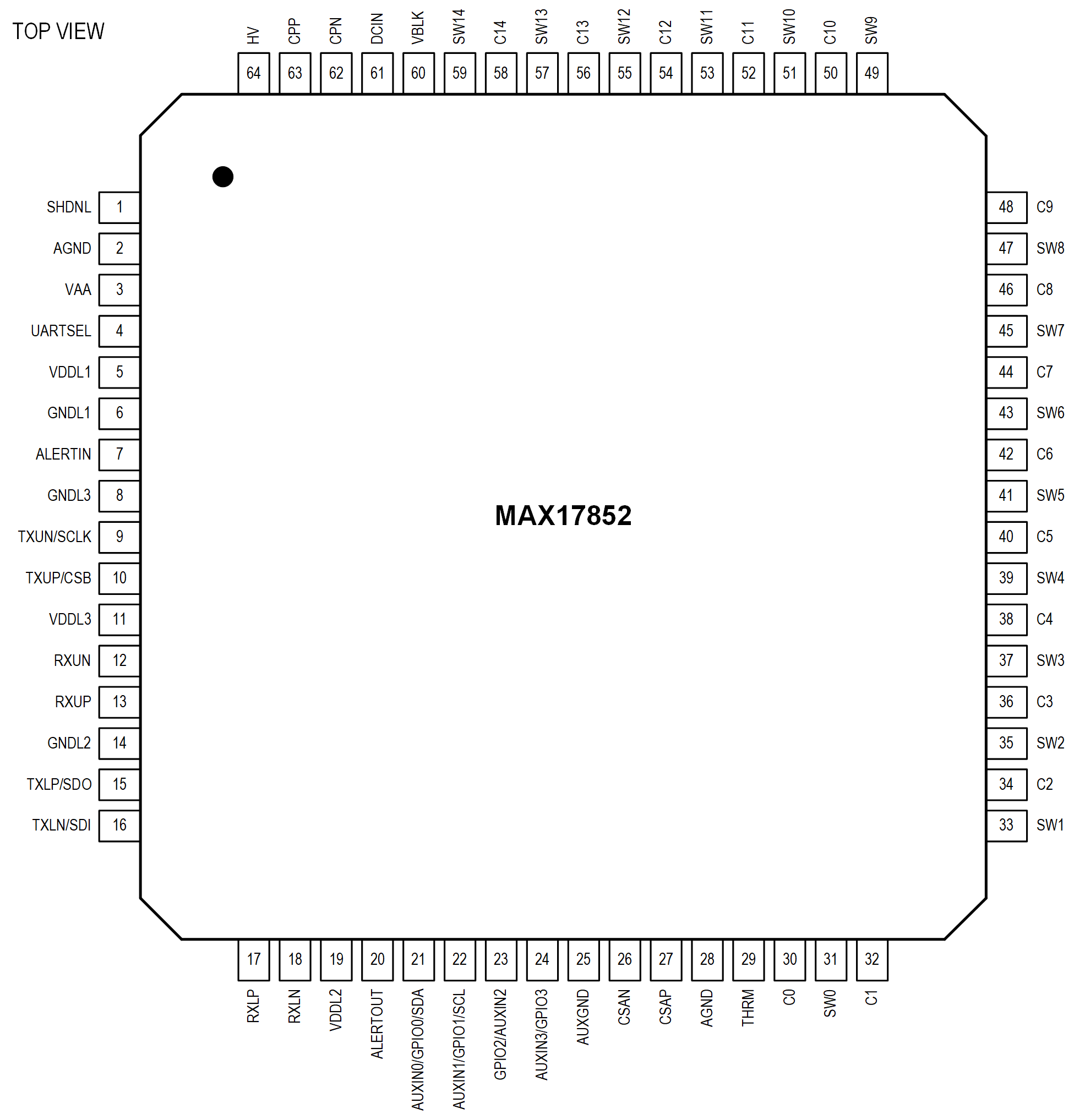

MAX17852 Pin Configuration

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $8.53

Features

AECQ-100 Grade 1 Temp. Range -40°C to +125°C
65V Operating Voltage
Ultra-Low-Power Operation
- Standby Mode: 2mA
- Shutdown Mode: 2µA
Redundant ADC and Comparator Acquisitions
Simultaneous Cell and Bus-Bar Voltage Acquisitions
14 Cell-Voltage Measurement Channels
- 1mV Accuracy (3.6V, +25°C)
- 2mV Accuracy (5°C to +40°C)
- 4.5mV Accuracy (-40°C to +125°C)
14 Cell-Balancing Switches
- > 300mA Software-Programmable Balancing Current
- Optimized Driving (AUTOBALSWDIS) and Parking Balancing Modes
- Automated Balancing with Individual Cell Timers
- Automated Balancing by Cell Voltage
- Emergency Discharge Mode
Low-Noise Current-Sense Amplifier
- 5mA resolution (Gain = 256)
Four Configurable Auxiliary Inputs for Temperature, Voltage, or GPIO
Integrated Die Temperature Measurement
Automatic Thermal Protection
Individually Configurable Safety Alert
- Overvoltage, Undertemperature and Undervoltage, Overtemperature Faults
- One Cell-Mismatch Alert
Support ASIL D Requirements for Cell Voltage, Temperature, Current, Communication
Selectable UART, Dual-UART, or SPI Interface
Battery-Management UART Protocol
- Daisy-Chain up to 32 Devices
- Capacitive Communication-Port Isolation
- Up to 2Mbps Baud Rate (auto-detect)
- 1.5µs Propagation Delay (per device)
- Packet-Error Checking (PEC)
I²C Master
Configurable Hardware-Alert Interfaces
Factory-Trimmed Oscillator (No External Crystals Required)
32-Bit Unique Device ID
64-Pin (10mm x 10mm) LQFP Packagenn

Additional Details

The MAX17852 is a flexible data-acquisition system for the management of high-voltage and low-voltage battery modules. The system can measure 14 cell voltages, one current measurement, and a combination of four temperatures or system voltages with fully redundant measurement engines in 263µs, or perform all inputs solely with the ADC measurement engine in 156µs. There are 14 internal switches rated for > 300mA for cell-balancing, each supporting extensive built-in diagnostics. Up to 32 devices can be daisy-chained to manage 448 cells and monitor 128 temperatures.

Cell and bus-bar voltages ranging from -2.5V to +5V are measured differentially over a 65V common-mode range, with a typical accuracy of 1mV (3.6V cell, +25°C). If oversampling is enabled, up to 128 measurements per channel can be averaged internally with 14-bit resolution and combined with digital post-processing IIR filtering for increased noise immunity. The system can shut itself down in the event of a thermal overload by measuring its own die temperature.

For robust communications, the system uses Analog Devices' battery- management UART or SPI protocol for robust communications and supports an I²C master interface for external device control, and is optimized to support a reduced feature set of internal diagnostics and rapid-alert communication through both embedded communication and hardware-alert interfaces to support ASIL D and FMEA requirements.

Applications

48V system
Battery Backup Systems (UPS)
Battery Powered Tools
Electric Bikes
Electric Vehicles (EV)
High Voltage Battery Stacks
Hybrid Electric Vehicles (HEV's)
Super-Cap Systems

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $8.53

{{#if toggleButtonDescription}} {{/if}} {{#if newProjectTitle}} {{/if}}

Technical Documents 2

MAX17852: 14-Channel High-Voltage, ASIL D, Data-Acquisition System with Integrated Current-Sense Amplifier Data Sheet (Rev.1) 11/02/2023

Show More

Streamline Your EV Junction Box Design 06/02/2021

Show More

Reference Materials 2

Video

2

Thumbnail Image

Video

2022-10-04

14:50

Introduction to the MAX17851-MAX17854 SPI to UART Safety Monitoring Bridge and 14 Channel, High Voltage, ASIL D Data Acquisition System

Learn More

Thumbnail Image

Video

2022-10-04

04:33

Introduction to the MAX17852 14 Channel High-Voltage, ASIL D, Data-Acquisition System with Integrated Current Sense Amplifier

Learn More

Show More

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX17852ACB/V+	64-LQFP-10X10X1.4	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX17852ACB/V+T	64-LQFP-10X10X1.4	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

MAX17852ACB/V+
Pin/Package Drawing
64-LQFP-10X10X1.4
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

MAX17852ACB/V+T
Pin/Package Drawing
64-LQFP-10X10X1.4
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Sep 2, 2022

- 2316

WAFER FAB

MAX17852ACB/V+

PRODUCTION

MAX17852ACB/V+T

PRODUCTION

pdf

pcn_2316

Sep 1, 2021

- 2181

ASSEMBLY

MAX17852ACB/V+

PRODUCTION

MAX17852ACB/V+T

PRODUCTION

pdf

pcn_2181

Filter by Model

Part Models

Product Lifecycle

PCN

Sep 2, 2022

- 2316

WAFER FAB

MAX17852ACB/V+

PRODUCTION

MAX17852ACB/V+T

PRODUCTION

pdf

pcn_2316

Sep 1, 2021

- 2181

ASSEMBLY

MAX17852ACB/V+

PRODUCTION

MAX17852ACB/V+T

PRODUCTION

pdf

pcn_2181

MAX17852EVKIT

Evaluation Kit for the MAX17852

MAX17852EVKIT

Evaluation Kit for the MAX17852

Features and Benefits

Provides a Convenient Platform for Evaluating the Features and Functions of the MAX17852
Versatile GUI Interface for Features Evaluation
Plug-and-Play Architecture for Rapid System Prototyping
Force and Sense Pin Headers for Precision Measurement Assessment
Built-In Resistor Stack for Battery Emulation
Proven PCB Layout
Fully Assembled and Tested

Buy Now View Details

Product Detail

The MAX17852 evaluation kit (EV kit) is used to demonstrate the features and capabilities of the MAX17852 14-channel high-voltage smart sensor data-acquisition interface IC. The EV kit is coupled with a MAX17841B EV kit to establish communication to a host PC. With communication established, control of the MAX17852 EV kit is executed through the EV kit graphical user interface (GUI) on the host PC. The GUI is Windows XP^®, Windows Vista^® Windows^® 7, and Windows 10 compatible and is available through your local Maxim Integrated sales office. Note: References to the MAX17841 in this data sheet pertain equally to the MAX17841B as well.

The MAX17852 EV kit design provides a convenient platform for evaluating the features and functions of the IC, in addition to the IC’s electrical parameters. The EV kit with vertical communication connectors (P2, P3, P5, and P6) and snap and lock battery pack connector enable the user to quickly build and evaluate a system with up to 32 daisy-chain devices.

Applications

48V system
Battery Backup Systems (UPS)
Battery Powered Tools
Electric Bikes
Electric Vehicles (EV)
High Voltage Battery Stacks
Hybrid Electric Vehicles (HEV's)
Super-Cap Systems

Resources

ZIP

MAX17852EVKIT ODB Files - Design Files

6.67M

Show More

MAX17852EVKIT

Evaluation Kit for the MAX17852

MAXREFDES1277

MAXREFDES1277

48V Data-Acquisition System with Integrated Current Sense Amplifier for Two-Wheeler Battery Management Applications

zoomopens a dialog

MAXREFDES1277

48V Data-Acquisition System with Integrated Current Sense Amplifier for Two-Wheeler Battery Management Applications

Features and Benefits

3 to 14 cell voltage measurement with ±2mV accuracy at 5°C to 40°C
Supports flexi pack configuration
Pack current measurement using external current sense resistor
Passive cell balancing up to 300mA with internal switch with odd or even cell balancing scheme (single cell or group)

Auto cell balancing configuration with undervoltage (UV) threshold and timer options
Manual cell balancing configuration

Four configurable auxiliary inputs for temperature, voltage, or GPIO
Internal die temperature measurement
Individually configurable safety alert

Overvoltage (OV), undervoltage, overtemperature and undertemperature faults
One cell-mismatch alert

Selectable universal asynchronous receiver- transmitter (UART) or serial peripheral interface (SPI)
UART configurations with packet error checking (PEC)

Dual UART configuration with redundancy
Single UART configuration

Single-side component placement
Compatible with MAX17852EVKIT software along with MINIQUSB board

View Detailed Reference Design

Part Used 2

MAX17852

MAX17853

Design & Integration Tools

ZIP

Download Design Files

1.24 M

maxrefdes1289 figure 1

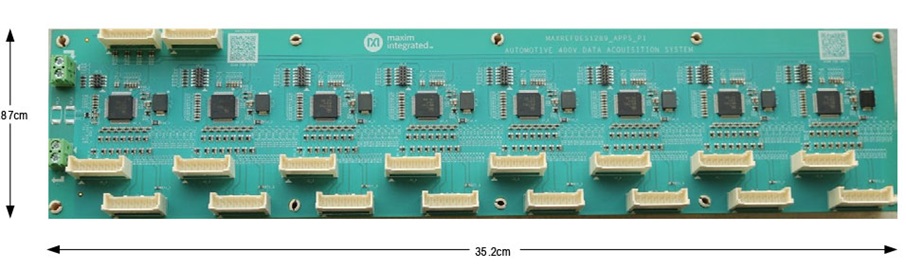

MAXREFDES1289

400V Data-Acquisition System with Integrated Current Sense Amplifier for Four-Wheeler Battery Management Applications

maxrefdes1289 figure 1

zoomopens a dialog

MAXREFDES1289

400V Data-Acquisition System with Integrated Current Sense Amplifier for Four-Wheeler Battery Management Applications

Features and Benefits

Up to 112 cell voltage measurement with ±2mV accuracy at 5°C to 40°C.

Supports flexi-pack configuration.

Pack-current measurement using external current-sense resistor.

Passive cell balancing up to 300mA with internal switch, with odd/even cell balancing scheme (single cell or group).

Auto cell balancing configuration with undervoltage (UV) threshold and timer options.
Manual cell balancing configuration.

Four configurable auxiliary inputs for temperature, voltage, or GPIO.

Internal die temperature measurement. Individually configurable safety alert.

Overvoltage (OV), undervoltage (UV), overtemperature, and undertemperature faults.
One cell mismatch alert.

Selectable Universal Asynchronous Receiver-Transmitter (UART) or Serial Peripheral Interface (SPI).

UART configurations with Packet Error Checking (PEC).

Dual UART configuration with redundancy.
Single UART configuration.

Single-side component placement.

Compatible with MAX17852EVKIT software along with MINIQUSB board.

View Detailed Reference Design

Part Used 2

MAX17853

MAX17852

Design & Integration Tools

ZIP

Download Design Files

2.17 M

96V Data-Acquisition System with Integrated Current Sense Amplifier for Three-Wheeler Battery Management Applications (BMS)

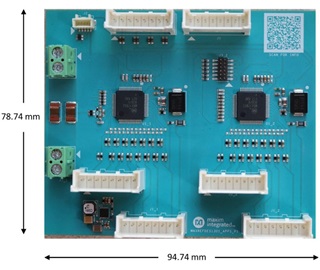

MAXREFDES1301

96V Data-Acquisition System with Integrated Current Sense Amplifier for Three-Wheeler Battery Management Applications (BMS)

96V Data-Acquisition System with Integrated Current Sense Amplifier for Three-Wheeler Battery Management Applications (BMS)

zoomopens a dialog

MAXREFDES1301

96V Data-Acquisition System with Integrated Current Sense Amplifier for Three-Wheeler Battery Management Applications (BMS)

Features and Benefits

6 to 28 cell (minimum 3 cells per pack) voltage measurement with ±2mV accuracy at 5°C to 40°C
Supports flexi pack configuration
Pack current measurement using external current sense resistor
Passive cell balancing up to 300mA with internal switch using odd or even cell balancing scheme (single cell or group)
- Auto cell balancing configuration with undervoltage (UV) threshold and timer options
- Manual cell balancing configuration
Configurable auxiliary inputs
- Six aux channels for the MAX17853, all configured for temperature measurement
- Four aux channels for the MAX17852, configured for I²C and GPIO
Internal die temperature measurement
Individually configurable safety alert
- Overvoltage (OV), undervoltage, overtemperature and under temperature faults
- One cell mismatch alert
Selectable universal asynchronous receiver-transmitter (UART) or serial peripheral interface (SPI)
ART configurations with packet error checking (PEC)
- Dual UART configuration with redundancy
- Single UART configuration
Compatible with the MAX17852 and MAX17853 EV Kit software along with MINIQUSB board

View Detailed Reference Design

Part Used 2

MAX17852

MAX17853

Design & Integration Tools

ZIP

Download Design Files

1.31 M
