MAX17597

Name: MAX17597
Brand: Analog Devices
Availability: InStock

PRODUCTION

Peak-Current-Mode Controllers for Flyback and Boost Regulators

Enable Compact, Cost-Effective, and Highly Flexible Isolated/Nonisolated Power Supplies

Data Sheet (Rev. 5) Product Selection Table

Part Models: 2
1ku List Price: Starting From $1.47

Viewing:

Overview

Programmable Switching Frequency Allows Optimization of the Magnetic and Filter Components, Resulting in Compact, Cost-Effective, Efficient Isolated/Non-Isolated Power Supplies
- 100kHz to 1MHz Programmable Switching Frequency with Optional Synchronization
- Peak Current Mode Control Provides Excellent Transient Response
  - Offline (Universal Input AC) and Telecom (36V to 72V) Flyback Controller—MAX17595
  - DC-DC (4.5V to 36V) Flyback Controller—MAX17596
  - Nonsynchronous (4.5V to 36V) Boost PWM Controller—MAX17597
- 3mm x 3mm TQFN Package
Programmable Frequency Dithering Enables Low-EMI Spread-Spectrum Operation
Integrated Protection Features Enhance System Reliability
- Adjustable Current Limit with External Current-Sense Resistor
- Fast Cycle-By-Cycle Peak Current Limiting
- Hiccup-Mode Short-Circuit Protection
- Overtemperature Protection
- Programmable Soft-Start and Slope Compensation
- Input Overvoltage Protection

Part Models: 2
1ku List Price: Starting From $1.47

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX17597ATE+	Thin Quad Flatpack, No Leads	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX17597ATE+T	Thin Quad Flatpack, No Leads	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 27, 2024 - 2400 ASSEMBLY
		pcn_2400
MAX17597ATE+	PRODUCTION
MAX17597ATE+T	PRODUCTION
Oct 11, 2013 - 1345 ASSEMBLY
		pcn_1345
MAX17597ATE+	PRODUCTION	pcn_1345
Apr 20, 2026 - 2571D PIN/ERRATA
		pcn_2571d
MAX17597ATE+T	PRODUCTION	pcn_2571d

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Switching Regulators & Controllers 2
MAX17499	PRODUCTION	Current-Mode PWM Controllers with Programmable Switching Frequency
MAX17500	PRODUCTION	Current-Mode PWM Controllers with Programmable Switching Frequency

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

MAX17597

ADI Power Studio™ Designer

ADI Power Studio™ Designer is the next-generation tool for IC-level, power supply design, guiding engineers to faster, validated solutions.

Learn More

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluation Kit for the MAX17597 Boost Configuration

Buy Now View Details

Features and Benefits

8V to 14V Input Range
Output Voltage: 24V at 1A
600kHz Switching Frequency
Efficiency Up to 95.6%
Low-Cost Boost Converter Design
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX17597 evaluation kit (EV kit) is a fully assembled and tested surface-mount circuit board to evaluate the MAX17597 peak-current-mode controller in a step-up (boost) configuration. The EV kit output is configured for 24V output voltage that can supply up to 1A of current. The input voltage range is from 8V to 14V.

High efficiency up to 95.6% is achieved using a boost converter operating at a switching frequency of 600kHz, providing an output power up to 24W.

Applications

Battery-Powered Applications
Industrial, Telecom, and Automotive Applications
Universal Input Offline AC-DC Power Supplies
Wide-Range DC-Input Flyback/Boost Battery Chargers

Evaluation Kit for the MAX17595

Buy Now View Details

Features and Benefits

85V AC to 265V AC or 120V DC to 375V DC Input Range
15V DC at 1.5A Isolated Output Voltage
Galvanic Isolation Up to 3500V_RMS
120kHz Switching Frequency
Efficiency Up to 86%
Low-Cost Flyback Design
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX17595 evaluation kit (EV kit) is a fully assembled and tested circuit board that contains MAX17595 peak-current-mode controller for a flyback regulator. The EV kit is configured for an isolated 15V DC output voltage that can supply up to 1.5A current. The line input voltage range is from 85V AC to 265V AC or 120V DC to 375V DC.

The EV kit demonstrates low quiescent current and efficiency up to 86%. This high efficiency is achieved by using a single-transistor (MOSFET) flyback converter topology that operates at 120kHz switching frequency. The surface-mount transformer has a tertiary winding to power the IC after startup. An optocoupler, along with the transformer, provides galvanic isolation up to 3500V_RMS.

Warning: The EV kit is designed to operate with high voltages. Dangerous voltages are present on this EV kit and on equipment connected to it. Users who power up this EV kit or the power sources connected to it must be careful to follow safety procedures appropriately to work with high-voltage electrical equipment.

Under severe fault or failure conditions, this EV kit may dissipate large amounts of power, which could result in the mechanical ejection of a component or of component debris at high velocity. Operate this EV kit with care to avoid possible personal injury.

Applications

Battery-Powered Applications
Industrial, Telecom, and Automotive Applications
Universal Input Offline AC-DC Power Supplies
Wide-Range DC-Input Flyback/Boost Battery Chargers

Evaluation Kit for the MAX17596

Buy Now View Details

Features and Benefits

18V to 36V Input Range
Isolated Output: 24V DC at 20W
Cycle-by-Cycle Current Limit
Resistor Programmable UVLO/OVI Threshold
Low-Cost Flyback Design
Galvanic Isolation Up to 1500V_RMS
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX17596 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates an isolated 20W fly-back DC-DC converter. The circuit uses the device’s peak current-mode controller in a 16-pin TQFN package with an exposed pad. The EV kit demonstrates the IC’s cycle-by-cycle current limit, soft-start, and EN/ UVLO features.

The EV kit circuit output is configured for an isolated +24V and provides up to 833mA of output current. The EV kit is configured to operate at a 200kHz switching frequency. An optocoupler, along with the transformer, provides galvanic isolation between the input and output, up to 1500V_RMS.

Applications

Battery-Powered Applications
Industrial and Telecom Applications
Universal Input Offline AC-DC Power Supplies
Wide-Range DC-Input Flyback/Boost Battery Chargers

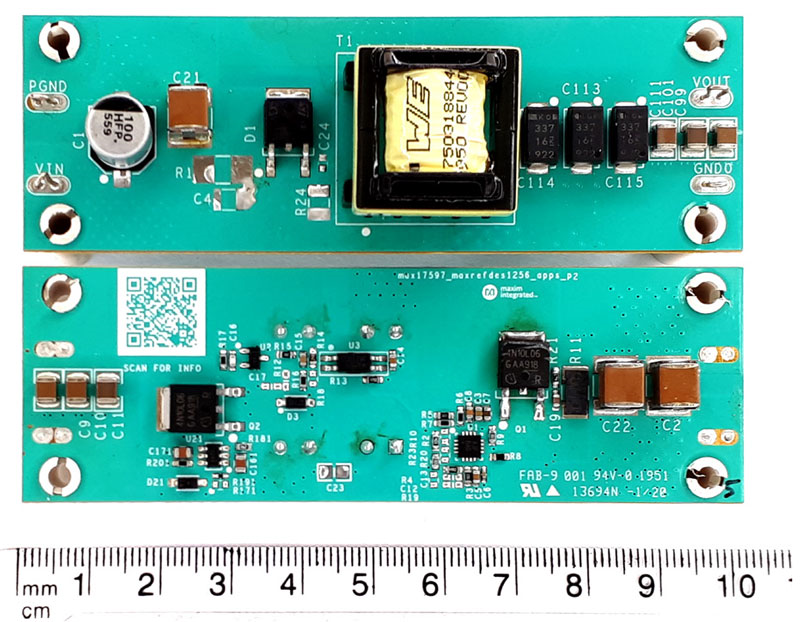

Evaluation Kit for the MAX17597 Flyback Configuration

Buy Now View Details

Features and Benefits

18V to 36V Input Range
Isolated Output: 24V DC at 20W
Cycle-by-Cycle Current Limit
Resistor Programmable UVLO/OVI Threshold
Low-Cost Flyback Design
Galvanic Isolation Up to 1500V_RMS
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX17597 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates an isolated 20W flyback DC-DC converter. The circuit uses the device’s peak-current-mode controller in a 16-pin TQFN package with an exposed pad. The EV kit demonstrates the IC’s cycle-by-cycle current-limit, soft-start, and EN/UVLO features.

The EV kit circuit output is configured for an isolated 24V and provides up to 833mA of output current. The EV kit is configured to operate at a 200kHz switching frequency. An optocoupler, along with the transformer, provides galvanic isolation between input and output, up to 1500V_RMS.

Applications
