MAX17595

Peak-Current-Mode Controllers for Flyback and Boost Regulators

Enable Compact, Cost-Effective, and Highly Flexible Isolated/Nonisolated Power Supplies

PRODUCTION

MAX17595, MAX17596, MAX17597: Startup Circuits slide

MAX17595, MAX17596, MAX17597: Startup Circuits

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $0.89

Features

Programmable Switching Frequency Allows Optimization of the Magnetic and Filter Components, Resulting in Compact, Cost-Effective, Efficient Isolated/Non-Isolated Power Supplies
- 100kHz to 1MHz Programmable Switching Frequency with Optional Synchronization
- Peak Current Mode Control Provides Excellent Transient Response
  - Offline (Universal Input AC) and Telecom (36V to 72V) Flyback Controller—MAX17595
  - DC-DC (4.5V to 36V) Flyback Controller—MAX17596
  - Nonsynchronous (4.5V to 36V) Boost PWM Controller—MAX17597
- 3mm x 3mm TQFN Package
Programmable Frequency Dithering Enables Low-EMI Spread-Spectrum Operation
Integrated Protection Features Enhance System Reliability
- Adjustable Current Limit with External Current-Sense Resistor
- Fast Cycle-By-Cycle Peak Current Limiting
- Hiccup-Mode Short-Circuit Protection
- Overtemperature Protection
- Programmable Soft-Start and Slope Compensation
- Input Overvoltage Protection

Additional Details

The MAX17595/MAX17596/MAX17597 is a family of peak-current-mode controllers for design of wide input-voltage flyback and boost regulators. The MAX17595 offers optimized input thresholds for universal input AC-DC converters and telecom DC-DC (36V to 72V input range) power supplies. The MAX17596/MAX17597 offer input thresholds suitable for low-voltage DC-DC applications (4.5V to 36V). The MAX17597 implements a boost converter. All three controllers contain a built-in gate driver for external n-channel MOSFETs.

The MAX17595/MAX17596/MAX17597 house an internal error amplifier with 1% accurate reference, eliminating the need for an external reference. The switching frequency is programmable from 100kHz to 1MHz with an accuracy of 8%, allowing optimization of magnetic and filter components, resulting in compact and cost-effective power conversion. For EMI-sensitive applications, the MAX17595/MAX17596/MAX17597 family incorporates a programmable frequency dithering scheme, enabling low-EMI spread-spectrum operation.

Users can start the power supply precisely at the desired input voltage, implement input overvoltage protection, and program soft-start time. A programmable slope compensation scheme is provided to ensuree stability of the peak-current-mode control scheme.

Hiccup-mode overcurrent protection and thermal shutdown are provided to minimize dissipation in overcurrent and overtemperature fault conditions.

Applications

Battery-Powered Applications
Industrial and Telecom Applications
Universal Input Offline AC-DC Power Supplies
Wide-Range DC-Input Flyback/Boost Battery Chargers

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $0.89

Technical Documents 4

MAX17595-MAX17597: Peak-Current-Mode Controllers for Flyback and Boost Regulators Data Sheet (Rev.5) 06/26/2017

MAX17595 Reliability Data 01/12/2023

UG-5861: EE-SIM Design and Simulation Environment User Guide 05/05/2014

Designing Flyback Converters Using Peak-Current-Mode Controllers 11/27/2012

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX17595ATE+	Thin Quad Flatpack, No Leads	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX17595ATE+T	Thin Quad Flatpack, No Leads	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

MAX17595ATE+
Pin/Package Drawing
Thin Quad Flatpack, No Leads
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

MAX17595ATE+T
Pin/Package Drawing
Thin Quad Flatpack, No Leads
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Apr 27, 2024

- 2400

ASSEMBLY

MAX17595ATE+

PRODUCTION

MAX17595ATE+T

PRODUCTION

pdf

pcn_2400

Oct 11, 2013

- 1345

ASSEMBLY

MAX17595ATE+

PRODUCTION

MAX17595ATE+T

PRODUCTION

pdf

pcn_1345

Filter by Model

Part Models

Product Lifecycle

PCN

Apr 27, 2024

- 2400

ASSEMBLY

MAX17595ATE+

PRODUCTION

MAX17595ATE+T

PRODUCTION

pdf

pcn_2400

Oct 11, 2013

- 1345

ASSEMBLY

MAX17595ATE+

PRODUCTION

MAX17595ATE+T

PRODUCTION

pdf

pcn_1345

Companion Parts 2

Parts	Product Life Cycle	Description
External Power Switch Boost Controllers1
MAX17499	PRODUCTION	Current-Mode PWM Controllers with Programmable Switching Frequency
Flyback, Forward, and Isolated Controller1
MAX17500	PRODUCTION	Current-Mode PWM Controllers with Programmable Switching Frequency

MAX17597EVKIT

Evaluation Kit for the MAX17597 Boost Configuration

MAX17597EVKIT

Evaluation Kit for the MAX17597 Boost Configuration

Features and Benefits

8V to 14V Input Range
Output Voltage: 24V at 1A
600kHz Switching Frequency
Efficiency Up to 95.6%
Low-Cost Boost Converter Design
Proven PCB Layout
Fully Assembled and Tested

Buy Now View Details

Product Detail

The MAX17597 evaluation kit (EV kit) is a fully assembled and tested surface-mount circuit board to evaluate the MAX17597 peak-current-mode controller in a step-up (boost) configuration. The EV kit output is configured for 24V output voltage that can supply up to 1A of current. The input voltage range is from 8V to 14V.

High efficiency up to 95.6% is achieved using a boost converter operating at a switching frequency of 600kHz, providing an output power up to 24W.

Applications

Battery-Powered Applications
Industrial, Telecom, and Automotive Applications
Universal Input Offline AC-DC Power Supplies
Wide-Range DC-Input Flyback/Boost Battery Chargers

MAX17595EVKIT

Evaluation Kit for the MAX17595

MAX17595EVKIT

Evaluation Kit for the MAX17595

Features and Benefits

85V AC to 265V AC or 120V DC to 375V DC Input Range
15V DC at 1.5A Isolated Output Voltage
Galvanic Isolation Up to 3500V_RMS
120kHz Switching Frequency
Efficiency Up to 86%
Low-Cost Flyback Design
Proven PCB Layout
Fully Assembled and Tested

Buy Now View Details

Product Detail

The MAX17595 evaluation kit (EV kit) is a fully assembled and tested circuit board that contains MAX17595 peak-current-mode controller for a flyback regulator. The EV kit is configured for an isolated 15V DC output voltage that can supply up to 1.5A current. The line input voltage range is from 85V AC to 265V AC or 120V DC to 375V DC.

The EV kit demonstrates low quiescent current and efficiency up to 86%. This high efficiency is achieved by using a single-transistor (MOSFET) flyback converter topology that operates at 120kHz switching frequency. The surface-mount transformer has a tertiary winding to power the IC after startup. An optocoupler, along with the transformer, provides galvanic isolation up to 3500V_RMS.

Warning: The EV kit is designed to operate with high voltages. Dangerous voltages are present on this EV kit and on equipment connected to it. Users who power up this EV kit or the power sources connected to it must be careful to follow safety procedures appropriately to work with high-voltage electrical equipment.

Under severe fault or failure conditions, this EV kit may dissipate large amounts of power, which could result in the mechanical ejection of a component or of component debris at high velocity. Operate this EV kit with care to avoid possible personal injury.

Applications

Battery-Powered Applications
Industrial, Telecom, and Automotive Applications
Universal Input Offline AC-DC Power Supplies
Wide-Range DC-Input Flyback/Boost Battery Chargers

MAX17596EVKIT

Evaluation Kit for the MAX17596

MAX17596EVKIT

Evaluation Kit for the MAX17596

Features and Benefits

18V to 36V Input Range
Isolated Output: 24V DC at 20W
Cycle-by-Cycle Current Limit
Resistor Programmable UVLO/OVI Threshold
Low-Cost Flyback Design
Galvanic Isolation Up to 1500V_RMS
Proven PCB Layout
Fully Assembled and Tested

Buy Now View Details

Product Detail

The MAX17596 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates an isolated 20W fly-back DC-DC converter. The circuit uses the device’s peak current-mode controller in a 16-pin TQFN package with an exposed pad. The EV kit demonstrates the IC’s cycle-by-cycle current limit, soft-start, and EN/ UVLO features.

The EV kit circuit output is configured for an isolated +24V and provides up to 833mA of output current. The EV kit is configured to operate at a 200kHz switching frequency. An optocoupler, along with the transformer, provides galvanic isolation between the input and output, up to 1500V_RMS.

Applications

Battery-Powered Applications
Industrial and Telecom Applications
Universal Input Offline AC-DC Power Supplies
Wide-Range DC-Input Flyback/Boost Battery Chargers

MAX17597FBEVKIT

Evaluation Kit for the MAX17597 Flyback Configuration

MAX17597FBEVKIT

Evaluation Kit for the MAX17597 Flyback Configuration

Features and Benefits

18V to 36V Input Range
Isolated Output: 24V DC at 20W
Cycle-by-Cycle Current Limit
Resistor Programmable UVLO/OVI Threshold
Low-Cost Flyback Design
Galvanic Isolation Up to 1500V_RMS
Proven PCB Layout
Fully Assembled and Tested

Buy Now View Details

Product Detail

The MAX17597 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates an isolated 20W flyback DC-DC converter. The circuit uses the device’s peak-current-mode controller in a 16-pin TQFN package with an exposed pad. The EV kit demonstrates the IC’s cycle-by-cycle current-limit, soft-start, and EN/UVLO features.

The EV kit circuit output is configured for an isolated 24V and provides up to 833mA of output current. The EV kit is configured to operate at a 200kHz switching frequency. An optocoupler, along with the transformer, provides galvanic isolation between input and output, up to 1500V_RMS.

Applications

Battery-Powered Applications
Industrial and Telecom Applications
Universal Input Offline AC-DC Power Supplies
Wide-Range DC-Input Flyback/Boost Battery Chargers

MAX17597EVKIT

Evaluation Kit for the MAX17597 Boost Configuration

MAX17595EVKIT

Evaluation Kit for the MAX17595

MAX17596EVKIT

Evaluation Kit for the MAX17596

MAX17597FBEVKIT

Evaluation Kit for the MAX17597 Flyback Configuration

SIMPLIS Models 6

Simulation Model

SIMPLIS Models

MAXREFDES1013 SIMPLIS Schematic

1.01MB

SIMPLIS Models

MAXREFDES1036 SIMPLIS Schematic

830.83KB

SIMPLIS Models

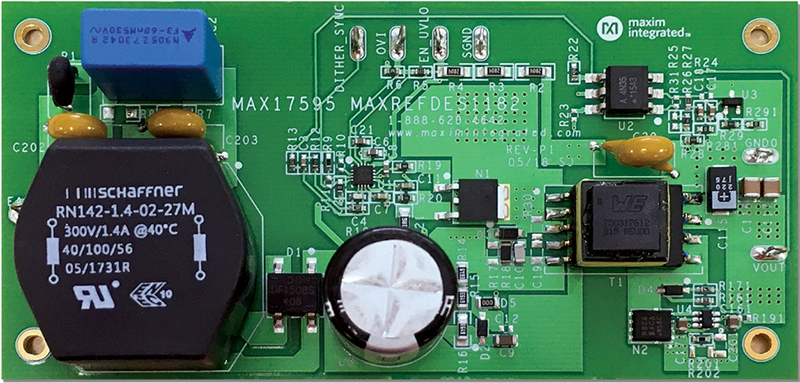

MAXREFDES1182 SIMPLIS Schematic

867.57KB

SIMPLIS Models

MAXREFDES1037 SIMPLIS Schematic

1.10MB

SIMPLIS Models

MAXREFDES1185 SIMPLIS Schematic

1.46MB

SIMPLIS Models

MAXREFDES1183 SIMPLIS Schematic

792.01KB

MAXREFDES1191

15W 5V Offline Flyback Converter Using the MAX17595

MAXREFDES1191

15W 5V Offline Flyback Converter Using the MAX17595

Features and Benefits

Programmable Switching Frequency Allows Optimization of the Magnetic and Filter Components, Resulting in Compact, Cost-Effective, Efficient Isolated/Nonisolated Power Supplies
100kHz to 1MHz Programmable Switching Frequency with Optional Synchronization
Peak Current Mode Control Provides Excellent Transient Response—Offline (Universal Input AC) and Telecom (36V to 72V) Flyback Controller
Programmable Frequency Dithering Enables Low EMI Spread-Spectrum Operation
Integrated Protection Features Enhance System Reliability
Adjustable Current Limit with External Current Sense Resistor
Fast Cycle-By-Cycle Peak Current Limiting Hiccup-Mode Short-Circuit Protection
Overtemperature Protection
Programmable Soft-Start and Slope Compensation
Input Overvoltage Protection

View Detailed Reference Design

Part Used 2

MAX17606

MAX17595

Design & Integration Tools

ZIP

Download Design Files

3.09 M

MAXREFDES1037

72W Offline Flyback Converter Using the MAX17595

MAXREFDES1037

72W Offline Flyback Converter Using the MAX17595

Features and Benefits

Programmable Switching Frequency Allows Optimization of the Magnetic and Filter Components, Resulting in Compact, Cost-Effective, Efficient Isolated/ Nonisolated Power Supplies
00kHz to 1MHz Programmable Switching Frequency with Optional Synchronization
Peak Current Mode Control Provides Excellent Transient Response—Offline (Universal Input AC) and Telecom (36V to 72V) Flyback Controller
Programmable Frequency Dithering Enables Low EMI Spread-Spectrum Operation
Integrated Protection Features Enhance System Reliability
Adjustable Current Limit with External Current Sense Resistor
Fast Cycle-By-Cycle Peak Current Limiting Hiccup-Mode Short-Circuit Protection
Overtemperature Protection
Programmable Soft-Start and Slope Compensation
Input Overvoltage Protection

View Detailed Reference Design

Part Used 1

MAX17595

Design & Integration Tools

ZIP

Download Design Files

1.86 M

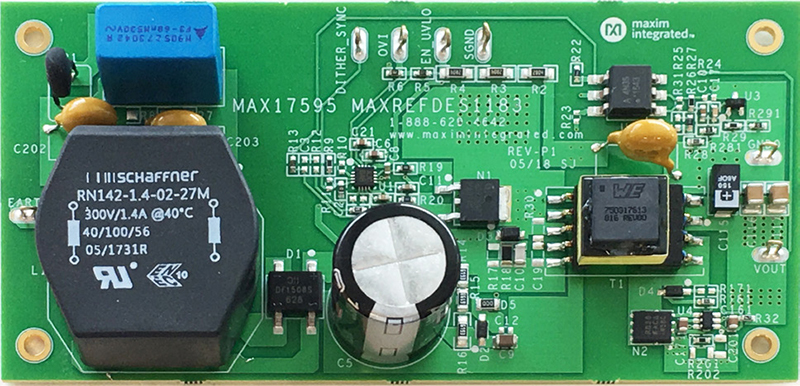

MAXREFDES1183

3.5W 5V Offline Flyback Converter Using MAX17595

MAXREFDES1183

3.5W 5V Offline Flyback Converter Using MAX17595

Features and Benefits

Programmable Switching Frequency Allows Optimization of the Magnetic and Filter Components, Resulting in Compact, Cost-Effective, Efficient Isolated/ Nonisolated Power Supplies
100kHz to 1MHz Programmable Switching Frequency with Optional Synchronization
Peak Current Mode Control Provides Excellent Transient Response—Offline (Universal Input AC) and Telecom (36V to 72V) Flyback Controller
Programmable Frequency Dithering Enables Low EMI Spread-Spectrum Operation
Integrated Protection Features Enhance System Reliability
Adjustable Current Limit with External Current Sense Resistor
Fast Cycle-By-Cycle Peak Current Limiting Hiccup-Mode Short-Circuit Protection
Overtemperature Protection
Programmable Soft-Start and Slope Compensation
Input Overvoltage Protection

View Detailed Reference Design

Part Used 2

MAX17606

MAX17595

Design & Integration Tools

ZIP

Download Design Files

2.14 M

MAXREFDES1187

7.5W 5V Offline Flyback Converter Using the MAX17595

MAXREFDES1187

7.5W 5V Offline Flyback Converter Using the MAX17595

Features and Benefits

Programmable Switching Frequency Allows Optimization of the Magnetic and Filter Components, Resulting in Compact, Cost-Effective, Efficient Isolated/ Nonisolated Power Supplies
100kHz to 1MHz Programmable Switching Frequency with Optional Synchronization
Peak Current Mode Control Provides Excellent Transient Response—Offline (Universal Input AC) and Telecom (36V to 72V) Flyback Controller
Programmable Frequency Dithering Enables Low EMI Spread-Spectrum Operation
Integrated Protection Features Enhance System Reliability
Adjustable Current Limit with External Current Sense Resistor
Fast Cycle-By-Cycle Peak Current Limiting Hiccup-Mode Short-Circuit Protection
Overtemperature Protection
Programmable Soft-Start and Slope Compensation
Input Overvoltage Protection

View Detailed Reference Design

Part Used 2

MAX17606

MAX17595

Design & Integration Tools

ZIP

Download Design Files

1.71 M

MAXREFDES1182

3.5W 3.3V Offline Flyback Converter Using the MAX17595

MAXREFDES1182

3.5W 3.3V Offline Flyback Converter Using the MAX17595

Features and Benefits

Programmable Switching Frequency Allows Optimization of the Magnetic and Filter Components, Resulting in Compact, Cost-Effective, Efficient Isolated/Nonisolated Power Supplies
100kHz to 1MHz Programmable Switching Frequency with Optional Synchronization
Peak Current Mode Control Provides Excellent Transient Response—Offline (Universal Input AC) and Telecom (36V to 72V) Flyback Controller
Programmable Frequency Dithering Enables Low EMI Spread-Spectrum Operation
Integrated Protection Features Enhance System Reliability
Adjustable Current Limit with External Current Sense Resistor
Fast Cycle-By-Cycle Peak Current Limiting Hiccup-Mode Short-Circuit Protection
Overtemperature Protection
Programmable Soft-Start and Slope Compensation
Input Overvoltage Protection

View Detailed Reference Design

Part Used 1

MAX17595

Design & Integration Tools

ZIP

Download Design Files

1.65 M

MAXREFDES1010

24V/300mA, No-Opto Isolated Flyback DC-DC Converter Reference Design

MAXREFDES1010

24V/300mA, No-Opto Isolated Flyback DC-DC Converter Reference Design

Features and Benefits

4.5V to 60V Input Voltage Range
Programmable Switching Frequency from 50kHz to 250kHz
Programmable Input Enable/UVLO Feature
Programmable Input Overvoltage Protection
Adjustable Soft-Start
2A/4A Peak Source/Sink Gate Drive Capability
Hiccup Mode Short-Circuit Protection
Fast Cycle-by-Cycle Peak Current Limit
Thermal Shutdown Protection
Space-Saving, 16-Pin, 3mm × 3mm TQFN Package
-40℃ to +125℃ Operating Temperature Range

View Detailed Reference Design

Part Used 2

MAX17595

MAX17690

Design & Integration Tools

ZIP

Download Design Files

2.56 M

MAXREFDES1013

12W Offline Flyback Converter Using MAX17595

MAXREFDES1013

12W Offline Flyback Converter Using MAX17595

Features and Benefits

Programmable Switching Frequency Allows Optimization of the Magnetic and Filter Components, Resulting in Compact, Cost-Effective, Efficient Isolated/ Nonisolated Power Supplies
100kHz to 1MHz Programmable Switching Frequency with Optional Synchronization
Peak Current Mode Control Provides Excellent Transient Response—Offline (Universal Input AC) and Telecom (36V to 72V) Flyback Controller
Programmable Frequency Dithering Enables Low EMI Spread-Spectrum Operation
Integrated Protection Features Enhance System Reliability
Adjustable Current Limit with External Current Sense Resistor
Fast Cycle-By-Cycle Peak Current Limiting Hiccup-Mode Short-Circuit Protection
Overtemperature Protection
Programmable Soft-Start and Slope Compensation
Input Overvoltage Protection

View Detailed Reference Design

Part Used 1

MAX17595

Design & Integration Tools

ZIP

Download Design Files

3.19 M

MAXREFDES1249

Miniature Universal Input 36W AC-DC Flyback Converter using the MAX17595

MAXREFDES1249

Miniature Universal Input 36W AC-DC Flyback Converter using the MAX17595

Features and Benefits

Features

Programmable frequency dithering for a low-EMI (electromagnetic interference) spread-spectrum operation
Programmable switching frequency optimizes the magnetic and filter components for compact, cost-effective, and efficient isolated/non-isolated power supplies
Isolation of 4000V AC between the primary and secondary sides
EMI and EMC (electromagnetic compatibility) compliant design
Programmable input enable/UVLO (undervoltage lockout) feature
Programmable input overvoltage protection
Adjustable soft-start
Hiccup-mode, short-circuit protection
Fast cycle-by-cycle peak current limit
Thermal shutdown protection
Space-saving, 16-pin, 3mm x 3mm TQFN (thin quad flat no-leads) package
Operating temperature range of -40°C to +125°C

View Detailed Reference Design

Part Used 1

MAX17595

Design & Integration Tools

ZIP

Download Design Files

1.11 M

MAXREFDES1186

7.5W 3.3V Offline Flyback Converter Using the MAX17595

MAXREFDES1186

7.5W 3.3V Offline Flyback Converter Using the MAX17595

Features and Benefits

Programmable Switching Frequency Allows Optimization of the Magnetic and Filter Components, Resulting in Compact, Cost-Effective, Efficient Isolated/Nonisolated Power Supplies
100kHz to 1MHz Programmable Switching Frequency with Optional Synchronization
Peak Current Mode Control Provides Excellent Transient Response—Offline (Universal Input AC) and Telecom (36V to 72V) Flyback Controller
Programmable Frequency Dithering Enables Low EMI Spread-Spectrum Operation
Integrated Protection Features Enhance System Reliability
Adjustable Current Limit with External Current Sense Resistor
Fast Cycle-By-Cycle Peak Current Limiting Hiccup-Mode Short-Circuit Protection
Overtemperature Protection
Programmable Soft-Start and Slope Compensation
Input Overvoltage Protection
