MAX17303
1-Cell ModelGauge m5 EZ Fuel Gauge with Protector, Internal Self-Discharge Detection and SHA-256 Authentication
Industry's Lowest IQ Stand-Alone Fuel Gauge with Protector
Top
Overview
Features and Benefits
- Battery Health + Programmable Safety/Protection
- Overvoltage (Temperature Dependent)
- Overcharge Current
- Over/Undertemperature
- Battery Internal Self-Discharge Detection (MAX17300/10 Only)
- Ideal Diode Discharge During Charge Fault
- Charging Prescriptions (JEITA)
- Zero-Volt Charging Option
- Undervoltage + SmartEmpty
- Overdischarge/Short-Circuit
- Nonvolatile Memory for Stand-Alone Operation
- History Logging, User Data (122 Bytes)
- Low Quiescent Current
- FETs Enabled: 24µA Active, 18µA Hibernate
- FETs Disabled: 5µA Ship, 0.5µA/0.02µA DeepShip
- Parallel Battery Management (MAX17300/10 Only)
- Pushbutton Wakeup—Eliminates System Consumption Until Button Press
- ModelGauge m5 EZ Algorithm
- Percent, Capacity,Time-to-Empty/Full, Age
- Cycle+™ Age Forecast
- Dynamic Power—Estimates Power Capability
- Precision Measurement Without Calibration
- Current, Voltage, Power, Time, Cycles
- Die Temperature/Thermistor
Product Details
The MAX17300–MAX17303/MAX17310–MAX17313 is a 24μA IQ stand-alone pack-side fuel gauge IC with protector and optional SHA-256 authentication for 1-cell lithium-ion/polymer batteries.
The IC monitors the voltage, current, temperature, and state of the battery to provide against over/undervoltage, overcurrent, short-circuit, over/undertemperature and overcharge conditions protection using external high-side N-FETs, and provides charging prescription to ensure that the lithium-ion/polymer battery operates under safe conditions prolonging the life of the battery.
To prevent battery pack cloning, the IC integrates SHA-256 authentication with a 160-bit secret key. Each IC incorporates a unique 64-bit ID.
The fuel gauge uses ModelGauge m5 algorithm that combines the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge to provide industry-leading fuel-gauge accuracy.
The IC automatically compensates for cell aging, temperature, and discharge rate, and provides accurate state-of-charge (SOC) in milliampere-hours (mAh) or percentage (%) over a wide range of operating conditions.
Dynamic power functionality provides the instantaneous maximum battery output power which can be delivered to the system without violating the minimum system input voltage.

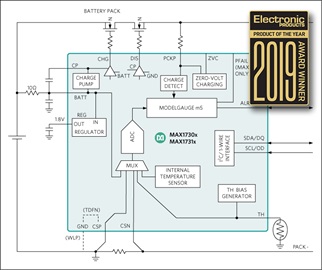

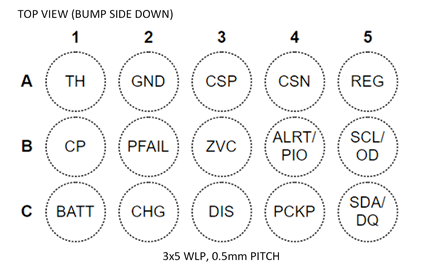

A Maxim 1-Wire® or 2-wire I2C interface provides access to data and control registers. The IC is available in a lead-free, 3mm x 3mm 14-pin TDFN and 1.7mm x 2.5mm 15-bump 0.5mm pitch WLP packages.
Applications
- Smartphones, Tablets, and 2-in-1 Laptops
- Smartwatches and Wearables
- Medical Devices, Health and Fitness Monitors
- Digital Still, Video, and Action Cameras
- Handheld Computers and Terminals
- Handheld Radios
- Home and Building Automation, Sensors
- Smart Batteries
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

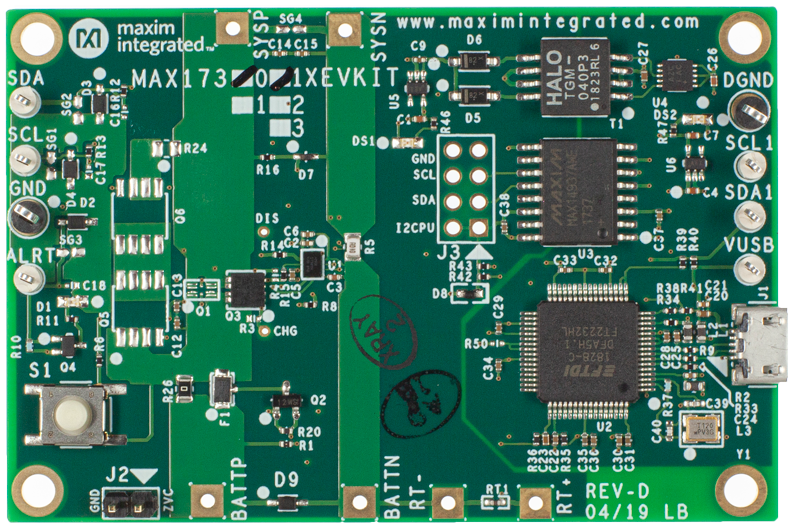

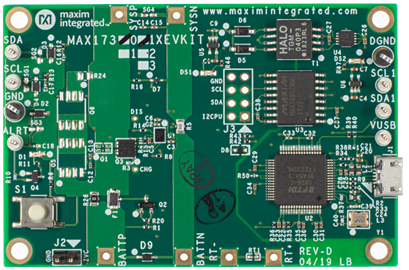

Evaluation Kits (12)
