Overview

Features and Benefits

  • 2µA Supply Current
  • Reverse-Battery Protection
  • +2.5V to +12V Input Voltage Range
  • Fixed 1.8V, 2.5V, 3.3V, and 5V Output Voltages (MAX1726)
  • Adjustable 1.5V to 5V Output Voltages (MAX1725)
  • 20mA Guaranteed Output Current
  • 1.5% Output Voltage Accuracy
  • Small 1µF Output Capacitor
  • Short-Circuit Protection
  • Thermal Protection
  • Tiny 5-Pin SOT23 Package

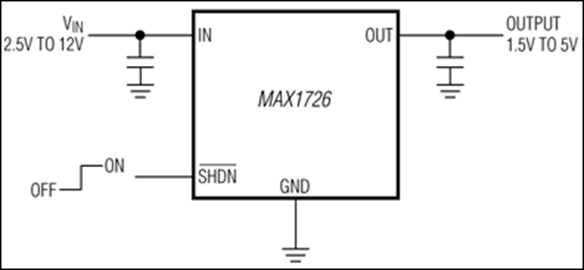

Product Details

The MAX1725/MAX1726 are ultra-low supply current, low-dropout linear regulators intended for low-power applications that demand the longest possible battery life. Unlike inferior PNP-based designs, the MAX1725/MAX1726s' PMOS pass elements maintain an ultra-low 2µA supply current throughout their entire operating range and in dropout. Despite their ultra-low power consumption, the MAX1725/MAX1726 have tight output accuracy (1.5%) and require just 1µF output capacitance to achieve good load-transient response.

These regulators have a wide input voltage range (+2.5V to +12V), making them excellent choices for systems powered from two lithium-ion (Li+) cells and 9V batteries. Other features include reverse-battery protection, short-circuit protection, and thermal protection.

The MAX1725 provides an adjustable 1.5V to 5V output using an external resistor-divider. The MAX1726 provides factory preset 1.8V, 2.5V, 3.3V, or 5V output voltages (see the Ordering Information in the full data sheet). Both devices are available in a tiny 5-pin SOT23 package.

Applications

  • Battery-Powered Alarms
  • Industrial Control Systems
  • Microcontroller Power
  • PDAs and Handy-Terminals
  • Real-Time Clock Backup Power
  • Remote Transmitters
  • Smart Battery Packs/Chargers
  • Smoke Detectors

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
