Features and Benefits
- 14-Bit-Wide (MAX1065) and Byte-Wide (MAX1066) Parallel Interface
- High Speed: 165ksps Sample Rate
- Accurate: ±1 LSB DNL (max), ±1 LSB INL (max)
- 4.096V, 35ppm/°C Internal Reference
- External Reference Range 3.8V to 5.25V
- Single 4.75V to 5.25V Analog Supply Voltage
- 2.7V to 5.25V Digital Supply Voltage
- Low Supply Current
- 1.8mA (External Reference)
- 2.7mA (Internal Reference)
- 0.1mA AutoShutdown Mode (10ksps, External Reference)
- Small Footprint
- 28-Pin TSSOP Package (14-Bit Wide)
- 20-Pin TSSOP Package (Byte Wide)

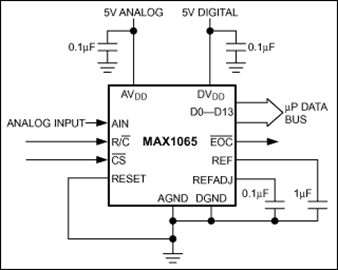

The MAX1065/MAX1066 14-bit, low-power successive approximation analog-to-digital converters (ADCs) feature automatic power-down, a factory-trimmed internal clock, and a high-speed, 14-bit-wide (MAX1065) or byte-wide (MAX1066) parallel interface. The devices operate from a single 4.75V to 5.25V analog supply and a 2.7V to 5.25V digital supply.
The MAX1065/MAX1066 use an internal 4.096V reference or an external reference. The MAX1065/MAX1066 consume only 1.8mA at a sampling rate of 165ksps with external reference and 2.7mA with internal reference. AutoShutdown™ reduces supply current to 0.1mA at 10ksps.
The MAX1065/MAX1066 are ideal for high-performance, battery-powered, data-acquisition applications. Excellent dynamic performance and low-power consumption in a small package make the MAX1065/MAX1066 the best choice for circuits with demanding power consumption and space requirements.
The 14-bit-wide MAX1065 is available in a 28-pin TSSOP package, and the byte-wide MAX1066 is available in a 20-pin TSSOP package. Both devices are available in either the 0°C to +70°C commercial, or the -40°C to +85°C extended temperature range.
- Accelerometer Measurements
- Cable/Harness Tester
- Data Acquisition
- Digital Signal Processing (DSP)
- I/O Boards
- Industrial Process Controls
- Temperature Sensing and Monitoring
