LTM4600HV

10A, 28VIN High Efficiency DC/DC µModule (Power Module)

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTM4600HV Demo Circuit - 10A, 28Vin, High Efficiency Step-Down uModule (4.5-28V to 2.5V @ 10A) Download 2.00KB LTspice LTM4600HV - ?Module Regulators Download 1.08 KB
Part Models 3
1ku List Price Starting From $21.19
Features
  • Complete Switch Mode Power Supply
  • Wide Input Voltage Range: 4.5V to 28V
  • 10A DC, 12A Peak Output Current
  • Parallel Two μModule™ DC/DC Converters for 20A Output Current
  • 0.6V to 5V Output Voltage
  • 1.5% Output Voltage Regulation
  • Ultrafast Transient Response
  • Current Mode Control
  • –55°C to 125°C Operating Temperature Range (LTM4600HVMPV)
  • RoHS Compliant Package with Gold Pad Finish (e4)

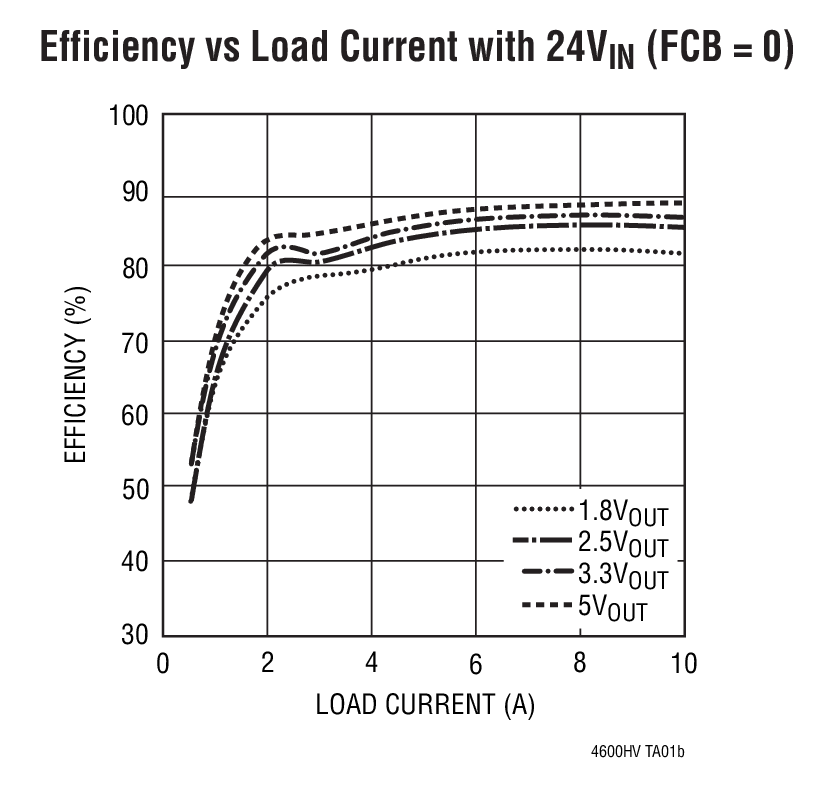

  • Up to 92% Efficiency
  • Programmable Soft-Start
  • Output Overvoltage Protection
  • Optional Short-Circuit Shutdown Timer

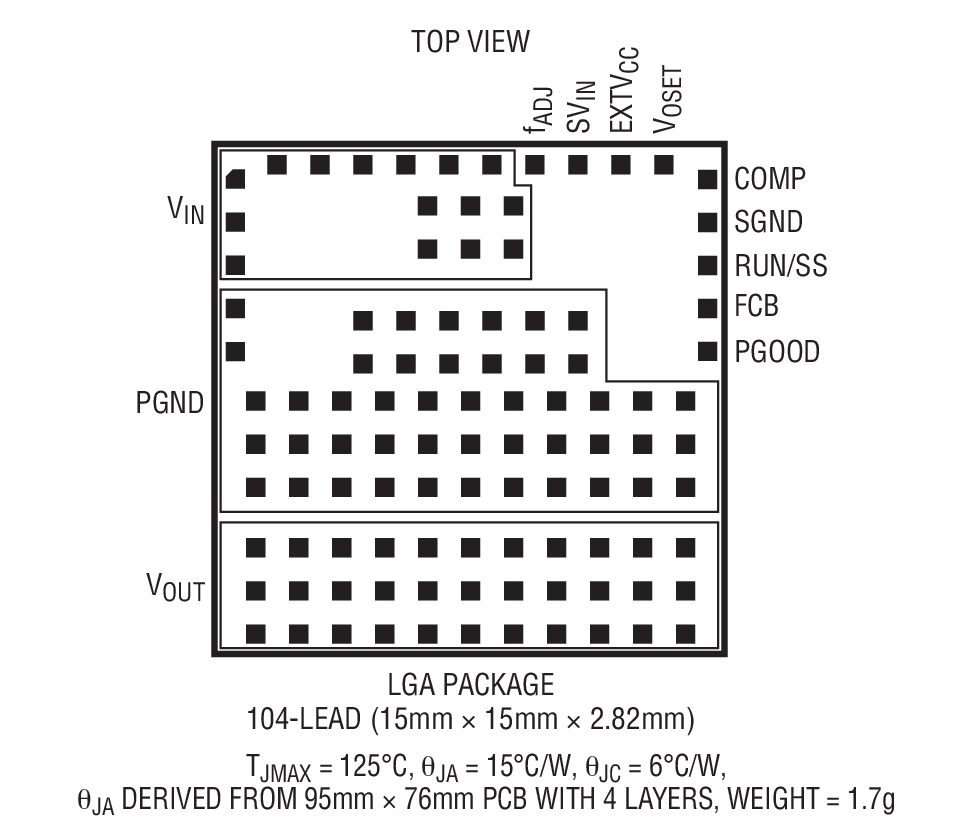

  • Small Footprint, Low Profile (15mm × 15mm × 2.82mm) LGA Package
Additional Details
show more Icon

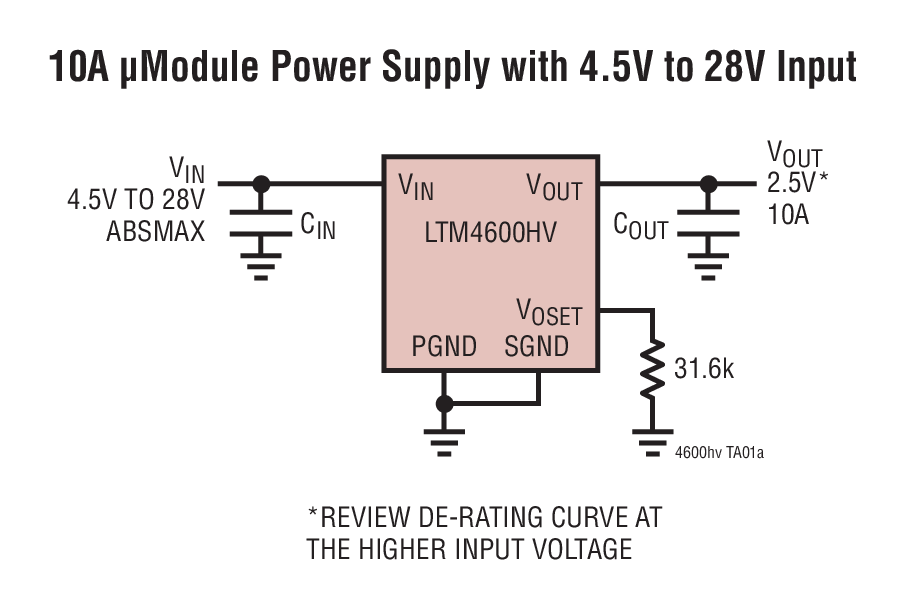

The LTM4600HV is a complete 10A, DC/DC step down power supply with up to 28V input operation. Included in the package are the switching controller, power FETs, inductor, and all support components. Operating over an input voltage range of 4.5V to 28V, the LTM4600HV supports an output voltage range of 0.6V to 5V, set by a single resistor. This high efficiency design delivers 10A continuous current (12A peak), needing no heat sinks or airflow to meet power specifications. Only bulk input and output capacitors are needed to finish the design.

The low profile package (2.82mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation. High switching frequency and an adaptive on-time current mode architecture enables a very fast transient response to line and load changes without sacrificing stability. Fault protection features include integrated overvoltage and short circuit protection with a defeatable shutdown timer. A built-in soft-start timer is adjustable with a small capacitor.

The LTM4600HV is packaged in a compact (15mm × 15mm) and low profile (2.82mm) over-molded Land Grid Array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM4600HV is RoHS compliant.

Applications

  • Telecom and Networking Equipment
  • Military and Avionics Systems
  • Industrial Equipment
  • Point of Load Regulation
  • Servers
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTM4600HV Demo Circuit - 10A, 28Vin, High Efficiency Step-Down uModule (4.5-28V to 2.5V @ 10A) Download 2.00KB LTspice LTM4600HV - ?Module Regulators Download 1.08 KB
Part Models 3
1ku List Price Starting From $21.19
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTM4600HV

Documentation

9
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Design Note
  • Application Note
  • Informational
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 05/14/2014
English

LTM4600HV: 10A, 28VIN High Efficiency DC/DC µModule (Power Module) Data Sheet

Open PDF File

redirect
446.00K
download

Download PDF

PDF Vector

PDF

UPDATED 07/16/2014
Japanese

LTM4600HV: 10A、28VIN高効率DC/DC μModule データシート

Open PDF File

redirect
843.00K
download

Download PDF

Design Note

3

PDF Vector

PDF

UPDATED 04/13/2011
English
DN385 - 10A High Performance Point-of-Load DC/DC uModule redirect icon

145.00K

download

Download PDF

PDF Vector

PDF

UPDATED 03/02/2006
Chinese
DN385 - 10A 高性能负载点 DC/DC 微型模块 redirect icon

774.00K

download

Download PDF

PDF Vector

PDF

UPDATED 05/22/2011
Japanese
DN385 - 4.5V～28V入力、0.6V～5V出力、15mm×15mm×2.8mmパッケージの10A高性能ポイントオブロードDC/DC uModuleレギュレータ redirect icon

516.00K

download

Download PDF

Application Note

2

PDF Vector

PDF

UPDATED 02/15/2011
English
AN103 - LTM4600 DC/DC uModule Thermal Performance redirect icon

183.00K

download

Download PDF

PDF Vector

PDF

UPDATED 11/16/2008
Japanese
AN103 - LTM4600 DC/DC uModuleTM の熱性能 redirect icon

626.00K

download

Download PDF

Informational

1

PDF Vector

HTML

UPDATED 01/30/2018
English
μModule Design and Manufacturing Resources redirect icon

User Guide

1

PDF Vector

PDF

UPDATED 02/01/2011
English
DC823B-B - Demo Manual redirect icon

1.00M

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM4600HVEV#PBF 104-Lead LGA (15mm x 15mm x 2.82mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTM4600HVIV#PBF 104-Lead LGA (15mm x 15mm x 2.82mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTM4600HVMPV#PBF 104-Lead LGA (15mm x 15mm x 2.82mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM4600HVEV#PBF

PRODUCTION

LTM4600HVIV#PBF

PRODUCTION

LTM4600HVMPV#PBF

PRODUCTION

pdf

PCN21_0159_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4600HVEV#PBF

PRODUCTION

LTM4600HVIV#PBF

PRODUCTION

LTM4600HVMPV#PBF

PRODUCTION

pdf

PCN20_0123_Form

external-icon

xls

Material_Report

Download

Test Correlation Report

Other

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM4600HVEV#PBF

PRODUCTION

LTM4600HVIV#PBF

PRODUCTION

LTM4600HVMPV#PBF

PRODUCTION

pdf

PCN21_0159_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4600HVEV#PBF

PRODUCTION

LTM4600HVIV#PBF

PRODUCTION

LTM4600HVMPV#PBF

PRODUCTION

pdf

PCN20_0123_Form

external-icon

xls

Material_Report

Download
Test Correlation Report
Other

pdf

Qualification Results Summary

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

High Voltage Hot Swap Controllers1
LTC4364
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Surge Stopper with Ideal Diode

Evaluation Kits 1

Evaluation Kits1

evaluation kit item images

DC823B-B

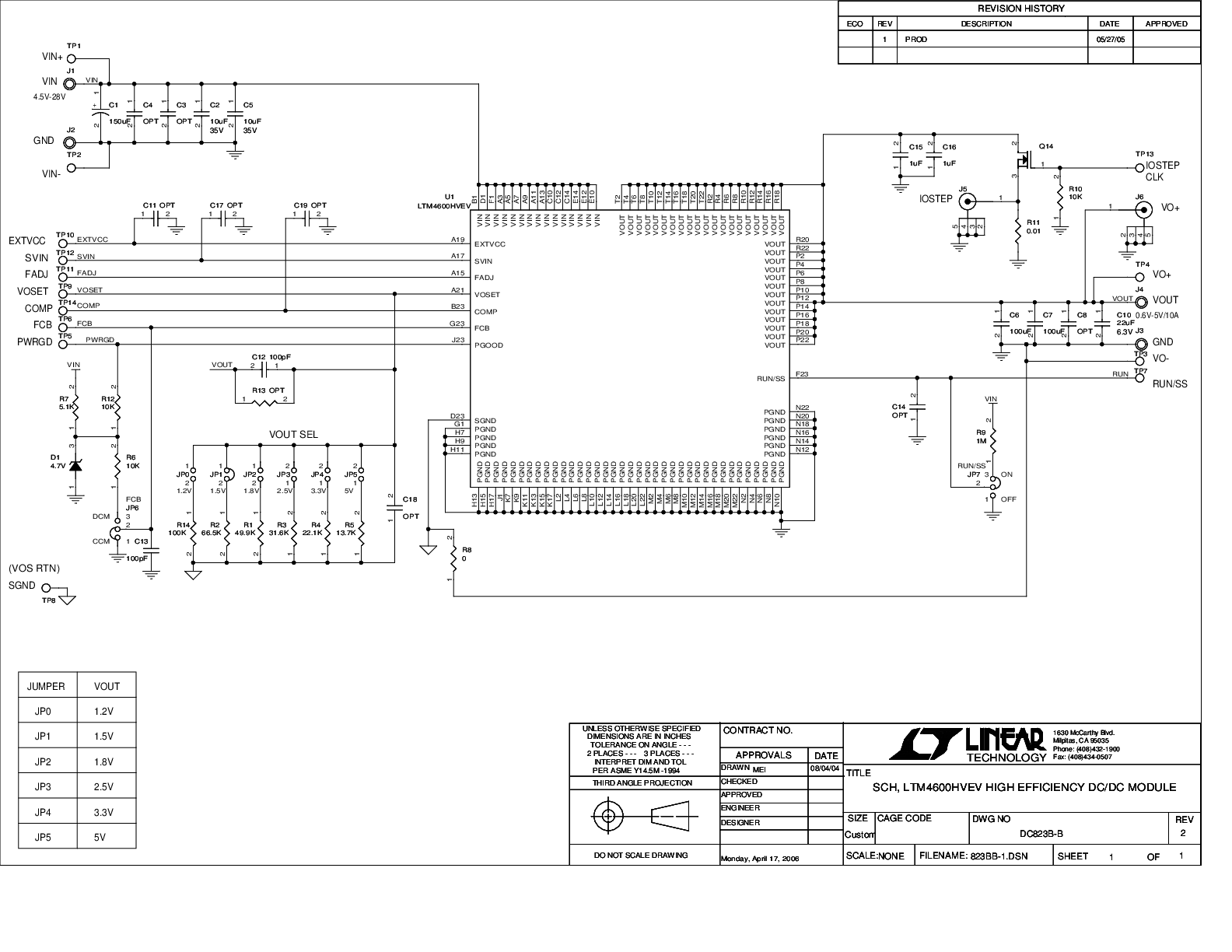

LTM4600HV Demo Board | 28V, 10A Step-Down Power µModule Regulator
