LTC7862

140V High Efficiency Switching Surge Stopper

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 12
1ku List Price Starting From $4.08
Features
  • VOUT Clamp Stops High Voltage Input Surges
  • 100% Duty Cycle Pass-Through Mode During Normal Operation
  • Switches During Overvoltage or Overcurrent Transients and Faults and During Startup
  • High Efficiency Switching Enables Long Duration Surge Protection and High Output Currents
  • Wide VIN Range: 4V to 140V (150V Abs Max)
  • Adjustable Output Voltage Clamp Up to 60V
  • Adjustable Output Overcurrent Protection
  • RSENSE or Inductor DCR Current Sensing
  • Power Inductor Reduces Input EMI in Normal Mode
  • Adjustable Soft-Start for Inrush Current Limiting
  • Programmable Fault Timer
  • Open-Drain Fault Warning Indicator
  • 2.7% Retry Duty Cycle During Faults
  • Adjustable Switching Frequency: 50kHz to to 900kHz
  • Adjustable Input Voltage Turn-On Threshold
  • Adjustable Input Overvoltage Lockout Threshold

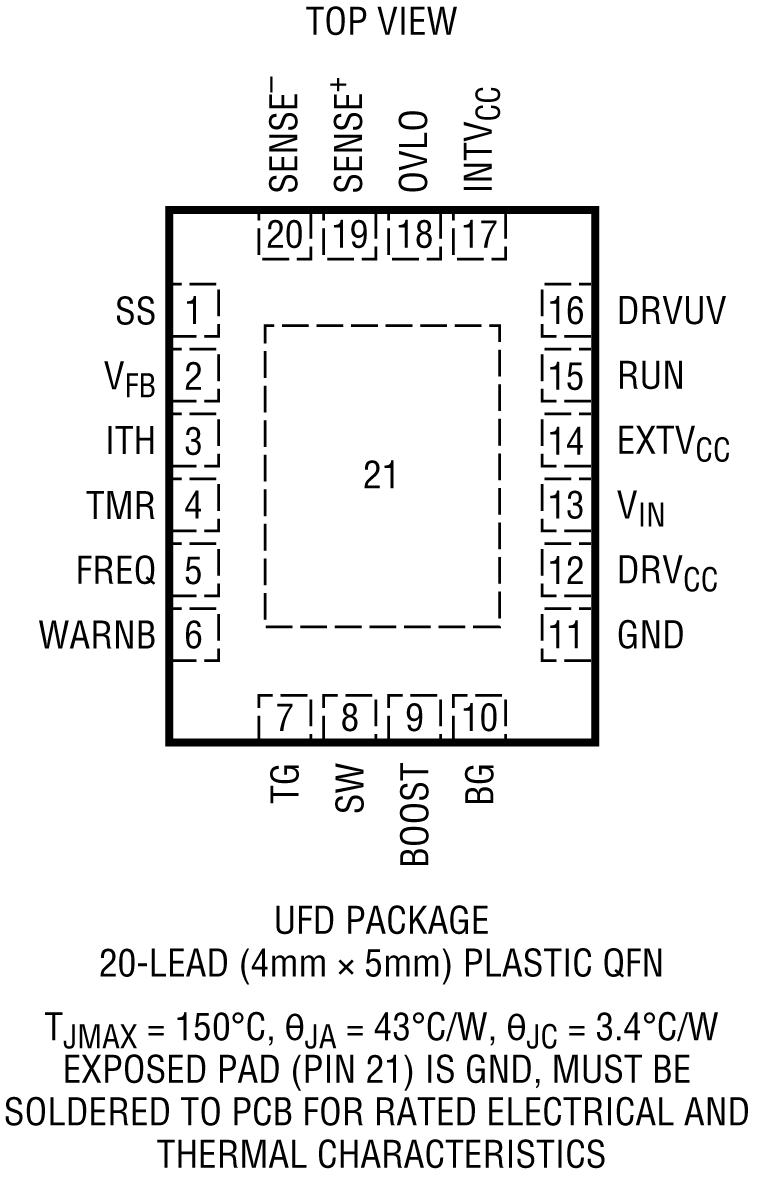

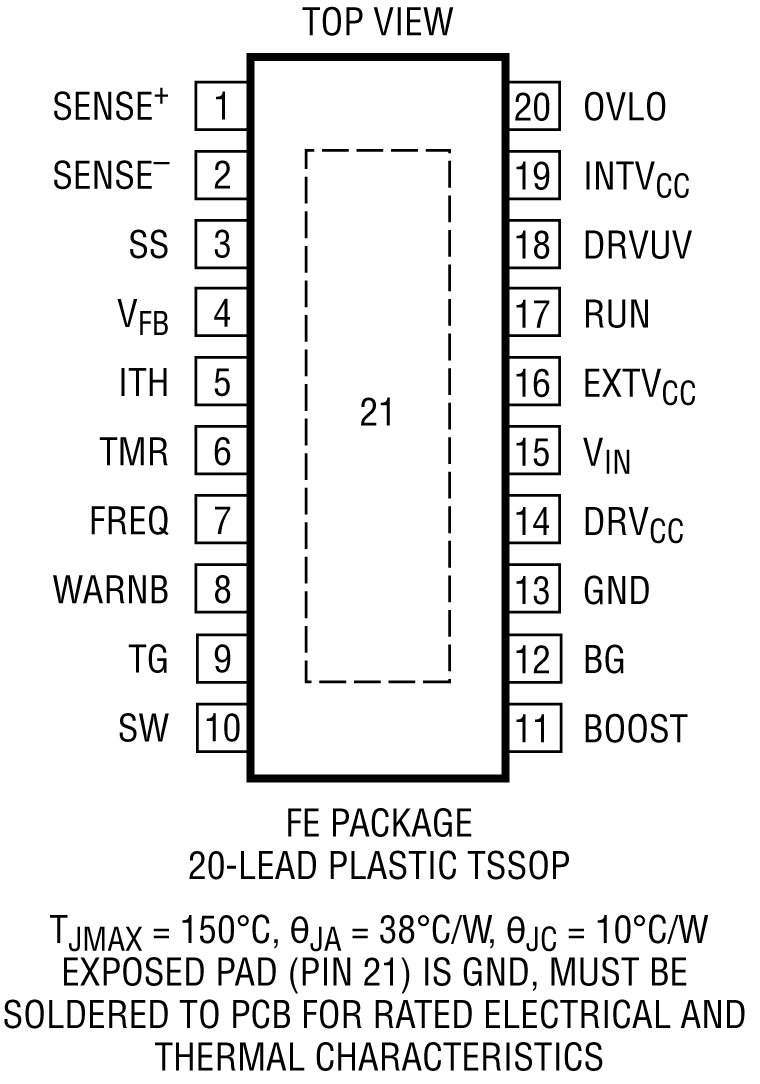

  • 20-Pin 4mm × 5mm QFN and TSSOP Packages
Additional Details
show more Icon

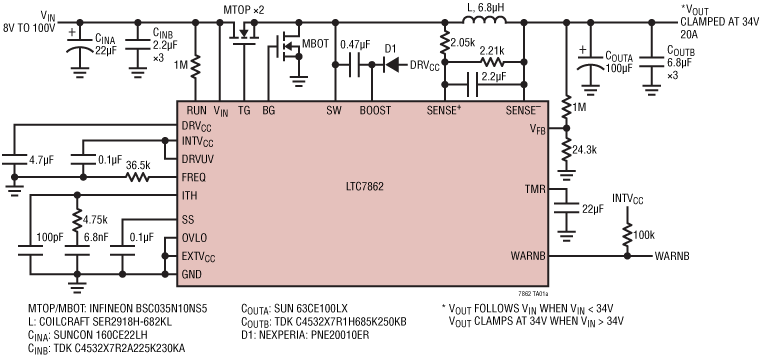

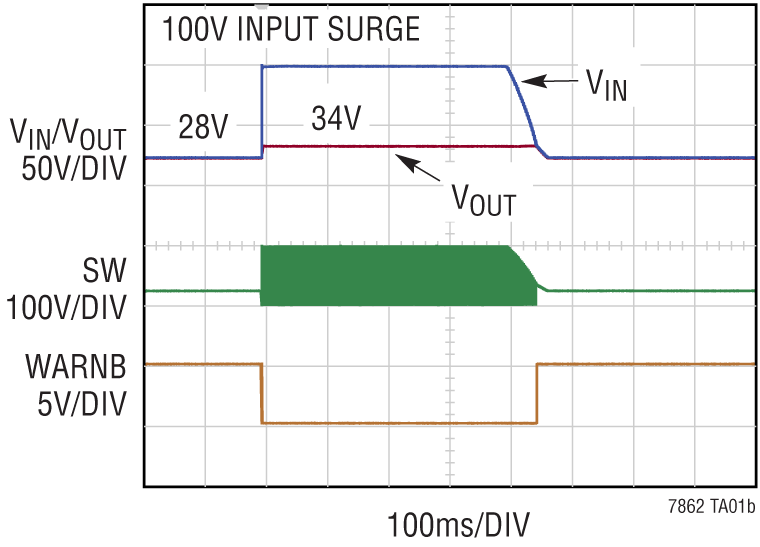

The LTC7862 high efficiency switching surge stopper protects loads from high voltage transients. High efficiency switching allows high output currents, small solution sizes, and high reliability. During an input overvoltage event, the LTC7862 controls the gates of two external N-channel MOSFETs to act as a switching DC/DC step-down regulator. This maintains the output voltage at a safe value, allowing the loads to continue to operate through the input overvoltage event. During normal operation, the LTC7862 turns on the top external N-channel MOSFET continuously, passing the input voltage through to the output, with minimal voltage drop. Using a fast peak current comparator, the LTC7862 also limits the maximum output current to protect against overcurrent and short-circuit faults.

An adjustable timer limits the time that the LTC7862 can spend switching during an overvoltage, overcurrent, or startup condition. When the timer expires, the external MOSFETs are turned off for a cooldown period and then the LTC7862 restarts. By strictly limiting how long the LTC7862 can switch, when the power loss is relatively high, the components and thermal design can be optimized for normal pass-through operation while still safely operating through high voltage input surges and/or overcurrent events.

Applications

  • Automotive/Avionic/Industrial Surge Protection
  • Automotive Load Dump Protection
  • Vehicle Power Including ISO7637
  • Military Power Including MIL1275
Part Models 12
1ku List Price Starting From $4.08

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC7862EFE#PBF
  • HTML
  • HTML
LTC7862EFE#TRPBF
  • HTML
  • HTML
LTC7862EUFD#PBF
  • HTML
  • HTML
LTC7862EUFD#TRPBF
  • HTML
  • HTML
LTC7862HFE#PBF
  • HTML
  • HTML
LTC7862HFE#TRPBF
  • HTML
  • HTML
LTC7862HUFD#PBF
  • HTML
  • HTML
LTC7862HUFD#TRPBF
  • HTML
  • HTML
LTC7862IFE#PBF
  • HTML
  • HTML
LTC7862IFE#TRPBF
  • HTML
  • HTML
LTC7862IUFD#PBF
  • HTML
  • HTML
LTC7862IUFD#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC7862EFE#PBF

PRODUCTION

LTC7862EFE#TRPBF

PRODUCTION

LTC7862HFE#PBF

PRODUCTION

LTC7862HFE#TRPBF

PRODUCTION

LTC7862IFE#PBF

PRODUCTION

LTC7862IFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC7862EFE#PBF

PRODUCTION

LTC7862EFE#TRPBF

PRODUCTION

LTC7862HFE#PBF

PRODUCTION

LTC7862HFE#TRPBF

PRODUCTION

LTC7862IFE#PBF

PRODUCTION

LTC7862IFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

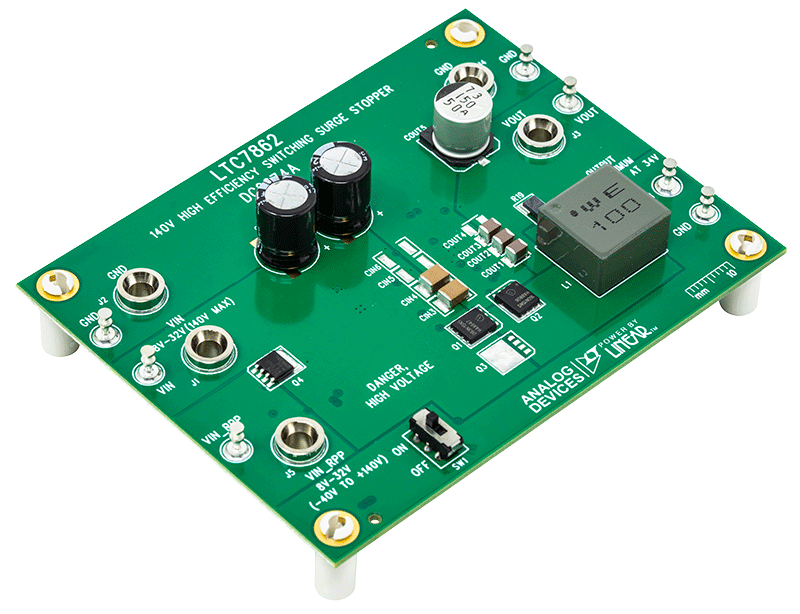

DC2674A

LTC7862EUFD Demo Board | 8V ≤ VIN(Normal) ≤ 32V, Surge to 140V; 32.7V ≤ VOUT(Clamp) ≤ 35V @ 10A

zoom

DC2674A

LTC7862EUFD Demo Board | 8V ≤ VIN(Normal) ≤ 32V, Surge to 140V; 32.7V ≤ VOUT(Clamp) ≤ 35V @ 10A

LTC7862EUFD Demo Board | 8V ≤ VIN(Normal) ≤ 32V, Surge to 140V; 32.7V ≤ VOUT(Clamp) ≤ 35V @ 10A

Product Detail

Demonstration circuit 2674A is a 140V high efficiency switching surge stopper featuring the LTC7862. The board operates from an input voltage range of 8V to 140V, and provides a 8V to 34V output from 0A to 10A. Its output voltage is programmed to be clamped at 34V (typical) with a minimum ride-through duration of 500ms to allow the load to operate through the input overvoltage events. Its output current is limited to protect against output short-circuit faults. A soft-start feature is utilized to control its output voltage slew rate at start-up and input voltage transients. This feature reduces current surge and output voltage overshoot. The demonstration board is able to achieve low insertion drop (210mV typical) by utilizing the low RDS(ON) N-channel MOSFETs and low DCR inductor. This board also includes optional reverse polarity protection circuit which protects the downstream loads up to −40V. The demonstration circuit is suitable for a wide range of automotive, industrial, and telecom applications.

The LTC7862 high efficiency switching surge stopper protects loads from input high voltage transients. During an input overvoltage event, the LTC7862 controls the gate of two external N-channel MOSFETs and operate as a switching DC/DC step-down regulator. The output voltage is maintained at a safe level, allowing the loads to continue to operate through the input overvoltage events.

During normal operation, the LTC7862 turns on the top external N-channel MOSFET continuously, passing the input voltage through to the output with minimal voltage drop. The LTC7862 also limits the maximum output current to protect against overcurrent and short-circuit faults. A programmable timer limits the time that the LTC7862 can spend switching during an overvoltage, overcurrent, or startup condition. When the timer expires, the external MOSFETs are turned off for a cooldown period and then the LTC7862 restarts. The timer limits how long the LTC7862 can switch when the power loss is relatively high, the components and thermal design can be optimized for normal pass-through operation.

The LTC7862 data sheet gives a complete description of the part, operation and application information. The data sheet must be read in conjunction with this demo manual for DC2674A. Proper board layout is essential for maximum thermal and electrical performance. See the data sheet sections for details. The LTC7862 is available in 20-lead TSSOP and QFN packages and two operating junction temperature grades: industrial (−40°C to 125°C) and high temperature automotive (−40°C to 150°C).

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
