LTC7860

High Efficiency Switching Surge Stopper

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 8
1ku List Price Starting From $3.54
Features
  • High Efficiency VOUT Clamp Stops High Voltage Input Surges
  • SWITCH-ON Mode 100% Duty Cycle for Normal Operation
  • PROTECTIVE PWM Mode for Transients and Faults
  • VIN Pin to SGND Range: 3.5V to 60V
  • External Input Voltage is Extendable to 200V+
  • Adjustable Output Voltage Clamp
  • Adjustable Output Overcurrent Protection
  • Power Inductor Improves Input EMI in Normal Operation
  • Programmable Fault Timer
  • Adjustable Soft-Start for Input Inrush Current Limiting
  • 4.5% Retry Duty Cycle During Faults
  • Adjustable Switching Frequency: 50kHz to 850kHz
  • Optional Reverse Input Voltage Protection
  • Available in Thermally Enhanced 12-lead MSOP Package
Additional Details
show more Icon

The LTC7860 high efficiency surge stopper protects loads from high voltage transients. High efficiency permits higher currents and smaller solution sizes. During an input overvoltage event, such as a load dump in vehicles, the LTC7860 controls the gate of an external MOSFET to act as a switching DC/DC regulator (PROTECTIVE PWM mode). This operation regulates the output voltage to a safe level, allowing the loads to operate through the input over-voltage event. During normal operation (SWITCH-ON mode), the LTC7860 turns on the external MOSFET continuously, passing the input voltage through to the output. An internal comparator limits the voltage across the current sense resistor and regulates the maximum output current to protect against overcurrent faults.

An adjustable timer limits the time that the LTC7860 can spend in overvoltage or overcurrent regulation. When the timer expires, the external MOSFET is turned off until the LTC7860 restarts after a cool down period. By strictly limiting the time in PROTECTIVE PWM Mode when the power loss is high, the components and thermal design can be optimized for normal operation and safely operate through high voltage input surges and/or overcurrent faults. An additional PMOS can be added for reverse battery protection.

Applications

  • Industrial and Automotive Power
  • Telecom Power
  • Vehicle Power Including ISO7637
  • Military Power Including MIL1275
Part Models 8
1ku List Price Starting From $3.54

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC7860EMSE#PBF
  • HTML
  • HTML
LTC7860EMSE#TRPBF
  • HTML
  • HTML
LTC7860HMSE#PBF
  • HTML
  • HTML
LTC7860HMSE#TRPBF
  • HTML
  • HTML
LTC7860IMSE#PBF
  • HTML
  • HTML
LTC7860IMSE#TRPBF
  • HTML
  • HTML
LTC7860MPMSE#PBF
  • HTML
  • HTML
LTC7860MPMSE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LTC7860EMSE#PBF

PRODUCTION

LTC7860EMSE#TRPBF

PRODUCTION

LTC7860HMSE#PBF

PRODUCTION

LTC7860HMSE#TRPBF

PRODUCTION

LTC7860IMSE#PBF

PRODUCTION

LTC7860IMSE#TRPBF

PRODUCTION

LTC7860MPMSE#PBF

PRODUCTION

LTC7860MPMSE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LTC7860EMSE#PBF

PRODUCTION

LTC7860EMSE#TRPBF

PRODUCTION

LTC7860HMSE#PBF

PRODUCTION

LTC7860HMSE#TRPBF

PRODUCTION

LTC7860IMSE#PBF

PRODUCTION

LTC7860IMSE#TRPBF

PRODUCTION

LTC7860MPMSE#PBF

PRODUCTION

LTC7860MPMSE#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

DC2239A

LTC7860EMSE Demo Board | Switching Surge Stopper, 3.5V ≤ VIN ≤ 60V; 3.5V ≤ VOUT ≤ 17.5V @ 5A

zoom

DC2239A

LTC7860EMSE Demo Board | Switching Surge Stopper, 3.5V ≤ VIN ≤ 60V; 3.5V ≤ VOUT ≤ 17.5V @ 5A

LTC7860EMSE Demo Board | Switching Surge Stopper, 3.5V ≤ VIN ≤ 60V; 3.5V ≤ VOUT ≤ 17.5V @ 5A

Product Detail

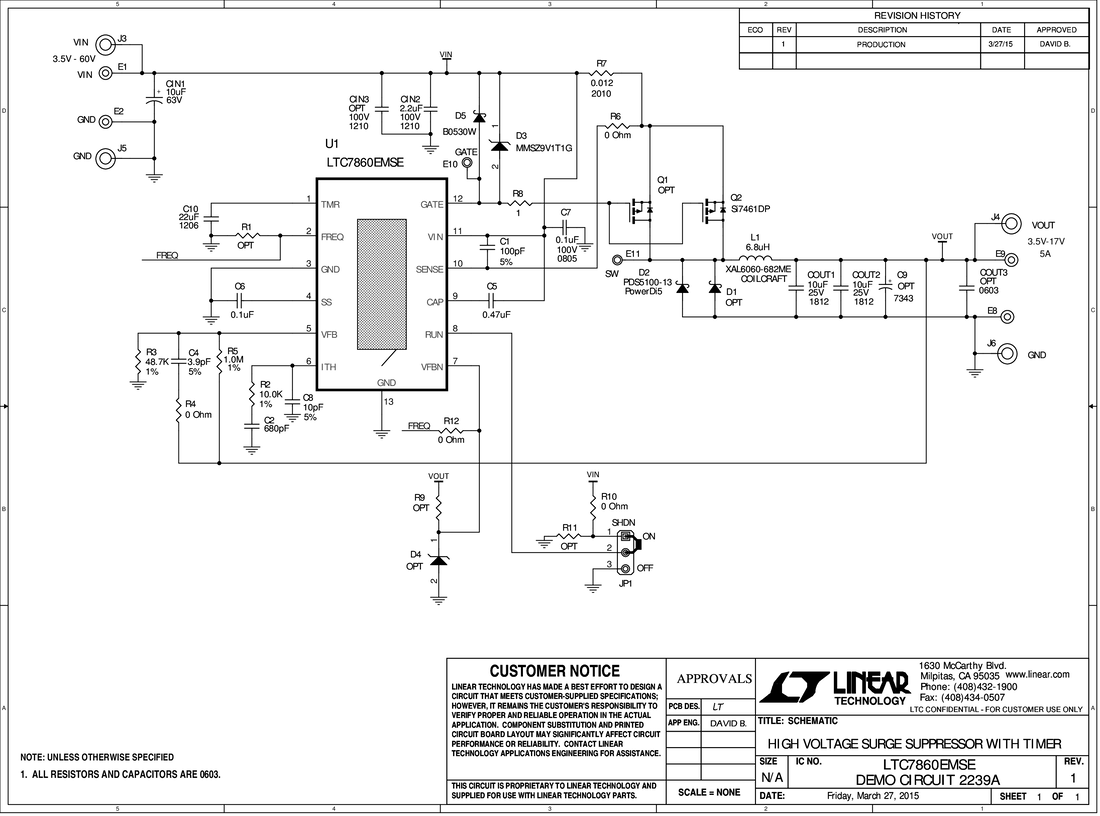

Demonstration circuit 2239A is a High Efficiency Switching Surge Stopper and EMI Filter featuring the LTC7860. The board operates from an input range of 3.5V to 60V, provides a 3.5V to 17.2V output at 0A to 5A and is output current limited. A soft-start feature controls output voltage slew rate at start-up, reducing current surge and voltage overshoot. The demonstration board has options for smaller MOSFET and diode packages on the back of the board for lower output current requirements.

reference details image

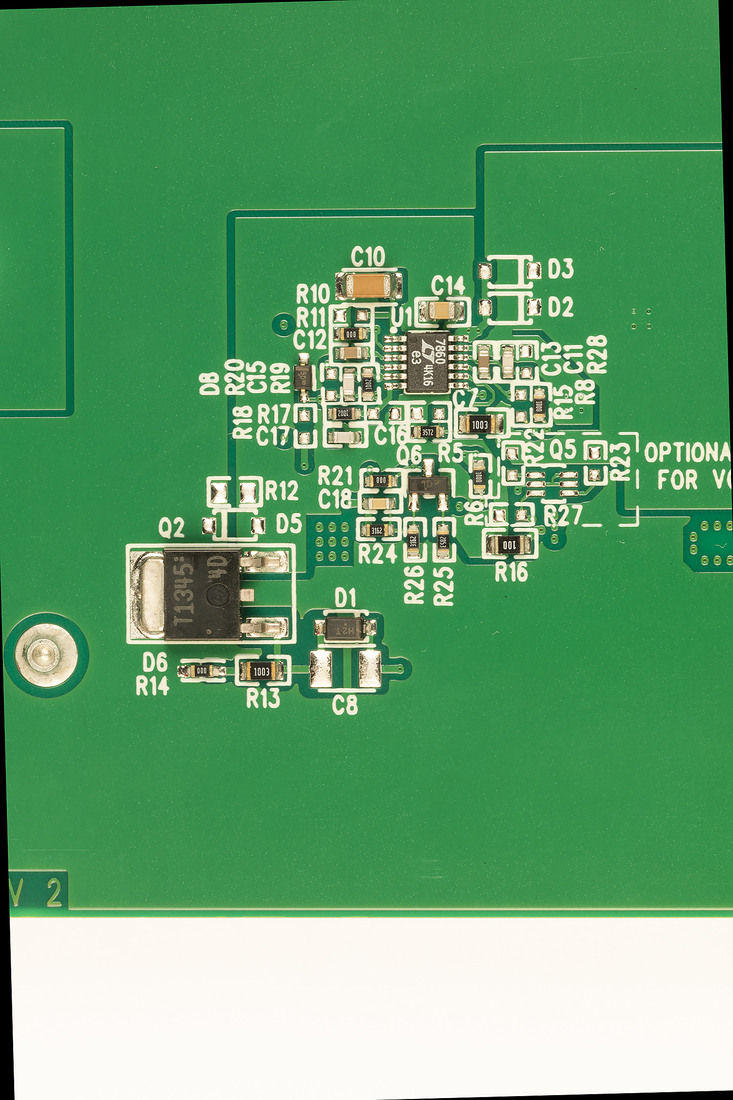

DC2392A

LTC7860EMSE Demo Board | Switching Surge Stopper, 7V ≤ VIN ≤ 100V; 7V ≤ VOUT ≤ 35V @ 10A

zoom

DC2392A

LTC7860EMSE Demo Board | Switching Surge Stopper, 7V ≤ VIN ≤ 100V; 7V ≤ VOUT ≤ 35V @ 10A

LTC7860EMSE Demo Board | Switching Surge Stopper, 7V ≤ VIN ≤ 100V; 7V ≤ VOUT ≤ 35V @ 10A

Product Detail

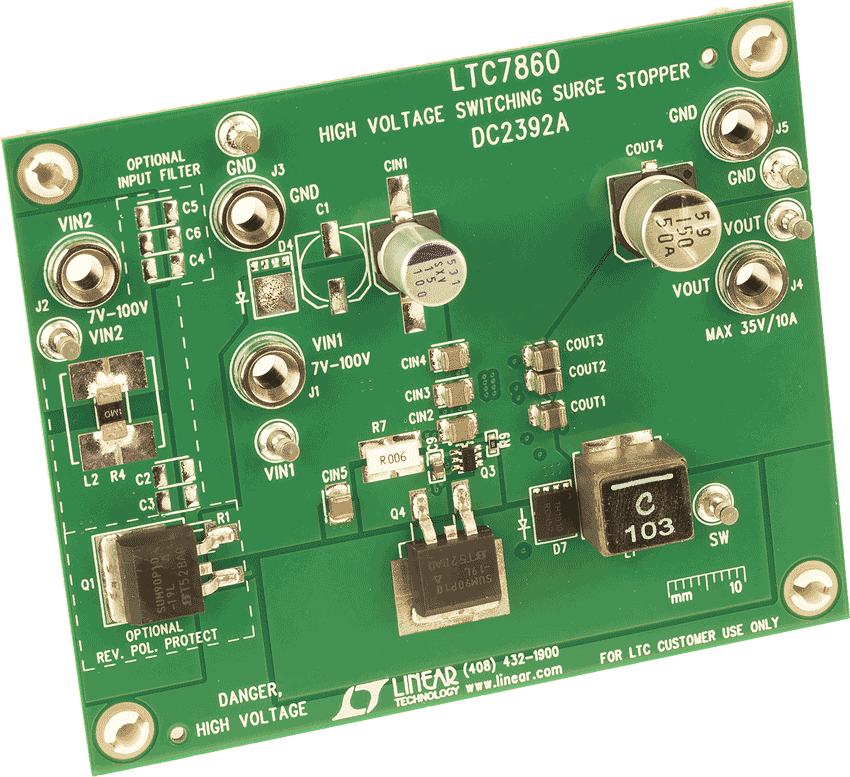

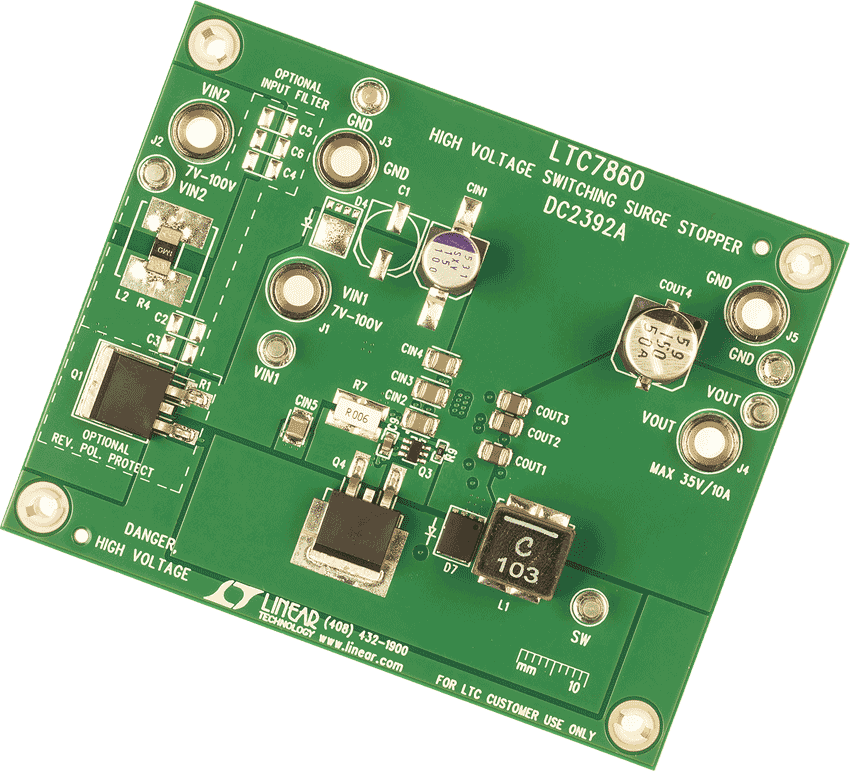

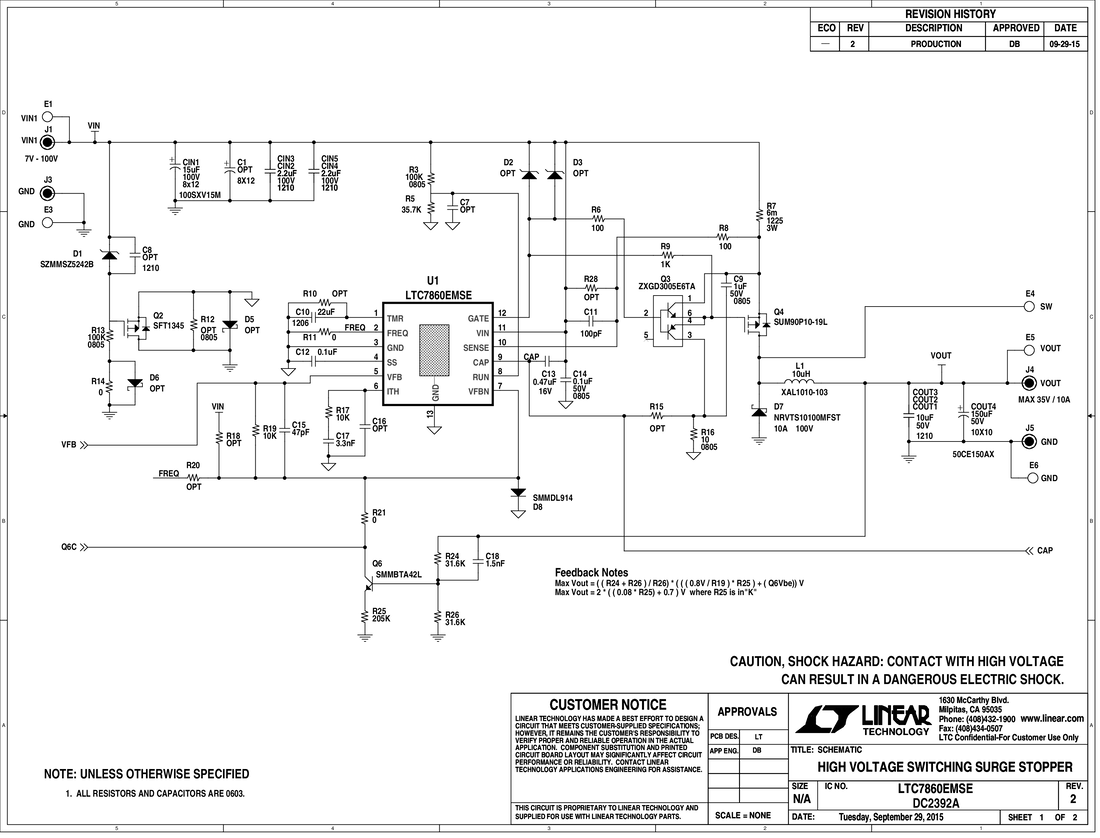

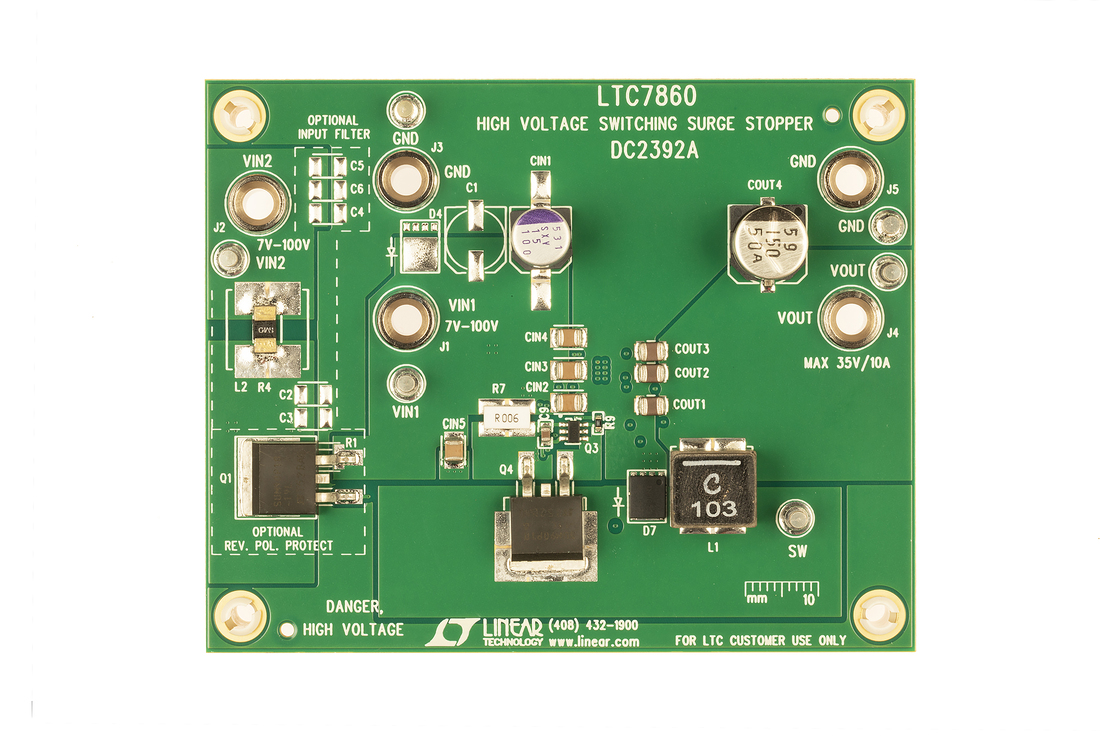

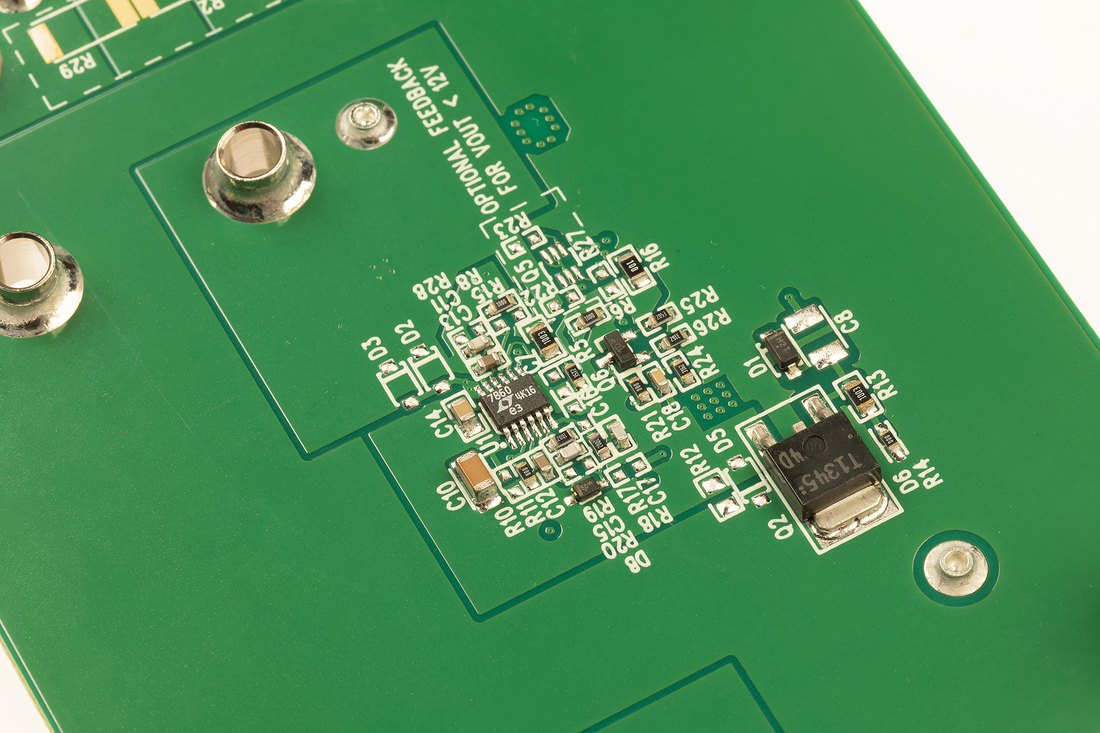

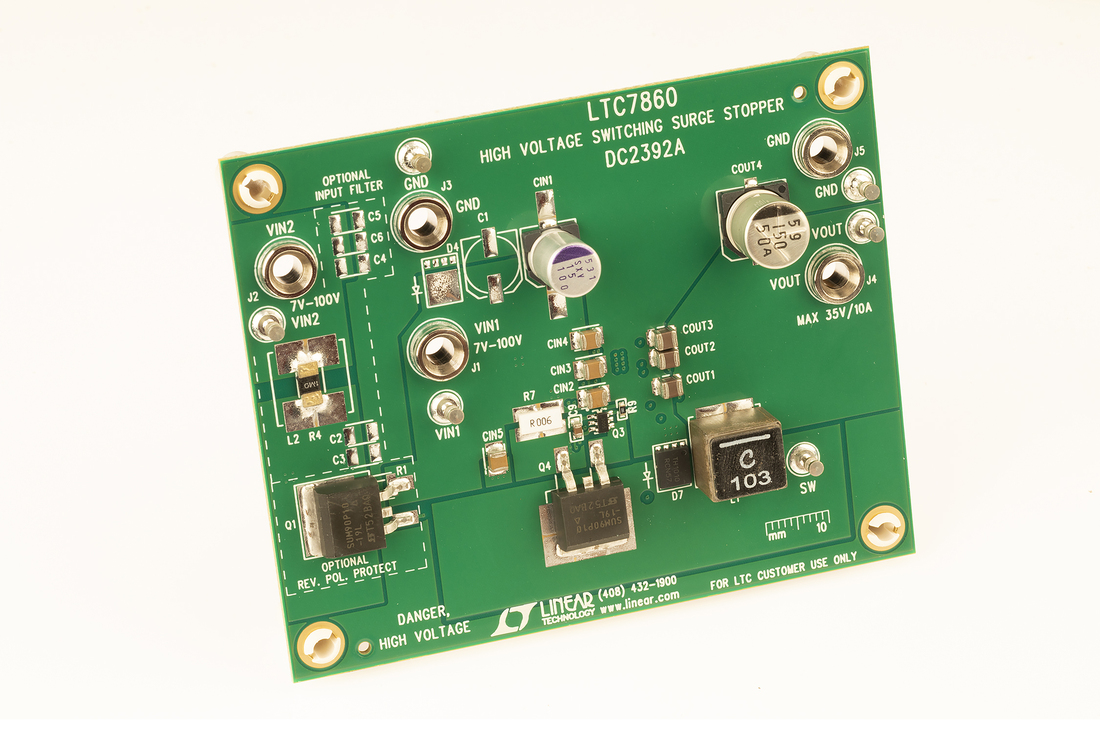

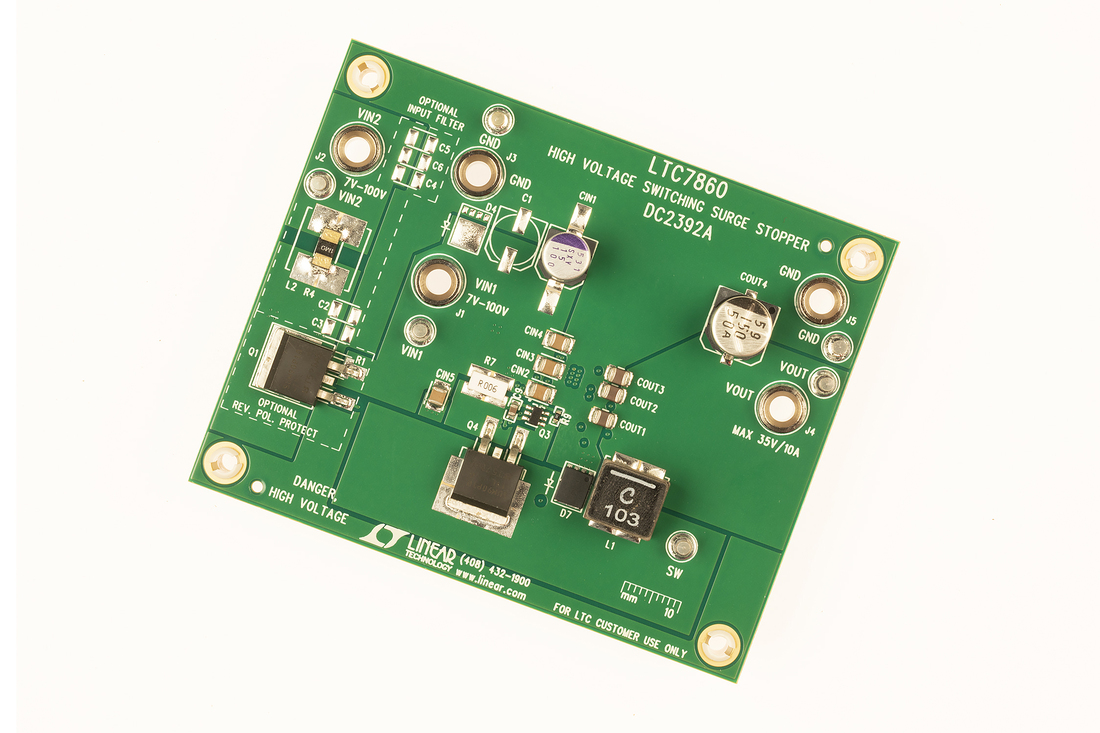

Demonstration circuit 2392A is a high efficiency switching surge stopper featuring the LTC7860. The board operates from an input range of 7V to 100V, and provides a 7V to 34V output at 0A to 10A. Its output is current limited. A soft-start feature controls output voltage slew rate at startup, reducing current surge and voltage overshoot. The demonstration board includes an optional reverse polarity protection MOSFET and has options for an input filter and diode to attenuate spikes. For a lower output voltage limit of less than 12V, there is an optional feedback circuit.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
