LTC6946

Ultralow Noise and Spurious 0.37GHz to 6.39GHz Integer-N Synthesizer with Integrated VCO

Show More showmore-icon

warning : LAST TIME BUY tooltip
warning : LAST TIME BUY tooltip
Part Details
Part Models 2
1ku List Price
price unavailable
Features
  • Low Noise Integer-N PLL with Integrated VCO
  • –226dBc/Hz Normalized In-Band Phase Noise Floor
  • –274dBc/Hz Normalized In-Band 1/f Noise
  • –157dBc/Hz Wideband Output Phase Noise Floor
  • Excellent Spurious Performance
  • Output Divider (1 to 6, 50% Duty Cycle)
  • Output Buffer Muting
  • Low Noise Reference Buffer
  • Charge Pump Current Adjustable from 250μA to 11.2mA
  • Configurable Status Output
  • SPI Compatible Serial Port Control
  • PLLWizard Software Design Tool Support
Additional Details
show more Icon

The LTC6946 is a high performance, low noise, 6.39GHz phase-locked loop (PLL) with a fully integrated VCO, including a reference divider, phase-frequency detector (PFD) with phase-lock indicator, ultralow noise charge pump, integer feedback divider, and VCO output divider. The charge pump contains selectable high and low voltage clamps useful for VCO monitoring.

The integrated low noise VCO uses no external components. It is internally calibrated to the correct output frequency with no external system support.

The part features a buffered, programmable VCO output divider with a range of 1 through 6, providing a wide frequency range.

Frequency Coverage Options
LTC6946-1 LTC6946-2 LTC6946-3 LTC6946-4
0 DIV = 1 2.240 to 3.740 3.080 to 4.910 3.840 to 5.790 4.200 to 6.390
0 DIV = 2 1.120 to 1.870 1.540 to 2.455 1.920 to 2.895 2.100 to 3.195
0 DIV = 3 0.747 to 1.247 1.027 to 1.637 1.280 to 1.930 1.400 to 2.130
0 DIV = 4 0.560 to 0.935 0.770 to 1.228 0.960 to 1.448 1.050 to 1.598
0 DIV = 5 0.448 to 0.748 0.616 to 0.982 0.768 to 1.158 0.840 to 1.278
0 DIV = 6 0.373 to 0.623 0.513 to 0.818 0.640 to 0.965 0.700 to 1.065

Applications

  • Wireless Base Stations (LTE, WiMAX, W-CDMA, PCS)
  • Broadband Wireless Access
  • Military and Secure Radio
  • Test and Measurement
Part Models 2
1ku List Price
price unavailable

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC6946IUFD-1#PBF
  • HTML
  • HTML
LTC6946IUFD-4#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 24, 2021

- 21_0121

Obsolescence of LTC6945, LTC6946, and LTC6950

LTC6946IUFD-1#PBF

PRODUCTION

LTC6946IUFD-4#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 24, 2021

- 21_0121

arrow down

Obsolescence of LTC6945, LTC6946, and LTC6950

LTC6946IUFD-1#PBF

PRODUCTION

LTC6946IUFD-4#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem


PLLWizard
Info:False

PLLWizard is used to communicate with the LTC6945 and LTC6946 synthesizers. It uses the DC590 controller to translate between USB and SPI-compatible serial communications formats. It also includes advanced PLL design and simulation capabilities which aid in loop filter design and selecting the correct SPI map register values.

Evaluation Kit

Evaluation Kits 5

reference details image

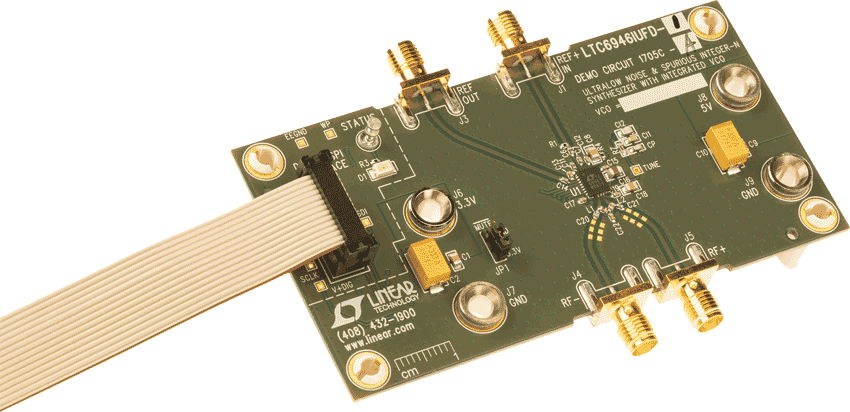

DC1705C-C

LTC6946-3 Demo Board | Ultralow Noise and Spurious 640MHz to 5.79GHz Integer-N Synthesizer with Integrated VCO (Requires DC590 or DC2026)

zoom

DC1705C-C

LTC6946-3 Demo Board | Ultralow Noise and Spurious 640MHz to 5.79GHz Integer-N Synthesizer with Integrated VCO (Requires DC590 or DC2026)

LTC6946-3 Demo Board | Ultralow Noise and Spurious 640MHz to 5.79GHz Integer-N Synthesizer with Integrated VCO (Requires DC590 or DC2026)

Product Detail

DC1705C features the LTC6946, an ultralow noise and spurious integer-N frequency synthesizer with integrated VCO. The VCO uses no external components and is internally calibrated without external system support.

There are four options of the DC1705C, one for each version of the LTC6946. Table 1 in the Demo Manual summarizes the available DC1705C options.

Each DC1705C provides 50Ω SMA connectors for the reference frequency input, fREF (REF+ IN), the reference output buffer (REF OUT), and the differential RF output (RF+ and RF–). A DC590 USB serial controller board is used for SPI communication with the LTC6946, controlled by the supplied PLLWizard software.

reference details image

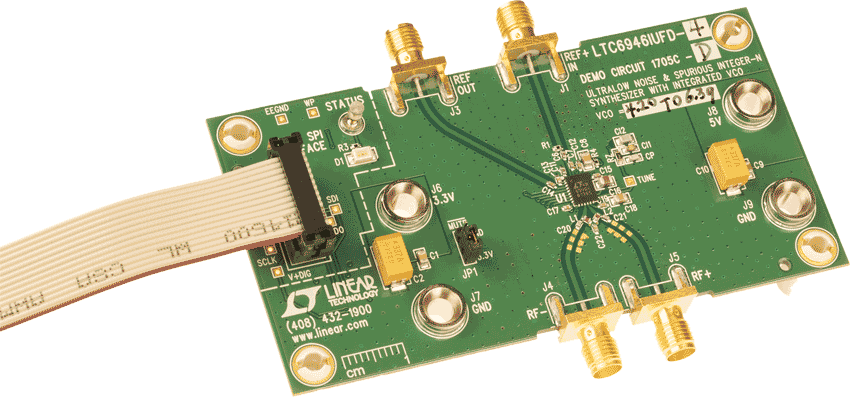

DC1705C-D

LTC6946-4 Demo Board | Ultralow Noise and Spurious 700MHz to 6.39GHz Integer-N Synthesizer with Integrated VCO (Requires DC590 or DC2026)

zoom

DC1705C-D

LTC6946-4 Demo Board | Ultralow Noise and Spurious 700MHz to 6.39GHz Integer-N Synthesizer with Integrated VCO (Requires DC590 or DC2026)

LTC6946-4 Demo Board | Ultralow Noise and Spurious 700MHz to 6.39GHz Integer-N Synthesizer with Integrated VCO (Requires DC590 or DC2026)

Product Detail

DC1705C features the LTC6946, an ultralow noise and spurious integer-N frequency synthesizer with integrated VCO. The VCO uses no external components and is internally calibrated without external system support.

There are four options of the DC1705C, one for each version of the LTC6946. Table 1 in the Demo Manual summarizes the available DC1705C options.

Each DC1705C provides 50Ω SMA connectors for the reference frequency input, fREF (REF+ IN), the reference output buffer (REF OUT), and the differential RF output (RF+ and RF–). A DC590 USB serial controller board is used for SPI communication with the LTC6946, controlled by the supplied PLLWizard software.

reference details image

DC1705C-B

LTC6946-2 Demo Board | Ultralow Noise and Spurious 513MHz to 4.91GHz Integer-N Synthesizer with Integrated VCO (Requires DC590 or DC2026)

zoom

DC1705C-B

LTC6946-2 Demo Board | Ultralow Noise and Spurious 513MHz to 4.91GHz Integer-N Synthesizer with Integrated VCO (Requires DC590 or DC2026)

LTC6946-2 Demo Board | Ultralow Noise and Spurious 513MHz to 4.91GHz Integer-N Synthesizer with Integrated VCO (Requires DC590 or DC2026)

Product Detail

DC1705C features the LTC6946, an ultralow noise and spurious integer-N frequency synthesizer with integrated VCO. The VCO uses no external components and is internally calibrated without external system support.

There are four options of the DC1705C, one for each version of the LTC6946. Table 1 in the Demo Manual summarizes the available DC1705C options.

Each DC1705C provides 50Ω SMA connectors for the reference frequency input, fREF (REF+ IN), the reference output buffer (REF OUT), and the differential RF output (RF+ and RF–). A DC590 USB serial controller board is used for SPI communication with the LTC6946, controlled by the supplied PLLWizard software.

reference details image

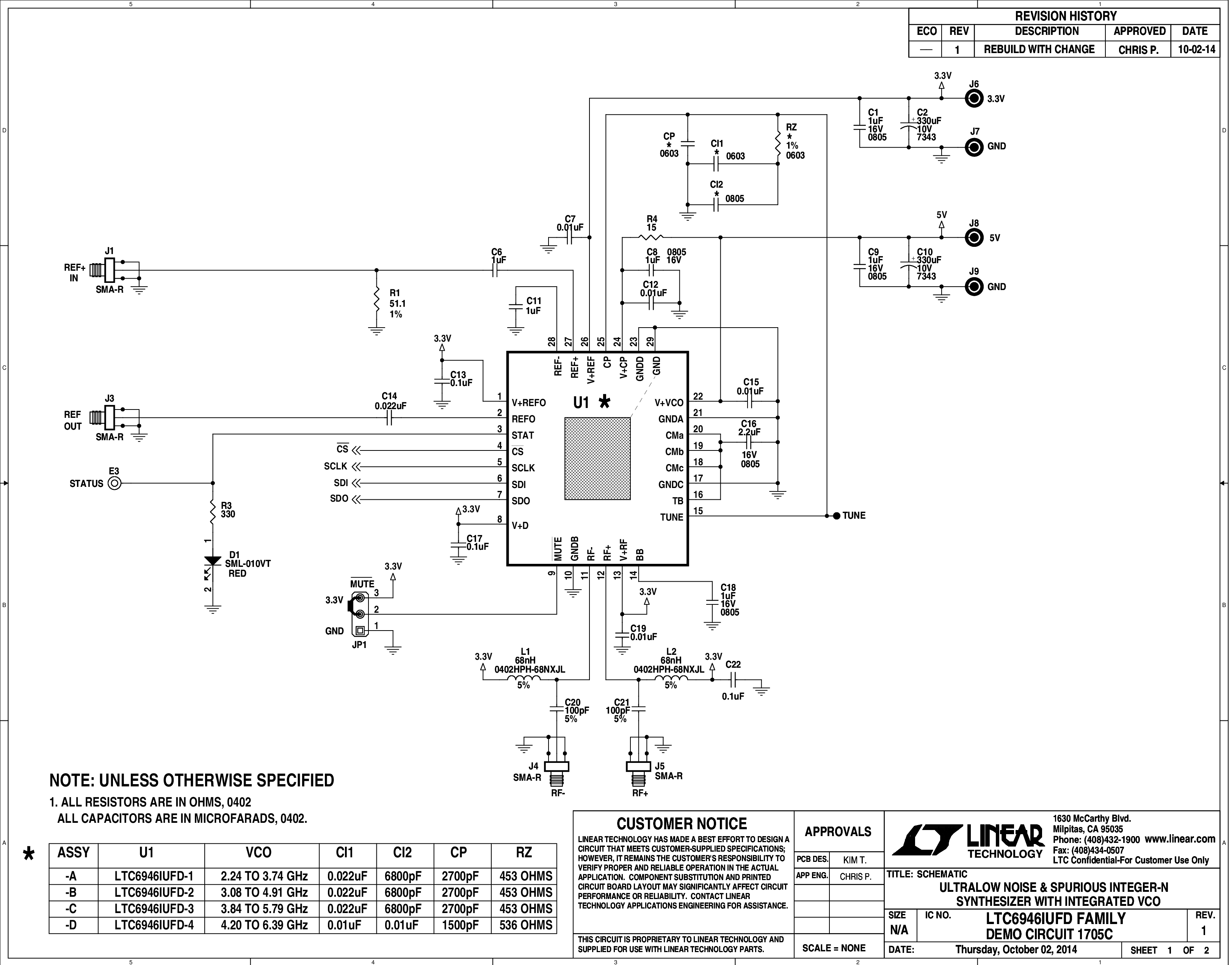

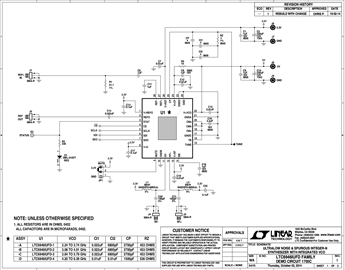

DC1705C-A

LTC6946-1 Demo Board | Ultralow Noise and Spurious 373MHz to 3.74GHz Integer-N Synthesizer with Integrated VCO (Requires DC590 or DC2026)

zoom

DC1705C-A

LTC6946-1 Demo Board | Ultralow Noise and Spurious 373MHz to 3.74GHz Integer-N Synthesizer with Integrated VCO (Requires DC590 or DC2026)

LTC6946-1 Demo Board | Ultralow Noise and Spurious 373MHz to 3.74GHz Integer-N Synthesizer with Integrated VCO (Requires DC590 or DC2026)

Product Detail

DC1705C features the LTC6946, an ultralow noise and spurious integer-N frequency synthesizer with integrated VCO. The VCO uses no external components and is internally calibrated without external system support.

There are four options of the DC1705C, one for each version of the LTC6946. Table 1 in the Demo Manual summarizes the available DC1705C options.

Each DC1705C provides 50Ω SMA connectors for the reference frequency input, fREF (REF+ IN), the reference output buffer (REF OUT), and the differential RF output (RF+ and RF–). A DC590 USB serial controller board is used for SPI communication with the LTC6946, controlled by the supplied PLLWizard software.

reference details image

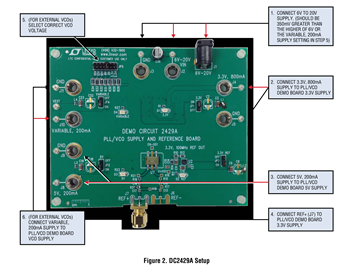

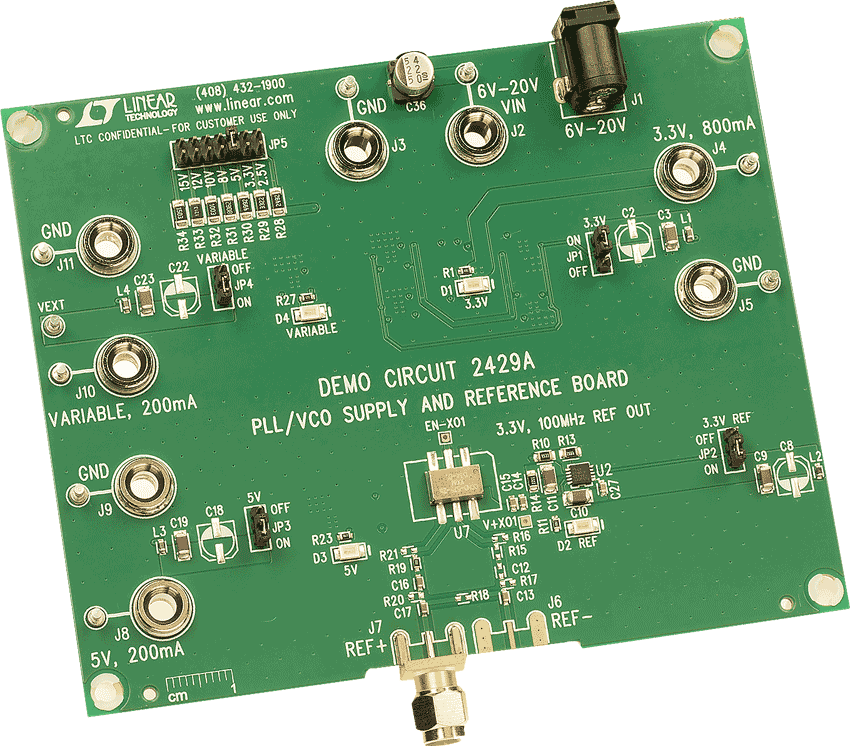

DC2429A

LT3042 Low Noise PLL/VCO Power Supply Board with Onboard 100MHz Reference Frequency

zoom

DC2429A

LT3042 Low Noise PLL/VCO Power Supply Board with Onboard 100MHz Reference Frequency

LT3042 Low Noise PLL/VCO Power Supply Board with Onboard 100MHz Reference Frequency

Product Detail

Demonstration Circuit 2429A is a PLL/VCO Supply and Reference Frequency Board that features the LT3042, an ultralow noise and ultrahigh PSRR RF linear regulator. When powered from a 6V to 20V lab or wall wart supply, the DC2429A produces four ultralow noise supplies using seven LT3042s. These supplies include a fixed 3.3V/800mA supply (four LT3042's in parallel), a fixed 5V/200mA supply, a fixed 3.3V/200mA supply that powers an onboard 100MHz ultralow jitter crystal oscillator, and an adjustable voltage (2.5V to 15V), 200mA supply ideal for powering external VCOs. The DC2429 ensures PLL/VCO evaluation meets data sheet performance.





Tools & Simulations

Tools & Simulations 3

Linduino

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.
