LTC6403-1
200MHz, Low Noise, Low Power Fully Differential Input/Output Amplifier/Driver
Top
Overview
Features and Benefits
- Very Low Distortion: (2VP-P, 3MHz): –95dBc
- Fully Differential Input and Output
- Low Noise: 2.8nV/√Hz Input-Referred
- 200MHz Gain-Bandwidth Product
- Built-In Clamp: Fast Overdrive Recovery
- Slew Rate: 200V/μs
- Adjustable Output Common Mode Voltage
- Rail-to-Rail Output Swing
- Input Range Extends to Ground
- Large Output Current: 60mA (Typ)
- DC Voltage Offset <1.5mV (Max)
- 10.8mA Supply Current
- 2.7V to 5.25V Supply Voltage Range
- Low Power Shutdown
- Tiny 3mm × 3mm × 0.75mm 16-Pin QFN Package
Product Details
The LTC6403-1 is a precision, very low noise, low distortion, fully differential input/output amplifier optimized for 3V to 5V, single supply operation. The LTC6403-1 is unity gain stable. The LTC6403-1 closed-loop bandwidth extends from DC to 200MHz. In addition to the normal unfiltered outputs (+OUT and –OUT), the LTC6403-1 has a built-in 44.2MHz differential single-pole lowpass filter and an additional pair of filtered outputs (+OUTF, and –OUTF). An input referred voltage noise of 2.8nV/√Hz enables the LTC6403-1 to drive state-of-the-art 14- to 18-bit ADCs while operating on the same supply voltage, saving system cost and power. The LTC6403-1 maintains its performance for supplies as low as 2.7V. It draws only 10.8mA, and has a hardware shutdown feature which reduces current consumption to 170μA.
The LTC6403-1 is available in a compact 3mm × 3mm 16-pin leadless QFN package and operates over a –40°C to 125°C temperature range.
Applications
- Differential Input A/D Converter Driver
- Single-Ended to Differential Conversion/Amplification
- Common Mode Level Translation
- Low Voltage, Low Noise, Signal Processing
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (2)
Documentation & Resources
-
R532 Reliability Data3/26/2018PDF31 K
-

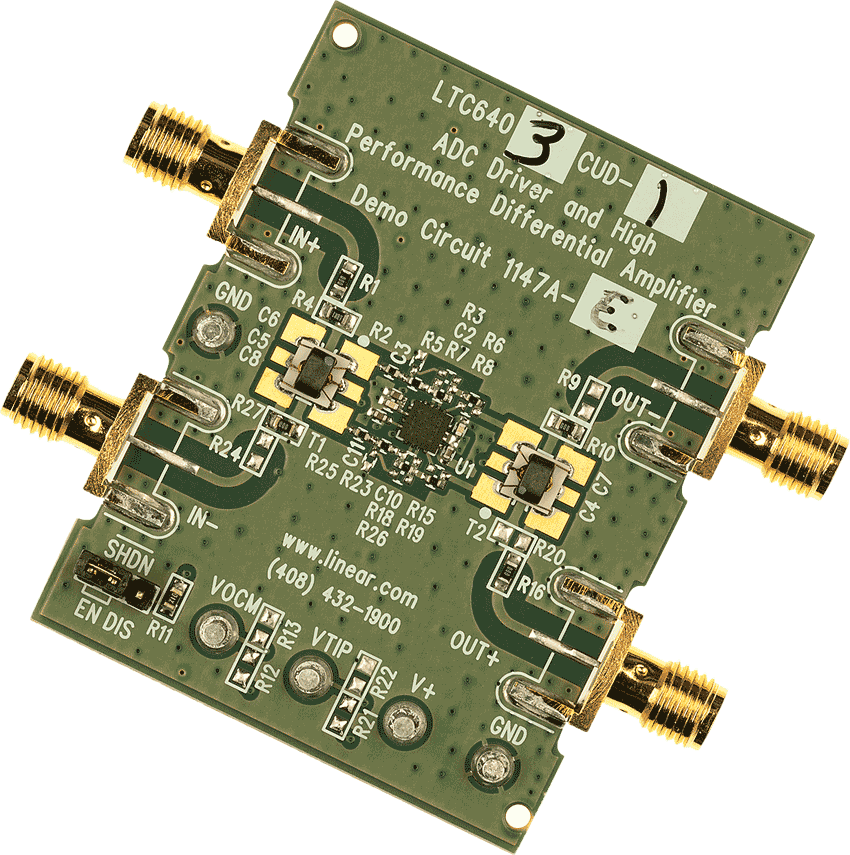

DC1147A - Demo Manual7/15/2011PDF350K
-
DC1058A - Demo Manual9/24/2009PDF339K
-
High Speed Amplifiers/ADC Drivers4/29/2015PDF152K
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
LTC6403-1
Sys-Parameters
Sys-Parameter Models for Keysight Genesys
Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.
Design Tools
ADI DiffAmpCalc™
ADI's new ADI DiffAmpCalc™ is a free, downloadable calculator for designing differential amplifier circuits. The tool is easy to use and features an interactive user interface to quickly get you up and running.
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC6403CUD-1#PBF | Material Declaration | Reliability Data | 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) | |
| LTC6403CUD-1#TRPBF | Material Declaration | Reliability Data | 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) | |
| LTC6403HUD-1#PBF | Material Declaration | Reliability Data | 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) | |
| LTC6403HUD-1#TRPBF | Material Declaration | Reliability Data | 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) | |
| LTC6403IUD-1#PBF | Material Declaration | Reliability Data | 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) | |
| LTC6403IUD-1#TRPBF | Material Declaration | Reliability Data | 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) | |
| Wafer Fabrication Data | R532 Reliability Data |
