Features and Benefits

  • 1.3GHz -3dB Bandwidth
  • Fixed Gain of 10V/V (20dB)

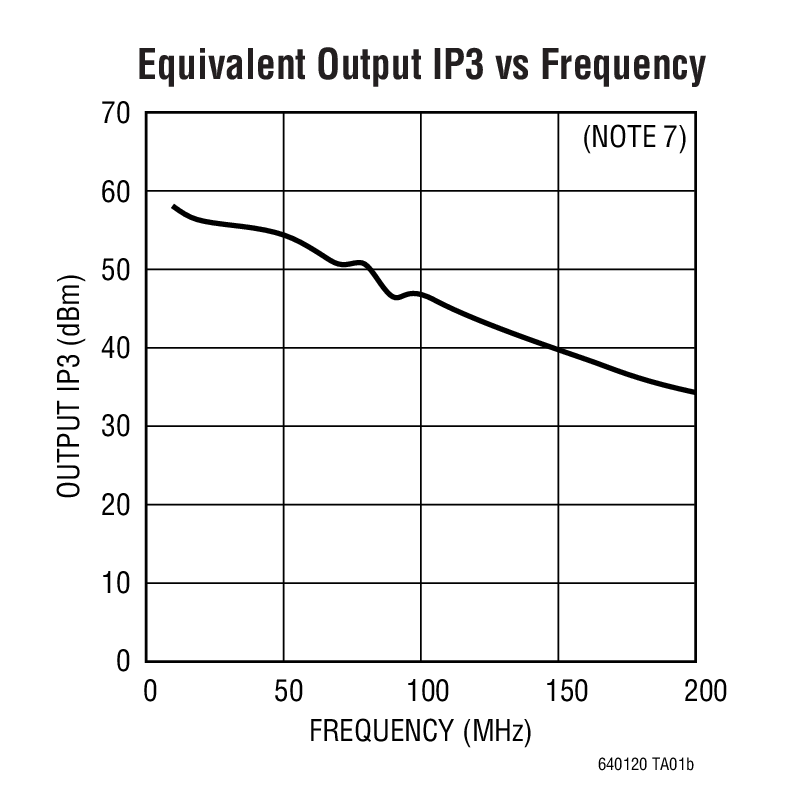

  • –93dBc IMD3 at 70MHz (Equivalent OIP3 = 50.5dBm)
  • –74dBc IMD3 at 140MHz (Equivalent OIP3 = 41dBm)
  • 1nV/√Hz Internal Op Amp Noise
  • 2.1nV/√Hz Total Input Noise
  • 6.2dB Noise Figure
  • Differential Inputs and Outputs
  • 200 Input Impedance
  • 2.85V to 3.5V Supply Voltage
  • 50mA Supply Current (150mW)
  • 1V to 1.6V Output Common Mode Voltage, Adjustable
  • DC- or AC-Coupled Operation
  • Max Differential Output Swing 4.4VP-P

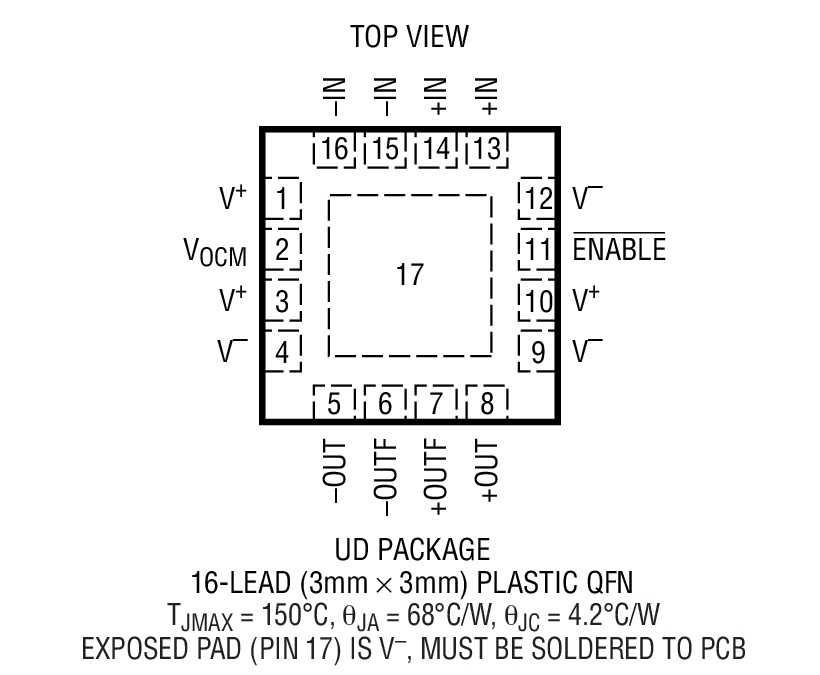

  • Small 16-Lead 3mm × 3mm × 0.75mm QFN Package

Product Details

The LTC6401-20 is a high-speed differential amplifier targeted at processing signals from DC to 140MHz. The part has been specifically designed to drive 12-, 14- and 16-bit ADCs with low noise and low distortion, but can also be used as a general-purpose broadband gain block.

The LTC6401-20 is easy to use, with minimal support circuitry required. The output common mode voltage is set using an external pin, independent of the inputs, which eliminates the need for transformers or AC-coupling capacitors in many applications. The gain is internally fixed at 20dB (10V/V).

The LTC6401-20 saves space and power compared to alternative solutions using IF gain blocks and transformers. The LTC6401-20 is packaged in a compact 16-lead 3mm × 3mm QFN package and operates over the –40°C to 85°C temperature range.


  • Differential ADC Driver
  • Differential Driver/Receiver

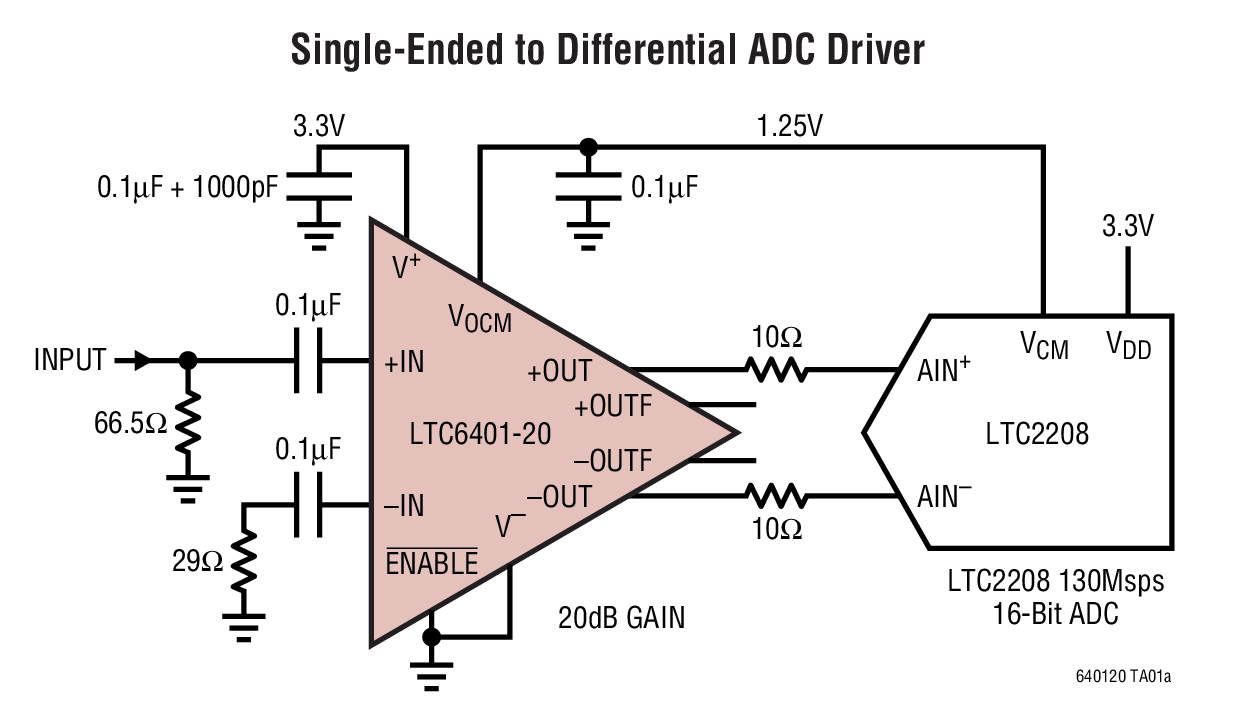

  • Single Ended to Differential Conversion
  • IF Sampling Receivers
  • SAW Filter Interfacing

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

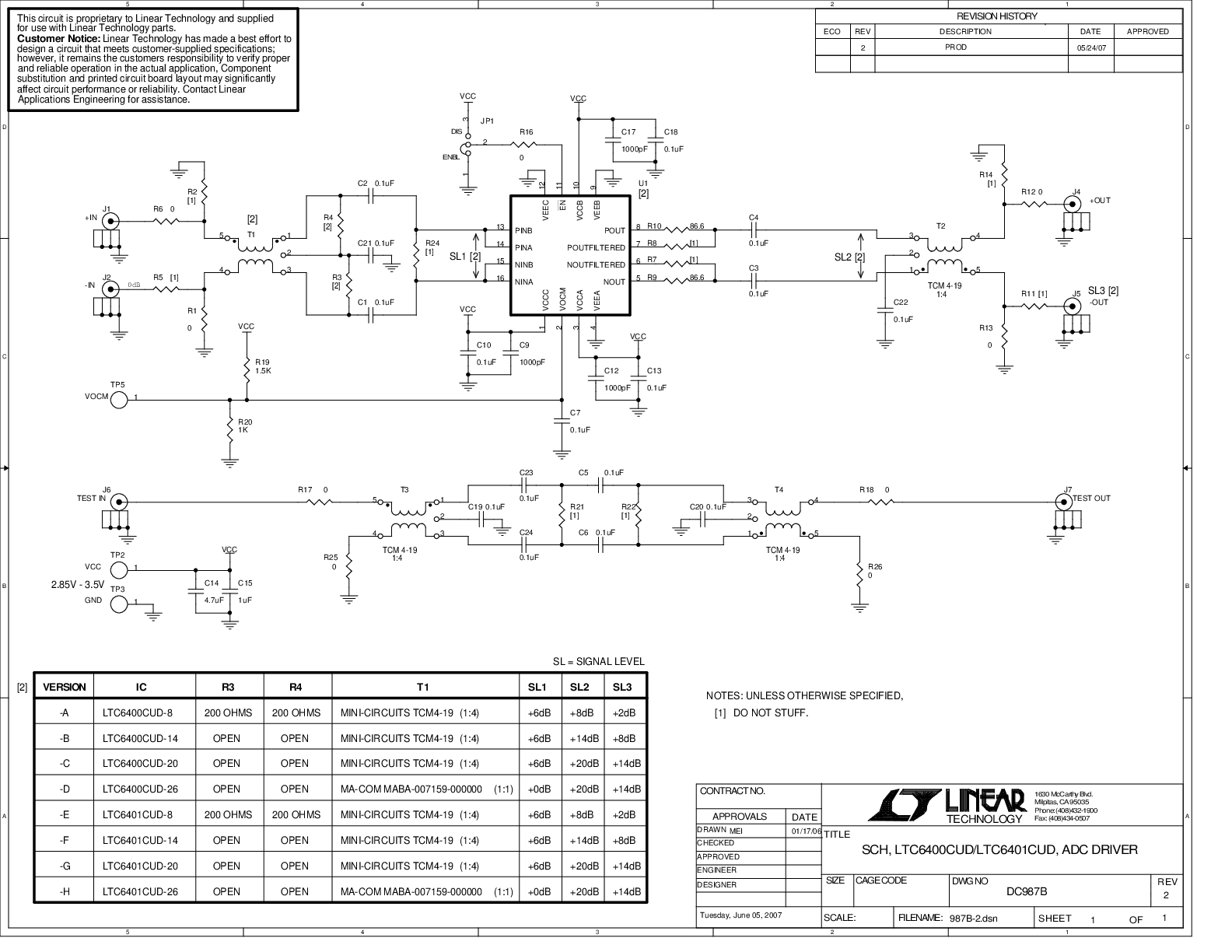

Evaluation Kits (1)
