Overview

Features and Benefits

  • 2GHz –3dB Bandwidth
  • Fixed Gain of 5V/V (14dB)

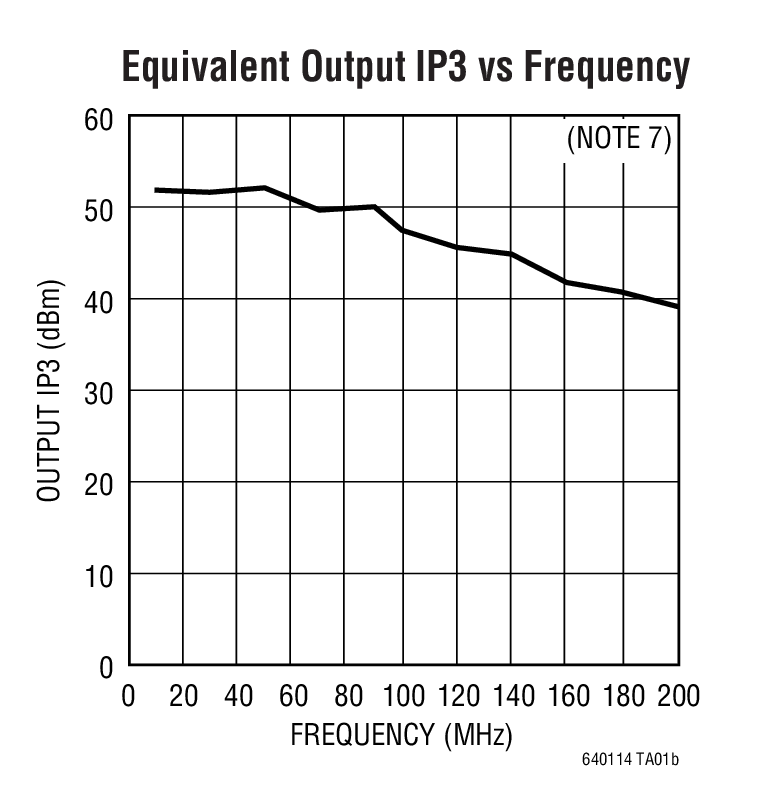

  • –91dBc IMD3 at 70MHz (Equivalent OIP3 = 49.3dBm)
  • –81dBc IMD3 at 140MHz (Equivalent OIP3 = 44.5dBm)
  • 1.1nV/√Hz Internal Op Amp Noise
  • 7.3dB Noise Figure
  • Differential Inputs and Outputs
  • 200Ω Input Impedance
  • 2.85V to 3.5V Supply Voltage
  • 45mA Supply Current (135mW)
  • 1V to 1.6V Output Common Mode, Adjustable
  • DC- or AC-Coupled Operation
  • Max Differential Output Swing 4.6VP-P

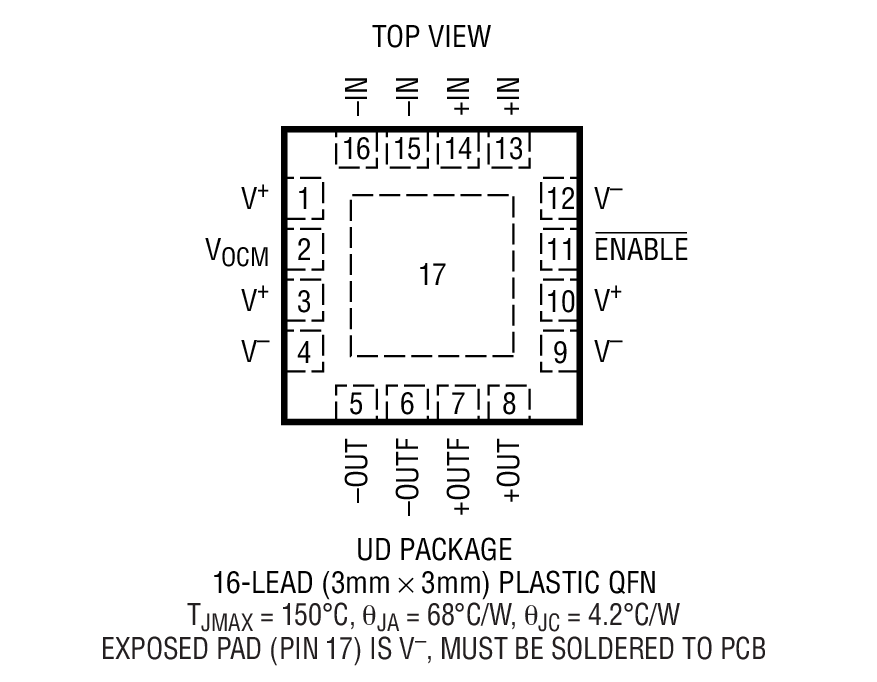

  • Small 16-Lead 3mm × 3mm × 0.75mm QFN Package

Product Details

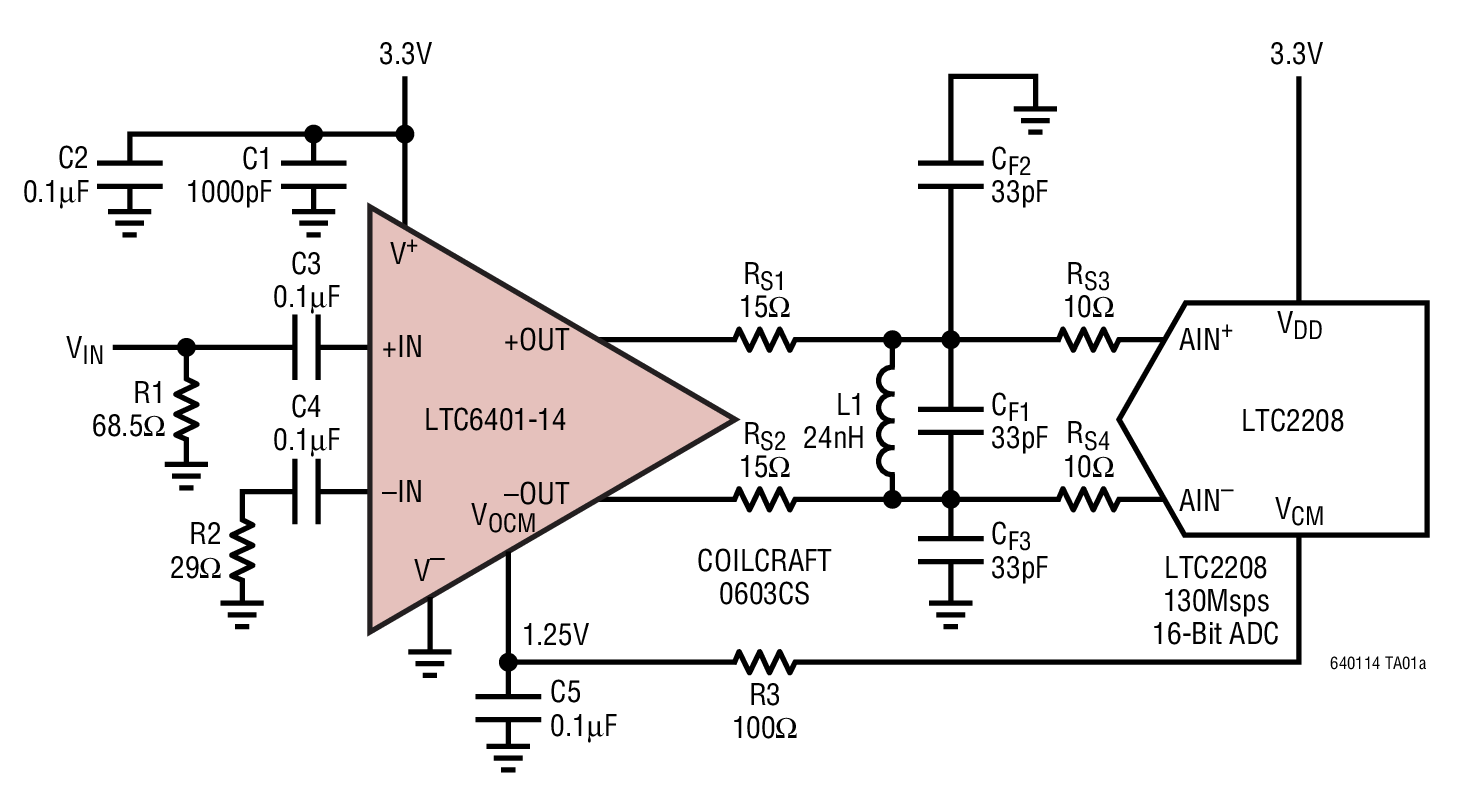

The LTC6401-14 is a high-speed differential amplifier targeted at processing signals from DC to 140MHz. The part has been specifically designed to drive 12-, 14- and 16-bit ADCs with low noise and low distortion, but can also be used as a general-purpose broadband gain block.

The LTC6401-14 is easy to use, with minimal support circuitry required. The output common mode voltage is set using an external pin, independent of the inputs, which eliminates the need for transformers or AC-coupling capacitors in many applications. The gain is internally fixed at 14dB (5V/V).

The LTC6401-14 saves space and power compared to alternative solutions using IF gain blocks and transformers. The LTC6401-14 is packaged in a compact 16-lead 3mm × 3mm QFN package and operates over the –40°C to 85°C temperature range.

Applications

  • Differential ADC Driver
  • Differential Driver/Receiver
  • Single Ended to Differential Conversion
  • IF Sampling Receivers
  • SAW Filter Interfacing

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

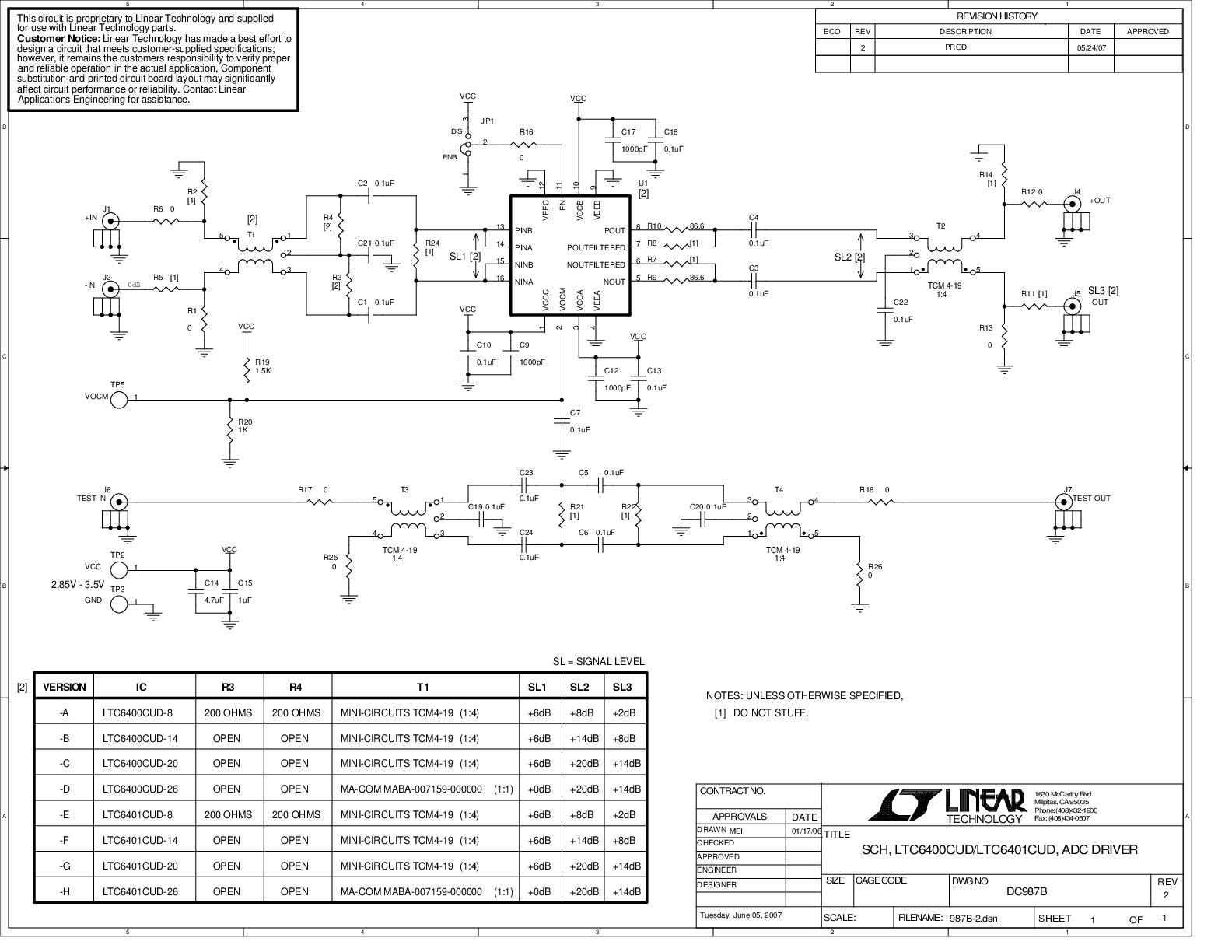

Evaluation Kits (1)

Documentation & Resources

  • View All (7)
  • Data Sheets (1)
  • Reliability Data (1)
  • Application Notes (1)
  • User Guides (1)
  • Product Selector Card (1)
  • Design Notes (1)
  • Technical Articles (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LTC6401-14
    LTC6401-20
    LTC6401-26
    LTC6401-8

    Sys-Parameters

    Sys-Parameter Models for Keysight Genesys

    Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.

    Design Tools

    ADIsimRF

    ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC6401CUD-14#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC6401CUD-14#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC6401IUD-14#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC6401IUD-14#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    Wafer Fabrication Data R532 Reliability Data
