LTC6360

Very Low Noise Single-Ended SAR ADC Driver with True Zero Output

Show More showmore-icon

warning : LAST TIME BUY tooltip
warning : LAST TIME BUY tooltip
Part Details
Part Models 12
1ku List Price Starting From $2.63
Features
  • Output Swings to True Zero on Single Supply
  • 2.3nV/√Hz Noise Density
  • Fast Settling Time: 150ns, 16-Bit, 4V Step
  • 110dB SNR in 3MHz Bandwidth
  • Low Distortion, HD2 = –103dBc and HD3 = –109dBc for 4VP-P Output at 40kHz
  • Low Offset Voltage: 250μV Max
  • Low Power Shutdown: 350μA Max
  • 3mm × 3mm 8-Pin DFN and 8-lead MSOP Packages
Additional Details
show more Icon

The LTC6360 is a very low noise, high precision, high speed amplifier suitable for driving SAR ADCs. The LTC6360 features a total output noise of 2.3nV/√Hz combined with 150ns settling time to 16-bit levels (AV = 1).

While powered from a single 5V supply, the amplifier output can swing to 0V while maintaining high linearity. This is made possible with the inclusion of a very low noise on-chip charge pump that generates a negative voltage to bias the output stage of the amplifier, increasing the allowable negative voltage swing.

The LTC6360 is available in a compact 3mm × 3mm, 8-pin leadless DFN package and an 8-pin MSOP package with exposed pad and operates over a –40°C to 125°C temperature range.

Applications

  • 16-Bit and 18-Bit SAR ADC Driver
  • High Speed Buffer Amplifiers
  • Low Noise Signal Processing
Part Models 12
1ku List Price Starting From $2.63

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC6360CDD#PBF
  • HTML
  • HTML
LTC6360CDD#TRPBF
  • HTML
  • HTML
LTC6360CMS8E#PBF
  • HTML
  • HTML
LTC6360CMS8E#TRPBF
  • HTML
  • HTML
LTC6360HDD#PBF
  • HTML
  • HTML
LTC6360HDD#TRPBF
  • HTML
  • HTML
LTC6360HMS8E#PBF
  • HTML
  • HTML
LTC6360HMS8E#TRPBF
  • HTML
  • HTML
LTC6360IDD#PBF
  • HTML
  • HTML
LTC6360IDD#TRPBF
  • HTML
  • HTML
LTC6360IMS8E#PBF
  • HTML
  • HTML
LTC6360IMS8E#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 3, 2020

- 20_0128

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LTC6360CMS8E#PBF

LAST TIME BUY

LTC6360CMS8E#TRPBF

LAST TIME BUY

LTC6360HMS8E#PBF

LAST TIME BUY

LTC6360HMS8E#TRPBF

LAST TIME BUY

LTC6360IMS8E#PBF

LAST TIME BUY

LTC6360IMS8E#TRPBF

LAST TIME BUY

Mar 20, 2024

- 23_0089

Obsolescence of Tower Fab3 (JAZZ-3) SBC35 Process

LTC6360CDD#PBF

LAST TIME BUY

LTC6360CDD#TRPBF

LAST TIME BUY

LTC6360CMS8E#PBF

LAST TIME BUY

LTC6360CMS8E#TRPBF

LAST TIME BUY

LTC6360HDD#PBF

LAST TIME BUY

LTC6360HDD#TRPBF

LAST TIME BUY

LTC6360HMS8E#PBF

LAST TIME BUY

LTC6360HMS8E#TRPBF

LAST TIME BUY

LTC6360IDD#PBF

LAST TIME BUY

LTC6360IDD#TRPBF

LAST TIME BUY

LTC6360IMS8E#PBF

LAST TIME BUY

LTC6360IMS8E#TRPBF

LAST TIME BUY

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 3, 2020

- 20_0128

arrow down

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LTC6360CMS8E#PBF

LAST TIME BUY

LTC6360CMS8E#TRPBF

LAST TIME BUY

LTC6360HMS8E#PBF

LAST TIME BUY

LTC6360HMS8E#TRPBF

LAST TIME BUY

LTC6360IMS8E#PBF

LAST TIME BUY

LTC6360IMS8E#TRPBF

LAST TIME BUY

Mar 20, 2024

- 23_0089

arrow down

Obsolescence of Tower Fab3 (JAZZ-3) SBC35 Process

LTC6360CDD#PBF

LAST TIME BUY

LTC6360CDD#TRPBF

LAST TIME BUY

LTC6360CMS8E#PBF

LAST TIME BUY

LTC6360CMS8E#TRPBF

LAST TIME BUY

LTC6360HDD#PBF

LAST TIME BUY

LTC6360HDD#TRPBF

LAST TIME BUY

LTC6360HMS8E#PBF

LAST TIME BUY

LTC6360HMS8E#TRPBF

LAST TIME BUY

LTC6360IDD#PBF

LAST TIME BUY

LTC6360IDD#TRPBF

LAST TIME BUY

LTC6360IMS8E#PBF

LAST TIME BUY

LTC6360IMS8E#TRPBF

LAST TIME BUY

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 9

reference details image

DC1796A-E

LTC6360 Driving LTC2369-18 Demo Board | 18-Bit, 1.6Msps SAR ADC (Requires DC590 or DC718)

zoom

DC1796A-E

LTC6360 Driving LTC2369-18 Demo Board | 18-Bit, 1.6Msps SAR ADC (Requires DC590 or DC718)

LTC6360 Driving LTC2369-18 Demo Board | 18-Bit, 1.6Msps SAR ADC (Requires DC590 or DC718)

Product Detail

DC1796A-E Demo Board for:
LTC6360 Very Low Noise Single-Ended SAR ADC Driver with True Zero Output
LTC2369-18 18-Bit, 1.6Msps, Pseudo- Differential Unipolar SAR ADC with 96.5dB SNR





reference details image

DC1796A-F

LTC6360 Driving LTC2368-18 Demo Board | 18-Bit, 1Msps SAR ADC (Requires DC590 or DC718)

zoom

DC1796A-F

LTC6360 Driving LTC2368-18 Demo Board | 18-Bit, 1Msps SAR ADC (Requires DC590 or DC718)

LTC6360 Driving LTC2368-18 Demo Board | 18-Bit, 1Msps SAR ADC (Requires DC590 or DC718)

Product Detail

DC1796A-F Demo Board for:
LTC6360 Very Low Noise Single-Ended SAR ADC Driver with True Zero Output
LTC2368-18 18-Bit, 1Msps, Pseudo-Differential Unipolar SAR ADC with 97dB SNR





reference details image

DC1796A-G

LTC6360 Driving LTC2367-18 Demo Board | 18-Bit, 0.5Msps SAR ADC (Requires DC590 or DC718)

zoom

DC1796A-G

LTC6360 Driving LTC2367-18 Demo Board | 18-Bit, 0.5Msps SAR ADC (Requires DC590 or DC718)

LTC6360 Driving LTC2367-18 Demo Board | 18-Bit, 0.5Msps SAR ADC (Requires DC590 or DC718)

Product Detail

DC1796A-G Demo Board for:
LTC6360 Very Low Noise Single-Ended SAR ADC Driver with True Zero Output
LTC2367-18 18-Bit, 500ksps, Pseudo-Differential Unipolar SAR ADC with 97dB SNR





reference details image

DC1796A-B

LTC6360 Driving LTC2368-16 Demo Board | 16-Bit, 1Msps SAR ADC (Requires DC590 or DC718)

zoom

DC1796A-B

LTC6360 Driving LTC2368-16 Demo Board | 16-Bit, 1Msps SAR ADC (Requires DC590 or DC718)

LTC6360 Driving LTC2368-16 Demo Board | 16-Bit, 1Msps SAR ADC (Requires DC590 or DC718)

Product Detail

DC1796A-B Demo Board for:
LTC6360 Very Low Noise Single-Ended SAR ADC Driver with True Zero Output
LTC2368-16 16-Bit, 1Msps, Pseudo- Differential Unipolar SAR ADC with 94.7dB SNR





reference details image

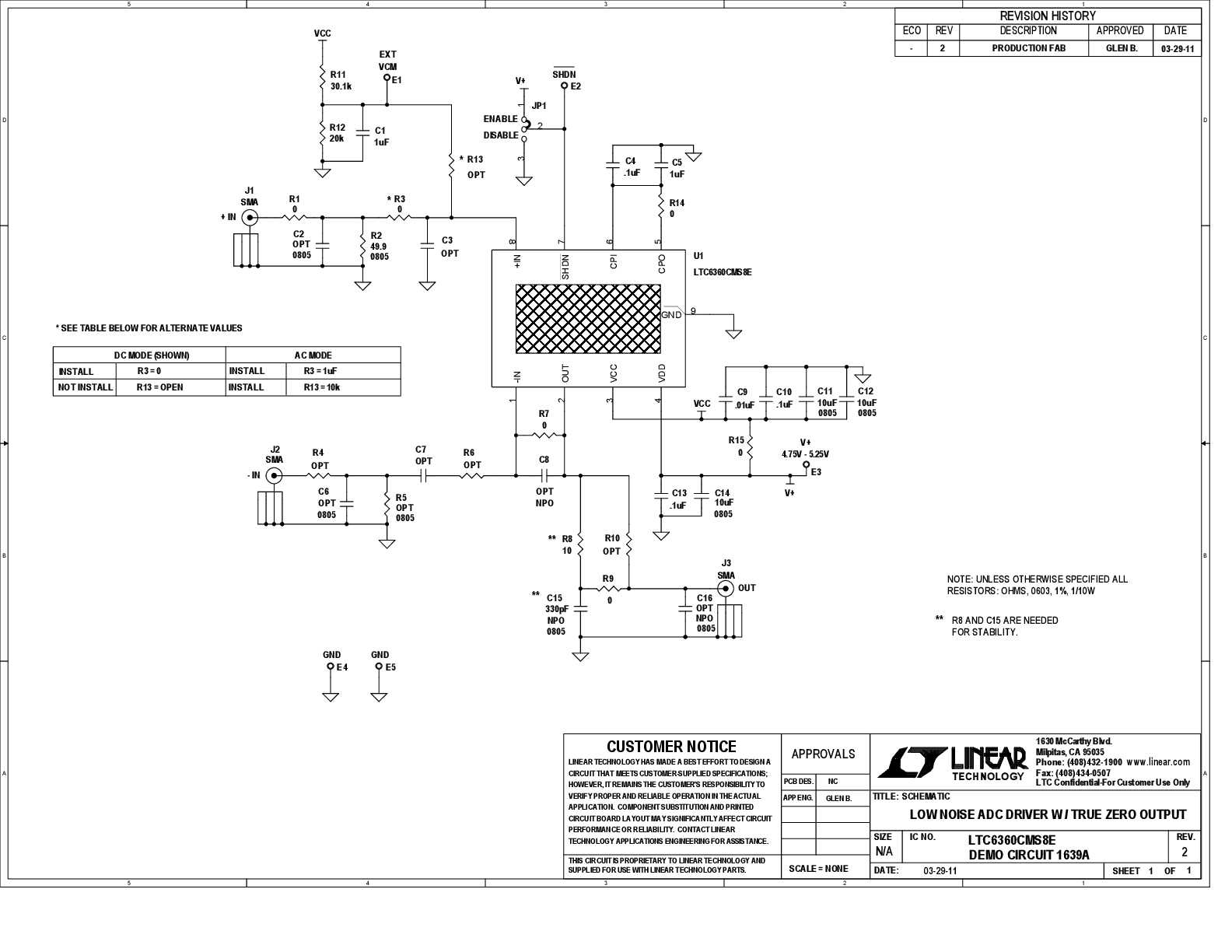

DC1639A

LTC6360 | High Speed Op Amplifier with True Zero Output

reference details image

DC1796A-H

LTC6360 Driving LTC2364-18 Demo Board | 18-Bit, 0.25Msps SAR ADC (Requires DC590 or DC718)

zoom

DC1796A-H

LTC6360 Driving LTC2364-18 Demo Board | 18-Bit, 0.25Msps SAR ADC (Requires DC590 or DC718)

LTC6360 Driving LTC2364-18 Demo Board | 18-Bit, 0.25Msps SAR ADC (Requires DC590 or DC718)

Product Detail

DC1796A-H Demo Board for:
LTC6360 Very Low Noise Single-Ended SAR ADC Driver with True Zero Output
LTC2364-18 18-Bit, 250ksps, Pseudo-Differential Unipolar SAR ADC with 97dB SNR





reference details image

DC1796A-C

LTC6360 Driving LTC2367-16 Demo Board | 16-Bit, 0.5Msps SAR ADC (Requires DC590 or DC718)

zoom

DC1796A-C

LTC6360 Driving LTC2367-16 Demo Board | 16-Bit, 0.5Msps SAR ADC (Requires DC590 or DC718)

LTC6360 Driving LTC2367-16 Demo Board | 16-Bit, 0.5Msps SAR ADC (Requires DC590 or DC718)

Product Detail

DC1796A-C Demo Board for:
LTC6360 Very Low Noise Single-Ended SAR ADC Driver with True Zero Output
LTC2367-16 16-Bit, 500ksps, Pseudo- Differential Unipolar SAR ADC with 94.7dB SNR





reference details image

DC1796A-D

LTC6360 Driving LTC2364-16 Demo Board | 16-Bit, 0.25Msps SAR ADC (Requires DC590 or DC718)

zoom

DC1796A-D

LTC6360 Driving LTC2364-16 Demo Board | 16-Bit, 0.25Msps SAR ADC (Requires DC590 or DC718)

LTC6360 Driving LTC2364-16 Demo Board | 16-Bit, 0.25Msps SAR ADC (Requires DC590 or DC718)

Product Detail

DC1796A-D Demo Board for:
LTC6360 Very Low Noise Single-Ended SAR ADC Driver with True Zero Output
LTC2364-16 16-Bit, 250ksps, Pseudo-Differential Unipolar SAR ADC with 94.7dB SNR





reference details image

DC1796A-A

LTC6360 Driving LTC2370-16 Demo Board | 16-bit, 2Msps SAR ADC (Requires DC590 or DC718)

zoom

DC1796A-A

LTC6360 Driving LTC2370-16 Demo Board | 16-bit, 2Msps SAR ADC (Requires DC590 or DC718)

LTC6360 Driving LTC2370-16 Demo Board | 16-bit, 2Msps SAR ADC (Requires DC590 or DC718)

Product Detail

DC1796A-A Demo Board for:
LTC2370-16 16-Bit, 2Msps, Pseudo- Differential Unipolar SAR ADC with 94dB SNR
LTC6360 Very Low Noise Single-Ended SAR ADC Driver with True Zero Output





Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
