Features and Benefits
- Gain Bandwidth Product: 30MHz
- Low Quiescent Current: 240μA
- Op Amp Drives up to 1nF Capacitive Loads
- Offset Voltage: 400μV Maximum
- Rail-to-Rail Input and Output
- Supply Voltage Range: 1.8V to 5.25V
- Input Bias Current: 100nA Maximum
- CMRR/PSRR: 100dB/95dB
- Shutdown Current: 10μA Maximum
- Operating Temperature Range: –40°C to 125°C

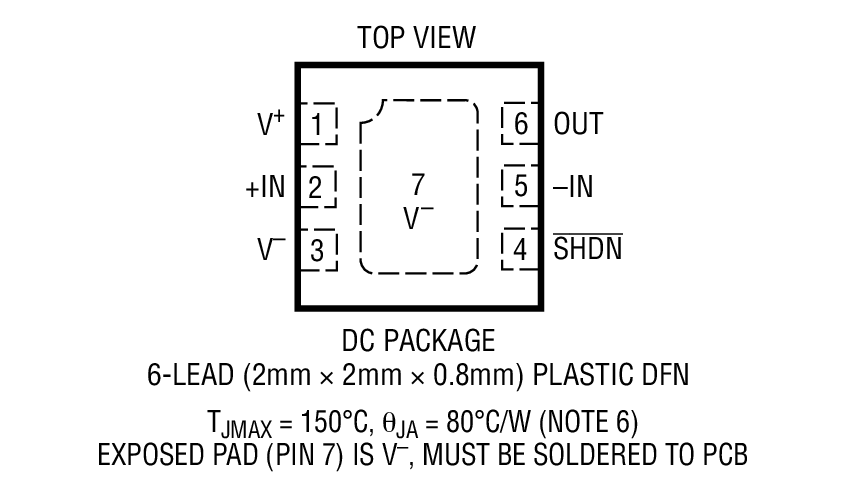

- Single in 6-Lead TSOT-23, 2mm × 2mm DFN Packages

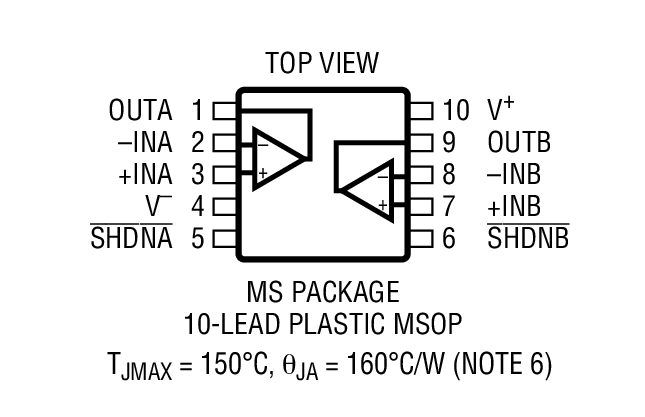

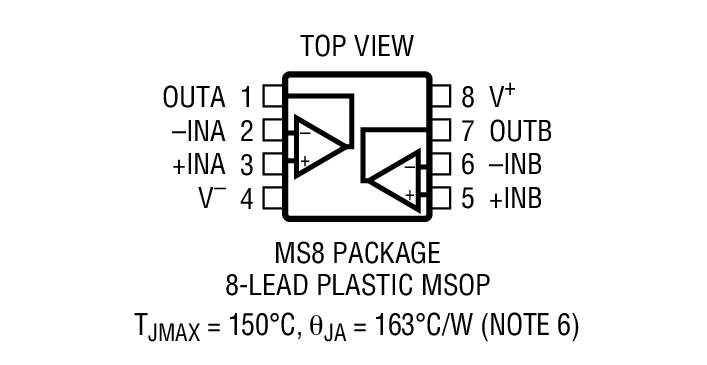

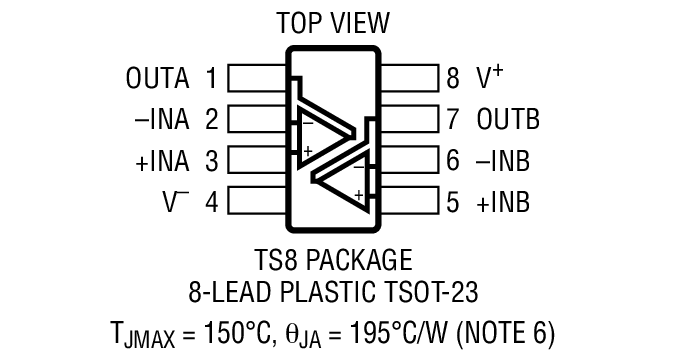

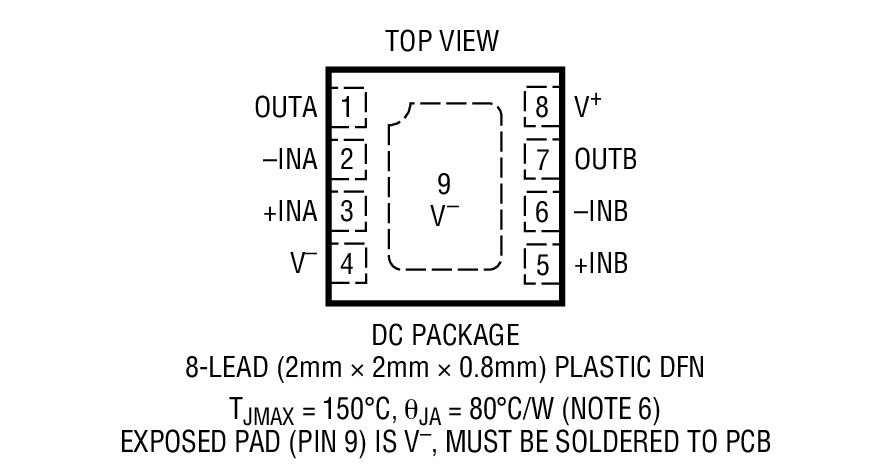

- Dual in 8-Lead MS8, MS10, TS0T-23, 2mm × 2mm DFN Packages

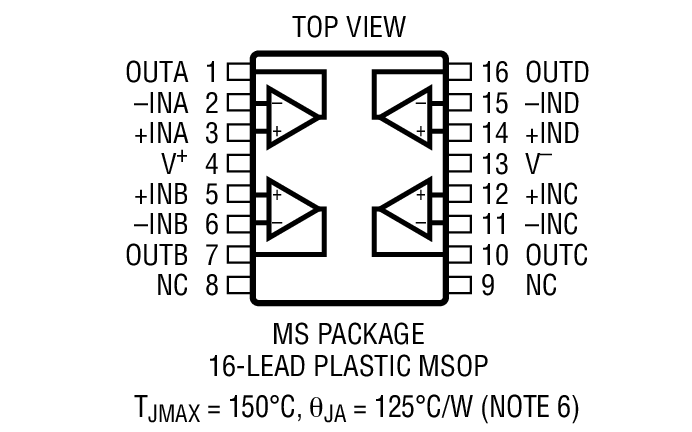

- Quad in MS16 Package

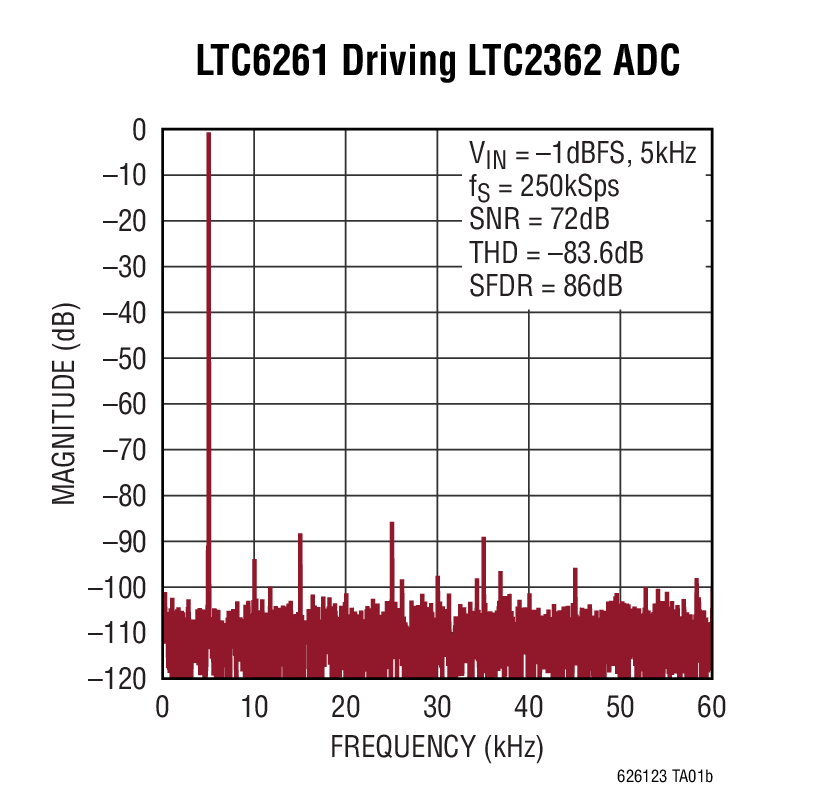

The LTC6261/LTC6262/LTC6263 are single/dual/quad operational amplifiers with low noise, low power, low supply voltage, and rail-to-rail inputs and outputs. They are unity gain stable with capacitive loads up to 1nF. They feature 30MHz gain-bandwidth product, 7V/μs slew rate while consuming only 240μA of supply current per amplifier operating on supply voltages ranging from 1.8V to 5.25V. The combination of low supply current, low supply voltage, high gain bandwidth product and low noise makes the LTC6261 family unique among rail-to-rail input/output op amps with similar supply current. These operational amplifiers are ideal for low power and low noise applications.
For applications that require power-down, the LTC6261 in 2mm × 2mm DFN and LTC6262 in MSOP-10 offer shutdown which reduces the current consumption to 10μA maximum.
The LTC6261 family can be used as plug-in replacements for many commercially available op amps to reduce power and improve input/output range and performance.
- Micropower Active Filters
- Portable Instrumentation
- Battery or Solar Powered Systems
- Automotive Electronics
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
