LTC6090
LTC6090-5

140V CMOS Rail-to-Rail Output, Picoamp Input Current Op Amp

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC6090/LT5400 Demo Circuit - Wide Common Mode Range 10x Gain Instrumentation Amplifier Download 4.00KB LTspice LTC6090 Demo Circuit - Wide Dynamic Input-Output Range High Voltage Integrator Download 2.00KB LTspice LTC6090/LTC2054 Demo Circuit - µVolt Preamplifier for a Digital Voltmeter Download 5.00KB LTspice LTC6090 - Operational Amplifiers (Op Amps) Download 1.44 KB
Part Models 24
1ku List Price Starting From $4.12
Features
  • Supply Range: ±4.75V to ±70V (140V)
  • 0.1Hz to 10Hz Noise: 3.5μVP-P
  • Input Bias Current: 50pA Maximum
  • Low Offset Voltage: 1.25mV Maximum
  • Low Offset Drift: ±5μV/°C Maximum
  • CMRR: 130dB Minimum
  • Rail-to-Rail Output Stage
  • Output Sink and Source: 50mA
  • 12MHz Gain Bandwidth Product
  • 21V/μs Slew Rate
  • 11nV/√Hz Noise Density
  • Thermal Shutdown
  • Available in Thermally Enhanced SOIC-8E or TSSOP-16E Packages
Additional Details
show more Icon

The LTC6090/LTC6090-5 are high voltage, precision monolithic operational amplifiers. The LTC6090 is unity gain stable. The LTC6090-5 is stable in noise gain configurations of 5 or greater. Both amplifiers feature high open loop gain, low input referred offset voltage and noise, and pA input bias current and are ideal for high voltage, high impedance buffering and/or high gain configurations.

The amplifiers are internally protected against overtemperature conditions. A thermal warning output, TFLAG, goes active when the die temperature approaches 150°C. The output stage may be turned off with the output disable pin OD. By tying the OD pin to the thermal warning output (TFLAG), the part will disable the output stage when it is out of the safe operating area. These pins easily interface to any logic family.

Both amplifiers may be run from a single 140V or spit ±70V power supplies and are capable of driving up to 200pF of load capacitance. They are available in either an 8-lead SO or 16-lead TSSOP package with exposed pad for low thermal resistance.

Applications

  • ATE
  • Piezo Drivers
  • Photodiode Amplifier
  • High Voltage Regulators
  • Optical Networking
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC6090/LT5400 Demo Circuit - Wide Common Mode Range 10x Gain Instrumentation Amplifier Download 4.00KB LTspice LTC6090 Demo Circuit - Wide Dynamic Input-Output Range High Voltage Integrator Download 2.00KB LTspice LTC6090/LTC2054 Demo Circuit - µVolt Preamplifier for a Digital Voltmeter Download 5.00KB LTspice LTC6090 - Operational Amplifiers (Op Amps) Download 1.44 KB
Part Models 24
1ku List Price Starting From $4.12
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC6090
LTC6090-5

Documentation

7
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Reliability Data
  • User Guide
  • Design Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 11/25/2015
English

LTC6090/LTC6090-5: 140V CMOS Rail-to-Rail Output, Picoamp Input Current Op Amp Data Sheet

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 08/25/2014
Japanese

LTC6090/LTC6090-5: 入力電流がpAレベルの140V CMOSレール・トゥ・レール出力オペアンプ データシート

Open PDF File

redirect
1.00M
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R571 Reliability Data redirect icon

37.64 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 02/05/2013
English
DC1979A - Demo Manual redirect icon

737.00K

download

Download PDF

Design Note

3

PDF Vector

PDF

UPDATED 04/30/2013
English
DN513 - High Voltage CMOS Amplifier Enables High Impedance Sensing with a Single IC redirect icon

104.00K

download

Download PDF

PDF Vector

PDF

UPDATED 05/03/2013
Chinese
DN513 - 高电压 CMOS 放大器利用单个 IC 实现高阻抗检测 redirect icon

517.00K

download

Download PDF

PDF Vector

PDF

UPDATED 04/12/2013
Japanese
DN513 - 単一IC による高インピーダンス検出を実現する 高電圧CMOS アンプ redirect icon

150.00K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Solutions Bulletin & Brochure 1

60V Zero Drift

Product Selector Card 1

High Voltage Amplifiers

Video

1

Thumbnail Image

Video

2017-09-18

06:03

140V CMOS Op Amp with Rail-to-Rail Output and pA Inputs

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC6090CFE#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090CFE#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090CFE-5#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090CFE-5#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090CS8E#PBF 8-Lead SOIC (Narrow 0.15 Inch w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090CS8E#TRPBF 8-Lead SOIC (Narrow 0.15 Inch w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090CS8E-5#PBF 8-Lead SOIC (Narrow 0.15 Inch w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090CS8E-5#TRPBF 8-Lead SOIC (Narrow 0.15 Inch w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090HFE#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090HFE#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090HFE-5#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090HFE-5#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090HS8E#PBF 8-Lead SOIC (Narrow 0.15 Inch w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090HS8E#TRPBF 8-Lead SOIC (Narrow 0.15 Inch w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090HS8E-5#PBF 8-Lead SOIC (Narrow 0.15 Inch w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090HS8E-5#TRPBF 8-Lead SOIC (Narrow 0.15 Inch w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090IFE#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090IFE#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090IFE-5#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090IFE-5#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090IS8E#PBF 8-Lead SOIC (Narrow 0.15 Inch w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090IS8E#TRPBF 8-Lead SOIC (Narrow 0.15 Inch w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090IS8E-5#PBF 8-Lead SOIC (Narrow 0.15 Inch w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6090IS8E-5#TRPBF 8-Lead SOIC (Narrow 0.15 Inch w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC6090CFE#PBF

PRODUCTION

LTC6090CFE#TRPBF

PRODUCTION

LTC6090CFE-5#PBF

PRODUCTION

LTC6090CFE-5#TRPBF

PRODUCTION

LTC6090HFE#PBF

PRODUCTION

LTC6090HFE#TRPBF

PRODUCTION

LTC6090HFE-5#PBF

PRODUCTION

LTC6090HFE-5#TRPBF

PRODUCTION

LTC6090IFE#PBF

PRODUCTION

LTC6090IFE#TRPBF

PRODUCTION

LTC6090IFE-5#PBF

PRODUCTION

LTC6090IFE-5#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC6090CFE#PBF

PRODUCTION

LTC6090CFE#TRPBF

PRODUCTION

LTC6090CFE-5#PBF

PRODUCTION

LTC6090CFE-5#TRPBF

PRODUCTION

LTC6090HFE#PBF

PRODUCTION

LTC6090HFE#TRPBF

PRODUCTION

LTC6090HFE-5#PBF

PRODUCTION

LTC6090HFE-5#TRPBF

PRODUCTION

LTC6090IFE#PBF

PRODUCTION

LTC6090IFE#TRPBF

PRODUCTION

LTC6090IFE-5#PBF

PRODUCTION

LTC6090IFE-5#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Multiplying Current Output D/A Converters1
LTC2756
popup image
Cart

PRODUCTION

Serial 18-Bit SoftSpan IOUT DAC

Precision Resistor Network1
LT5400
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Quad Matched Resistor Network

Single-Channel Voltage Output D/A Converters2
LTC2641
popup image
Cart

PRODUCTION

16-/14-/12-Bit VOUT DACs in 3mm × 3mm DFN

LTC2642
popup image
Cart

PRODUCTION

16-/14-/12-Bit VOUT DACs in 3mm × 3mm DFN

Evaluation Kit

Evaluation Kits 1

Evaluation Kits1

evaluation kit item images

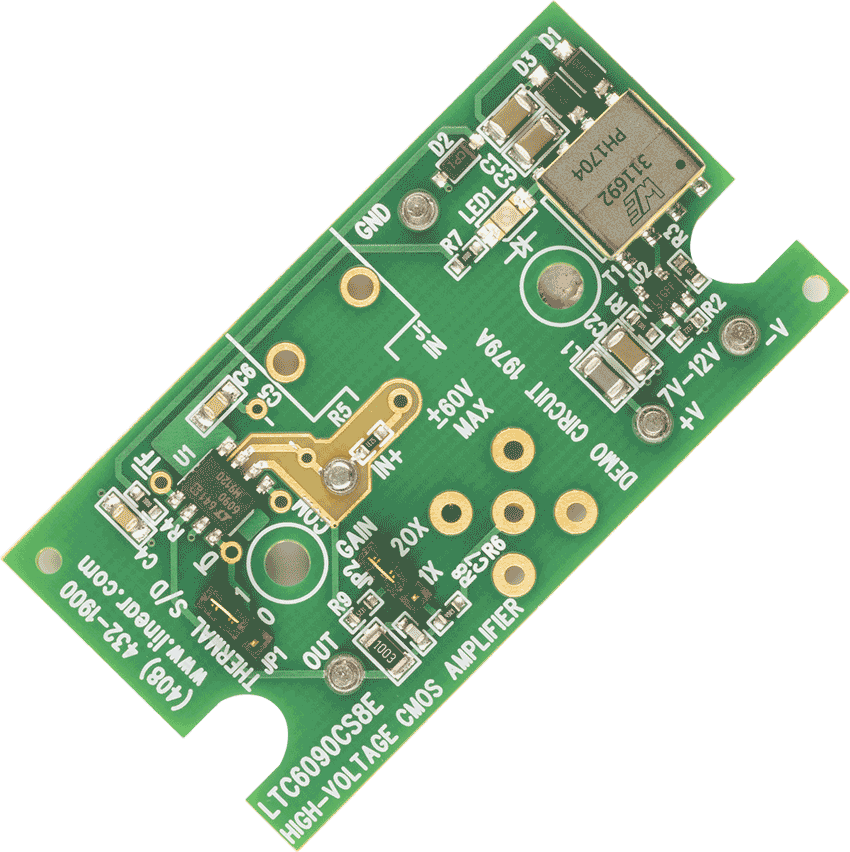

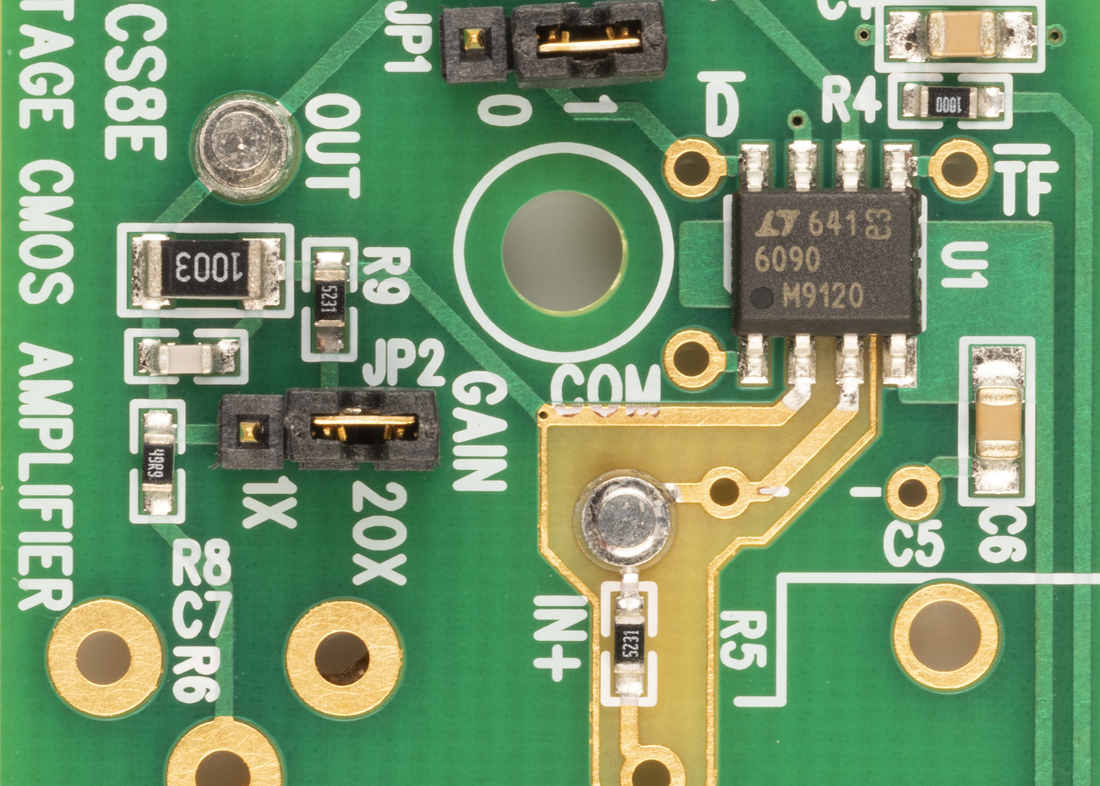

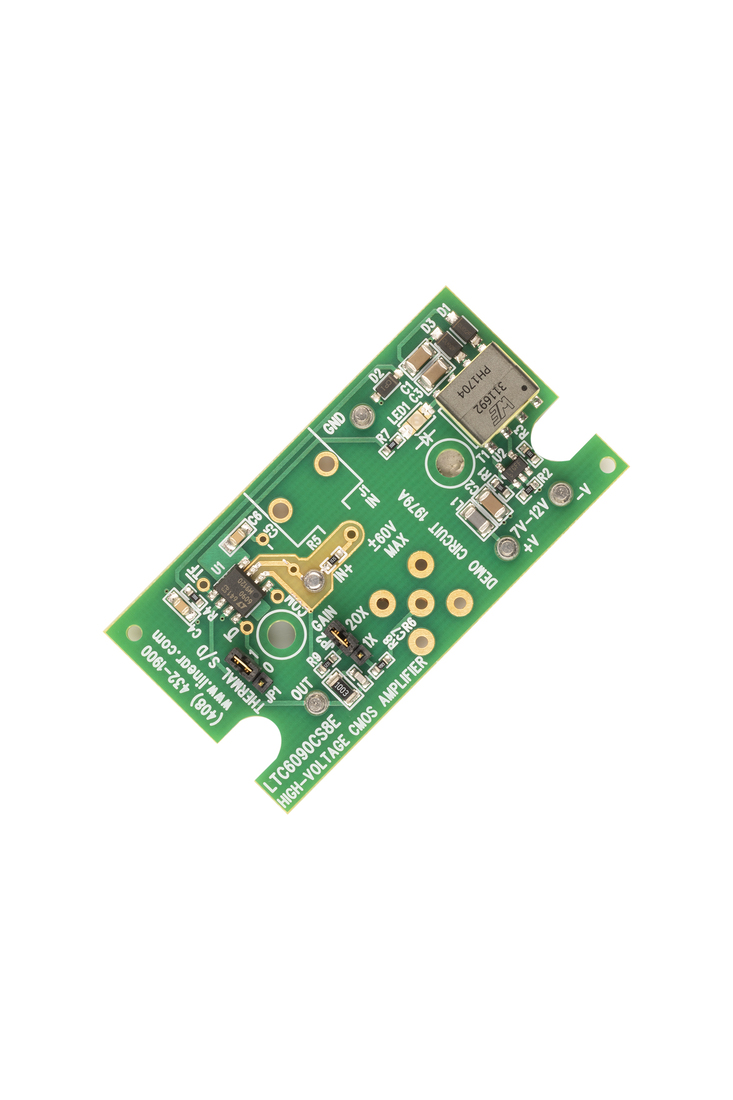

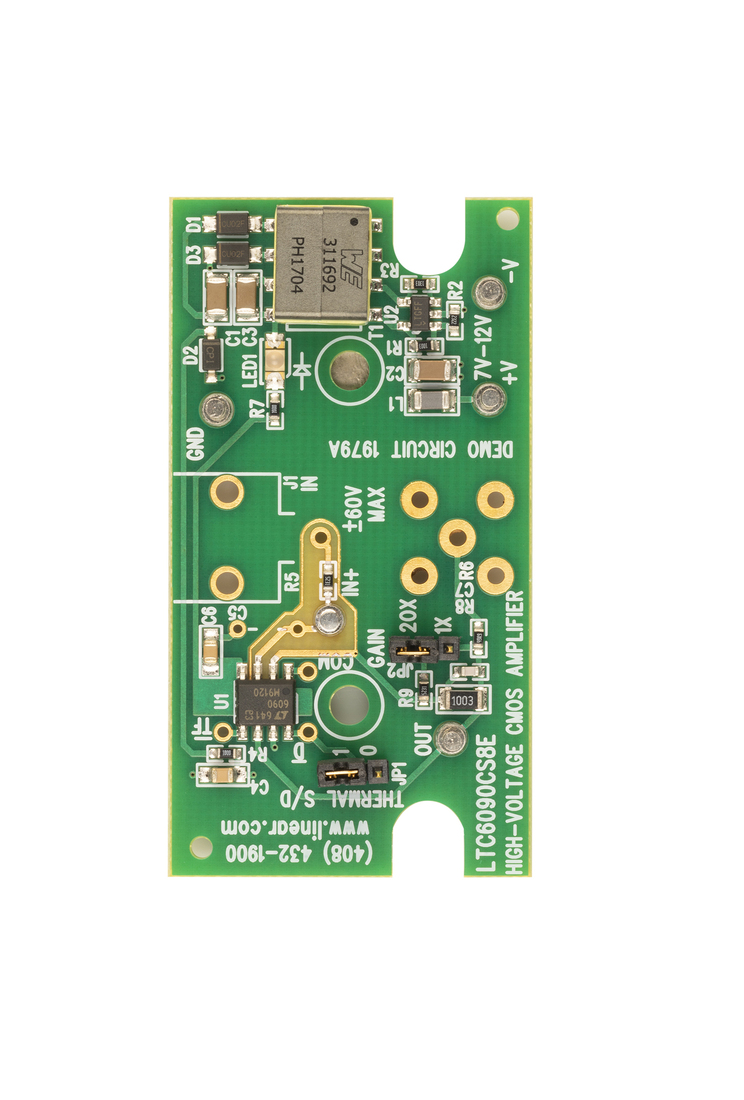

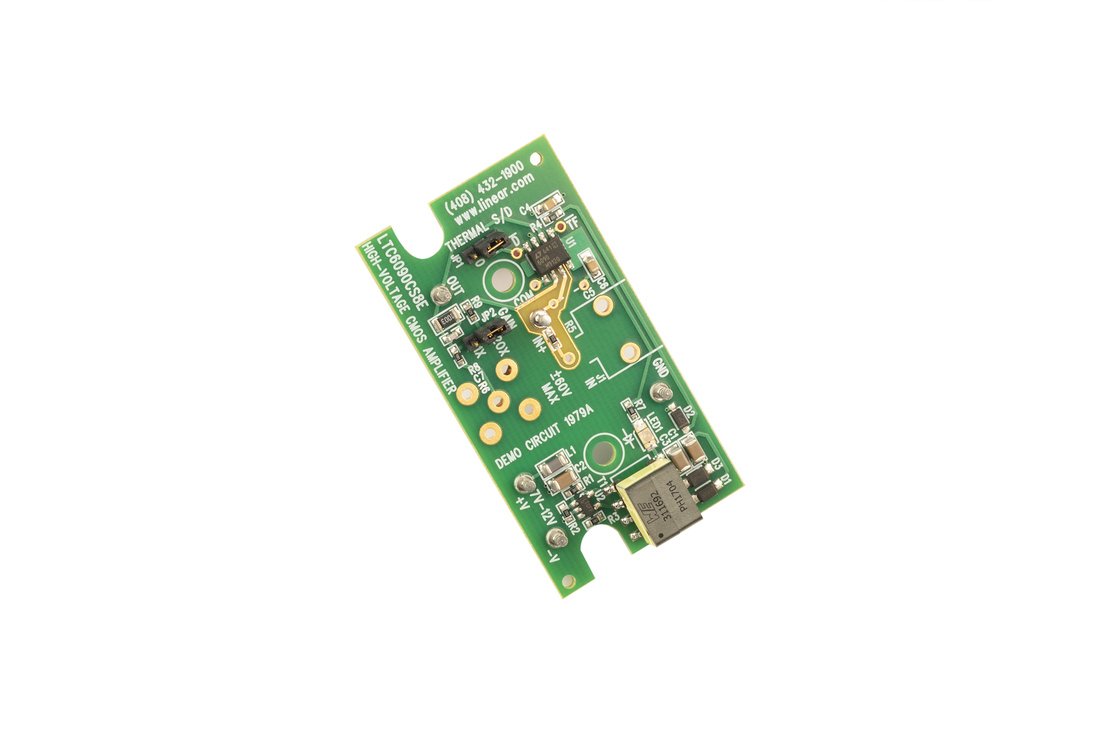

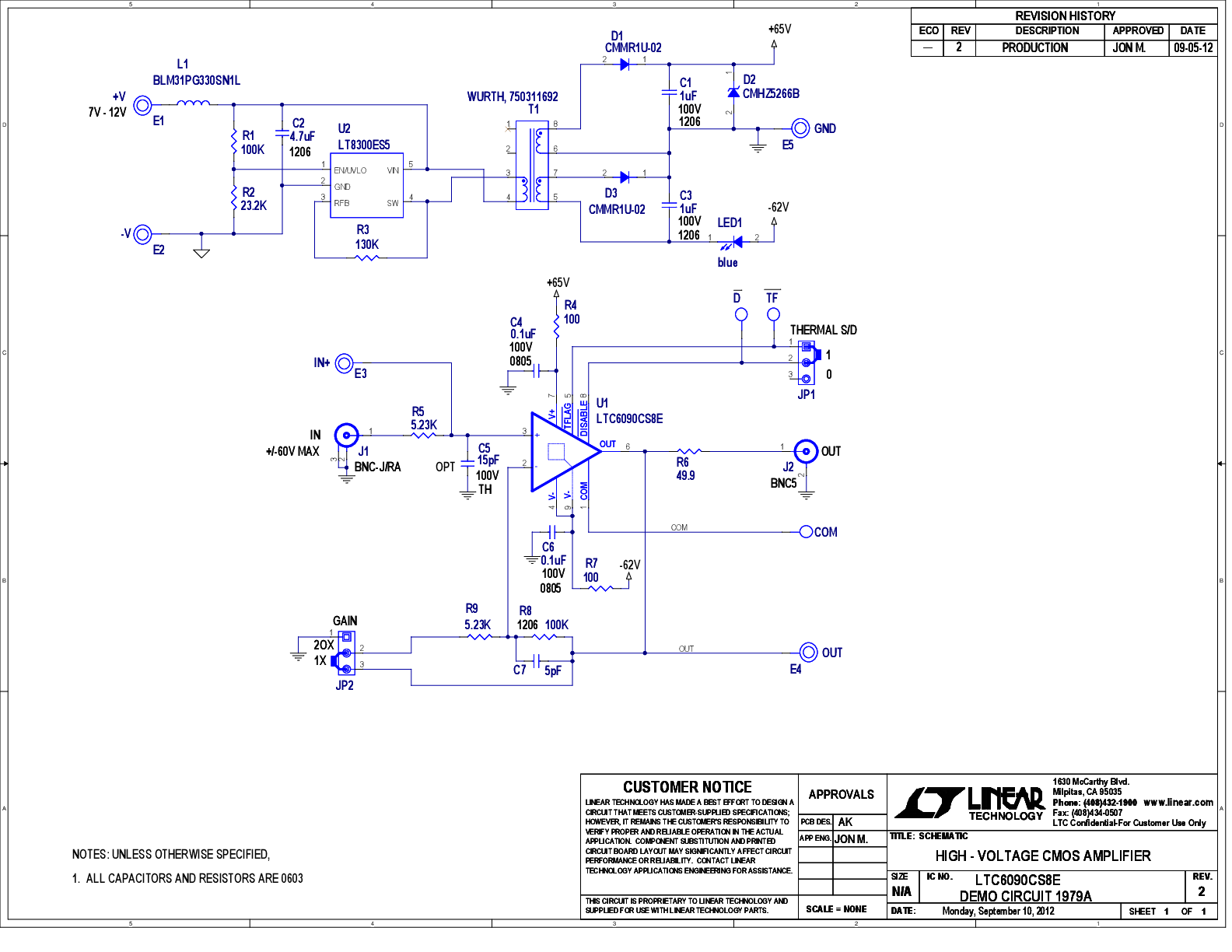

DC1979A

LTC6090 | 140V RROut Op Amp Demo Board
Tools & Simulations

Tools & Simulations 4

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTC6090/LT5400 Demo Circuit - Wide Common Mode Range 10x Gain Instrumentation Amplifier Download

4.00K

spice tool Lt Spice

LTC6090 Demo Circuit - Wide Dynamic Input-Output Range High Voltage Integrator Download

2.00K

spice tool Lt Spice

LTC6090/LTC2054 Demo Circuit - µVolt Preamplifier for a Digital Voltmeter Download

5.00K

spice tool Lt Spice

LTC6090 - Operational Amplifiers (Op Amps) Download

1.44 K
