LTC4425

Linear SuperCap Charger with Current-Limited Ideal Diode and V/I Monitor

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 8
1ku List Price Starting From $2.72
Features
  • 50mΩ Ideal Diode from VIN to VOUT
  • Smart Charge Current Profile Limits Inrush Current
  • Internal Cell Balancer (No External Resistors)
  • Programmable Output Voltage (LDO Mode)
  • Programmable VIN to VOUT Current Limit
  • Continuous Monitoring of VIN to VOUT Current via PROG Pin
  • Low Quiescent Current: 20μA
  • VIN Power Fail, PGOOD Indicator
  • 2.45V/2.7V Cell Protection Shunts (4.9V/5.4V SuperCap Max Top-Off Voltage)
  • 3A Peak Current Limit, Thermal Limiting

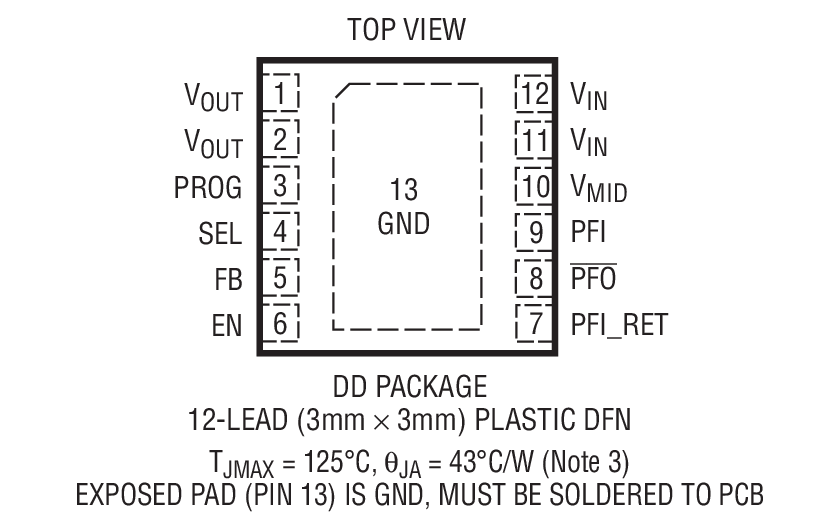

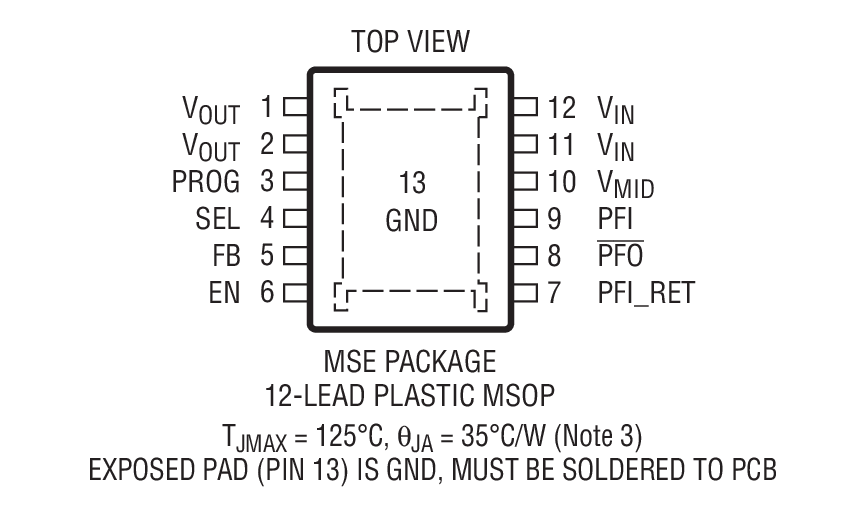

  • Tiny Application Circuit, 3mm × 3mm × 0.75mm DFN and 12-Lead MSOP Packages
Additional Details
show more Icon

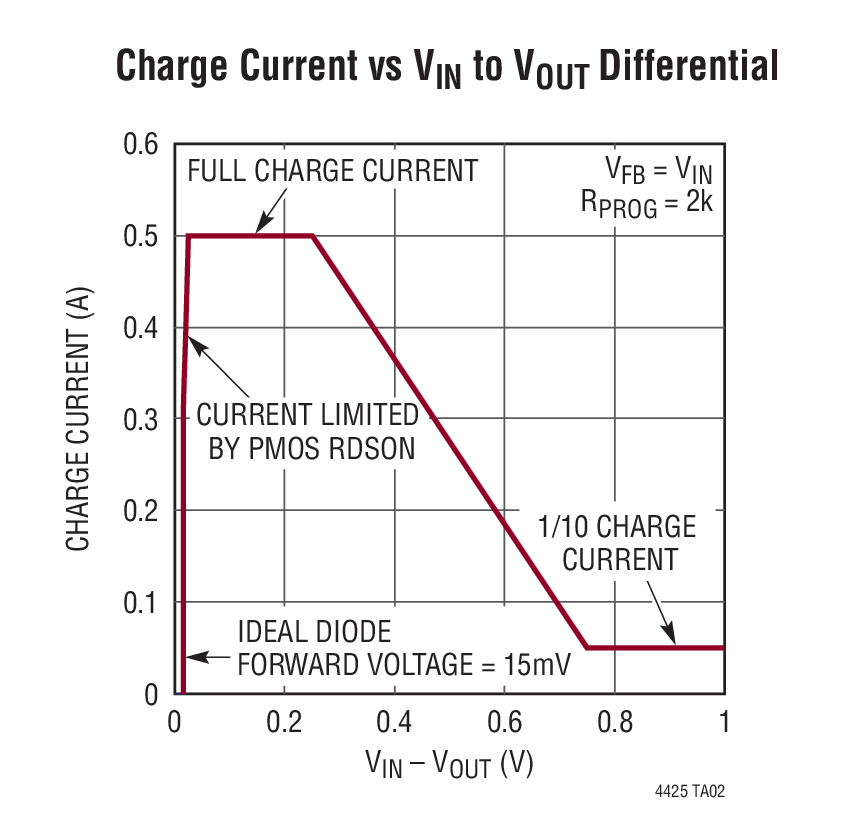

The LTC4425 is a constant-current/constant-voltage linear charger designed to charge a 2-cell supercap stack from either a Li-Ion/Polymer battery, a USB port, or a 2.7V to 5.5V current-limited supply. The part operates as an ideal diode with an extremely low 50mΩ on-resistance making it suitable for high peak-power/low average power applications. The LTC4425 charges the output capacitors to an externally programmed output voltage in LDO mode at a constant charge current, or to VIN in normal mode with a smart charge current profile to limit the inrush current until the VIN to VOUT differential is less than 250mV. In addition the LTC4425 can be set to clamp the output voltage to 4.9V or 5.4V.

Charge current (VOUT current limit) is programmed by connecting a resistor between PROG and GND. The voltage on the PROG pin represents the current fl owing from VIN to VOUT for current monitoring. An internal active balancing circuit maintains equal voltages across each supercapacitor and clamps the peak voltage across each cell to a pin-selectable maximum value. The LTC4425 operates at a very low 20μA quiescent current (shutdown current <3μA) and is available in a low profile 12-pin 3mm × 3mm DFN or a 12-lead MSOP package.

Applications

  • High Peak Power Battery/USB Powered Equipment
  • Industrial PDAs
  • Portable Instruments/Monitoring Equipment
  • Power Meters, SuperCap Backup Circuits
  • PC Card/USB Modems
Part Models 8
1ku List Price Starting From $2.72

close icon

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4425EDD#PBF
  • HTML
  • HTML
LTC4425EDD#TRPBF
  • HTML
  • HTML
LTC4425EMSE#PBF
  • HTML
  • HTML
LTC4425EMSE#TRPBF
  • HTML
  • HTML
LTC4425IDD#PBF
  • HTML
  • HTML
LTC4425IDD#TRPBF
  • HTML
  • HTML
LTC4425IMSE#PBF
  • HTML
  • HTML
LTC4425IMSE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LTC4425EMSE#PBF

PRODUCTION

LTC4425EMSE#TRPBF

PRODUCTION

LTC4425IMSE#PBF

PRODUCTION

LTC4425IMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LTC4425EMSE#PBF

PRODUCTION

LTC4425EMSE#TRPBF

PRODUCTION

LTC4425IMSE#PBF

PRODUCTION

LTC4425IMSE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LTC4425EMSE#PBF

PRODUCTION

LTC4425EMSE#TRPBF

PRODUCTION

LTC4425IMSE#PBF

PRODUCTION

LTC4425IMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LTC4425EMSE#PBF

PRODUCTION

LTC4425EMSE#TRPBF

PRODUCTION

LTC4425IMSE#PBF

PRODUCTION

LTC4425IMSE#TRPBF

PRODUCTION
