LTC3625

1A High Efficiency 2-Cell Supercapacitor Charger with Automatic Cell Balancing

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3625 - Power Management Download 1.38 KB LTspice LTC3625/LT1784/LT1634 Demo Circuit - Solar Powered SCAP Charger with MPPT Download 4.00KB
Part Models 8
1ku List Price Starting From $3.61
Features
  • High Efficiency Step-Up/Step-Down Charging of Two Series Supercapacitors

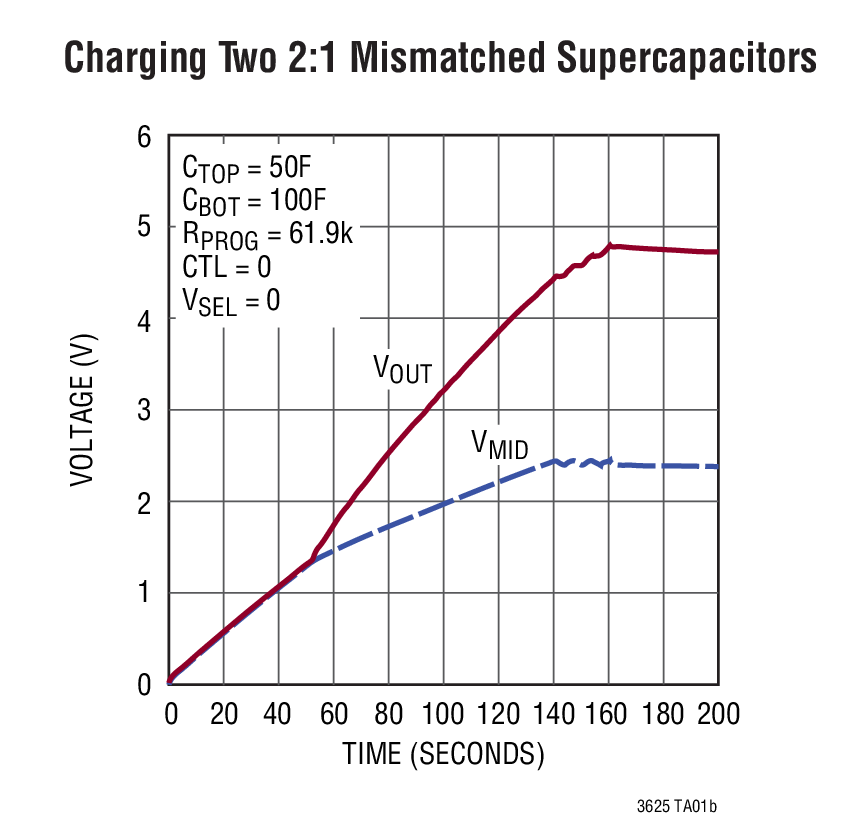

  • Automatic Cell Balancing Prevents Capacitor Overvoltage During Charging
  • Programmable Charging Current Up to 500mA (Single Inductor), 1A (Dual Inductor)
  • VIN = 2.7V to 5.5V
  • Selectable 2.4V/2.65V Regulation per Cell (LTC3625)
  • Selectable 2V/2.25V Regulation per Cell (LTC3625-1)
  • Low No-Load Quiescent Current: 23μA
  • IVOUT, IVIN < 1μA in Shutdown

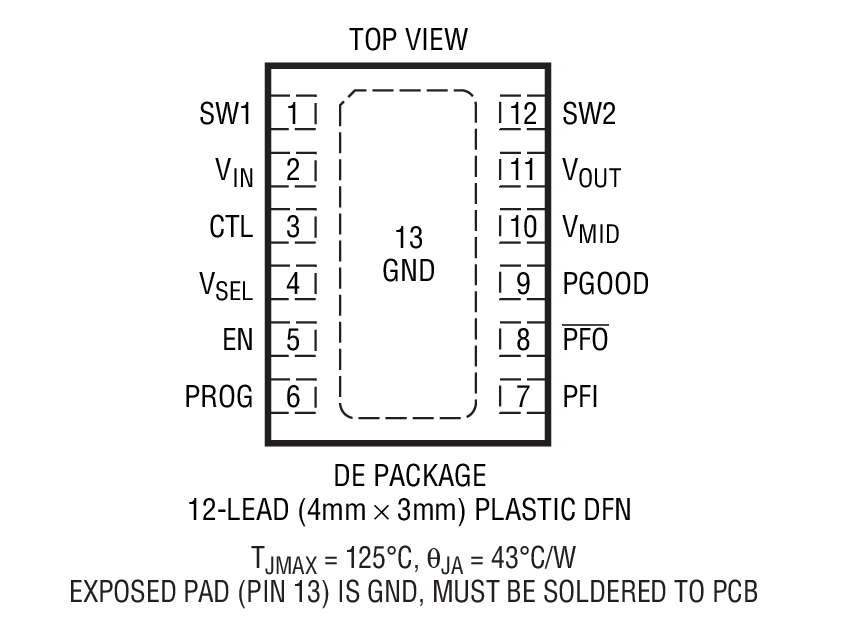

  • Low Profile 12-lead 3mm × 4mm DFN Package
Additional Details
show more Icon

The LTC3625/LTC3625-1 are programmable supercapacitor chargers designed to charge two supercapacitors in series to a fixed output voltage (4.8V/5.3V or 4V/4.5V selectable) from a 2.7V to 5.5V input supply. Automatic cell balancing prevents overvoltage damage to either supercapacitor while maximizing charge rate. No balancing resistors are required.

High efficiency, high charging current, low quiescent current and low minimum external parts count (one inductor, one bypass capacitor at VIN and one programming resistor) make the LTC3625/LTC3625-1 ideally suited for small form factor backup or high peak power systems.

Charging current/maximum input current level is programmed with an external resistor. When the input supply is removed and/or the EN pin is low, the LTC3625/LTC3625-1 automatically enter a low current state, drawing less than 1μA from the supercapacitors.

The LTC3625/LTC3625-1 are available in a compact 12‑lead 3mm × 4mm × 0.75mm DFN package.

Applications

  • Servers, RAID Systems, Mass Storage, High Current Backup Supplies
  • Solid State Hard Drives
  • Wireless Power Meters
  • High Peak Power Boosted Supplies
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3625 - Power Management Download 1.38 KB LTspice LTC3625/LT1784/LT1634 Demo Circuit - Solar Powered SCAP Charger with MPPT Download 4.00KB
Part Models 8
1ku List Price Starting From $3.61
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3625

Documentation

9
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Design Note
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

3

PDF Vector

PDF

UPDATED 07/20/2010
English

LTC3625: 1A High Efficiency 2-Cell Supercapacitor Charger with Automatic Cell Balancing Data Sheet

Open PDF File

redirect
266.00K
download

Download PDF

PDF Vector

PDF

UPDATED 07/20/2010
Chinese

LTC3625/LTC3625-1: 1A High Efficiency 2-Cell Supercapacitor Charger with Automatic Cell Balancing Data Sheet

Open PDF File

redirect
266.00K
download

Download PDF

PDF Vector

PDF

UPDATED 09/16/2010
Japanese

LTC3625: 自動セル・バランシング付きの1A 高効率2セル・スーパーキャパシタ・チャージャ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 11/22/2010
English
DC1583A - Demo Manual redirect icon

179.00K

download

Download PDF

Design Note

3

PDF Vector

PDF

UPDATED 01/25/2011
English
DN487 - Supercapacitor-Based Power Backup Prevents Data Loss in RAID Systems redirect icon

105.00K

download

Download PDF

PDF Vector

PDF

UPDATED 05/04/2011
Chinese
DN487 - 基于超级电容的后备电源可防止 RAID 系统中的数据丢失 redirect icon

630.00K

download

Download PDF

PDF Vector

PDF

UPDATED 03/09/2011
Japanese
DN487 - RAIDシステムのデータ喪失を防ぐスーパーキャパシタをベースにした電源パックアップ redirect icon

343.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R540 Reliability Data redirect icon

23.32 K

download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 10/01/2010
English
Battery-Free Power Backup System Uses Supercapacitors to Prevent Data Loss in RAID Systems redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 5
show more Icon

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3625EDE#PBF 12-Lead DFN (4mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3625EDE#TRPBF 12-Lead DFN (4mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3625EDE-1#PBF 12-Lead DFN (4mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3625EDE-1#TRPBF 12-Lead DFN (4mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3625IDE#PBF 12-Lead DFN (4mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3625IDE#TRPBF 12-Lead DFN (4mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3625IDE-1#PBF 12-Lead DFN (4mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3625IDE-1#TRPBF 12-Lead DFN (4mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Parts Product Life Cycle Description

Supercapacitor Chargers1
LTC4425
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Linear SuperCap Charger with Current-Limited Ideal Diode and V/I Monitor

Evaluation Kits 2

reference details image

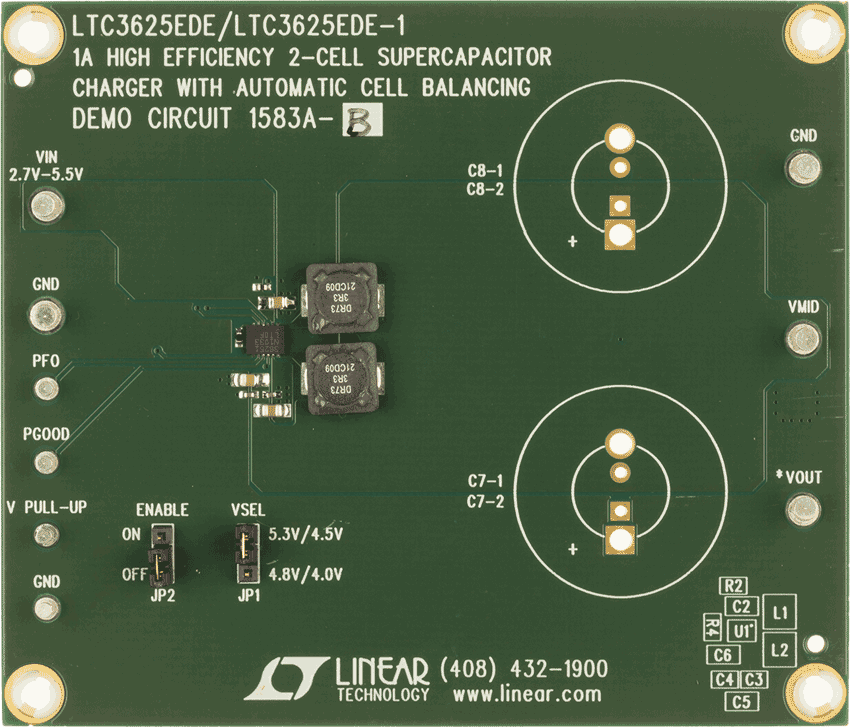

DC1583A-B

LTC3625-1EDE Demo Board | VIN = 2.7V to 5.5V, VOUT = 4.5V or 4.0V @ IOUT up to 1A

zoom

DC1583A-B

LTC3625-1EDE Demo Board | VIN = 2.7V to 5.5V, VOUT = 4.5V or 4.0V @ IOUT up to 1A

download icon

Download

 print icon

Print
DC1583A-B
LTC3625-1EDE Demo Board | VIN = 2.7V to 5.5V, VOUT = 4.5V or 4.0V @ IOUT up to 1A
Buy Now View Details

Product Detail

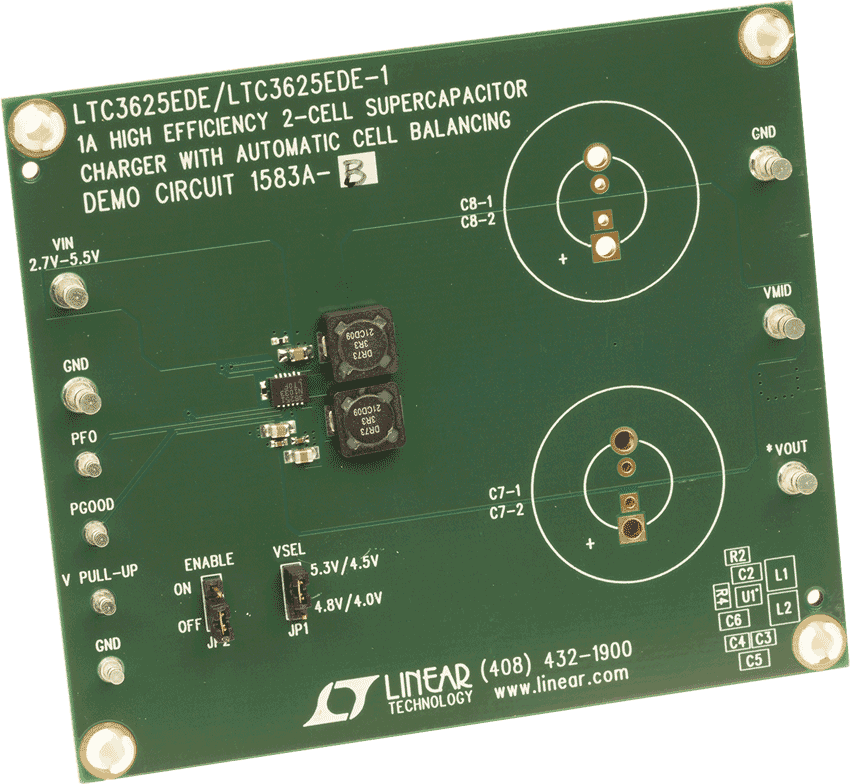

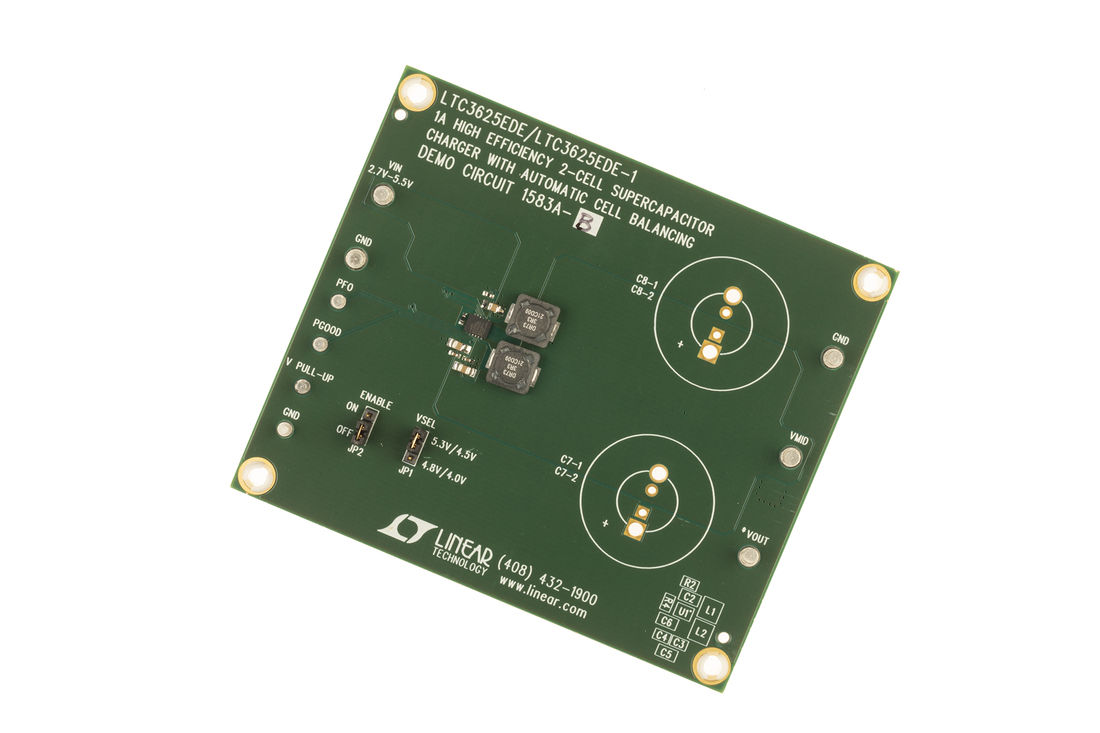

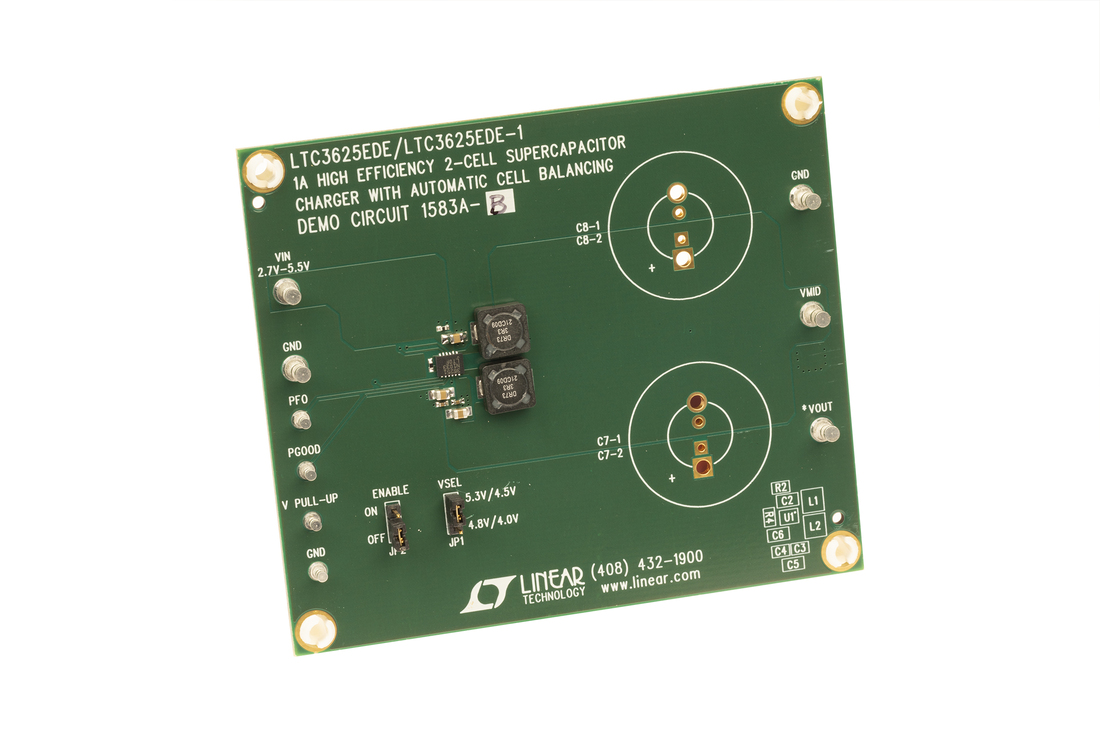

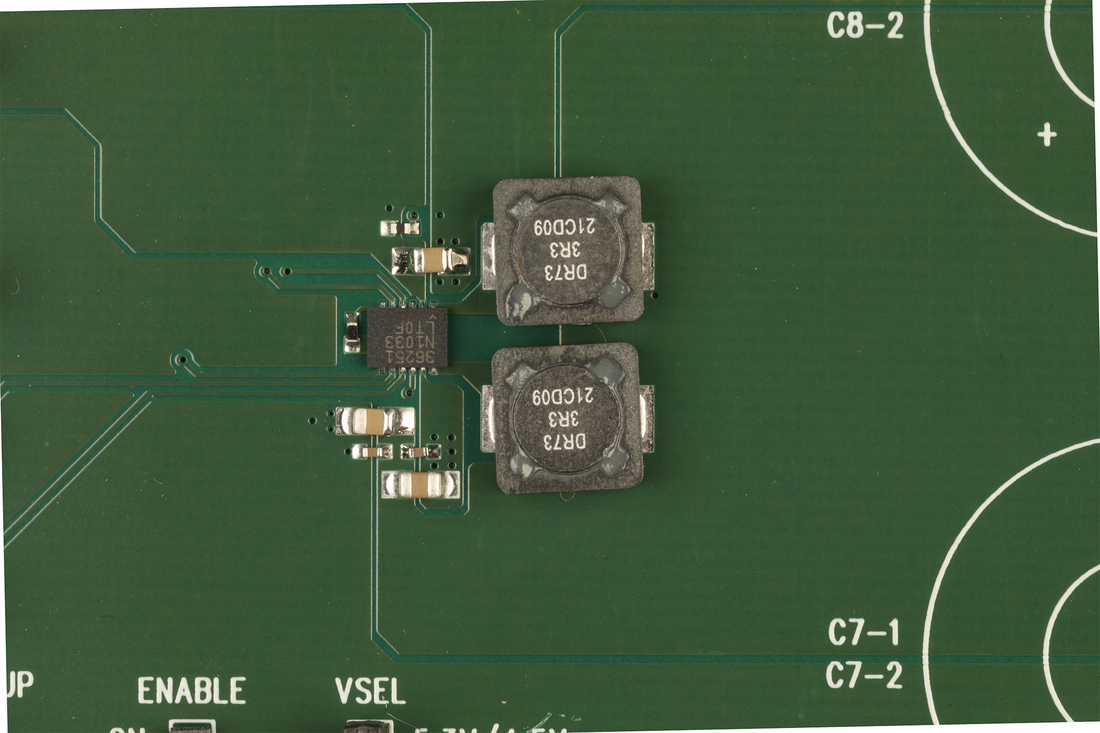

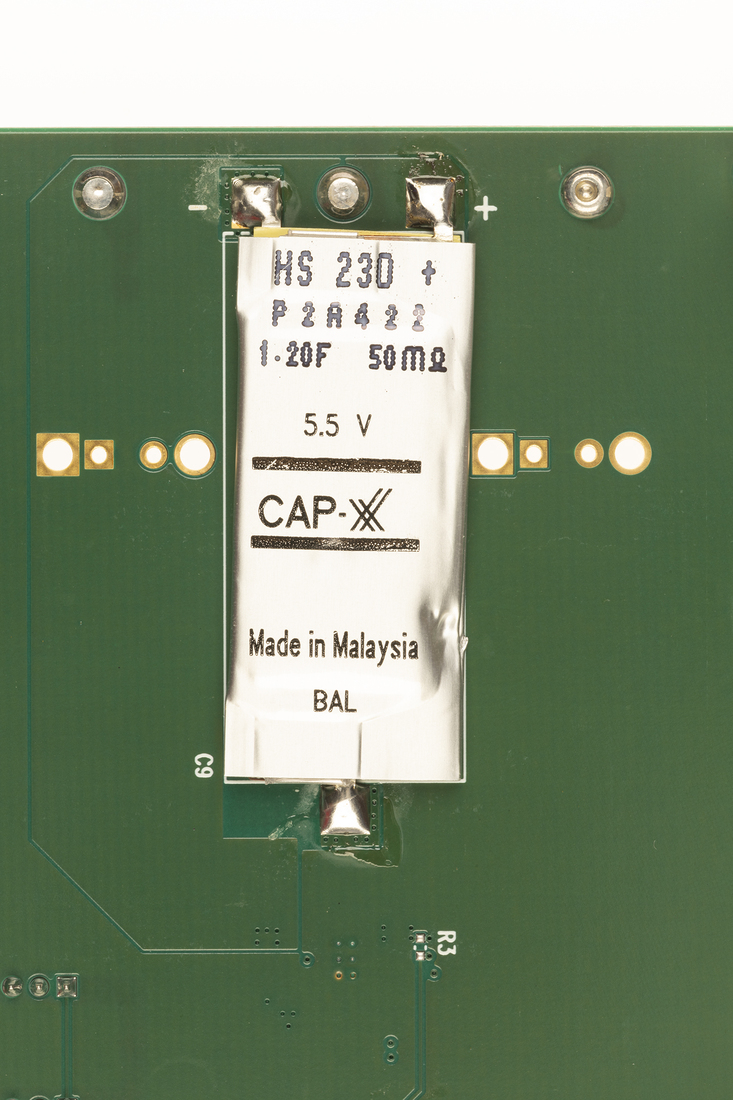

Demonstration circuit 1583A is a 1A high efficiency 2-Cell supercapacitor charger with automatic cell balancing featuring the LTC3625/LTC3625-1. The LTC3625/LTC3625-1 are step-up/step-down programmable supercapacitor chargers designed to charge two supercapacitors in series to a fixed voltage of 5.3V or 4.8V (LTC3625), or 4.5V or 4.0V (LTC3625-1) from a 2.7V to 5.5V input supply. Automatic cell balancing is achieved during the charging phase, preventing overvoltage damage to either supercapacitor while maximizing charge rate.

Resources

pdf icon

PDF

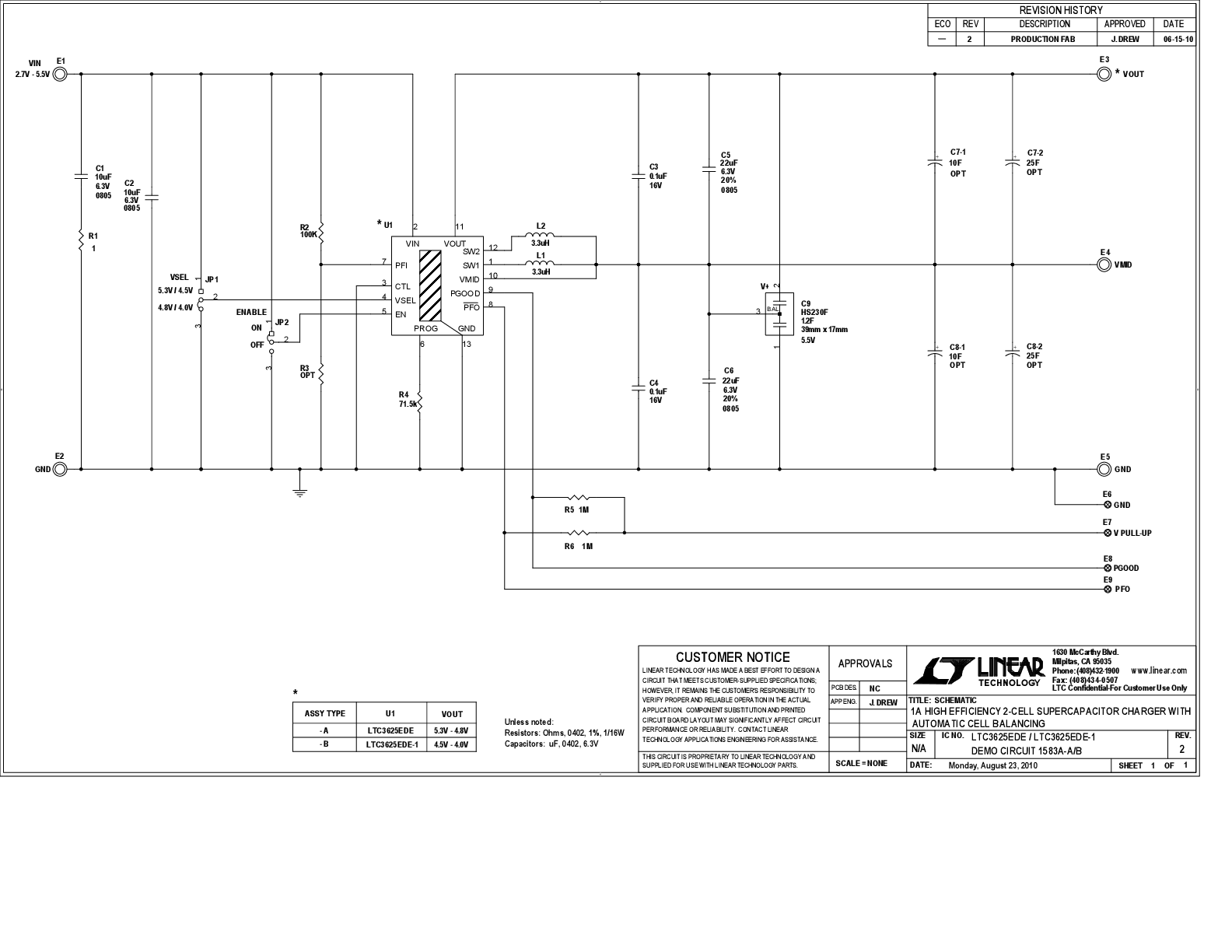

DC1583A - Schematic Download

77.00K

pdf icon

ZIP

DC1583A - Design Files Download

844.00K

pdf icon

PDF

DC1583A - Demo Manual Download

179.00K

Show More Arrow image
reference details image

DC1583A-A

LTC3625EDE Demo Board | VIN = 2.7V to 5.5V, VOUT = 5.3V/4.8V @ IOUT up to 1A

Evaluation Kits2

evaluation kit item images

DC1583A-B

LTC3625-1EDE Demo Board | VIN = 2.7V to 5.5V, VOUT = 4.5V or 4.0V @ IOUT up to 1A
evaluation kit item images

DC1583A-A

LTC3625EDE Demo Board | VIN = 2.7V to 5.5V, VOUT = 5.3V/4.8V @ IOUT up to 1A

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTC3625 - Power Management Download

1.38 K

spice tool Lt Spice

LTC3625/LT1784/LT1634 Demo Circuit - Solar Powered SCAP Charger with MPPT Download

4.00K
