LTC4282

High Current Hot Swap Controller with I2C Compatible Monitoring

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $7.78
Features
  • Allows Safe Board Insertion Into Live Backplane
  • 12-/16-Bit ADC with ±0.9% Total Unadjusted Error
  • Monitors Current, Voltage, Power and Energy
  • Controls Two Parallel N-Channel MOSFETs for SOA Sharing in High Current Applications
  • Internal EEPROM for Nonvolatile Configuration
  • Wide Operating Voltage Range: 2.9V to 33V
  • I2C/SMBus Digital Interface (Coexists with PMBus Devices)
  • 12V Gate Drive for Lower MOSFET RDS(ON)
  • Programmable Current Limit with 2% Accuracy
  • MOSFET Power Limiting with Current Foldback
  • Continuously Monitors MOSFET Health
  • Stores Minimum and Maximum Measurements
  • Alerts When Alarm Thresholds Exceeded
  • Input Overvoltage and Undervoltage Protection
  • Internal ±5% or External Timebases

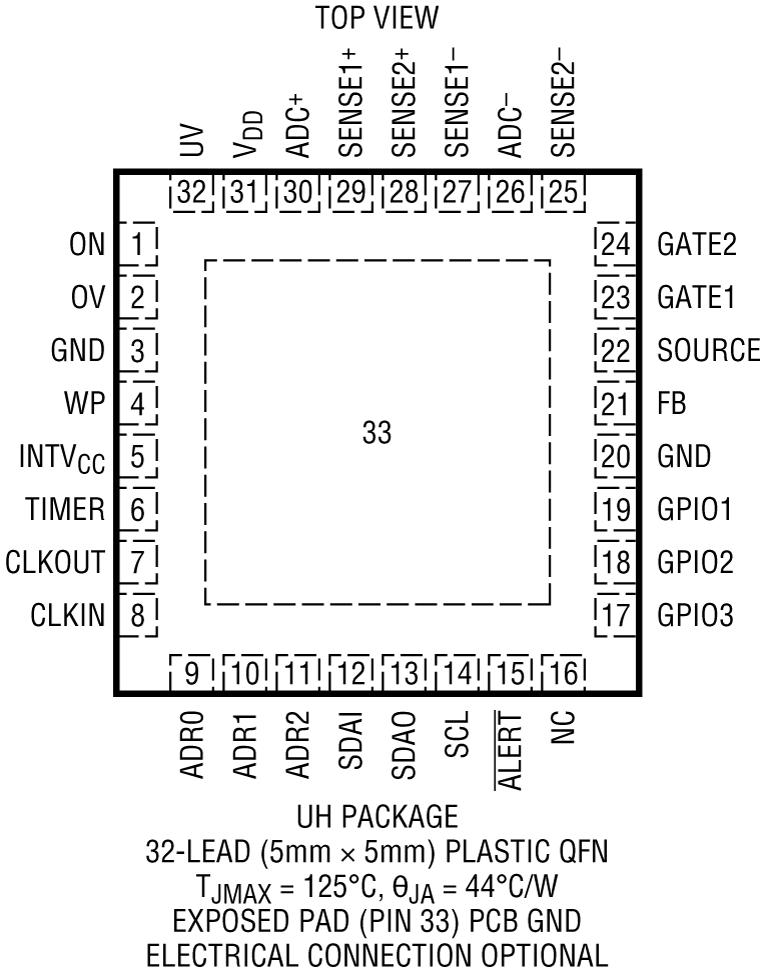

  • 32-Pin 5mm × 5mm QFN Package
  • AEC-Q100 Qualified for Automotive Applications

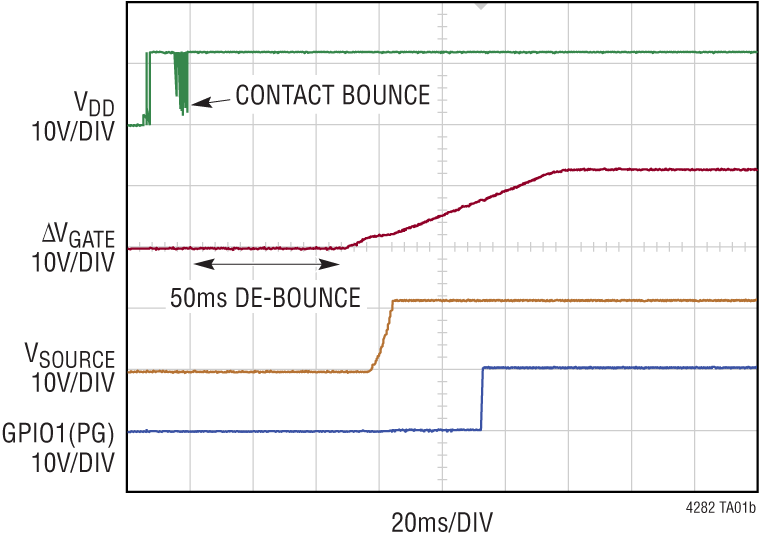

Additional Details
show more Icon

The LTC4282 hot swap controller allows a board to be safely inserted and removed from a live backplane. Using one or more external N-channel pass transistors, board supply voltage and inrush current are ramped up at an adjustable rate. An I2C interface and onboard ADC allows for monitoring of board current, voltage, power, energy and fault status.

The device features analog foldback current limiting and supply monitoring for applications from 2.9V to 33V. Dual 12V gate drive allows high power applications to either share safe operating area across parallel MOSFETs or support a 2-stage start-up that first charges the load capacitance followed by enabling a low on-resistance path to the load.

The LTC4282 is well suited to high power applications because the precise monitoring capability and accurate current limiting reduce the extremes in which both loads and power supplies must safely operate. Non-volatile configuration allows for flexibility in the autonomous generation of alerts and response to faults.

APPLICATIONS

  • Enterprise Servers and Data Storage Systems
  • Network Routers and Switches
  • Base Stations
  • Platform Management
Part Models 2
1ku List Price Starting From $7.78

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4282AUH#PBF
  • HTML
  • HTML
LTC4282AUH#TRPBF
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 3

reference details image

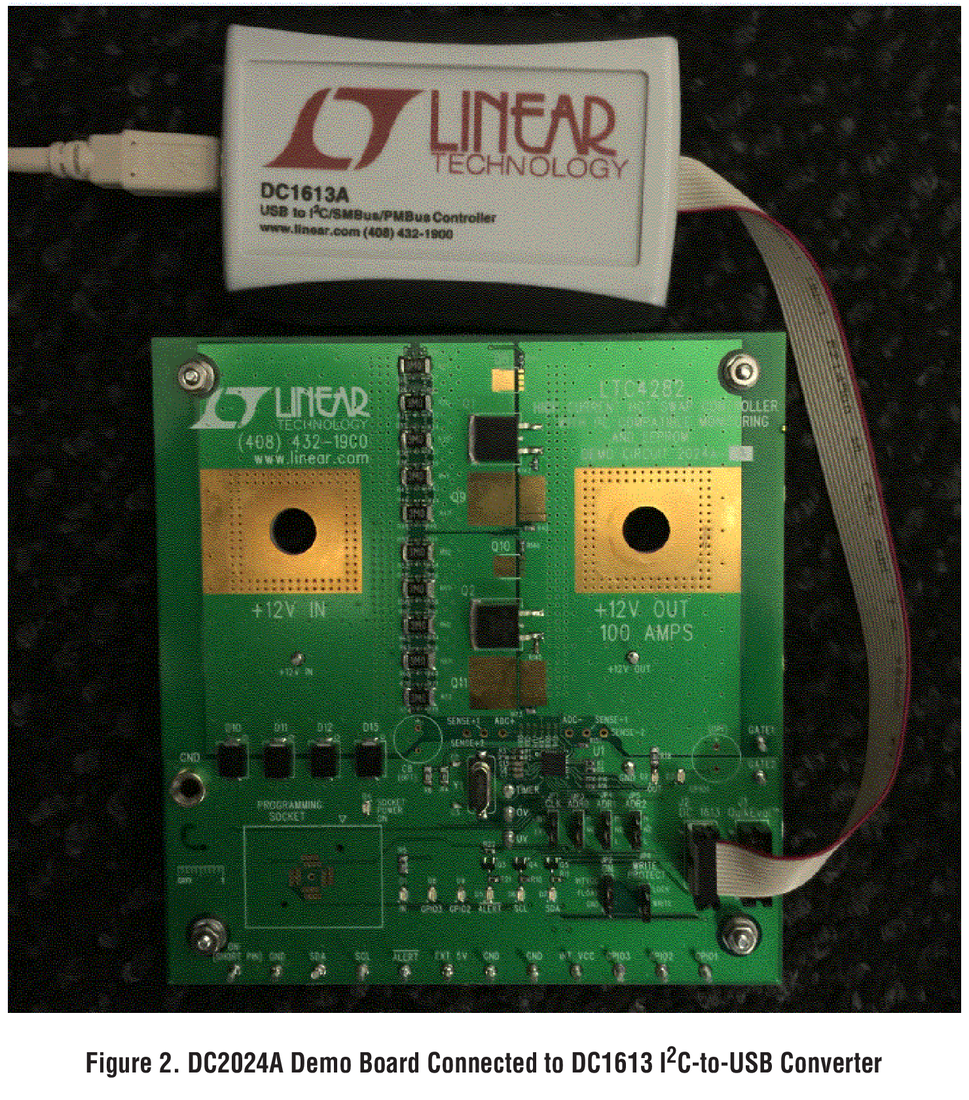

DC2024A-A

LTC4282 Demo Board | 100A Hot Swap Controller with Telemetry [requires DC1613]

zoom

DC2024A-A

LTC4282 Demo Board | 100A Hot Swap Controller with Telemetry [requires DC1613]

LTC4282 Demo Board | 100A Hot Swap Controller with Telemetry [requires DC1613]

Product Detail

Demonstration circuit 2024A features the LTC4282 high current Hot Swap controller. The LTC4282 is well suited to high power applications because the precise monitoring capability and accurate current limiting reduces the extremes in which both loads and power supplies must safely operate. Non-volatile configuration allows for flexibility in the autonomous generation of alerts and response to faults.




reference details image

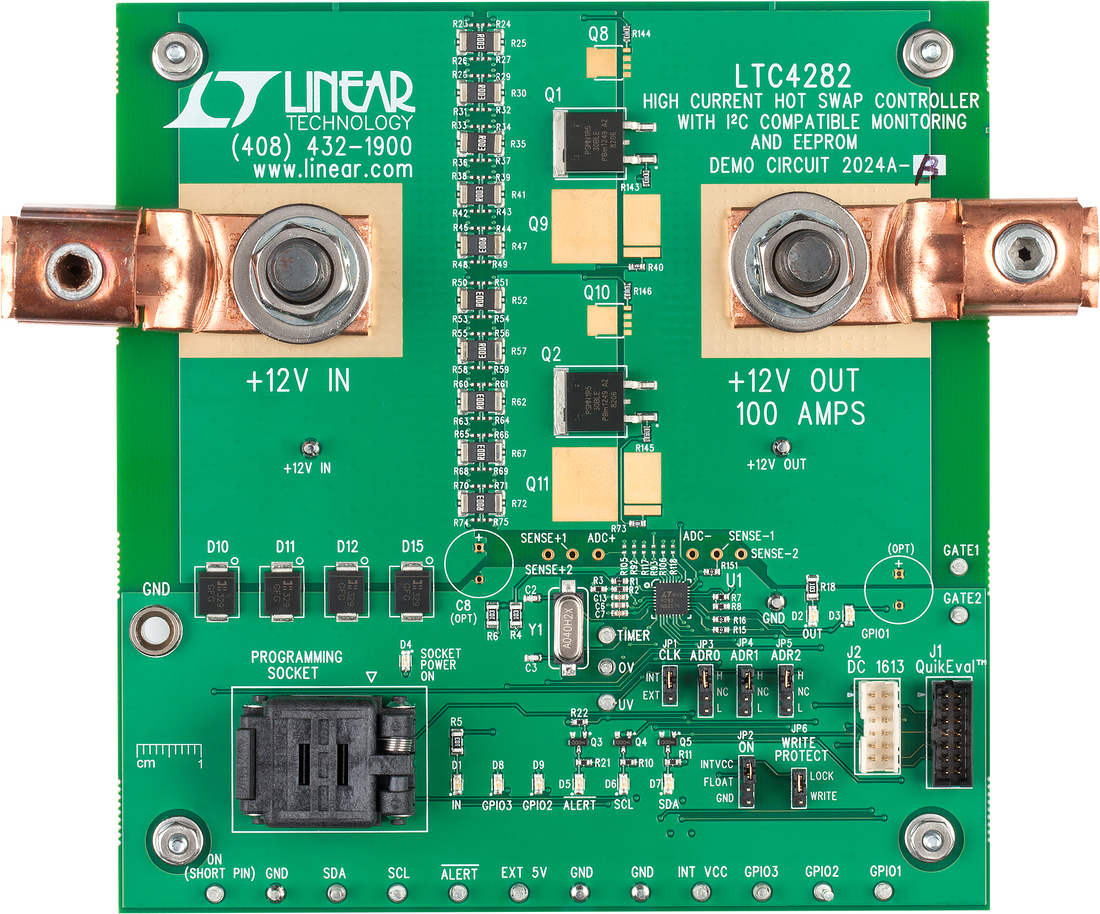

DC2024A-B

LTC4282 Demo Board with Programming Socket | 100A Hot Swap Controller with Telemetry [requires DC1613]

zoom

DC2024A-B

LTC4282 Demo Board with Programming Socket | 100A Hot Swap Controller with Telemetry [requires DC1613]

LTC4282 Demo Board with Programming Socket | 100A Hot Swap Controller with Telemetry [requires DC1613]

Product Detail

Demonstration circuit 2024A features the LTC4282 high current Hot Swap controller. The LTC4282 is well suited to high power applications because the precise monitoring capability and accurate current limiting reduces the extremes in which both loads and power supplies must safely operate. Non-volatile configuration allows for flexibility in the autonomous generation of alerts and response to faults.




reference details image

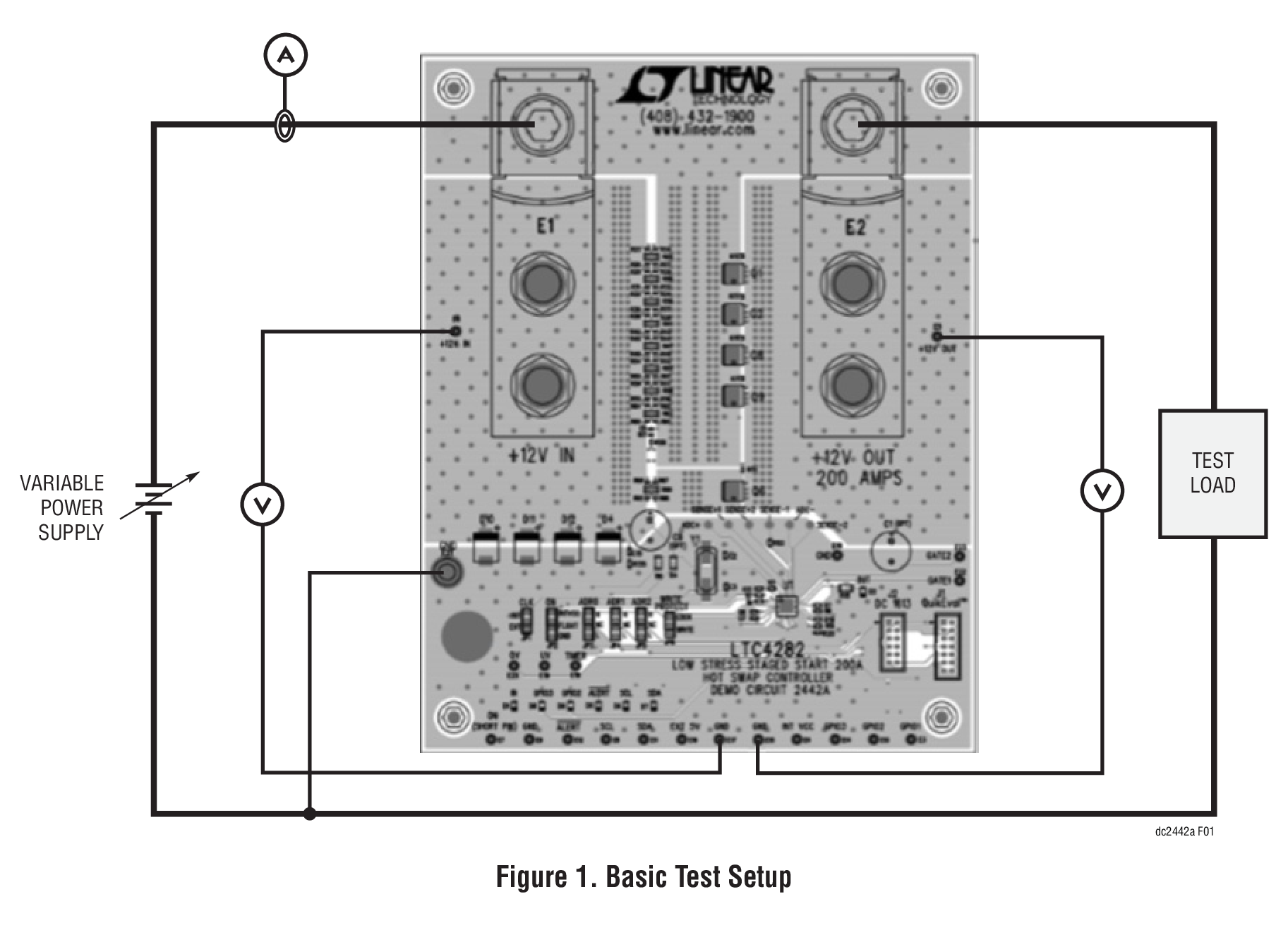

DC2442A

LTC4282 Demo Board | 200A Hot Swap Controller with Telemetry [Requires DC1613]

zoom

DC2442A

LTC4282 Demo Board | 200A Hot Swap Controller with Telemetry [Requires DC1613]

LTC4282 Demo Board | 200A Hot Swap Controller with Telemetry [Requires DC1613]

Product Detail

Demonstration circuit 2442A features the LTC4282 high current Hot Swap controller. The LTC4282 is well suited to high power applications because the precise monitoring capability and accurate current limiting reduces the extremes in which both loads and power supplies must safely operate. Nonvolatile configuration allows for flexibility in the autonomous generation of alerts and response to faults. The LTC4282 provides a rich set of features to support Hot Swap applications including:


  • 12- to 16-Bit ADC Monitors Current, Voltage, Power and Energy
  • Controls Two Sets of Parallel MOSFETs for High Current Applications
  • I2C/SMBus Interface
  • Nonvolatile Configuration and Logging Functions
  • Generates Alerts on ADC Measurements Outside Limits
  • Software Adjustable Current Limit with Foldback
  • Three General Purpose Input/Outputs
Tools & Simulations

Tools & Simulations 3

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Linduino

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.
