Features and Benefits
- Four Independent PSE Channels
- Compliant with IEEE 802.3at Type 1 and 2
- 0.34Ω Total Channel Resistance
- 130mW/Port at 600mA
- Advanced Power Management
- 8-Bit Programmable Current Limit (ILIM)
- 7-Bit Programmable Overload Currents (ICUT)
- Fast Shutdown of Preselected Ports
- 14.5-Bit Port Current/Voltage Monitoring
- 2-Event Classification
- Very High Reliability 4-Point PD Detection
- 2-Point Forced Voltage
- 2-Point Forced Current
- High Capacitance Legacy Device Detection
- LTC4259A-1 and LTC4258 Pin and SW Compatible
- 1MHz I2C Compatible Serial Control Interface
- Midspan Backoff Timer
- Supports Proprietary Power Levels Above 25W
- Available in 38-Pin 5mm × 7mm QFN and 36-Pin SSOP Packages
The LTC4266 is a quad PSE controller designed for use in IEEE 802.3 Type 1 and Type 2 (high power) compliant Power over Ethernet systems. External power MOSFETs enhance system reliability and minimize channel resistance, cutting power dissipation and eliminating the need for heatsinks even at Type 2 power levels. External power components also allow use at very high power levels while remaining otherwise compatible with the IEEE standard. 80V-rated port pins provide robust protection against external faults.
The LTC4266 includes advanced power management features, including current and voltage readback and programmable ICUT and ILIM thresholds. Available C libraries simplify power-management software development; an optional AUTO pin mode provides fully IEEE-compliant standalone operation with no software required. Proprietary 4-point PD detection circuitry minimizes false PD detection while supporting legacy phone operation. Midspan operation is supported with built-in 2-event classification and backoff timing. Host communication is via a 1MHz I2C serial interface.
The LTC4266 is available in a 5mm × 7mm QFN package that significantly reduces board space compared with competing solutions. A legacy-compatible 36-pin SSOP package is also available.
- High Power PSE Switches/Routers
- High Power PSE Midspans
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

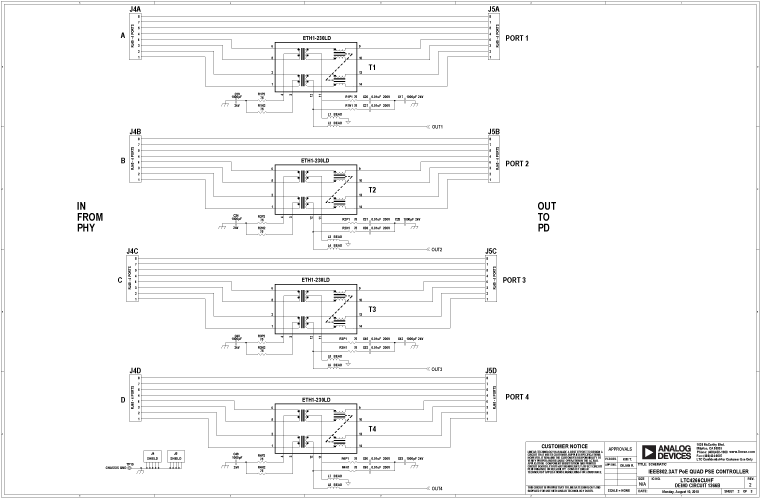

Demonstration circuit DC1366B features the LTC4266, a quad network power controller with I2C® interface, designed for use in IEEE 802.3at compliant Power Sourcing Equipment (PSE). Integrated into a tiny 5mm × 7mm 38-pin QFN package are four independent channels controlling external N-channel power MOSFETs.
Documentation & Resources
DC1366B - Demo Manual (Rev. B)12/4/2015
Software & Systems Requirements
Software Interface Datasheet
LTC4266 Companion Parts
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LTC4266CGW#PBF||Material Declaration||Reliability Data||36-Lead SSOP (Wide 0.3 Inch)|
|LTC4266CGW#TRPBF||Material Declaration||Reliability Data||36-Lead SSOP (Wide 0.3 Inch)|
|LTC4266CUHF#PBF||Material Declaration||Reliability Data||38-Lead QFN (5mm x 7mm w/ EP)|
|LTC4266CUHF#TRPBF||Material Declaration||Reliability Data||38-Lead QFN (5mm x 7mm w/ EP)|
|LTC4266IGW#PBF||Material Declaration||Reliability Data||36-Lead SSOP (Wide 0.3 Inch)|
|LTC4266IGW#TRPBF||Material Declaration||Reliability Data||36-Lead SSOP (Wide 0.3 Inch)|
|LTC4266IUHF#PBF||Material Declaration||Reliability Data||38-Lead QFN (5mm x 7mm w/ EP)|
|LTC4266IUHF#TRPBF||Material Declaration||Reliability Data||38-Lead QFN (5mm x 7mm w/ EP)|
|Wafer Fabrication Data||PSA Test Results LTC4266 Type-1|
