Overview
Features and Benefits
- 30W PSE Output Power
- IEEE 802.3af® Compatible
- Operation from a Single 56V Supply
- Fully Autonomous Operation Without a Microcontroller
- Internal MOSFET with Thermal Protection
- Precision Inrush Control with Internal Sense Resistor
- Forced Current PD Detection for Noise Immunity
- AC and DC Disconnect Sensing
- Legacy PD Detection
- Robust Short-Circuit Protection
- Pin-Selectable Detection Backoff for Midspan PSEs
- LED Driver Indicates Port On and Blinks Status Codes

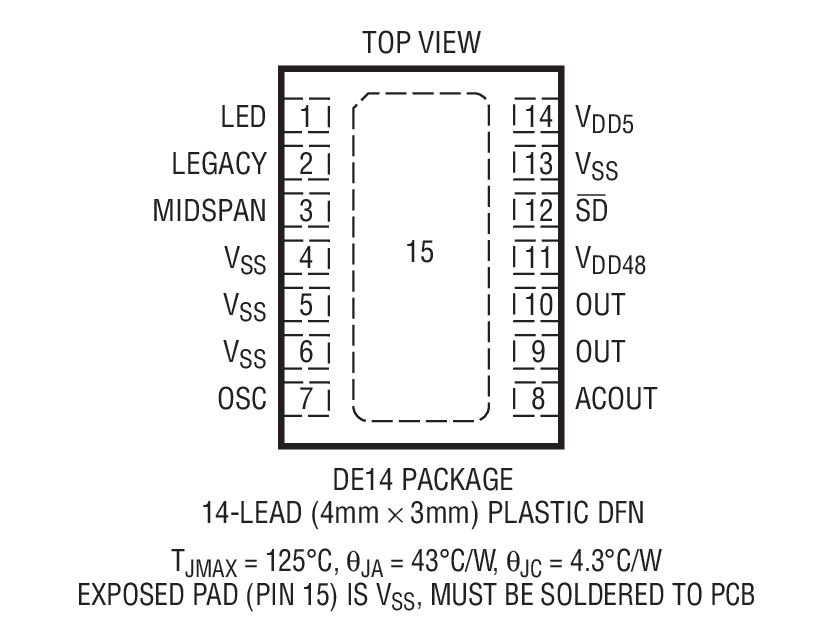

- Available in a Miniature14-Pin 4mm × 3mm DFN Package
Product Details
The LTC4263-1 is a high power, single PSE controller for use in Power over Ethernet systems. The internal current limit and short-circuit protection are designed to provide up to 30W of PSE output power for power hungry PoE applications such as WAPs, security cameras and RFID readers.
The LTC4263-1 includes IEEE 802.3af compliant PD detection circuitry along with selectable AC and DC disconnect sensing, allowing seamless operation in conventional IEEE 802.3af systems as well as propriety, high power applications. The LTC4263-1 simplifi es PSE implementation, needing only a single supply and a small number of passive support components. Onboard control algorithms provide complete PSE functionality without the need of a microcontroller and built-in foldback and thermal shutdown provide comprehensive fault protection. An LED pin indicates the state of the port and detection backoff timing is confi gurable for either endpoint or midspan operation.
The LTC4263-1 is available in a miniature 14-pin 4mm × 3mm DFN package.
Applications
- High Power Endpoint/Midspan PSEs
- Single-Port or Multi-Port Power Injectors
- Low Port Count PSEs
- Environment B PSEs
- Standalone PSEs
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Documentation & Resources
-
PoE Consortium Clause # 33 PSE Conformance Report3/26/2018
-
R413 Reliability Data3/26/2018
-
PoE Consortium Interoperability Report- Midspan3/26/2018
-
PoE Consortium Interoperability Report Endpoint3/23/2018
-
Power over Ethernet Solutions4/4/2017
-
PoE PD Controllers6/22/2015
-
Next Generation Power Over Ethernet6/22/2023
Product Recommendations
LTC4263-1 Companion Parts
Recommended Related Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
---|---|---|---|---|
LTC4263CDE-1#PBF | Material Declaration | Reliability Data | 14-Lead DFN (4mm x 3mm w/ EP) | |
LTC4263CDE-1#TRPBF | Material Declaration | Reliability Data | 14-Lead DFN (4mm x 3mm w/ EP) | |
LTC4263IDE-1#PBF | Material Declaration | Reliability Data | 14-Lead DFN (4mm x 3mm w/ EP) | |
LTC4263IDE-1#TRPBF | Material Declaration | Reliability Data | 14-Lead DFN (4mm x 3mm w/ EP) | |
