LTC4126-ADJ

Wireless Li-Ion Charger with 1.2V Step-Down DC/DC Converter

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.0)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $3.12
Features
  • Wireless Li-Ion Battery Charger Plus High Efficiency Multi-Mode Charge Pump DC/DC
  • Programmable Charge Current from 1mA to 50mA Via an External Resistor
  • Wideband Rx Frequency: DC to >10MHz
  • Integrated Rectifier with Overvoltage Limit
  • Charge Voltage: 4.2V
  • Low Battery Disconnect: 3.0V
  • NTC Pin for Temperature Qualified Charging
  • DC/DC Regulated Output: 1.2V
  • DC/DC Output Current: Up to 60mA
  • 50kHz/75kHz Switching, No Audible Noise
  • Pushbutton and/or Digital on/off Control for DC/DC

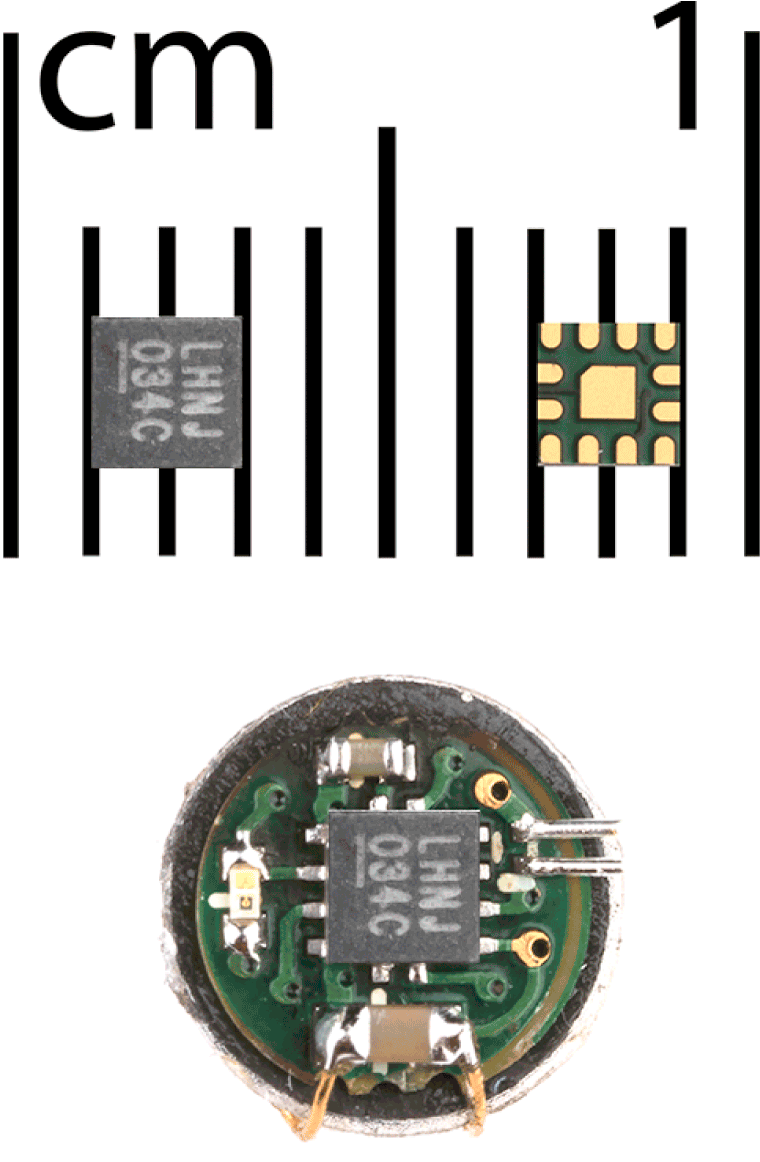

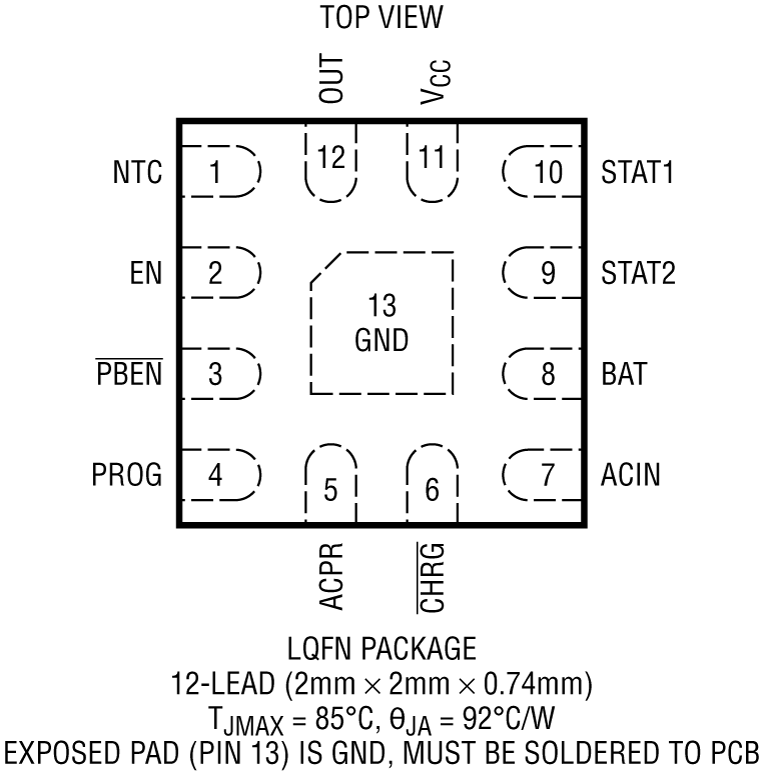

  • Thermally Enhanced 12-Lead 2mm × 2mm LQFN Package
Additional Details
show more Icon

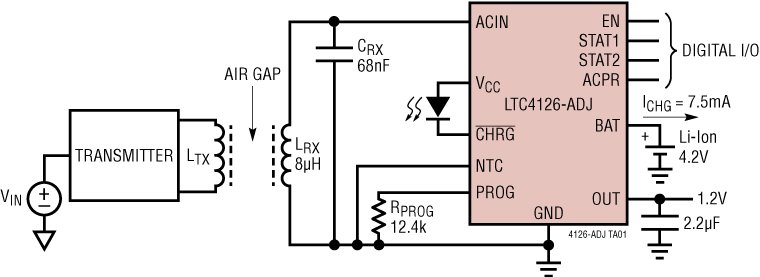

The LTC4126-ADJ is a low-power wireless single-cell Li-Ion battery charger with an integrated step-down DC/DC regulator. The step-down regulator is a low-noise multimode charge pump which is powered from the battery and provides a regulated 1.2V at the output. The switching frequency is set to either 50kHz or 75kHz depending on the mode to keep any switching noise out of the audible range.

The constant-current constant-voltage Li-Ion battery charger has automatic recharge, automatic termination by safety timer, and battery temperature monitoring via an NTC pin. Charge current is programmable from 1mA to 50mA via an external resistor. Undervoltage protection disconnects the battery from all loads when the battery voltage is below 3.0V.

The small package and minimal external component count make the LTC4126-ADJ and its variants suitable for hearing aid applications and other low power portable devices. See the chart in the data sheet.

APPLICATIONS

  • Hearing Aids
  • Low Power Li-Ion Powered Devices
  • Wireless Headsets
  • IoT Wearables
Show More Arrow image
file View Data Sheet (Rev.0)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $3.12
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC4126-ADJ

Documentation

2
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 09/28/2020
English

LTC4126-ADJ: Wireless Li-Ion Charger with 1.2V Step-Down DC/DC Converter Data Sheet (Rev.0)

Open PDF File

redirect
1.64 M
download

Download PDF

PDF Vector

PDF

UPDATED 09/28/2020
Japanese

LTC4126-ADJ: 1.2V降圧DC/DCコンバータを備えたワイヤレス・リチウムイオン・バッテリ・チャージャ データシート

Open PDF File

redirect
1.64 M
download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4126EV-ADJ#TRMPBF 12-Lead LQFN (2mm x 2mm x 0.74mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4126EV-ADJ#TRPBF 12-Lead LQFN (2mm x 2mm x 0.74mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC3080A-KIT

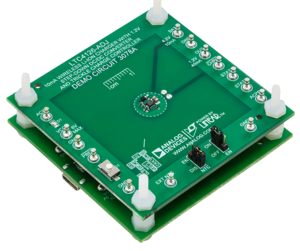

LTC4126-ADJ 10mA Wireless Charger Demonstration Kit
