Overview

Features and Benefits

  • Wide Input Voltage Range: 4.4V to 40V
  • Temperature Compensated Input Voltage Regulation for Maximum Power Point Tracking (MPPT)
  • Adjustable Float Voltage 3.5V to 18V (LTC4121)
  • Fixed 4.2V Float Voltage Option (LTC4121-4.2)
  • High Efficiency: Up to 95%
  • 50mA to 400mA Programmable Charge Current
  • ±1% Feedback Voltage Accuracy
  • Programmable 5% Accurate Charge Current
  • Thermally Enhanced, Low Profile (0.75mm) 16-Lead (3mm × 3mm) QFN Package

Product Details

The LTC4121 is a 400mA constant-current/constantvoltage (CC/CV) synchronous step-down battery charger. In addition to CC/CV operation, the LTC4121 regulates its input voltage to a programmable percentage of the input open-circuit voltage. This technique maintains maximum power transfer with high impedance input sources such as solar panels.

An external resistor programs the charge current up to 400mA. The LTC4121-4.2 is suitable for charging Li-Ion/ Polymer batteries, while the programmable float voltage of the LTC4121 is suitable for several battery chemistries.

The LTC4121 and LTC4121-4.2 include an accurate RUN pin threshold, low voltage battery preconditioning and bad battery fault detection, timer termination, auto-recharge, and NTC temperature qualified charging. The FAULT pin provides an indication of bad battery or temperature faults.

Once charging is terminated, the LTC4121 signals end-ofcharge via the CHRG pin, and enters a low current SLEEP mode. An auto-restart feature starts a new charging cycle if the battery voltage drops by 2.2%.

Applications

  • Handheld Instruments
  • Solar Powered Devices
  • Industrial/Military Sensors and Devices

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

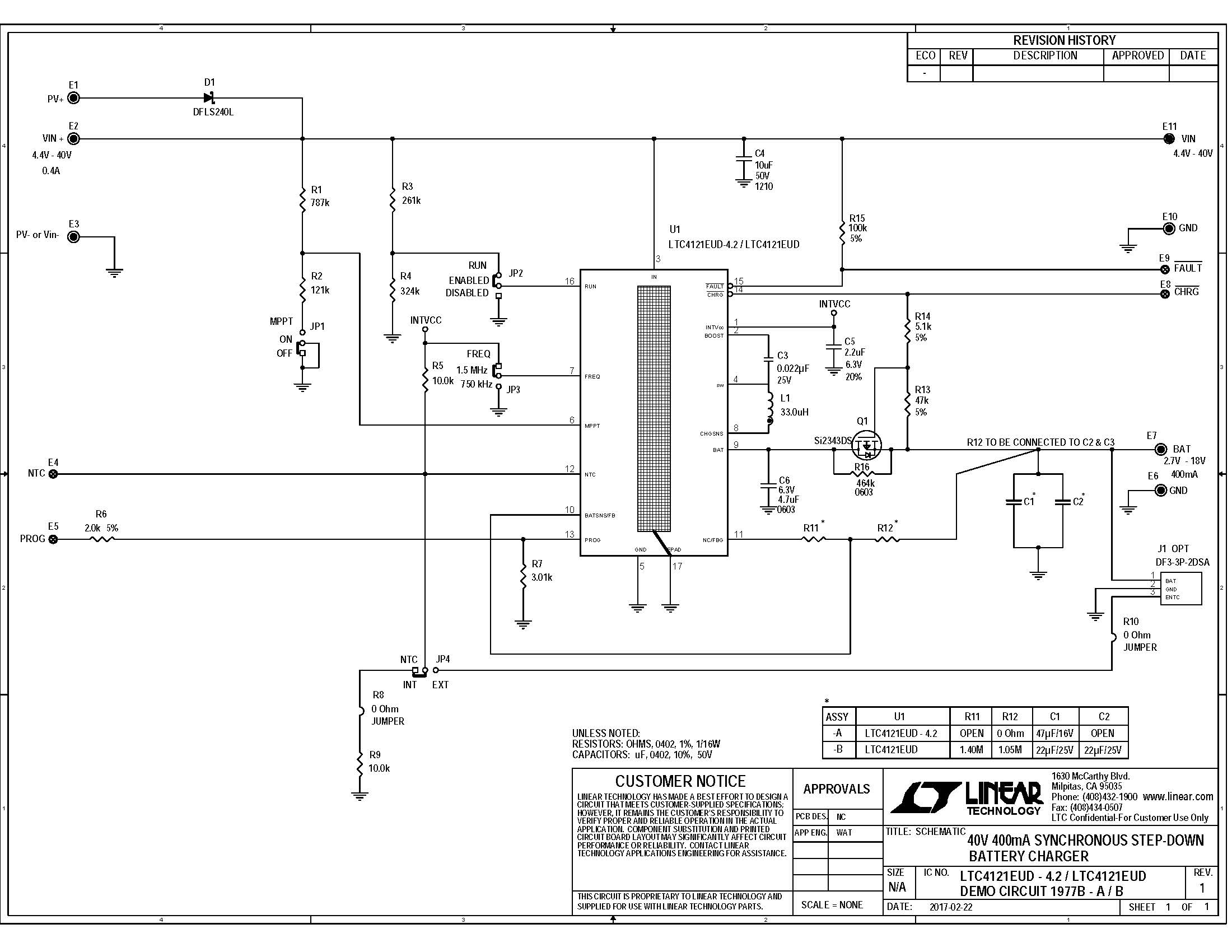

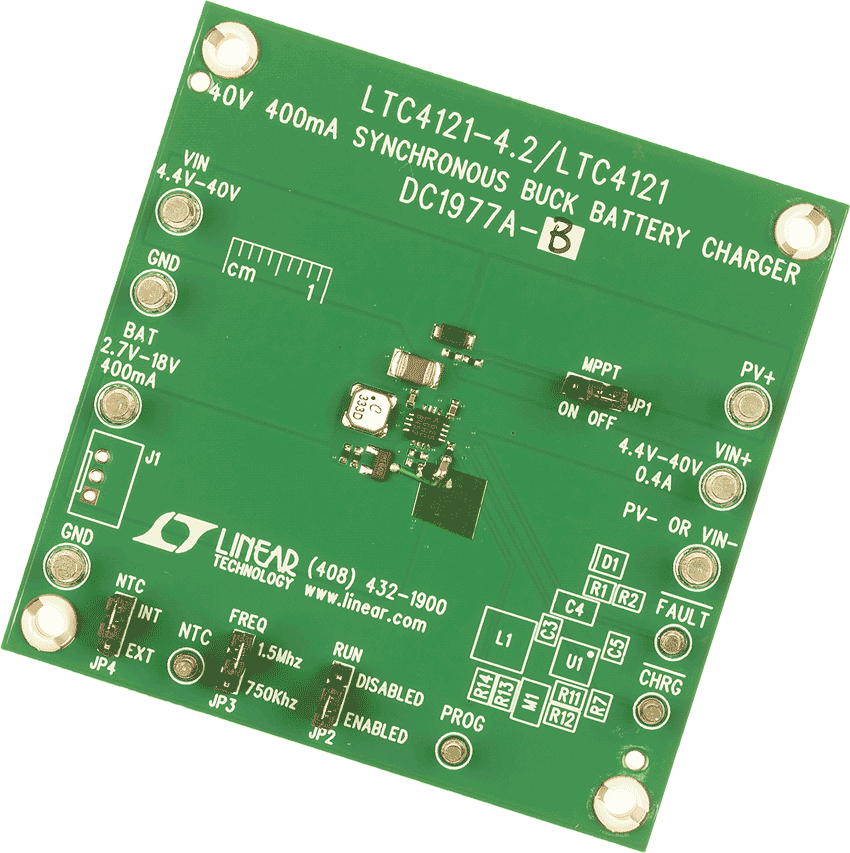

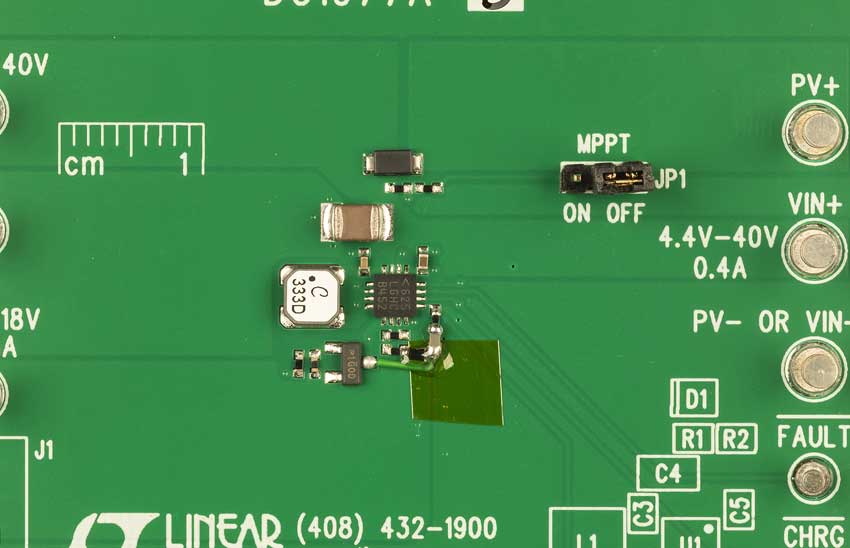

Evaluation Kits (2)

Documentation & Resources

  • View All (5)
  • Data Sheet (1)
  • Reliability Data (1)
  • User Guide (1)
  • Product Selector Card (1)
  • Solutions Bulletin & Brochure (1)
    • Document Type

    Product Recommendations

    LTC4121 Companion Parts

    Recommended Related Parts

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC4121EUD#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC4121EUD#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC4121EUD-4.2#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC4121EUD-4.2#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC4121IUD#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC4121IUD#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC4121IUD-4.2#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC4121IUD-4.2#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    Wafer Fabrication Data R577 Reliability Data
