LTC4099

I2C Controlled USB Power Manager/ Charger with Overvoltage Protection

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $2.66
Features
  • Switching Regulator with Bat-Track™ Adaptive Output Control Makes Optimal Use of Limited Input Power
  • I2C Port for Optimal System Performance and Status Information
  • Input Overvoltage Protection
  • Bat-Track Control of External Step-Down Switching Regulator Maximizes Efficiency from Automotive and Other High Voltage Sources
  • Instant-On Operation with Low Battery
  • Optional Overtemperature Battery Conditioner Improves High Temperature Battery Safety Margin
  • Ideal Diode Seamlessly Connects Battery When Input Power is Limited or Unavailable
  • Full-Featured Li-Ion/Polymer Battery Charger
  • 1.5A Maximum Charge Current with Thermal Limiting
  • Slew Control Reduces Switching EMI
  • 20-Lead 3mm × 4mm × 0.75mm QFN Package
Additional Details
show more Icon

The LTC4099 is an I2C controlled high efficiency USB PowerPath™ controller and full-featured Li-Ion/Polymer battery charger. It seamlessly manages power distribution from multiple sources including USB, a wall adapter and a Li-Ion/Polymer battery.

The LTC4099 automatically limits its input current for USB compatibility. For automotive and other high voltage applications, the LTC4099 interfaces with an external switching regulator. Both the USB input and the auxiliary input controller feature Bat-Track optimized charging to provide maximum power to the application and reduced heat in high power density applications.

The I2C port allows digital control of important application parameters including input current limit, charge current and float voltage. Several status bits can also be read back via I2C.

An overvoltage protection circuit guards the LTC4099from high voltage damage on the low voltage VBUS pin.TheLTC4099 is available in a 20-Lead 3mm × 4mm × 0.75mmQFN Package.

Applications

  • Media Players
  • Portable Navigation Devices
  • Smart Phones
  • Industrial Handhelds
  • Portable Medical Instruments
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $2.66
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC4099

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Reliability Data
  • User Guide
  • Design Note
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 03/03/2010
English

LTC4099: I2C Controlled USB Power Manager/Charger with Overvoltage Protection Data Sheet

Open PDF File

redirect
541.00K
download

Download PDF

PDF Vector

PDF

UPDATED 05/20/2010
Japanese

LTC4099: 過電圧保護付きI2C制御のUSBパワーマネージャ/チャージャ データシート

Open PDF File

redirect
3.00M
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R540 Reliability Data redirect icon

23.32 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC1396A - Demo Manual redirect icon

480.00K

download

Download PDF

Design Note

1

PDF Vector

HTML

UPDATED 03/01/2009
English
Design Note 1017: LTC4099 Provides Unprecedented Control of USB Power Management and Battery Charger Functions Using I2C redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4099EUDC#PBF 20-Lead QFN (3mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4099EUDC#TRPBF 20-Lead QFN (3mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Battery Fuel Gauge and Coulomb Counter1
LTC2942
popup image
Cart

NOT RECOMMENDED FOR NEW DESIGNS

Battery Gas Gauge with Temperature, Voltage Measurement

Pushbutton Controllers1
LTC2955
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Pushbutton On/Off Controller with Automatic Turn-On

USB Isolators1
LTM2884
popup image
Cart

PRODUCTION

Isolated USB Transceiver with Isolated Power

USB Power Manager (PowerPath, Battery Charger)1
LTC4155
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual Input Power Manager/ 3.5A Li-Ion Battery Charger with I2C Control and USB OTG

Evaluation Kit

Evaluation Kits 1

reference details image

DC1396A

LTC4099EPDC Demo Board | I2C-Controlled USB Power Manager/Charger with Overvoltage Protection (requires DC590)

zoom

DC1396A

LTC4099EPDC Demo Board | I2C-Controlled USB Power Manager/Charger with Overvoltage Protection (requires DC590)

download icon

Download

 print icon

Print
DC1396A
LTC4099EPDC Demo Board | I2C-Controlled USB Power Manager/Charger with Overvoltage Protection (requires DC590)
Buy Now View Details

Product Detail

Demonstration Circuit 1396A is an I2C-controlled, high-efficiency USB/5V Powered 1A Li-Ion battery charger/manager with the control hooks for an external HV battery-tracking step-down controller (LT3480 is recommended). The Input current is automatically limited for USB compatibility.  The DC1396's input voltage ranges from 4.35V to 5.5V, and the device provides overvoltage protection from up to 30V. The device features a CC/CV linear charger with a 4.2V charge voltage, C/x detection and timer termination.








Resources

pdf icon

PDF

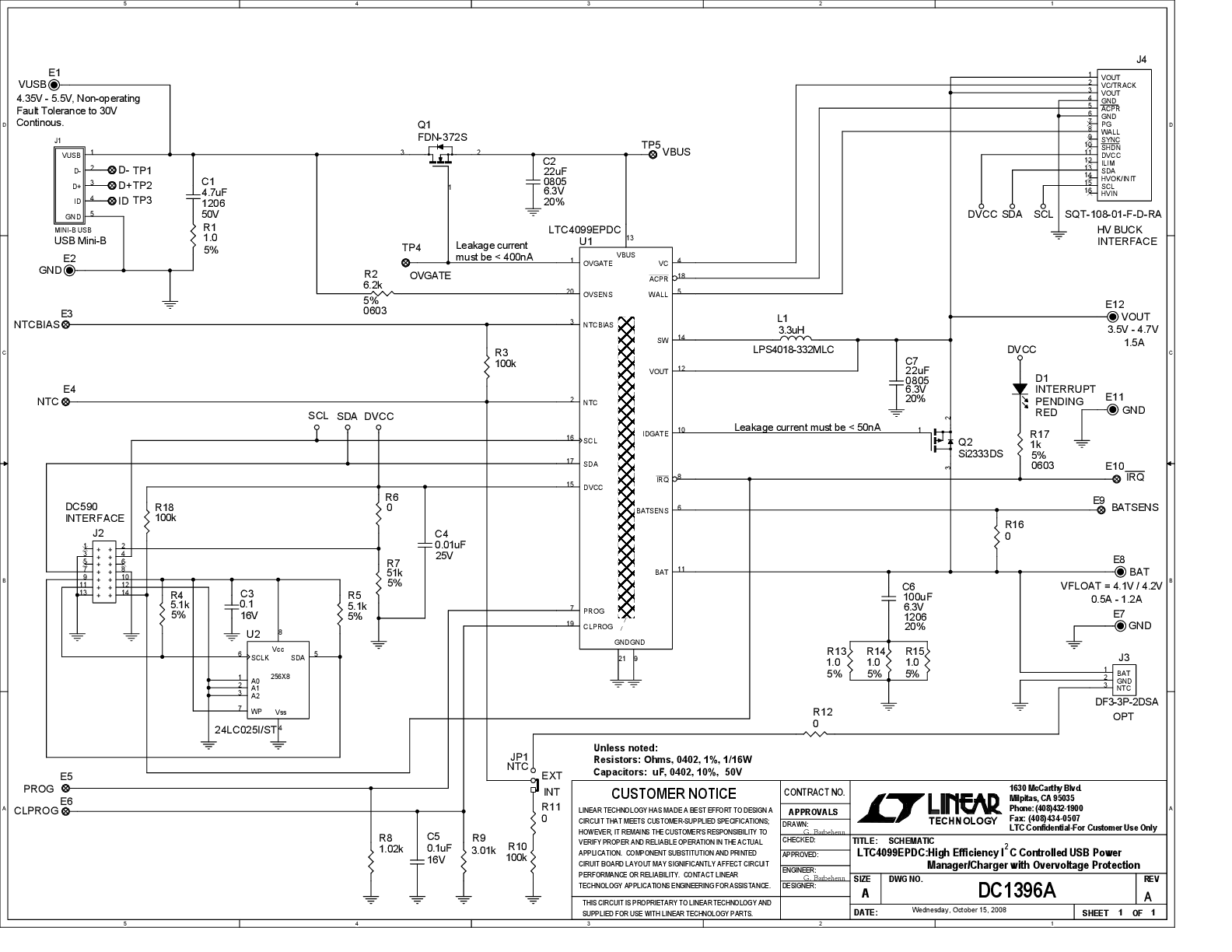

DC1396A - Schematic Download

98.00K

pdf icon

ZIP

DC1396A - Design File Download

696.00K

pdf icon

PDF

DC1396A - Demo Manual Download

480.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC1396A

LTC4099EPDC Demo Board | I2C-Controlled USB Power Manager/Charger with Overvoltage Protection (requires DC590)
