LTC4090-3

RECOMMENDED FOR NEW DESIGNS

LTC4090-3

USB Power Manager with 2A High Voltage Bat-Track Buck Regulator

RECOMMENDED FOR NEW DESIGNS

Part Details

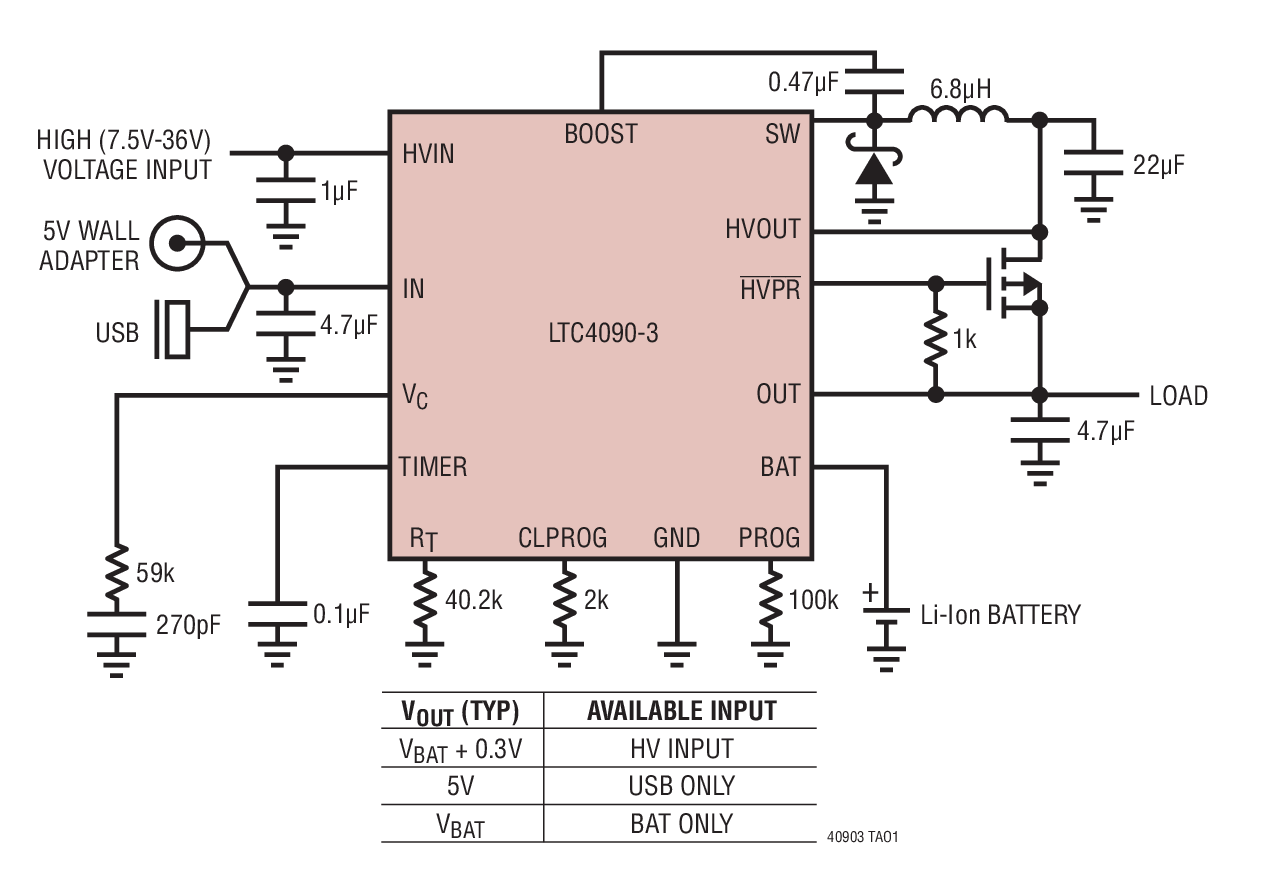

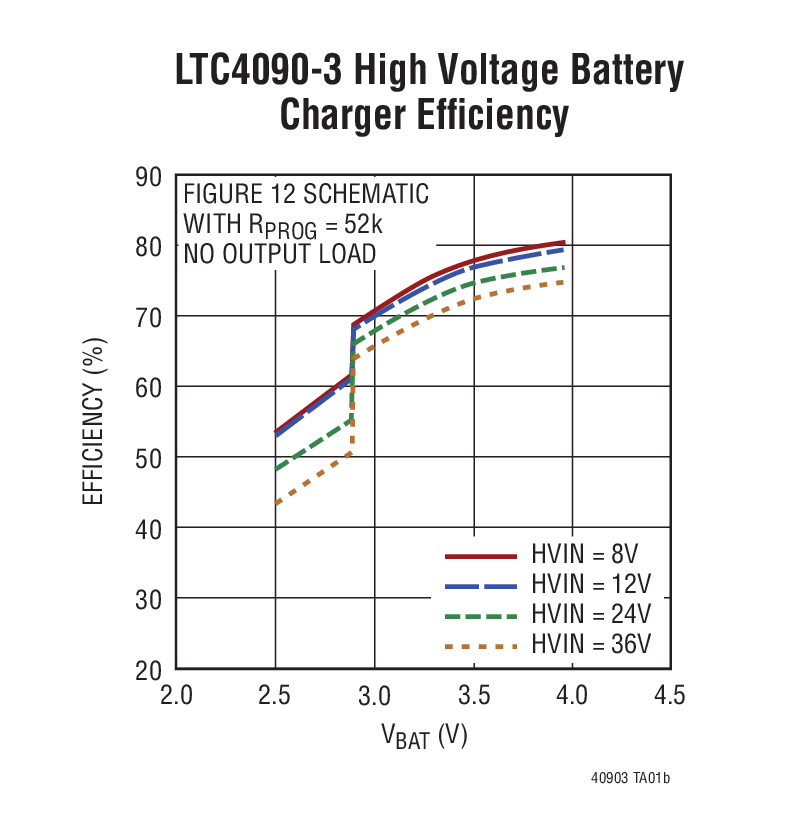

LTC4090-3 High Voltage Battery Charger Efficiency slide

LTC4090-3 High Voltage Battery Charger Efficiency

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $3.89

Features

Seamless Transition Between Power Sources: Li-Ion Battery, USB, and 6V to 36V Supply (60V Max)
2A Output High Voltage Buck Regulator with Bat-Track^™ Adaptive Output Control
3.95V Float Voltage Improves Battery Life Span and High Temperature Safety Margin
Internal 215mW Ideal Diode Plus Optional External Ideal Diode Controller Provides Low Loss Power Path When External Supply/ USB Not Present
Load Dependent Charging from USB Input Guarantees Current Compliance
Full Featured Li-Ion Battery Charger
1.5A Maximum Charge Current with Thermal Limiting
NTC Thermistor Input for Temperature Qualified Charging
Tiny (3mm × 6mm × 0.75mm) 22-Pin DFN Package

Additional Details

The LTC4090-3 is a USB power manager plus high voltage Li-Ion/Polymer battery charger. The device controls the total current used by the USB peripheral for operation and battery charging. Battery charge current is automatically reduced such that the sum of the load current and the charge current does not exceed the programmed input current limit. The LTC4090-3 also accommodates high voltage power supplies, such as 12V AC/DC wall adapters, Firewire, or automotive power.

The LTC4090 provides a Bat-Track adaptive output that tracks the battery voltage for high efficiency charging from the high voltage input. This 3.95V version of the standard LTC4090 is intended for applications which have extended battery lifetime requirements or those that require high temperature (>60°C) operation or storage under these conditions. A reduced float voltage will trade off initial cell capacity for the benefit of increased capacity retention over the life of the battery. The charge current is programmable and an end-of-charge status output (CHRG) indicates full charge.


	Float Voltage (V)	NTC Hot Threshold	Bat-Track Adaptive HV Output
LTC4090	4.2V	29% V_VNTC	Yes
LTC4090-3	3.95V	32.6% V_VNTC	Yes
LTC4090-5	4.2V	29% V_VNTC	No

Applications

Embedded Automotive Accessories
Personal Navigation Devices
Other USB-Based Handheld Products

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $3.89

Documentation

Technical Documents 2

LTC4090-3: USB Power Manager with 2A High Voltage Bat-Track Buck Regulator Data Sheet 07/12/2017

R540 Reliability Data 03/26/2018

Reference Materials 1

Industrial Battery Chargers Overview 10/17/2023

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

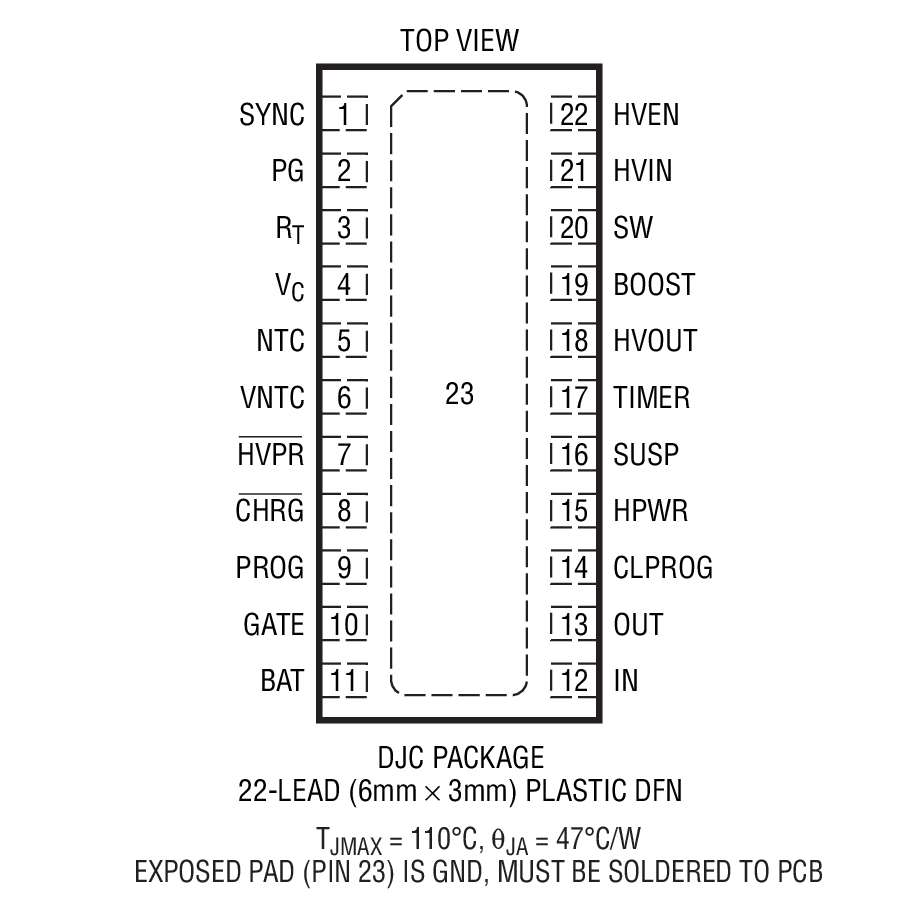

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
