LTC4071

Li-Ion/Polymer Shunt Battery Charger System with Low Battery Disconnect

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.D)
Documentation View All Documentation
LTspice LTC4071 - Power Management Download 1.31 KB
Part Models 8
1ku List Price Starting From $2.65
Features
  • Charger Plus Pack Protection in One IC
  • Low Operating Current (550nA)

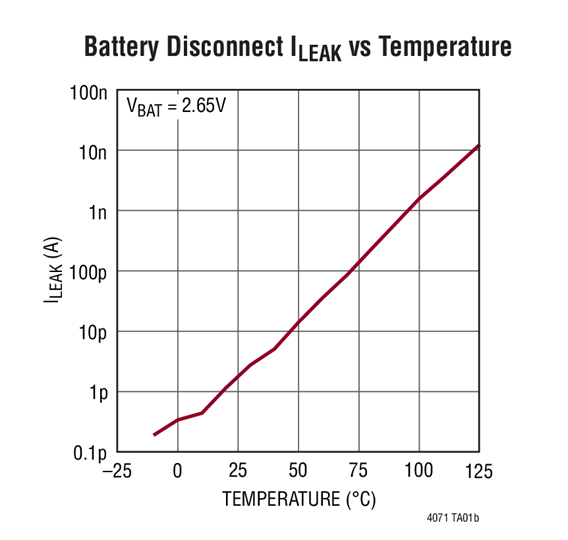

  • Near Zero Current (<0.1nA) Low Battery Disconnect Function to Protect Batteries from Over-Discharge
  • Pin Selectable Low Battery Disconnect Level: 2.7V or 3.2V
  • 1% Float Voltage Accuracy Over Temperature
  • 50mA Maximum Internal Shunt Current
  • Pin Selectable Float Voltage Options: 4.0V, 4.1V, 4.2V
  • Ultralow Power Pulsed NTC Float Conditioning for Li-Ion/Polymer Protection
  • Suitable for Intermittent, Continuous and Very Low Power Charging Sources
  • High Battery Status Output
  • Thermally Enhanced, Low Profile (0.75mm) 8-lead (2mm × 3mm) DFN and MSOP Packages
Additional Details
show more Icon

The LTC4071 allows simple charging of Li-Ion/Polymer batteries from very low current, intermittent or continuous charging sources. A near-zero current low battery latching disconnect function protects even the lowest capacity batteries from deep discharge and potentially irreparable damage. The 550nA to 50mA operating current makes charging possible from previously unusable sources. With its low operating current the LTC4071 is well suited to charge low capacity Li-Ion or thin film batteries in energy harvesting applications. The unique architecture of the LTC4071 allows for an extremely simple battery charger solution, requiring just one external resistor.

The LTC4071 offers a pin selectable float voltage with ±1% accuracy. The integrated thermal battery qualifier extends battery lifetime and improves reliability by automatically reducing the battery float voltage at NTC thermistor temperatures above 40°C. The LTC4071 also provides two pin selectable low battery disconnect levels and a high battery status output.

The device is offered in two thermally enhanced packages, a compact low profile (0.75mm) 8-lead (2mm × 3mm) DFN and an 8-lead MSOP package.

Applications

  • Low Capacity, Li-Ion/Polymer Battery Back-Up
  • Thin Film Batteries
  • Energy Scavenging/Harvesting
  • Solar Power Systems with Back-Up
  • Memory Back-Up
  • Embedded Automotive
Show More Arrow image
file View Data Sheet (Rev.D)
Documentation View All Documentation
LTspice LTC4071 - Power Management Download 1.31 KB
Part Models 8
1ku List Price Starting From $2.65
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC4071

Documentation

7
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 10/12/2011
English

LTC4071: Li-Ion/Polymer Shunt Battery Charger System with Low Battery Disconnect Data Sheet (Rev.D)

Open PDF File

redirect
242.00K
download

Download PDF

PDF Vector

PDF

UPDATED 11/07/2011
Japanese

LTC4071: ローバッテリ切断機能付きリチウムイオン/ポリマー・バッテリ向けシャント・バッテリ・チャージャ・システム

Open PDF File

redirect
528.00K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 10/25/2010
English
DC1702A - Demo Manual redirect icon

332.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R540 Reliability Data redirect icon

23.32 K

download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 10/01/2010
English
True Grid Independence: Robust Energy Harvesting System for Wireless Sensors Uses Piezoelectric Energy Harvesting Power Supply and Li-Poly Batteries with Shunt Charger redirect icon

Application Note

2

PDF Vector

HTML

UPDATED 06/01/2020
English
Reverse Voltage Protection for Battery Chargers redirect icon

PDF Vector

HTML

UPDATED 06/01/2020
Chinese
电池充电器的反向电压保护 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 5
show more Icon

Data Sheet 1

LTC4071: Li-Ion/Polymer Shunt Battery Charger System with Low Battery Disconnect Data Sheet (Rev.D)

Reliability Data 1

R540 Reliability Data

User Guide 1

DC1702A - Demo Manual

Application Note 1

Reverse Voltage Protection for Battery Chargers

Technical Articles 1

True Grid Independence: Robust Energy Harvesting System for Wireless Sensors Uses Piezoelectric Energy Harvesting Power Supply and Li-Poly Batteries with Shunt Charger

Product Selector Card 3

Practical Ambient Energy Harvesting for WSNs
LTC4071 - Li-Ion/Polymer Shunt Battery Charger System with Low Battery Disconnect
Practical Ambient Energy Harvesting for WSNs

Thought Leadership Page 1

Green Buildings Get a Boost: Wireless Sensor Nodes as a Key Application for Energy Harvesting

Video

1

Thumbnail Image

Video

2017-09-18

08:29

Low Input Voltage and Maximum Power Point Control Simplifies Energy Harvesting

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4071EDDB#TRMPBF 8-Lead DFN (3mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4071EDDB#TRPBF 8-Lead DFN (3mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4071EMS8E#PBF 8-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4071EMS8E#TRPBF 8-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4071IDDB#TRMPBF 8-Lead DFN (3mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4071IDDB#TRPBF 8-Lead DFN (3mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4071IMS8E#PBF 8-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4071IMS8E#TRPBF 8-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 3, 2020

- 20_0128

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LTC4071EMS8E#PBF

PRODUCTION

LTC4071EMS8E#TRPBF

PRODUCTION

LTC4071IMS8E#PBF

PRODUCTION

LTC4071IMS8E#TRPBF

PRODUCTION

pdf

PCN20_0128_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 3, 2020

- 20_0128

arrow down

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LTC4071EMS8E#PBF

PRODUCTION

LTC4071EMS8E#TRPBF

PRODUCTION

LTC4071IMS8E#PBF

PRODUCTION

LTC4071IMS8E#TRPBF

PRODUCTION

pdf

PCN20_0128_Form

external-icon

xls

Material_Report

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

µModule Battery Chargers1
LTM8061
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

32V, 2A μModule (Power Module) Li-Ion/Polymer Battery Charger

Digital Temperature Sensors1
LTC2991
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Octal I2C Voltage, Current, and Temperature Monitor

Energy Harvesting1
LTC3588-1
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Nanopower Energy Harvesting Power Supply

Single-Supply Monitors1
LTC2935
popup image
Cart

PRODUCTION

Ultra-Low Power Supervisor with Power-Fail Output, Selectable Thresholds

Evaluation Kits 1

reference details image

DC1702A

LTC4071EDDB Demo Board | Shunt Li-Ion Charger, 10V ≤ VIN ≤ 16V, 4.1VOUT @ 50mA

zoom

DC1702A

LTC4071EDDB Demo Board | Shunt Li-Ion Charger, 10V ≤ VIN ≤ 16V, 4.1VOUT @ 50mA

download icon

Download

 print icon

Print
DC1702A
LTC4071EDDB Demo Board | Shunt Li-Ion Charger, 10V ≤ VIN ≤ 16V, 4.1VOUT @ 50mA
Buy Now View Details

Product Detail

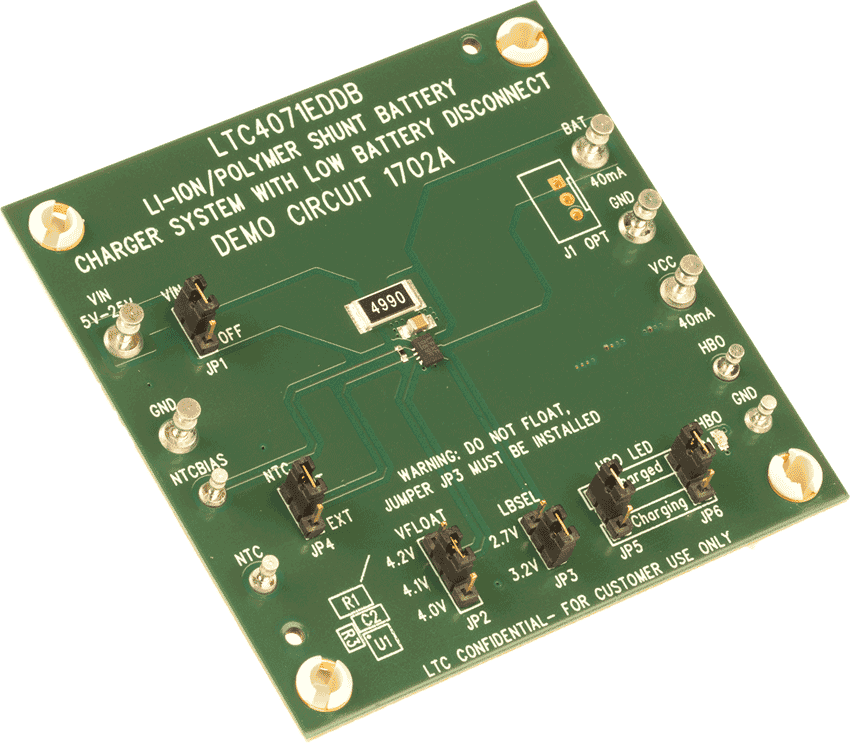

Demonstration Circuit DC1702A is a Li-Ion/Polymer Shunt Battery Charger system with Low Battery Disconnect featuring the LTC4071EDDB. The LTC4071 allows simple charging of Li-Ion/Polymer batteries from very low current, intermittent or continuous charging sources. The DC1702 provides up to 50mA of output current at 4.1V from a 10V to 16V input supply.
