LTC4070

Li-Ion/Polymer Shunt Battery Charger System

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 8
1ku List Price Starting From $2.73
Features
  • Low Operating Current (450nA)
  • 1% Float Voltage Accuracy Over Full Temperature and Shunt Current Range
  • 50mA Maximum Internal Shunt Current (500mA with External PFET)
  • Pin Selectable Float Voltage Options: 4.0V, 4.1V, 4.2V
  • Ultralow Power Pulsed NTC Float Conditioning for Li-Ion/Polymer Protection
  • Suitable for Intermittent, Continuous and Very Low Power Charging Sources
  • Low and High Battery Status Outputs
  • Simple Low Voltage Load Disconnect Application
  • Thermally Enhanced, Low Profile (0.75mm) 8-Lead (2mm × 3mm) DFN and MSOP Packages
Additional Details
show more Icon

The LTC4070 allows simple charging of Li-Ion/Polymer batteries from very low current, intermittent or continuous charging sources. The 450nA to 50mA operating current makes charging possible from previously unusable sources. With the addition of an external pass device, shunt current may be boosted to 500mA. Stacked cell high voltage battery packs are inherently balanced with shunt charging. With its low operating current, the LTC4070 is well suited to charge thin film batteries in energy harvesting applications where charging sources may be intermittent or very low power. The unique architecture of the LTC4070 allows for an extremely simple battery charger solution; requiring just one external resistor.

The LTC4070 offers a pin selectable float voltage with 1% accuracy across the full range of operating temperature and shunt current. The integrated thermal battery qualifier extends battery lifetime and improves reliability by automatically reducing the battery float voltage at NTC thermistor temperatures above 40°C. The LTC4070 also provides both low and high battery status outputs. For applications requiring pack protection, see LTC4071.

The device is offered in two thermally enhanced packages, a compact low profile (0.75mm) 8-lead (2mm × 3mm) DFN and an 8-lead MSOP package.

Applications

  • Low Power Li-Ion/Polymer Battery Back-Up
  • Solar Power Systems with Back-Up
  • Memory Back-Up
  • Embedded Automotive
  • Thin Film Batteries
  • Energy Scavenging/Harvesting
Part Models 8
1ku List Price Starting From $2.73

close icon

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4070EDDB#TRMPBF
  • HTML
  • HTML
LTC4070EDDB#TRPBF
  • HTML
  • HTML
LTC4070EMS8E#PBF
  • HTML
  • HTML
LTC4070EMS8E#TRPBF
  • HTML
  • HTML
LTC4070IDDB#TRMPBF
  • HTML
  • HTML
LTC4070IDDB#TRPBF
  • HTML
  • HTML
LTC4070IMS8E#PBF
  • HTML
  • HTML
LTC4070IMS8E#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LTC4070EMS8E#PBF

PRODUCTION

LTC4070EMS8E#TRPBF

PRODUCTION

LTC4070IMS8E#PBF

PRODUCTION

LTC4070IMS8E#TRPBF

PRODUCTION

Feb 3, 2020

- 20_0128

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LTC4070EMS8E#PBF

PRODUCTION

LTC4070EMS8E#TRPBF

PRODUCTION

LTC4070IMS8E#PBF

PRODUCTION

LTC4070IMS8E#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LTC4070EMS8E#PBF

PRODUCTION

LTC4070EMS8E#TRPBF

PRODUCTION

LTC4070IMS8E#PBF

PRODUCTION

LTC4070IMS8E#TRPBF

PRODUCTION

Feb 3, 2020

- 20_0128

arrow down

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LTC4070EMS8E#PBF

PRODUCTION

LTC4070EMS8E#TRPBF

PRODUCTION

LTC4070IMS8E#PBF

PRODUCTION

LTC4070IMS8E#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

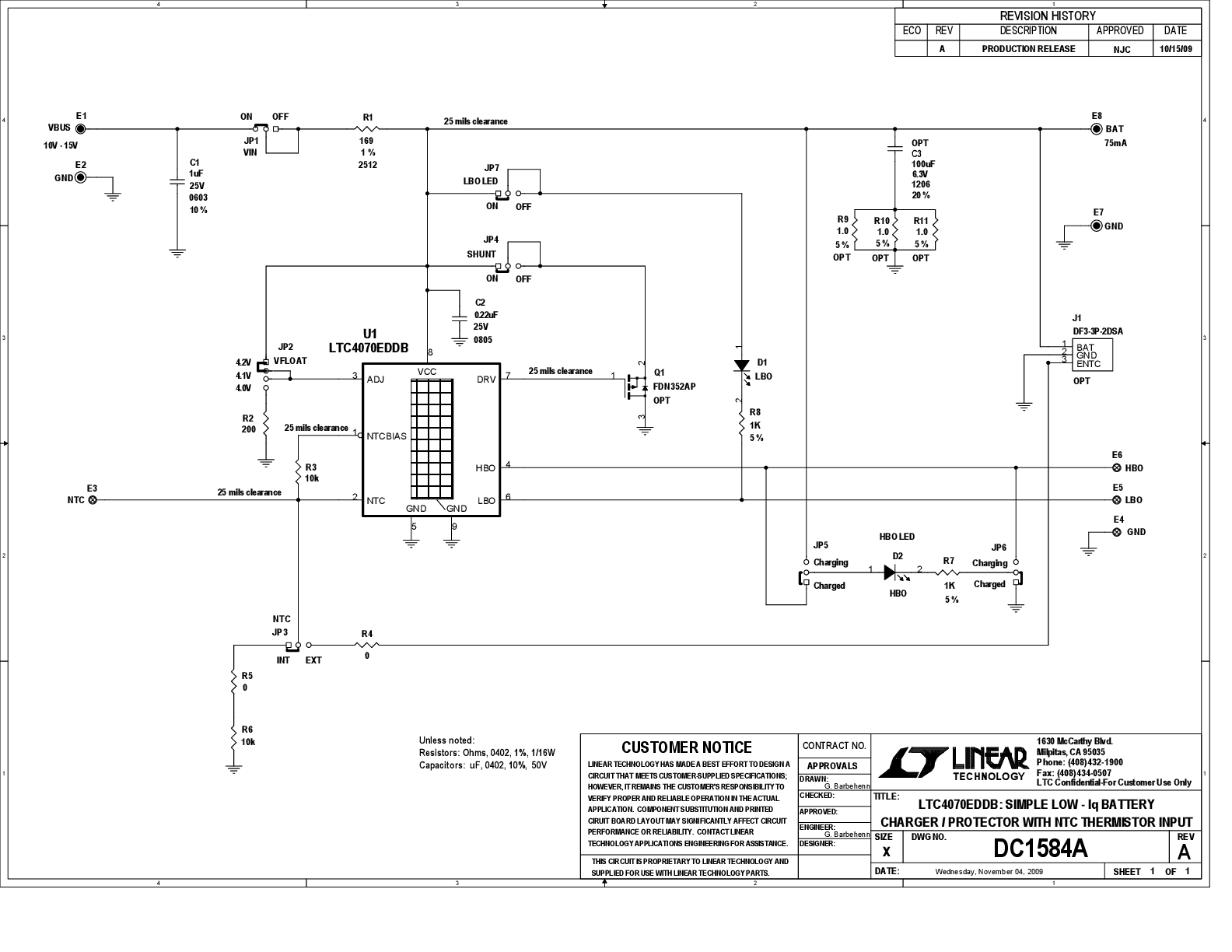

DC1584A

LTC4070EDDB Demo Board | Simple Low-IQ Battery Charger/Protector with NTC Thermistor Input

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
