LTC3108

Ultralow Voltage Step-Up Converter and Power Manager

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3108 Demo Circuit - Peltier-Powered Energy Harvester for Remote Sensor Applications (30mV to 3.3V) Download 2.00KB LTspice LTC3108 - Power Management Download 1.88 KB
Part Models 8
1ku List Price Starting From $3.54
Features
  • Operates from Inputs of 20mV
  • Complete Energy Harvesting Power Management System
    • Selectable VOUT of 2.35V, 3.3V, 4.1V or 5V
    • LDO: 2.2V at 3mA
    • Logic Controlled Output
    • Reserve Energy Output
  • Power Good Indicator
  • Uses Compact Step-Up Transformers
  • Small 12-Lead (3mm × 4mm) DFN or 16-Lead SSOP Packages
    • Additional Details
    show more Icon

    The LTC3108 is a highly integrated DC/DC converter ideal for harvesting and managing surplus energy from extremely low input voltage sources such as TEGs (thermoelectric generators), thermopiles and small solar cells. The step-up topology operates from input voltages as low as 20mV. The LTC3108 is functionally equivalent to the LTC3108-1 except for its unique fixed VOUT options.

    Using a small step-up transformer, the LTC3108 provides a complete power management solution for wireless sensing and data acquisition. The 2.2V LDO powers an external microprocessor, while the main output is programmed to one of four fixed voltages to power a wireless transmitter or sensors. The power good indicator signals that the main output voltage is within regulation. A second output can be enabled by the host. A storage capacitor provides power when the input voltage source is unavailable. Extremely low quiescent current and high efficiency design ensure the fastest possible charge times of the output reservoir capacitor.

    The LTC3108 is available in a small, thermally enhanced 12-lead (3mm × 4mm) DFN package and a 16-lead SSOP package.

    Output Voltage (Switcher)
    LTC3108 Selectable 2.35V, 3.3V, 4.1V or 5V
    LTC3108-1 Selectable 2.5V, 3V, 3.7V or 4.5V


    Applications

    • Remote Sensors and Radio Power
    • Surplus Heat Energy Harvesting
    • HVAC Systems
    • Industrial Wireless Sensing
    • Automatic Metering
    • Building Automation
    • Predictive Maintenance
    Show More Arrow image
    file View Data Sheet
    Documentation View All Documentation
    LTspice LTC3108 Demo Circuit - Peltier-Powered Energy Harvester for Remote Sensor Applications (30mV to 3.3V) Download 2.00KB LTspice LTC3108 - Power Management Download 1.88 KB
    Part Models 8
    1ku List Price Starting From $3.54
    modal bookmark icon

    {{modalTitle}}

    modal close icon

    {{modalDescription}}

    {{dropdownTitle}}

    input down arrow
    • {{defaultSelectedText}}
      • {{#each projectNames}}
    • {{name}}
      • {{/each}} {{#if newProjectText}}
    • plus icon {{newProjectText}}
      • {{/if}}
    {{#if toggleButtonDescription}}
    {{toggleButtonDescription}}
    {{/if}} {{#if newProjectTitle}}

    {{newProjectTitle}}

    {{projectNameErrorText}}

    {{/if}}

    LTC3108

    Documentation

    8
    overlayclose

    Filters

    1 Applied

    mobileoverlaydownarrow
    • All
      TickIcon
    • Technical Articles
    • Data Sheet
    • User Guide
    • Reliability Data
    • All
      TickIcon
    • English
    • Chinese
    • Japanese
    resetfilter

    Reset Filters

    Data Sheet

    3

    PDF Vector

    PDF

    UPDATED 08/15/2013
    English

    LTC3108: Ultralow Voltage Step-Up Converter and Power Manager Data Sheet

    Open PDF File

    redirect
    378.00K
    download

    Download PDF

    PDF Vector

    PDF

    UPDATED 08/15/2013
    Chinese

    LTC3108: Ultralow Voltage Step-Up Converter and Power Manager Data Sheet (Rev.D)

    Open PDF File

    redirect
    378.00K
    download

    Download PDF

    PDF Vector

    PDF

    UPDATED 10/08/2013
    Japanese

    LTC3108: 超低電圧昇圧コンバータおよびパワーマネージャ データシート

    Open PDF File

    redirect
    621.00K
    download

    Download PDF

    Technical Articles

    1

    PDF Vector

    PDF

    UPDATED 03/04/2010
    English
    Ultra-Low-Voltage Input Power Converters Support Energy Harvesting redirect icon

    525.00K

    download

    Download PDF

    User Guide

    3

    PDF Vector

    PDF

    UPDATED 06/17/2010
    English
    DC1582B - Demo Manual redirect icon

    333.00K

    download

    Download PDF

    PDF Vector

    PDF

    UPDATED 07/25/2013
    English
    DC2080A - Demo Manual (Rev.A) redirect icon

    959.00K

    download

    Download PDF

    PDF Vector

    PDF

    UPDATED 07/25/2013
    English
    DC2042A - Demo Manual redirect icon

    1.00M

    download

    Download PDF

    Reliability Data

    1

    PDF Vector

    PDF

    UPDATED 03/23/2018
    English
    R551 Reliability Data redirect icon

    25.35 K

    download

    Download PDF

    There are no results matching this criteria. Try resetting your filters or searching for a different term

    close icon

    Documentation

    Product Selector Card 2

    Practical Ambient Energy Harvesting for WSNs
    Practical Ambient Energy Harvesting for WSNs

    Book & eBook 1

    Power You Can Trust: Achieving Efficient Battery-Powered Solutions

    Press Release 1

    Linear Technology Announces the Missing Link for Energy Harvesting Applications

    Solutions Bulletin & Brochure 1

    Energy Harvesting Now

    Analog Dialogue 1

    What Are the Best Applications for IoT in the New World of IC Power Management?

    Video

    1

    Thumbnail Image

    Video

    2017-09-18

    LTC3108 Video Product Brief

    Learn More
    Show More Arrow image

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

    Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
    LTC3108EDE#PBF 12-Lead DFN (4mm x 3mm w/ EP) external-link
    • HTML
    • Material Declaration external-link
    • HTML
    • Reliablity Data external-link
    LTC3108EDE#TRPBF 12-Lead DFN (4mm x 3mm w/ EP) external-link
    • HTML
    • Material Declaration external-link
    • HTML
    • Reliablity Data external-link
    LTC3108EGN#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
    • HTML
    • Material Declaration external-link
    • HTML
    • Reliablity Data external-link
    LTC3108EGN#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
    • HTML
    • Material Declaration external-link
    • HTML
    • Reliablity Data external-link
    LTC3108IDE#PBF 12-Lead DFN (4mm x 3mm w/ EP) external-link
    • HTML
    • Material Declaration external-link
    • HTML
    • Reliablity Data external-link
    LTC3108IDE#TRPBF 12-Lead DFN (4mm x 3mm w/ EP) external-link
    • HTML
    • Material Declaration external-link
    • HTML
    • Reliablity Data external-link
    LTC3108IGN#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
    • HTML
    • Material Declaration external-link
    • HTML
    • Reliablity Data external-link
    LTC3108IGN#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
    • HTML
    • Material Declaration external-link
    • HTML
    • Reliablity Data external-link

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Oct 3, 2024

    - 24_0235

    (QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking

    LTC3108EGN#PBF

    PRODUCTION

    LTC3108EGN#TRPBF

    PRODUCTION

    LTC3108IGN#PBF

    PRODUCTION

    LTC3108IGN#TRPBF

    PRODUCTION

    pdf

    PCN24_0235_Form

    external-icon

    xls

    Material_Report

    Download

    pdf

    Other

    external-icon

    xlsm

    Delta Qualification Matrix

    Download

    Oct 11, 2022

    - 22_0235

    Epoxy Change from Henkel 8290 to 8290A for GN Package

    LTC3108EGN#PBF

    PRODUCTION

    LTC3108EGN#TRPBF

    PRODUCTION

    LTC3108IGN#PBF

    PRODUCTION

    LTC3108IGN#TRPBF

    PRODUCTION

    pdf

    PCN22_0235_Form

    external-icon

    xls

    Material_Report

    Download

    pdf

    Qualification Results Summary

    external-icon

    xlsm

    Delta Qualification Matrix

    Download

    Apr 6, 2022

    - 22_0066

    Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

    LTC3108EGN#PBF

    PRODUCTION

    LTC3108EGN#TRPBF

    PRODUCTION

    LTC3108IGN#PBF

    PRODUCTION

    LTC3108IGN#TRPBF

    PRODUCTION

    pdf

    PCN22_0066_Form

    external-icon

    xls

    Material_Report

    Download

    xlsm

    Delta Qualification Matrix

    Download

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Oct 3, 2024

    - 24_0235

    arrow down

    (QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking

    LTC3108EGN#PBF

    PRODUCTION

    LTC3108EGN#TRPBF

    PRODUCTION

    LTC3108IGN#PBF

    PRODUCTION

    LTC3108IGN#TRPBF

    PRODUCTION

    pdf

    PCN24_0235_Form

    external-icon

    xls

    Material_Report

    Download

    pdf

    Other

    external-icon

    xlsm

    Delta Qualification Matrix

    Download
    Oct 11, 2022

    - 22_0235

    arrow down

    Epoxy Change from Henkel 8290 to 8290A for GN Package

    LTC3108EGN#PBF

    PRODUCTION

    LTC3108EGN#TRPBF

    PRODUCTION

    LTC3108IGN#PBF

    PRODUCTION

    LTC3108IGN#TRPBF

    PRODUCTION

    pdf

    PCN22_0235_Form

    external-icon

    xls

    Material_Report

    Download

    pdf

    Qualification Results Summary

    external-icon

    xlsm

    Delta Qualification Matrix

    Download
    Apr 6, 2022

    - 22_0066

    arrow down

    Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

    LTC3108EGN#PBF

    PRODUCTION

    LTC3108EGN#TRPBF

    PRODUCTION

    LTC3108IGN#PBF

    PRODUCTION

    LTC3108IGN#TRPBF

    PRODUCTION

    pdf

    PCN22_0066_Form

    external-icon

    xls

    Material_Report

    Download

    xlsm

    Delta Qualification Matrix

    Download

    Software & Part Ecosystem

    Parts Product Life Cycle Description

    Single-Supply Monitors1
    LTC2935
    popup image
    Cart

    PRODUCTION

    Ultra-Low Power Supervisor with Power-Fail Output, Selectable Thresholds

    Evaluation Kits 3

    reference details image

    DC2042A

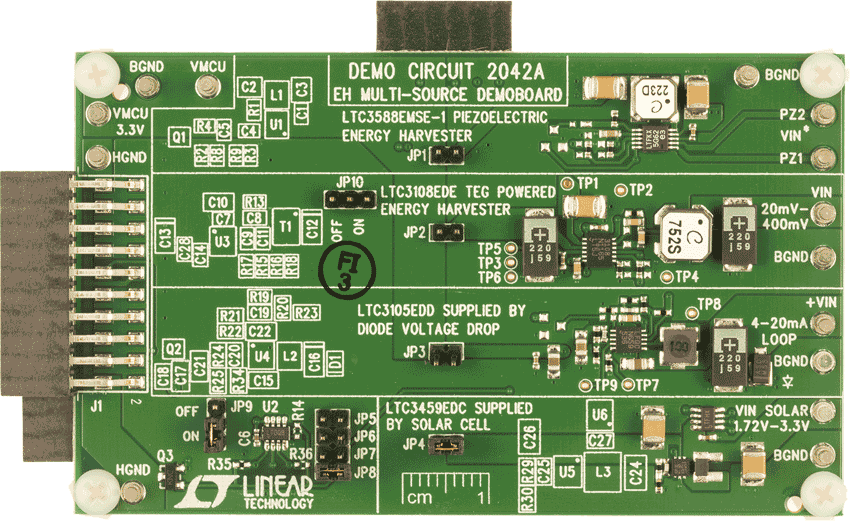

    Energy Harvesting (EH) Multi-Source Demo Board

    zoom

    DC2042A

    Energy Harvesting (EH) Multi-Source Demo Board

    download icon

    Download

     print icon

    Print
    DC2042A
    Energy Harvesting (EH) Multi-Source Demo Board
    Buy Now View Details

    Product Detail

    DC2042A - Demo Board for:
    LTC3588-1 Piezoelectric Energy Harvesting Power Supply
    LTC3108 Ultralow Voltage Step-Up Converter and Power Manager
    LTC3105 400mA Step-Up DC/DC Converter with Maximum Power Point Control and 250mV Start-Up
    LTC3459 10V Micropower Synchronous Boost Converter in ThinSOT
    LTC2935 Ultra-Low Power Supervisor with Power-Fail Output, Selectable Thresholds





    Resources

    pdf icon

    PDF

    DC2042A - Demo Manual Download

    1.00M

    pdf icon

    PDF

    DC2042A - Schematic Download

    121.00K

    pdf icon

    ZIP

    DC2042A - Design Files Download

    1.00M

    Show More Arrow image
    reference details image

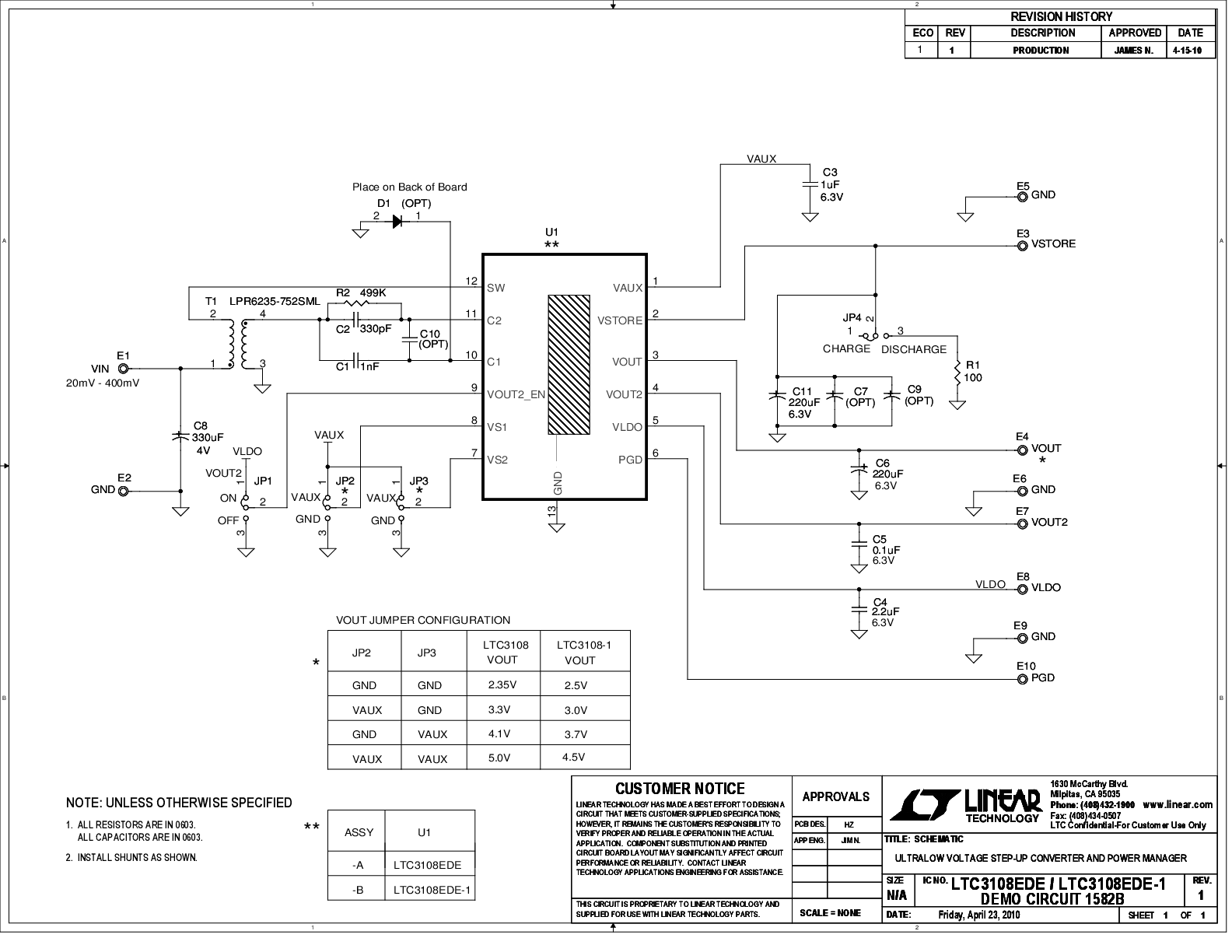

    DC1582B-A

    LTC3108EDE Demo Board | Ultralow Voltage Step-Up Converter and Power Manager

    reference details image

    DC2080A

    Energy Harvesting (EH) Multi-Source Demo Board with Transducers

    zoom

    DC2080A

    Energy Harvesting (EH) Multi-Source Demo Board with Transducers

    download icon

    Download

     print icon

    Print
    DC2080A
    Energy Harvesting (EH) Multi-Source Demo Board with Transducers
    Buy Now View Details

    Product Detail

    The DC2080 is a versatile energy harvesting demo board that is capable of accepting piezoelectric, solar, 4mA to 20mA loops, thermal powered energy sources or any high impedance AC or DC source. The board contains four independent circuits consisting of the following EH ICs:


    • LTC3588-1: Piezoelectric Energy Harvesting Power Supply
    • LTC3108: Ultralow Voltage Step-Up Converter and Power Manager
    • LTC3105: Step-Up DC/DC Converter with Power Point Control and LDO Regulator
    • LTC3459: 10V Micropower Synchronous Boost Converter
    • LTC2935-2 and LTC2935-4: Ultralow Power Supervisor with Power-Fail Output Selectable Thresholds

    The board is designed to connect to the Silicon Labs EFM32™ Wonder Gecko Starter Kit (Part No:EFM32WG-STK3800). It also includes two energy harvester transducers (TEG and Solar) and a terminal block for connecting a high impedance AC source. In addition, many turrets are provided, making it easy to connect additional transducers to the board. The board contains multiple jumpers that allow the board to be configured in various ways. The standard build for the board has 4 jumpers installed out of the possible 12 jumpers. The board is very customizable to the end users’ needs. This compatibility makes it a perfect evaluation tool for any low power energy harvesting system. Please refer to the individual data sheets for the operation of each power management circuit. The application section of the demo manual describes the system level functionality of this board and the various ways it can be used in early design prototyping.


    Click here for information on "Energy Harvesting Solution To Go"!


    To Purchase "Energy Harvesting Solution To Go", click here!

    Resources

    pdf icon

    ZIP

    DC2080A - Design Files Download

    1.00M

    pdf icon

    PDF

    DC2080A - Demo Manual (Rev.A) Download

    959.00K

    pdf icon

    PDF

    DC2080A - Schematic Download

    109.00K

    Show More Arrow image

    Evaluation Kits3

    evaluation kit item images

    DC2042A

    Energy Harvesting (EH) Multi-Source Demo Board
    evaluation kit item images

    DC1582B-A

    LTC3108EDE Demo Board | Ultralow Voltage Step-Up Converter and Power Manager
    evaluation kit item images

    DC2080A

    Energy Harvesting (EH) Multi-Source Demo Board with Transducers

    Tools & Simulations 1

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

    spice tool Lt Spice

    LTC3108 Demo Circuit - Peltier-Powered Energy Harvester for Remote Sensor Applications (30mV to 3.3V) Download

    2.00K

    spice tool Lt Spice

    LTC3108 - Power Management Download

    1.88 K

    Recently Viewed

    Part Details
    Documentation
    Software & Part Ecosystem
    Evaluation Kit
    Tools & Simulations
    Latest Discussions
