LTC4053-4.2

PRODUCTION

LTC4053-4.2

USB Compatible Lithium-Ion Battery Charger with Thermal Regulation

PRODUCTION

USB Powered Standalone Li-Ion Charger slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $2.54

Features

Charges Single-Cell Li-Ion Batteries Directly from USB Port
Thermal Regulation Maximizes Charging Rate without Risk of Overheating*
Programmable Charge Current with ±7% Accuracy
Low Dropout Operation
No External MOSFET, Sense Resistor or Blocking Diode Required
Programmable Charge Termination Timer
Preset Charge Voltage with ±1% Accuracy
C/10 Charge Current Detection Output
AC Present Logic Output
25µA Supply Current in Shutdown Mode
Automatic Recharge
Tiny Thermally Enhanced 10-Pin MSOP Package
Charge Current Monitor Useful for Gas Gauging*
Thermistor Input for Temperature Qualified Charging

Additional Details

The LTC4053 is a standalone linear charger for lithium-ion batteries that can be powered directly from a USB port. The IC contains an on-chip power MOSFET and eliminates the need for an external sense resistor and blocking diode. Thermal regulation automatically adjusts charge current to limit die temperature during high power or high ambient temperature conditions. This feature protects the end product and the LTC4053 from thermal stress while the IC charges the battery at maximum rate without interruption.

The charge current and charge time can be set externally with a single resistor and capacitor, respectively. When the input supply (wall adapter or USB supply) is removed, the LTC4053 automatically enters a low current sleep mode, dropping the battery drain current to less than 5µA.

The LTC4053 also includes NTC temperature sensing, C/10 detection circuitry, AC present logic, low battery charge conditioning (trickle charging) and shutdown (25µA supply current).

The LTC4053 is available in a 10-pin thermally enhanced MSOP package.

Applications

Cellular Telephones
Handheld Computers
Charging Docks and Cradles
MP3 Players
Digital Cameras

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $2.54

Technical Documents 9

LTC4053-4.2: USB Compatible Lithium-Ion Battery Charger with Thermal Regulation Data Sheet 08/30/2007

R421 Reliability Data 03/23/2018

DC705A - Demo Manual 04/17/2015

DC567A - Demo Manual 09/24/2009

Reverse Voltage Protection for Battery Chargers 06/01/2020

DN320 - New ICs Simplify Battery Charging from the USB 04/01/2014

DN1008 - Simple, Efficient, All-in-One USB Power Management IC Solution 11/16/2007

Design Note 1008: Simple, Efficient, All-in-One USB Power Management IC Solution 11/03/2022

Design Note 320: New ICs Simplify Battery Charging from the USB 11/08/2022

Design Resources 4

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4053EDD-4.2#PBF	10-Lead DFN (3mm x 3mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC4053EDD-4.2#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC4053EMSE-4.2#PBF	10-Lead MSOP w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC4053EMSE-4.2#TRPBF	10-Lead MSOP w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LTC4053EDD-4.2#PBF
Pin/Package Drawing
10-Lead DFN (3mm x 3mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC4053EDD-4.2#TRPBF
Pin/Package Drawing
10-Lead DFN (3mm x 3mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC4053EMSE-4.2#PBF
Pin/Package Drawing
10-Lead MSOP w/ EP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC4053EMSE-4.2#TRPBF
Pin/Package Drawing
10-Lead MSOP w/ EP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LTC4053EMSE-4.2#PBF

PRODUCTION

LTC4053EMSE-4.2#TRPBF

PRODUCTION

pdf

PCN22_0244_Form

xls

Material_Report

pdf

Qualification Results Summary

xlsm

Delta Qualification Matrix

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC4053EMSE-4.2#PBF

PRODUCTION

LTC4053EMSE-4.2#TRPBF

PRODUCTION

pdf

PCN20_0130_Form

xls

Material_Report

Filter by Model

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LTC4053EMSE-4.2#PBF

PRODUCTION

LTC4053EMSE-4.2#TRPBF

PRODUCTION

pdf

PCN22_0244_Form

xls

Material_Report

pdf

Qualification Results Summary

xlsm

Delta Qualification Matrix

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC4053EMSE-4.2#PBF

PRODUCTION

LTC4053EMSE-4.2#TRPBF

PRODUCTION

pdf

PCN20_0130_Form

xls

Material_Report

Companion Parts 1

Parts	Product Life Cycle	Description
Low Voltage Hot Swap Controllers1
LTC4361-1 LTC4361-2		Overvoltage/Overcurrent Protection Controller

DC567A

LTC4053EMSE-4.2 LTC4410ES6 | USB Compliant Battery Charger, 4.25 to 6Vin, Jumper selectable, 100mA or 500mA

DC567A

LTC4053EMSE-4.2 LTC4410ES6 | USB Compliant Battery Charger, 4.25 to 6Vin, Jumper selectable, 100mA or 500mA

Buy Now View Details

Product Detail

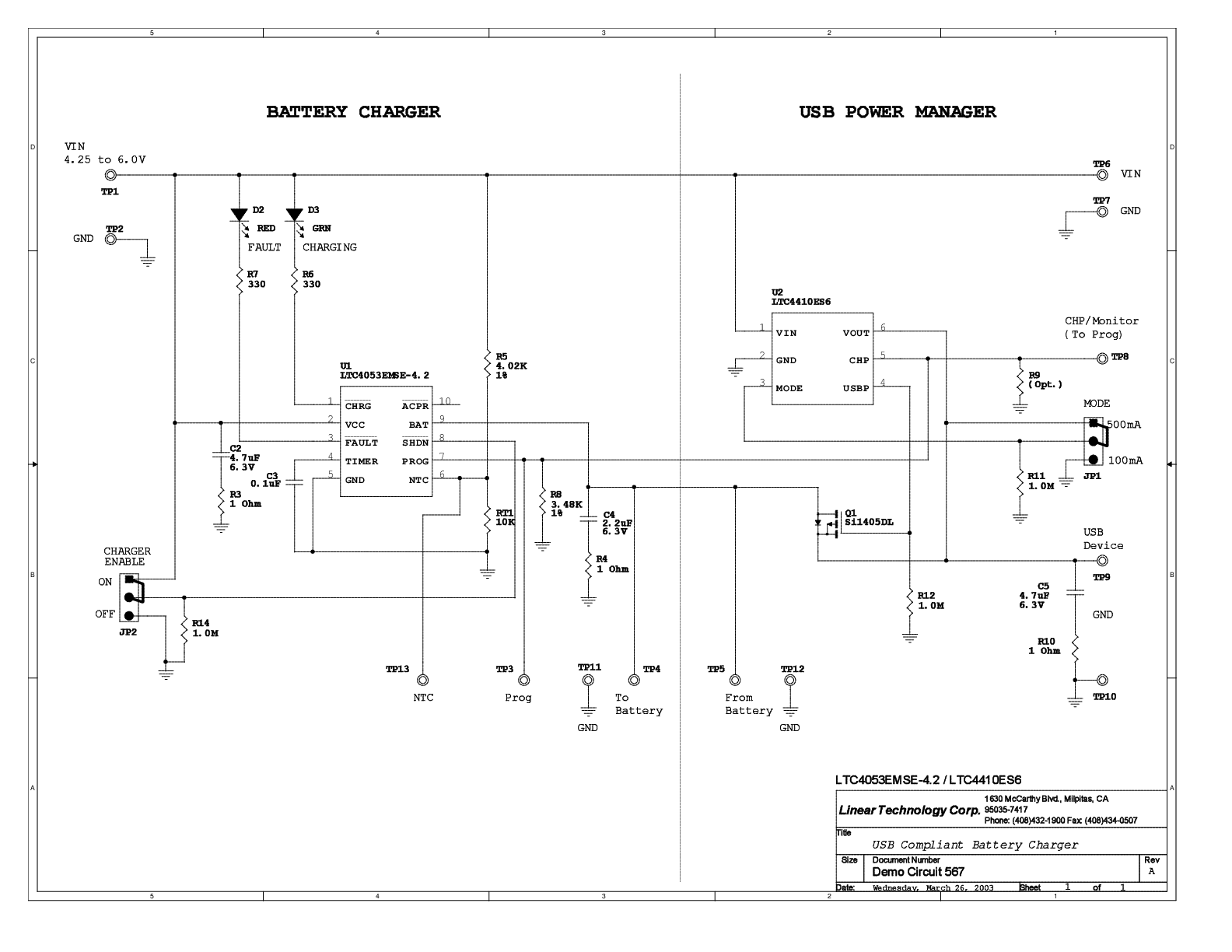

DC567A: Demo Board for the LTC4053-4.2 USB Compatible Lithium-Ion Battery Charger with Thermal Regulation.

Resources

PDF

DC567A - Demo Manual

234.00K

PDF

DC567A - Schematic

89.00K

ZIP

DC567A - Design File

763.00K

DC705A

LTC4053EMSE-4.2 | Li-Ion Battery Charger, VIN = 4.25V to 6.3V, Bat = 4.2V @ 0.5A/1A

DC705A

LTC4053EMSE-4.2 | Li-Ion Battery Charger, VIN = 4.25V to 6.3V, Bat = 4.2V @ 0.5A/1A

Buy Now View Details

Product Detail

DC705A: Demo Board for the LTC4053-4.2 USB Compatible Lithium-Ion Battery Charger with Thermal Regulation.

Resources

PDF

DC705A - Demo Manual

291.00K

ZIP

DC705A - Design File

620.00K

PDF

DC705A - Schematic

52.00K

DC567A

LTC4053EMSE-4.2 LTC4410ES6 | USB Compliant Battery Charger, 4.25 to 6Vin, Jumper selectable, 100mA or 500mA

DC705A

LTC4053EMSE-4.2 | Li-Ion Battery Charger, VIN = 4.25V to 6.3V, Bat = 4.2V @ 0.5A/1A

LTspice 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
