LTC3852

Low Input Voltage, Synchronous Step-Down DC/DC Controller

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3852 - Step-Down (Buck) Regulators Download 3.65 KB LTspice LTC3852 Demo Circuit - Low Input Voltage, Synchronous Step-Down Controller (3.3V to 1.5V@15A) Download 5.00KB
Part Models 4
1ku List Price Starting From $2.36
Features
  • Charge Pump Input Range: 2.7V to 5.5V
  • Controller Input Range: 4V to 38V
  • Integrated Charge Pump Provides 5V Gate Drive to Logic Level MOSFETs
  • RSENSE or DCR Current Sensing
  • ±1.25% Output Voltage Accuracy Over Temperature
  • Phase-Lockable Fixed Frequency: 250kHz to 750kHz
  • Power Good Output Voltage Monitor
  • Adjustable Soft-Start Voltage Ramping
  • Current Foldback Disabled During Start-Up
  • No Reverse Current During Soft-Start
  • Selectable Constant Frequency, Pulse-Skipping, or Burst Mode Operation
  • Output Overvoltage Protection
  • Very Low Dropout Operation: 99% Duty Cycle

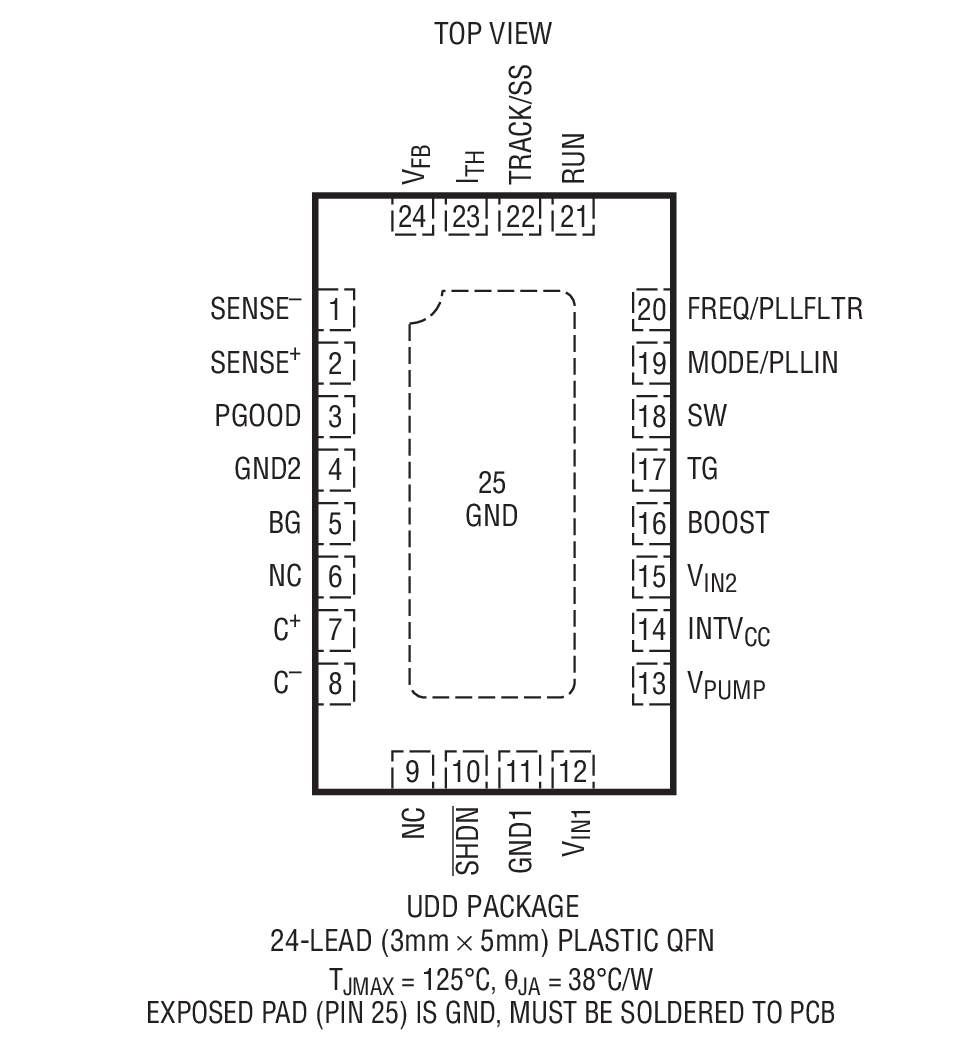

  • Available in a 24-Lead (3mm × 5mm) QFN Package
Additional Details
show more Icon

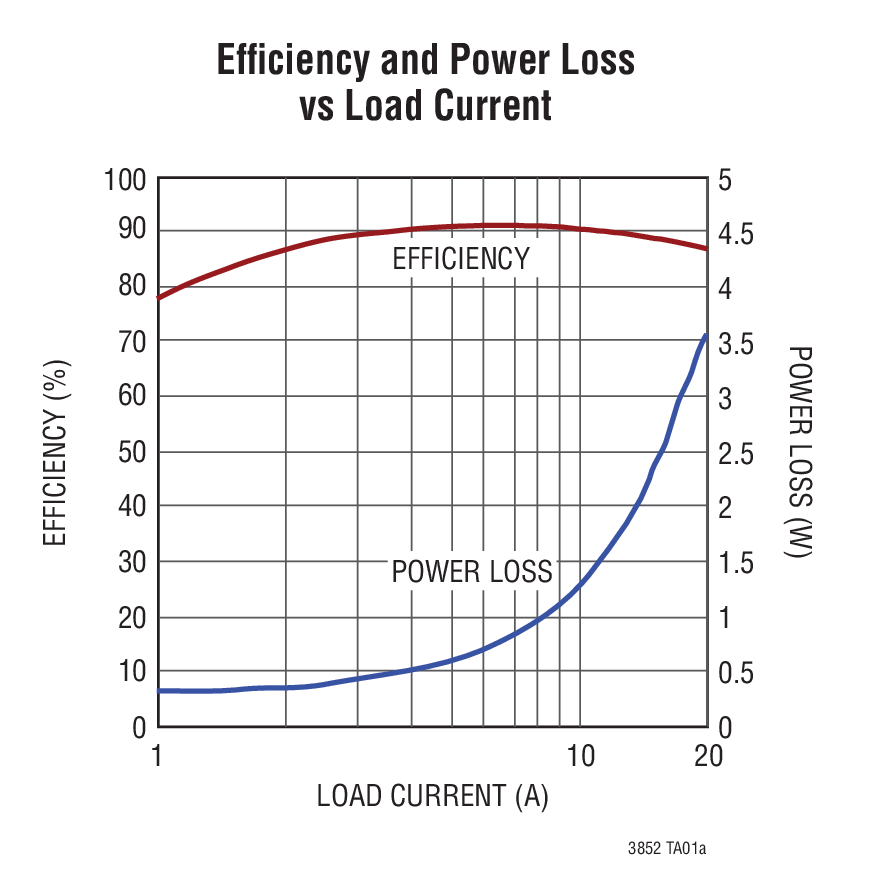

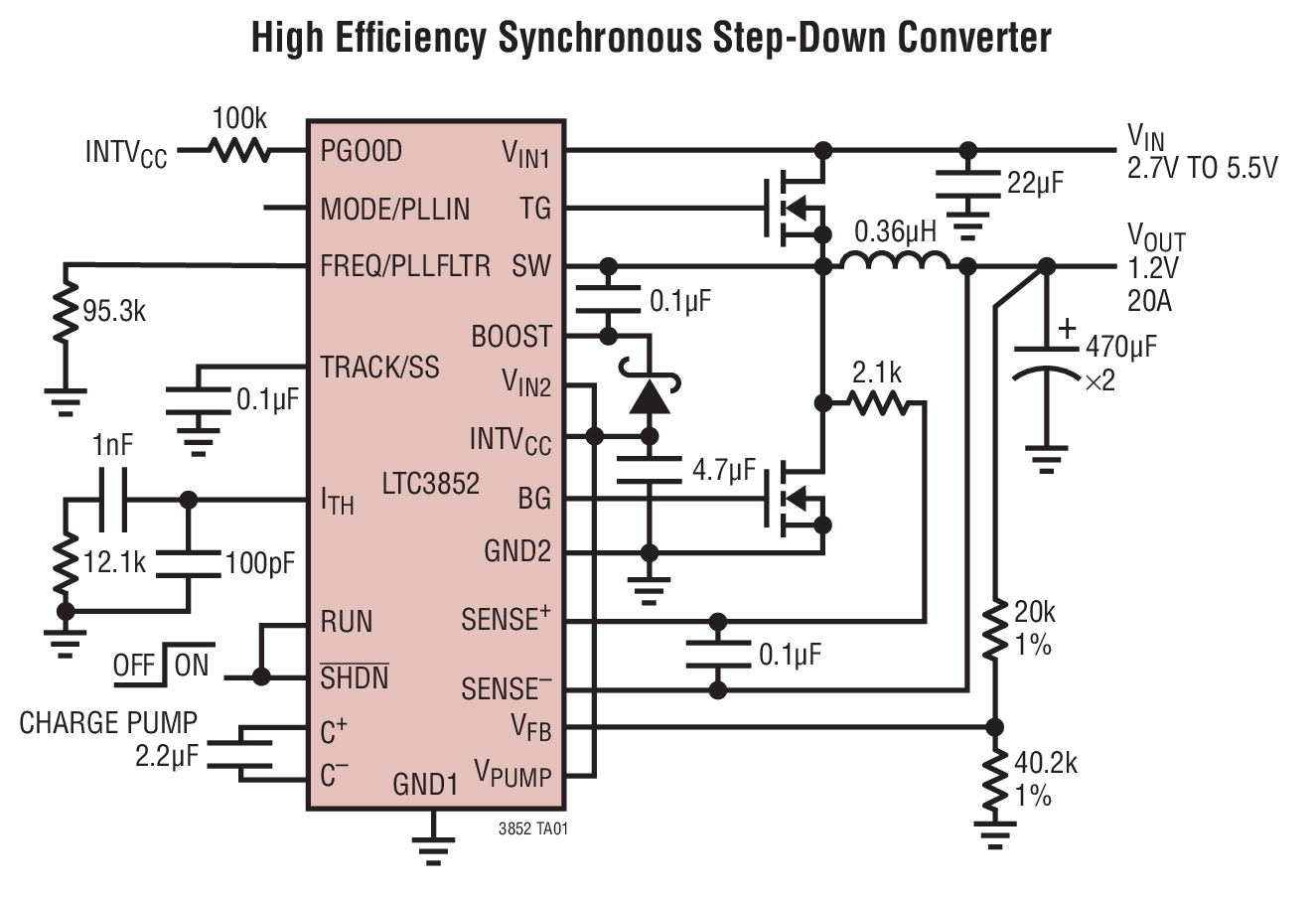

The LTC3852 is a constant frequency, current mode step-down DC/DC controller which can be powered by an on-board charge pump. Input supplies as low as 2.7V, when doubled by the charge pump, provide 5V to the LTC3852’s control logic and gate drives, supporting a wide selection of logic-level N-channel power MOSFETs.

The constant-frequency current mode architecture allows for a phase-lockable fixed frequency of up to 750kHz. The RUN pin provides a precision enable threshold while the TRACK/SS pin combines tracking and adjustable soft-start features.

The MODE/PLLIN pin selects among Burst Mode® operation, pulse-skipping mode, and continuous current mode. Current foldback limits MOSFET power dissipation during short-circuit conditions. Reverse current and current foldback functions are disabled during soft-start. A power good output pin indicates when the output is within ±10% of its designed set point.

Applications

  • General Purpose 3.3V Systems
  • Lithium-Ion Powered Devices
  • Distributed DC Power Systems
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3852 - Step-Down (Buck) Regulators Download 3.65 KB LTspice LTC3852 Demo Circuit - Low Input Voltage, Synchronous Step-Down Controller (3.3V to 1.5V@15A) Download 5.00KB
Part Models 4
1ku List Price Starting From $2.36
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3852

Documentation

3
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • Reliability Data
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 10/18/2010
English

LTC3852: Low Input Voltage, Synchronous Step-Down DC/DC Controller Data Sheet

Open PDF File

redirect
419.00K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 12/10/2010
English
DC1270A -Demo Manual redirect icon

333.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R526 Reliability Data redirect icon

365.77 K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3852EUDD#PBF 24-Lead QFN (3mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3852EUDD#TRPBF 24-Lead QFN (3mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3852IUDD#PBF 24-Lead QFN (3mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3852IUDD#TRPBF 24-Lead QFN (3mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 8, 2021

- 20_0245

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC3852EUDD#PBF

PRODUCTION

LTC3852EUDD#TRPBF

PRODUCTION

LTC3852IUDD#PBF

PRODUCTION

LTC3852IUDD#TRPBF

PRODUCTION

pdf

PCN20_0245_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

pdf

Other

external-icon

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 8, 2021

- 20_0245

arrow down

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC3852EUDD#PBF

PRODUCTION

LTC3852EUDD#TRPBF

PRODUCTION

LTC3852IUDD#PBF

PRODUCTION

LTC3852IUDD#TRPBF

PRODUCTION

pdf

PCN20_0245_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

pdf

Other

external-icon

pdf

Qualification Results Summary

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

Multiple Output Buck Regulators1
LTC3880
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management

Surge Stopper, Overvoltage, and Overcurrent Protection1
LT4363
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

High Voltage Surge Stopper with Current Limit

Evaluation Kits 1

reference details image

DC1270A

LTC3852EUDD Demo Board | 2.7V ≤ VIN ≤ 5.5V, VOUT = 1.5V @ 15A

zoom

DC1270A

LTC3852EUDD Demo Board | 2.7V ≤ VIN ≤ 5.5V, VOUT = 1.5V @ 15A

download icon

Download

 print icon

Print
DC1270A
LTC3852EUDD Demo Board | 2.7V ≤ VIN ≤ 5.5V, VOUT = 1.5V @ 15A
Buy Now View Details

Product Detail

Demonstration circuit 1270A is a low input voltage, high efficiency synchronous buck DC/DC controller that features the LTC3852EUDD. With a 2.7V to 5.5V input range. It can supply 15A maximum load current at 1.5V output. The integrated charge pump provides 5V to the LTC3852’s control logic and gate drives, supporting a wide selection of logic-level N-channel power MOSFETs with high efficiency.





Resources

pdf icon

ZIP

DC1270A - Design Files Download

2.00M

pdf icon

PDF

DC1270A -Demo Manual Download

333.00K

pdf icon

PDF

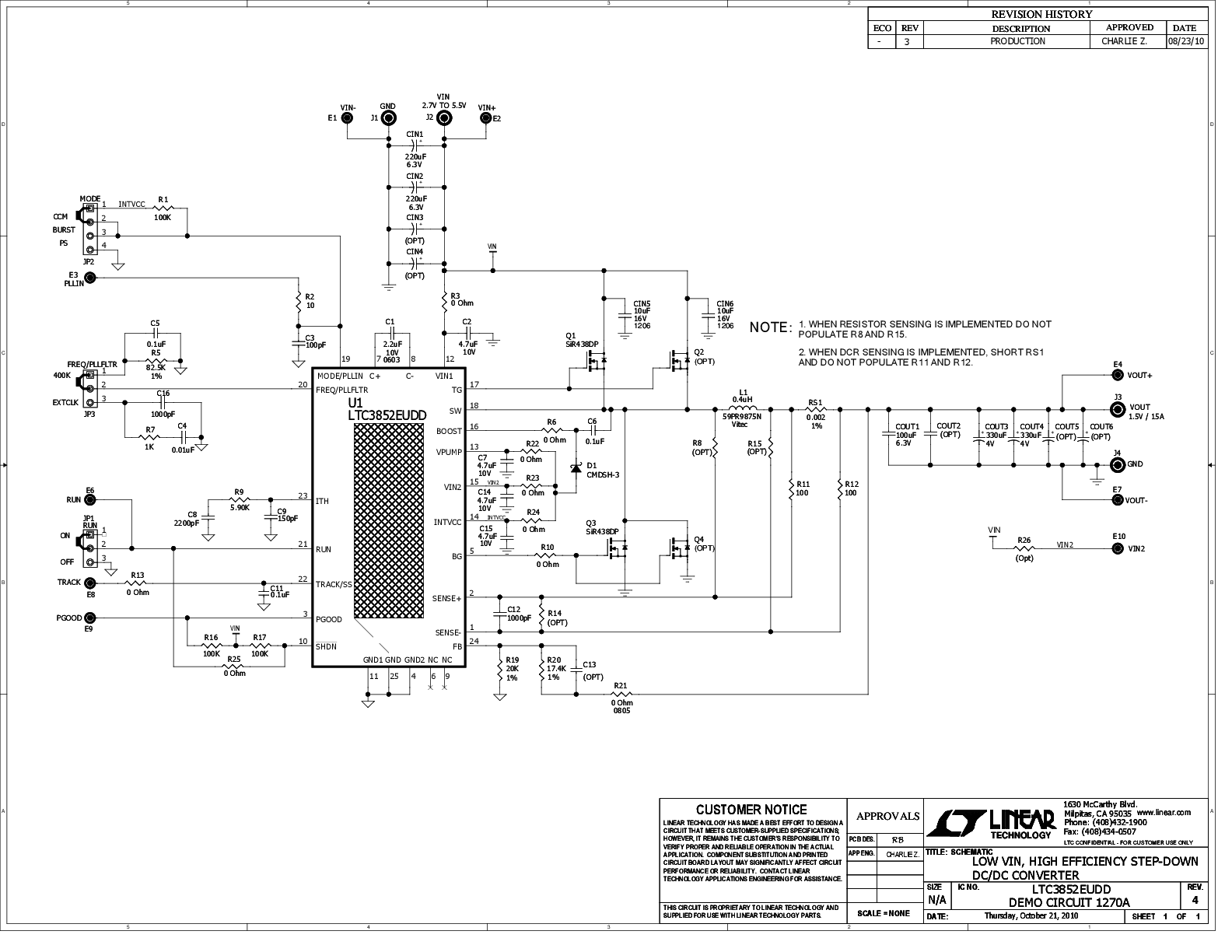

DC1270A - Schematic Download

90.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC1270A

LTC3852EUDD Demo Board | 2.7V ≤ VIN ≤ 5.5V, VOUT = 1.5V @ 15A

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTC3852 - Step-Down (Buck) Regulators Download

3.65 K

spice tool Lt Spice

LTC3852 Demo Circuit - Low Input Voltage, Synchronous Step-Down Controller (3.3V to 1.5V@15A) Download

5.00K
