LTC3831

High Power Synchronous Switching Regulator Controller for DDR Memory Termination

PRODUCTION

Figure 1. Typical DDR Memory Termination Application slide

Figure 1. Typical DDR Memory Termination Application

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $3.49

Features

High Power Switching Regulator Controller for DDR Memory Termination
V_OUT Tracks 1/2 of V_IN or External V_REF
No Current Sense Resistor Required
Low Input Supply Voltage Range: 3V to 8V
Maximum Duty Cycle >91% Over Temperature
Drives All N-Channel External MOSFETs

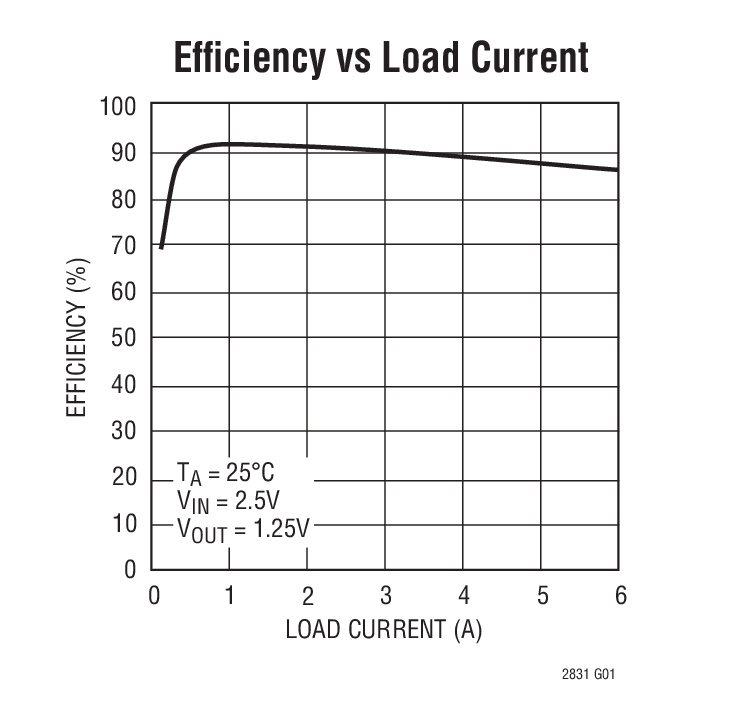

High Efficiency: Over 95% Possible
Programmable Fixed Frequency Operation:
- 100kHz to 500kHz
External Clock Synchronization Operation
Programmable Soft-Start
Low Shutdown Current: <10µA
Overtemperature Protection

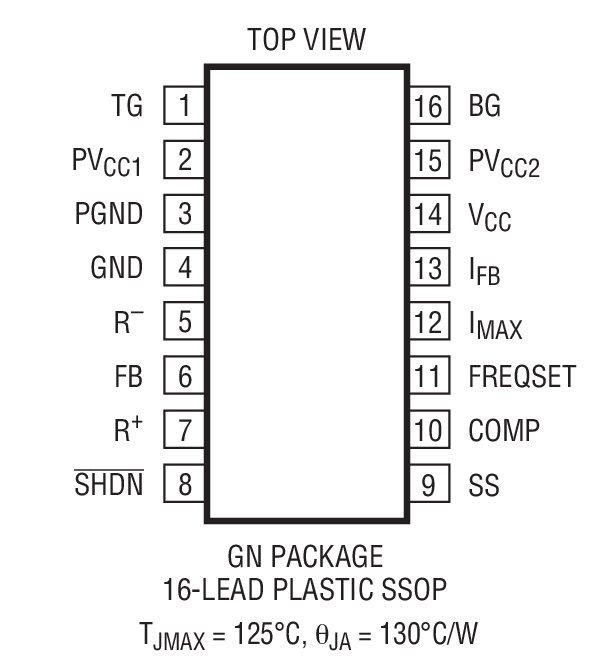

Available in 16-Pin Narrow SSOP Package

Additional Details

The LTC3831 is a high power, high efficiency switching regulator controller designed for DDR memory termination. The LTC3831 generates an output voltage equal to 1/2 of an external supply or reference voltage. The LTC3831 uses a synchronous switching architecture with N-channel MOSFETs. Additionally, the chip senses output current through the drain-source resistance of the upper N-channel FET, providing an adjustable current limit without a current sense resistor.

The LTC3831 operates with input supply voltage as low as 3V and with a maximum duty cycle of >91%. It includes a fixed frequency PWM oscillator for low output ripple operation. The 200kHz free-running clock frequency can be externally adjusted or synchronized with an external signal from 100kHz to above 500kHz. In shutdown mode, the LTC3831 supply current drops to <10µA.


	Feedback Voltage	Accuracy Over Temp
LTC3831	1.25V	1.5%
LTC3831-1	0.75V	1.6%

Applications

DDR SDRAM Termination
SSTL_2 Interface
SSTL_3 Interface
