Overview

Features and Benefits

  • Programmable Output Voltage Tracking
  • No Current Sense Resistor Required
  • Constant Frequency Current Mode Operation for Excellent Line and Load Transient Response
  • Wide VIN Range: 2.75V to 9.8V
  • Wide VOUT Range: 0.6V to VIN
  • 0.6V ±1.5% Reference
  • Low Dropout Operation: 100% Duty Cycle
  • Selectable Burst Mode®/Pulse-Skipping/Forced Continuous Operation
  • Auxiliary Winding Regulation
  • Internal Soft-Start Circuitry
  • Selectable Maximum Peak Current Sense Threshold
  • Output Overvoltage Protection
  • Micropower Shutdown: IQ = 9µA
  • Tiny Thermally Enhanced Leadless (3mm × 3mm) DFN or 10-lead MSOP Packages

Product Details

The LTC3809-1 is a synchronous step-down switching regulator controller that drives external complementary power MOSFETs using few external components. The constant frequency current mode architecture with MOSFET VDS sensing eliminates the need for a current sense resistor and improves efficiency.

Optional Burst Mode operation provides high efficiency operation at light loads. 100% duty cycle provides low dropout operation, extending operating time in battery-powered systems. Burst Mode is inhibited when the MODE pin is pulled low to reduce noise and RF interference.

The LTC3809-1 allows either coincident or ratiometric output voltage tracking. Switching frequency is fixed at 550kHz. Fault protection is provided by an overvoltage comparator and a short-circuit current limit comparator.

The LTC3809-1 is available in tiny footprint thermally enhanced DFN and 10-lead MSOP packages.

Features Package
LTC3809 PLL, Selectable Spread Spectrum, Power Good 3x3 DFN-10, MS-10E
LTC3809-1 Tracking 3x3 DFN-10, MS-10E
LTC3808 PLL, Selectable Spread Spectrum, Tracking, Power Good 4x3 DFN-14, SSOP-16

Applications

  • 1- or 2-Cell Lithium-Ion Powered Devices
  • Notebook and Palmtop Computers, PDAs
  • Portable Instruments
  • Distributed DC Power Systems

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (1)

Documentation & Resources

  • View All (5)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Design Notes (1)
  • Press Releases (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

    LTspice

    LTspice Simulations

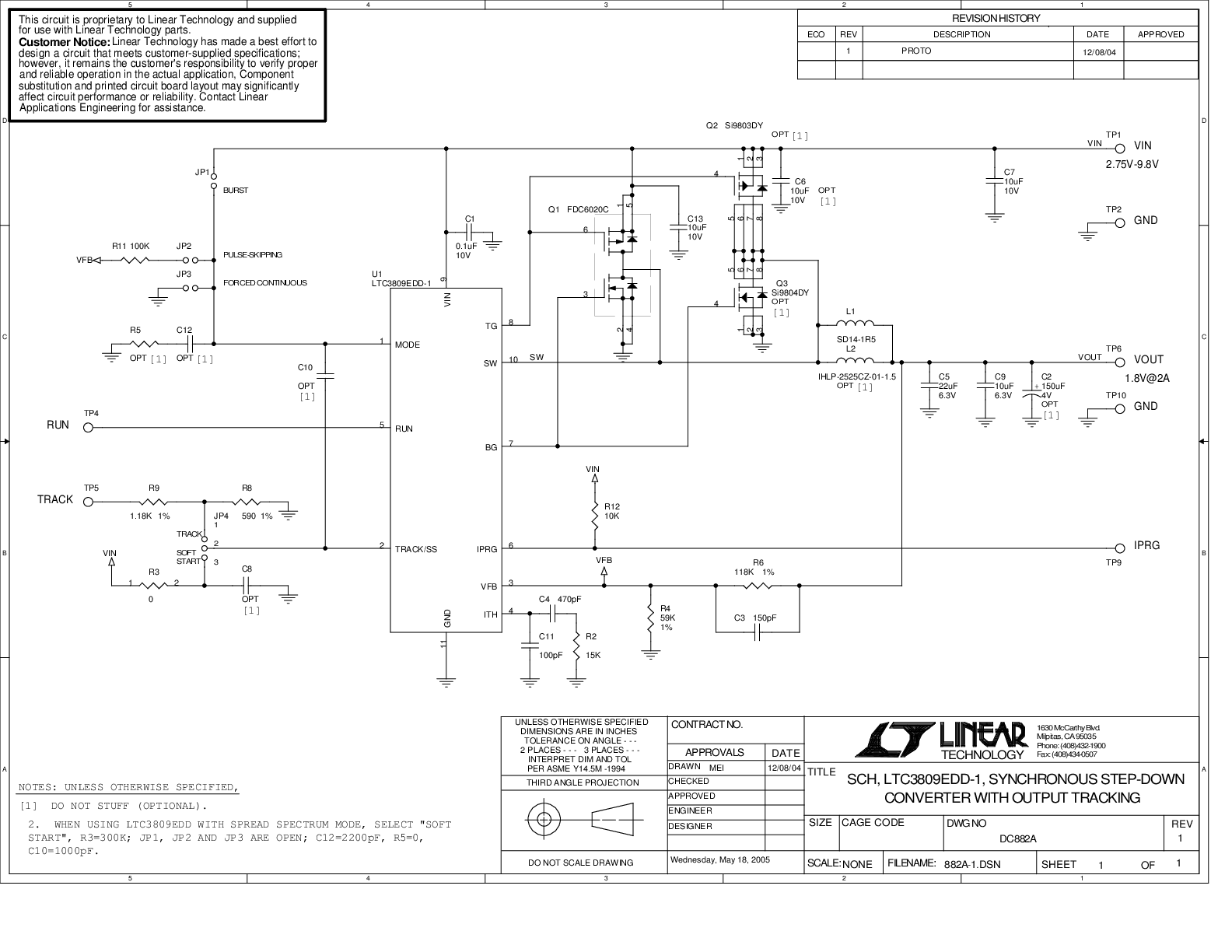

    LTC3809-1 Demo Circuit - No Rsense, Low Input Voltage, Synchronous Controller with Output Tracking (3.3V to 1.8V @ 3A)
