DC882A

LTC3809EDD-1 | Synchronous Step-Down Converter

Top

Overview

Product Details

Product Details

DC882A: Demo Board for the LTC3809-1 No R_SENSE, Low Input Voltage, Synchronous DC/DC Controller with Output Tracking.

Applicable Parts

LTC3809-1

Documentation & Resources

Demo Board Schematic

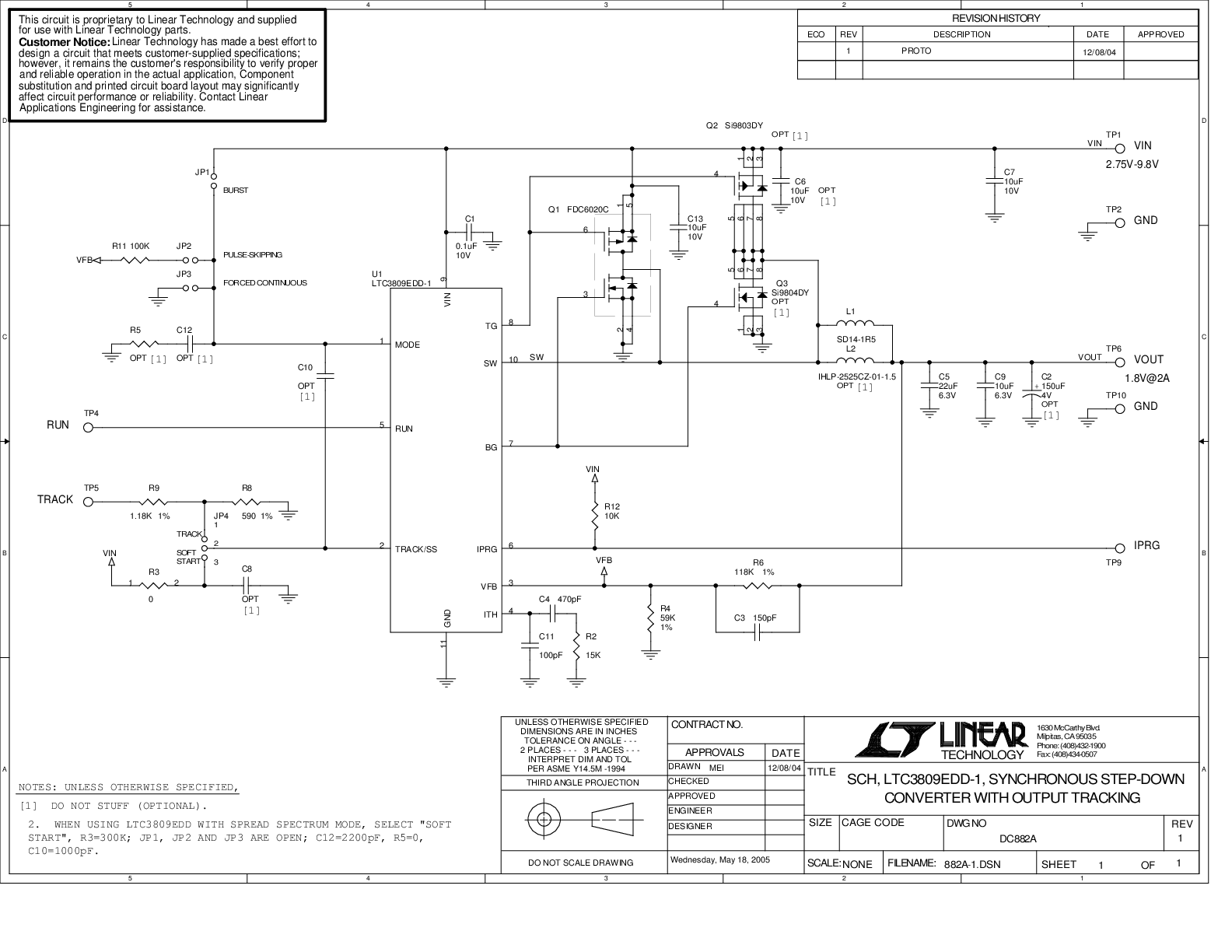

DC882A - Schematic
9/24/2009

PDF

32K

User Guide

DC882A - Demo Manual
9/24/2009

PDF

198K

Evaluation Design File

DC882A - Design File
9/24/2009

ZIP

707K

Software

LTspice

LTC3809-1 Demo Circuit - No Rsense, Low Input Voltage, Synchronous Controller with Output Tracking (3.3V to 1.8V @ 3A)
