LTC3808
PRODUCTIONNo RSENSE™, Low EMI, Synchronous DC/DC Controller with Output Tracking
- Part Models
- 4
- 1ku List Price
- Starting From $3.98
Overview
- Programmable Output Voltage Tracking
- Sense Resistor Optional
- Spread Spectrum Modulation for Low Noise
- Constant Frequency Current Mode Operation for Excellent Line and Load Transient Response
- Wide VIN Range: 2.75V to 9.8V
- Wide VOUT Range: 0.6V to VIN
- 0.6V ±1.5% Reference
- Low Dropout Operation: 100% Duty Cycle
- True PLL for Frequency Locking or Adjustment (Frequency Range: 250kHz to 750kHz)
- Selectable Burst Mode®/Pulse Skipping/Forced Continuous Operation
- Auxiliary Winding Regulation
- Internal Soft-Start Circuitry
- Power Good Output Voltage Monitor
- Output Overvoltage Protection
- Micropower Shutdown: IQ = 9µA

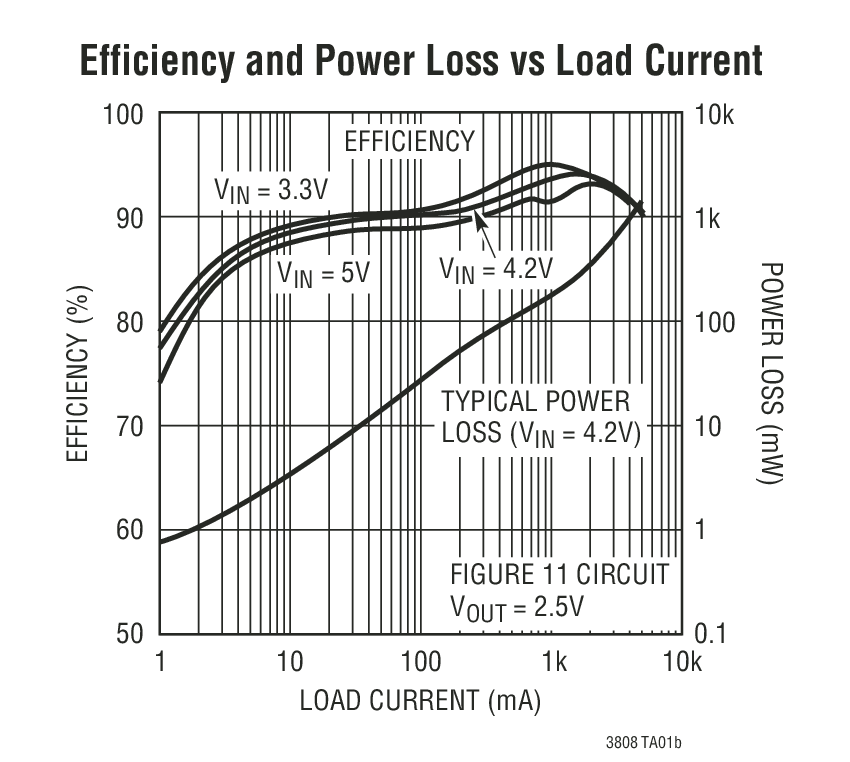

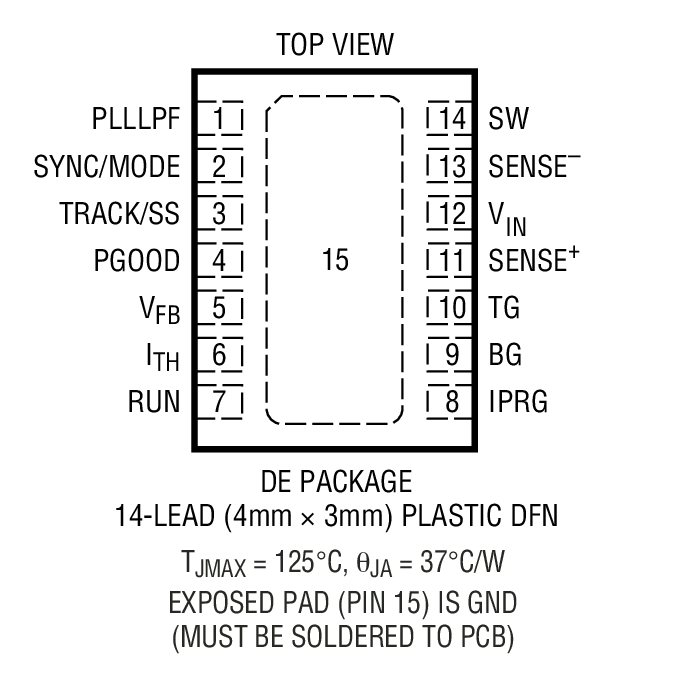

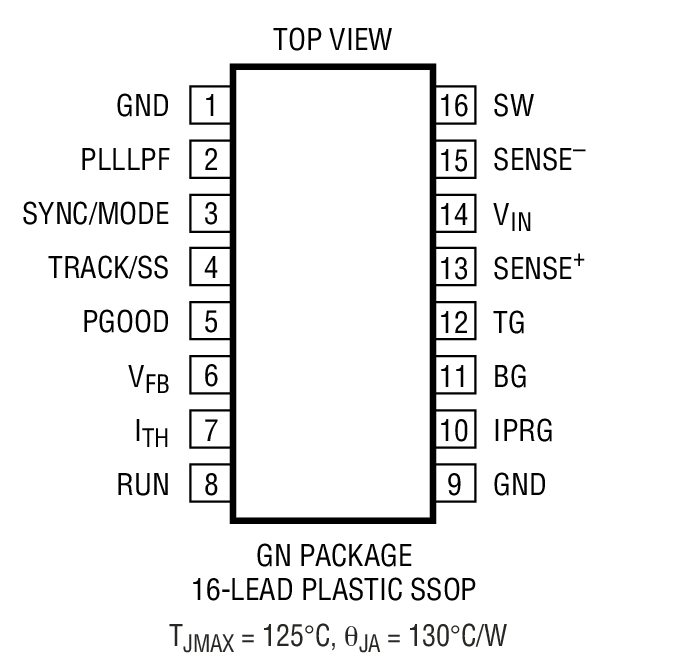

- Tiny Thermally Enhanced Leadless (4mm × 3mm) DFN or 16-lead SSOP Package

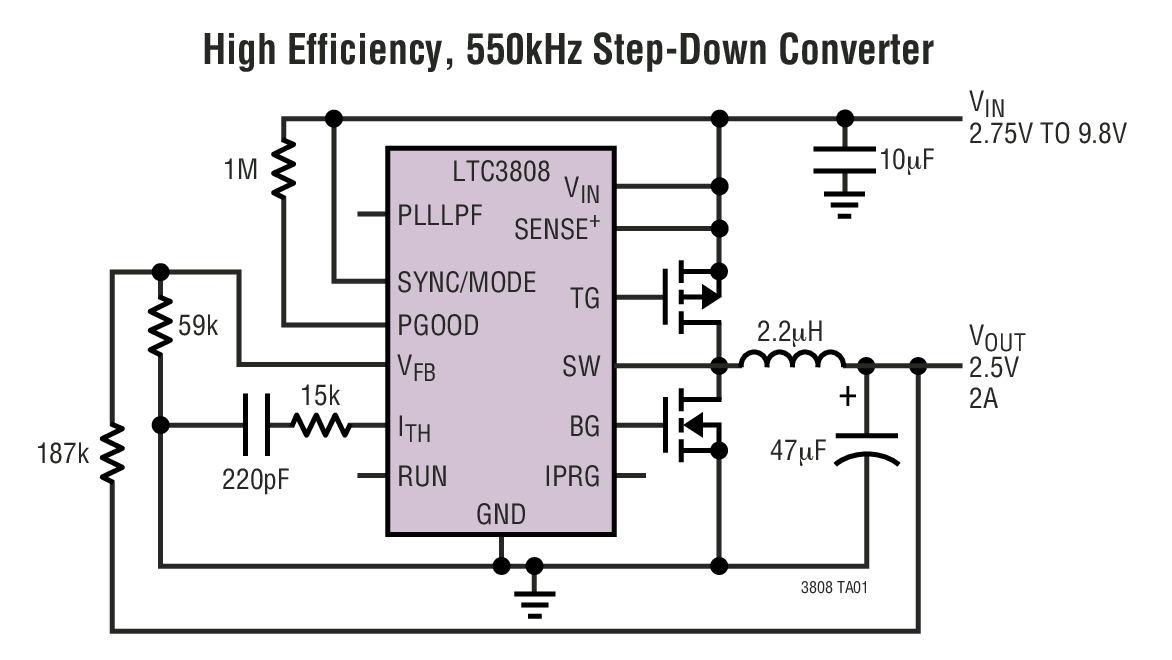

The LTC3808 is a synchronous step-down switching regulator controller that drives external complementary power MOSFETs using few external components. The constant frequency current mode architecture with MOSFET VDS sensing eliminates the need for a current sense resistor and improves efficiency.
Burst Mode operation provides high efficiency operation at light loads. 100% duty cycle provides low dropout operation, extending operating time in battery-powered systems.
The switching frequency can be programmed up to 750kHz, allowing the use of small surface mount inductors and capacitors. For noise sensitive applications, the LTC3808 can be externally synchronized from 250kHz to 750kHz. Burst Mode is inhibited during synchronization or when the SYNC/MODE pin is pulled low to reduce noise and RF interference. To further reduce EMI, the LTC3808 incorporates a novel spread spectrum frequency modulation technique.
The LTC3808 is available in the tiny footprint thermally enhanced DFN package or 16-lead SSOP package.
Protected by U.S. Patents including 5481178, 5929620, 6580258, 6304066, 5847554, 6611131, 6498466. Other Patents pending.
| Features | Package | |
| LTC3809 | PLL, Selectable Spread Spectrum, Power Good | 3x3 DFN-10, MS-10E |
| LTC3809-1 | Tracking | 3x3 DFN-10, MS-10E |
| LTC3808 | PLL, Selectable Spread Spectrum, Tracking Power Good | 4x3 DFN-14, SSOP-16 |
Applications
- One or Two Cell Lithium-Ion Powered Devices
- Notebook and Palmtop Computers, PDAs
- Portable Instruments
- Distributed DC Power Systems
Documentation
Data Sheet 1
User Guide 1
Design Note 1
Technical Articles 1
Press Release 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC3808EDE#PBF | 14-Lead DFN (4mm x 3mm w/ EP) | ||
| LTC3808EDE#TRPBF | 14-Lead DFN (4mm x 3mm w/ EP) | ||
| LTC3808EGN#PBF | 16-Lead SSOP (Narrow 0.15 Inch) | ||
| LTC3808EGN#TRPBF | 16-Lead SSOP (Narrow 0.15 Inch) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Jan 20, 2022 - 21_0269 Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products |
||
| LTC3808EDE#PBF | PRODUCTION | |
| LTC3808EDE#TRPBF | PRODUCTION | |
|
Oct 3, 2024 - 24_0235 (QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking |
||
| LTC3808EGN#PBF | PRODUCTION | |
| LTC3808EGN#TRPBF | PRODUCTION | |
|
Oct 11, 2022 - 22_0235 Epoxy Change from Henkel 8290 to 8290A for GN Package |
||
| LTC3808EGN#PBF | PRODUCTION | |
| LTC3808EGN#TRPBF | PRODUCTION | |
|
Apr 6, 2022 - 22_0066 Laser Top Mark for 16QSOP Assembled in ADPG [PNG] |
||
| LTC3808EGN#PBF | PRODUCTION | |
| LTC3808EGN#TRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Oscillators 2 | ||
| LTC6908 | Resistor Set SOT-23 Oscillator with Spread Spectrum Modulation | |
| LTC6909 | PRODUCTION | 1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation |
| Power System Management (PSM) & Sequencers 1 | ||
| LTC2974 | RECOMMENDED FOR NEW DESIGNS | 4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement |
| Switching Regulators & Controllers 1 | ||
| LTC3880 | RECOMMENDED FOR NEW DESIGNS | Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management |
Tools & Simulations
LTspice
Models for the following parts are available in LTspice:
- LTC3808
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Evaluation Kits
LTC3808EDE Demo Board | Tracking, Spread Spectrum, Prog Peak Current, VIN = 2.7V to 8V, VOUT = 1.8V @ 5A/3.5A/2.5A
