LTC3783
LTC3783
PRODUCTIONPWM LED Driver and Boost, Flyback and SEPIC Controller
- Part Models
- 8
- 1ku List Price
- Starting From $4.33
Viewing:
Overview
- True Color PWM™ Delivers Constant Color with 3000:1 Dimming Ratio
- Fully Integrated Load FET Driver for PWM Dimming Control of High Power LEDs
- 100:1 Dimming from Analog Inputs
- Wide FB Voltage Range: 0V to 1.23V
- Constant Current or Constant Voltage Regulation
- Low Shutdown Current: IQ = 20μA
- 1% 1.23V Internal Voltage Reference
- 2% RUN Pin Threshold with 100mV Hysteresis
- Programmable Operating Frequency (20kHz to 1MHz) with One External Resistor
- Synchronizable to an External Clock Up to 1.3fOSC
- Internal 7V Low Dropout Voltage Regulator
- Programmable Output Overvoltage Protection
- Programmable Soft-Start
- Can be Used in a No RSENSE™ Mode for VDS < 36V
- 16-Lead DFN and TSSOP Packages

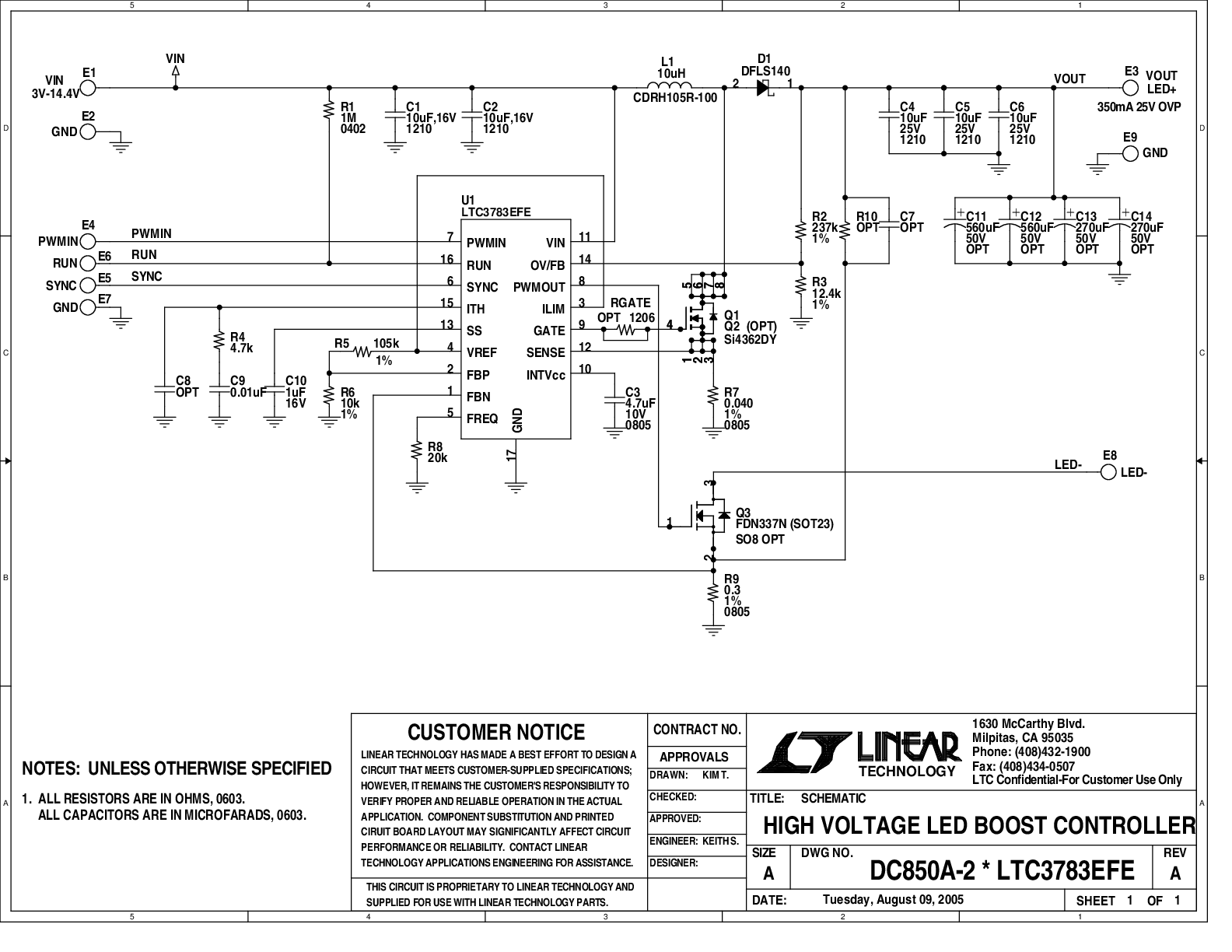

The LTC3783 is a current mode LED driver and boost, flyback and SEPIC controller that drives both an N-channel power MOSFET and an N-channel load PWM switch. When using an external load switch, the PWMIN input not only drives PWMOUT, but also enables controller GATE switching and error amplifier operation, allowing the controller to store load current information while PWMIN is low. This feature (patent pending) provides extremely fast, true PWM load switching with no transient overvoltage or undervoltage issues; LED dimming ratios of 3000:1 can be achieved digitally, avoiding the color shift normally associated with LED current dimming. The FBP pin allows analog dimming of load current, further increasing the effective dimming ratio by 100:1 over PWM alone.
In applications where output load current must be returned to VIN, optional constant current/constant voltage regulation controls either output (or input) current or output voltage and provides a limit for the other. ILIM provides a 10:1 analog dimming ratio.
For low- to medium-power applications, No RSENSE mode can utilize the power MOSFET’s on-resistance to eliminate the current-sense resistor, thereby maximizing efficiency.
The IC’s operating frequency can be set with an external resistor over a 20kHz to 1MHz range and can be synchronized to an external clock using the SYNC pin.
The LTC3783 is available in the 16-lead DFN and TSSOP packages.
Applications
- High Voltage LED Arrays
- Telecom Power Supplies
- 42V Automotive Systems
- 24V Industrial Controls
- IP Phone Power Supplies
Documentation
Data Sheet 1
User Guide 1
Design Note 1
Technical Articles 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC3783EDHD#PBF | 16-Lead DFN (5mm x 4mm w/ EP) | ||
| LTC3783EDHD#TRPBF | 16-Lead DFN (5mm x 4mm w/ EP) | ||
| LTC3783EFE#PBF | 16-Lead TSSOP w/ EP | ||
| LTC3783EFE#TRPBF | 16-Lead TSSOP w/ EP | ||
| LTC3783IDHD#PBF | 16-Lead DFN (5mm x 4mm w/ EP) | ||
| LTC3783IDHD#TRPBF | 16-Lead DFN (5mm x 4mm w/ EP) | ||
| LTC3783IFE#PBF | 16-Lead TSSOP w/ EP | ||
| LTC3783IFE#TRPBF | 16-Lead TSSOP w/ EP |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Feb 14, 2025 - 25_0016 Bond Wire Change from Gold to Copper Wire (Notification Only) |
||
| LTC3783EDHD#PBF | PRODUCTION | |
| LTC3783EDHD#TRPBF | PRODUCTION | |
| LTC3783IDHD#PBF | PRODUCTION | |
| LTC3783IDHD#TRPBF | PRODUCTION | |
|
Apr 9, 2025 - 25_0016 Bond Wire Change from Gold to Copper Wire (Notification Only) |
||
| LTC3783EFE#PBF | PRODUCTION | |
| LTC3783EFE#TRPBF | PRODUCTION | |
| LTC3783IFE#PBF | PRODUCTION | |
| LTC3783IFE#TRPBF | PRODUCTION | |
|
Apr 6, 2022 - 22_0068 Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL |
||
| LTC3783EFE#PBF | PRODUCTION | |
| LTC3783EFE#TRPBF | PRODUCTION | |
| LTC3783IFE#PBF | PRODUCTION | |
| LTC3783IFE#TRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Digital to Analog Converters (DACs) 1 | ||
| LTC2657 | PRODUCTION | Octal I2C 16-/12-Bit Rail-to-Rail DACs with 10ppm/°C Max Reference |
| Hot Swap Controllers 1 | ||
| LT4363 | RECOMMENDED FOR NEW DESIGNS | High Voltage Surge Stopper with Current Limit |
| Oscillators 1 | ||
| LTC6909 | PRODUCTION | 1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation |
| Temperature Sensors 1 | ||
| LTC2991 | RECOMMENDED FOR NEW DESIGNS | Octal I2C Voltage, Current, and Temperature Monitor |
Tools & Simulations
LTspice 1
Models for the following parts are available in LTspice:
- LTC3783
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
