Overview

Features and Benefits

  • Very Low VIN(MIN): 1.5V
  • True Current Mode Control
  • 5V Drive for N-Channel MOSFETs Eliminates Auxillary 5V Supply
  • No Sense Resistor Required
  • Uses Standard 5V Logic-Level N-Channel MOSFETs
  • Adjustable Current Limit
  • Adjustable Frequency
  • Switch tON(MIN) < 100ns
  • 2% to 90% Duty Cycle at 200kHz
  • 0.8V ±1% Reference
  • Power Good Output Voltage Monitor
  • Programmable Soft-Start
  • Output Overvoltage Protection
  • Optional Short-Circuit Shutdown Timer
  • Small 24-Lead SSOP Package

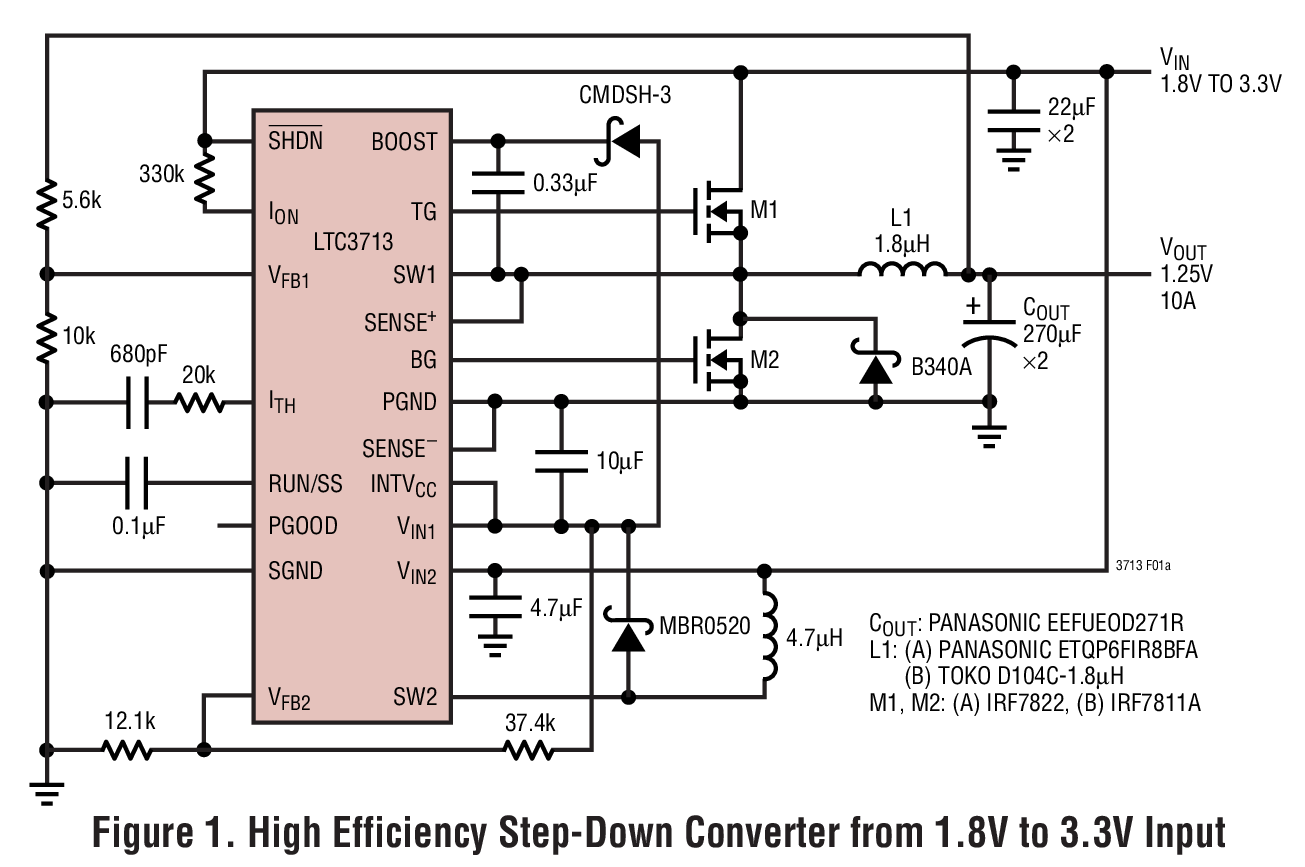

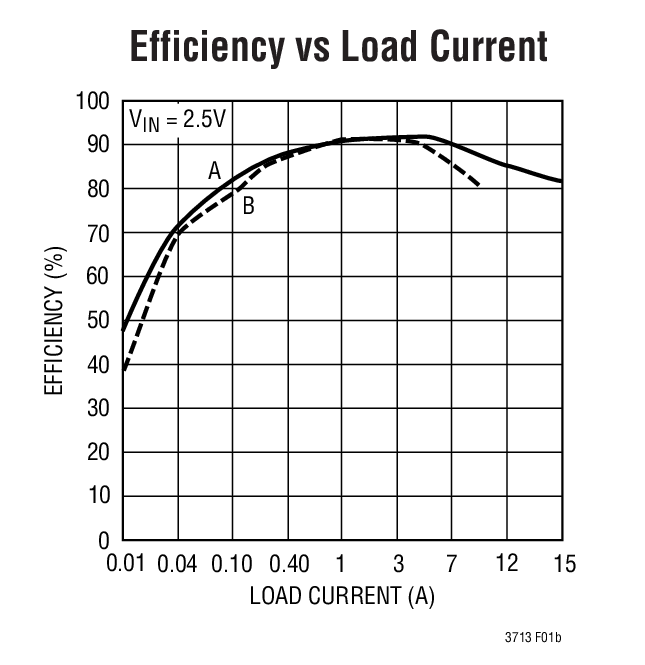

Product Details

The LTC3713 is a high current, high efficiency synchronous buck switching regulator controller optimized for use with very low input supply voltages. It operates from inputs as low as 1.5V and provides a regulated output voltage from 0.8V up to (0.9)VIN. The controller uses a valley current control architecture to enable high operating frequencies without requiring a sense resistor.Operating frequency is selected by an external resistor and is compensated for variations in VIN and VOUT. The LTC3713 uses a pair of standard 5V logic-level N-channel external MOSFETs, eliminating the need for expensive P-channel or low threshold devices.

Discontinuous mode operation provides high efficiency operation at light loads. A forced continuous control pin reduces noise and RF interference, and can assist secondary winding regulation by disabling discontinuous operation when the main output is lightly loaded. Fault protection is provided by internal foldback current limiting,an output overvoltage comparator and an optional short-circuit shutdown timer.

Applications

  • Telecom Card 3.3V, 2.5V, 1.8V Step-Down
  • Bus Termination (DDR memory, SSTL)
  • Synchronous Buck with General Purpose Boost
  • Low VIN Synchronous Boost

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (1)

Documentation & Resources

  • View All (4)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Technical Articles (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LTC3713

    Product Recommendations

    LTC3713 Companion Parts

    Recommended Related Parts

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

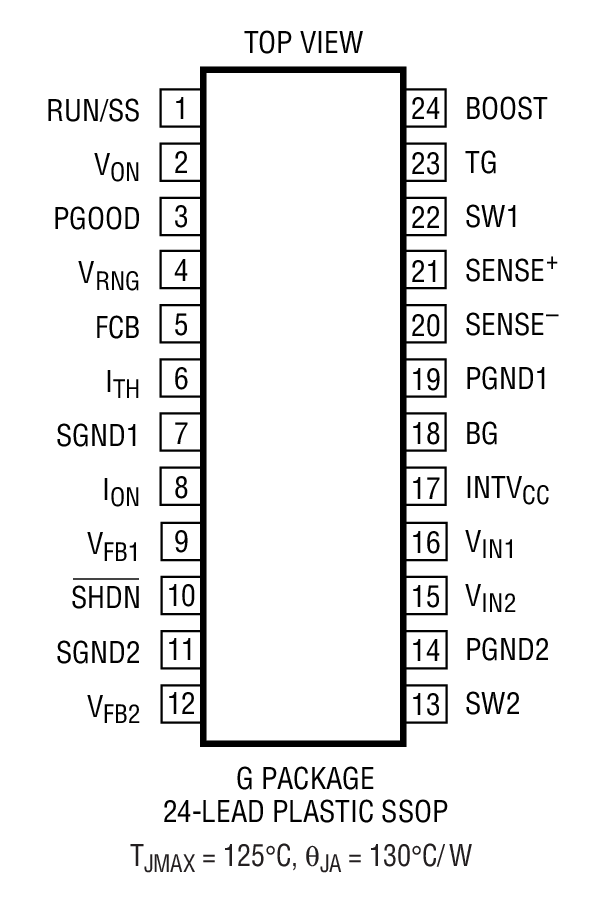

    LTC3713EG#PBF Material Declaration Reliability Data 24-Lead SSOP
