LTC3576
LTC3576-1

Switching Power Manager with USB On-the-Go + Triple Step-Down DC/DCs

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $6.29
Features
  • Bidirectional Switching Regulator with Bat-Track™ Adaptive Output Control Provides Efficient Charging and a 5V Output for USB On-The-Go
  • Bat-Track Control of External High Voltage Step-Down Switching Regulator
  • Overvoltage Protection Guards Against Damage
  • Instant-On Operation with Discharged Battery
  • Triple Step-Down Switching Regulators with I2C Adjustable Outputs (1A/400mA/400mA IOUT)
  • 180mΩ Internal Ideal Diode + External Ideal Diode Controller Powers the Load in Battery Mode
  • Li-Ion/Polymer Battery Charger (1.5A Max ICHG)
  • Battery Float Voltage: 4.2V (LTC3576), 4.1V (LTC3576-1)

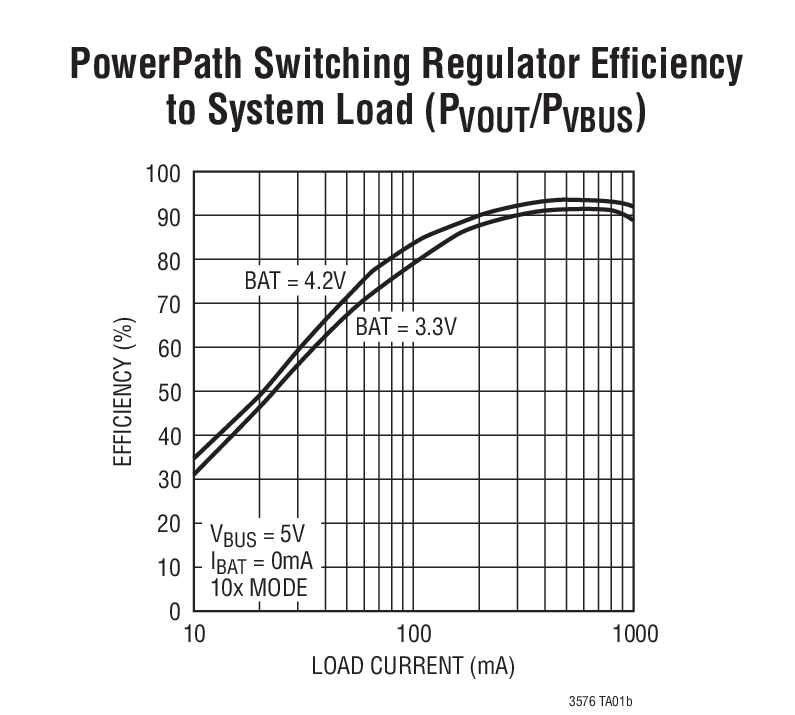

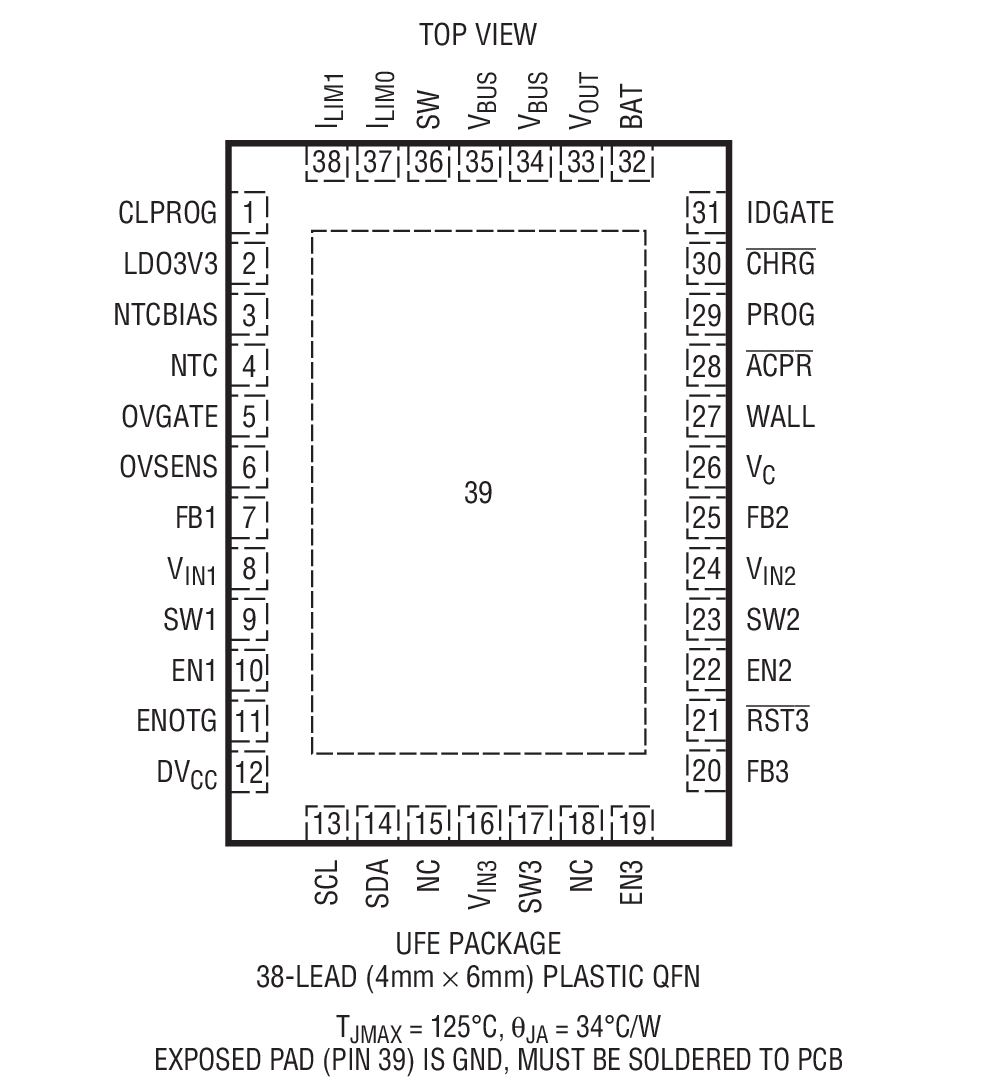

  • Compact (4mm × 6mm × 0.75mm) 38-pin QFN Package
Additional Details
show more Icon

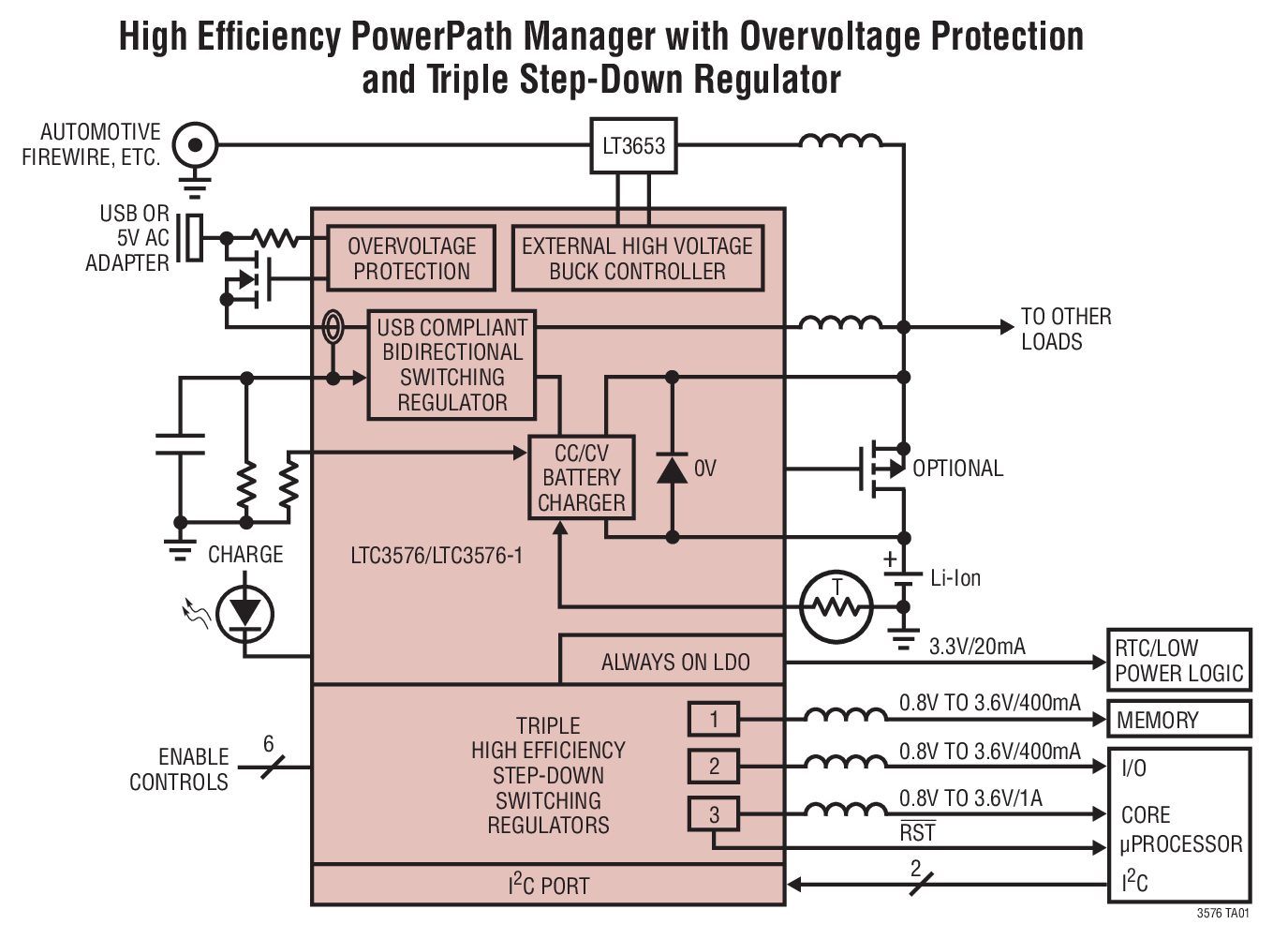

The LTC3576/LTC3576-1 are highly integrated power management and battery charger ICs for Li-Ion/Polymer battery applications. They each include a high efficiency, bidirectional switching PowerPath™ manager with automatic load prioritization, a battery charger, an ideal diode, a controller for an external high voltage switching regulator and three general purpose step-down switching regulators with I2C adjustable output voltages. The internal switching regulators automatically limit input current for USB compatibility and can also generate 5V at 500mA for USB on-the-go applications when powered from the battery. Both the USB and external switching regulator power paths feature Bat-Track optimized charging to provide maximum power to the application from supplies as high as 38V. An overvoltage circuit protects the LTC3576/LTC3576-1 from damage due to high voltage on the VBUS or WALL pins with just two external components. The LTC3576/LTC3576-1 are available in a low profile 38-pin (4mm × 6mm × 0.75mm) QFN package.

Applications

  • HDD-Based Media Players
  • GPS, PDAs, Digital Cameras, Smart Phones
  • Automotive Compatible Portable Electronics
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $6.29
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3576
LTC3576-1

Documentation

7
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 08/05/2009
English

LTC3576: Switching Power Manager with USB On-the-Go + Triple Step-Down DC/DCs Data Sheet

Open PDF File

redirect
588.00K
download

Download PDF

PDF Vector

PDF

UPDATED 11/19/2009
Japanese

LTC3576: USB On-The-Go付きスイッチング･パワーマネージャとトリプル降圧DC/DC データシート

Open PDF File

redirect
6.00M
download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 11/13/2009
English
DC1577A - Demo Manual redirect icon

1.00M

download

Download PDF

PDF Vector

PDF

UPDATED 09/24/2009
English
DC1334A - Demo Manual redirect icon

437.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R415 Reliability Data redirect icon

25.65 K

download

Download PDF

Technical Articles

2

PDF Vector

HTML

UPDATED 06/01/2009
English
Power Management IC Combines USB On-The-Go and USB Charging in Compact Easy-to-Use Solution redirect icon

PDF Vector

HTML

UPDATED 03/01/2009
English
1.2A Monolithic Buck Regulator Shrinks Supply Size and Cost with Programmable Output Current Limit redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 6
show more Icon

Data Sheet 1

LTC3576: Switching Power Manager with USB On-the-Go + Triple Step-Down DC/DCs Data Sheet

Reliability Data 1

R415 Reliability Data

User Guide 2

DC1577A - Demo Manual
DC1334A - Demo Manual

Technical Articles 2

Power Management IC Combines USB On-The-Go and USB Charging in Compact Easy-to-Use Solution
1.2A Monolithic Buck Regulator Shrinks Supply Size and Cost with Programmable Output Current Limit

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3576EUFE#PBF 38-Lead QFN (4mm x 6mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3576EUFE#TRPBF 38-Lead QFN (4mm x 6mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3576EUFE-1#PBF 38-Lead QFN (4mm x 6mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3576EUFE-1#TRPBF 38-Lead QFN (4mm x 6mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Parts Product Life Cycle Description

Battery Fuel Gauge and Coulomb Counter1
LTC2942
popup image
Cart

NOT RECOMMENDED FOR NEW DESIGNS

Battery Gas Gauge with Temperature, Voltage Measurement

Digital Temperature Sensors1
LTC2991
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Octal I2C Voltage, Current, and Temperature Monitor

Low Voltage Hot Swap Controllers1
LTC4361-1
LTC4361-2
popup image
Cart

Overvoltage/Overcurrent Protection Controller

Pushbutton Controllers1
LTC2955
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Pushbutton On/Off Controller with Automatic Turn-On

Evaluation Kits 2

reference details image

DC1577A

LTC3576EUFE-1 Demo Board | Switching Power Manager with USB On-the-Go, Triple Step-Down DC/DC (1A, 0.4A, 0.4A)

zoom

DC1577A

LTC3576EUFE-1 Demo Board | Switching Power Manager with USB On-the-Go, Triple Step-Down DC/DC (1A, 0.4A, 0.4A)

download icon

Download

 print icon

Print
DC1577A
LTC3576EUFE-1 Demo Board | Switching Power Manager with USB On-the-Go, Triple Step-Down DC/DC (1A, 0.4A, 0.4A)
Buy Now View Details

Product Detail

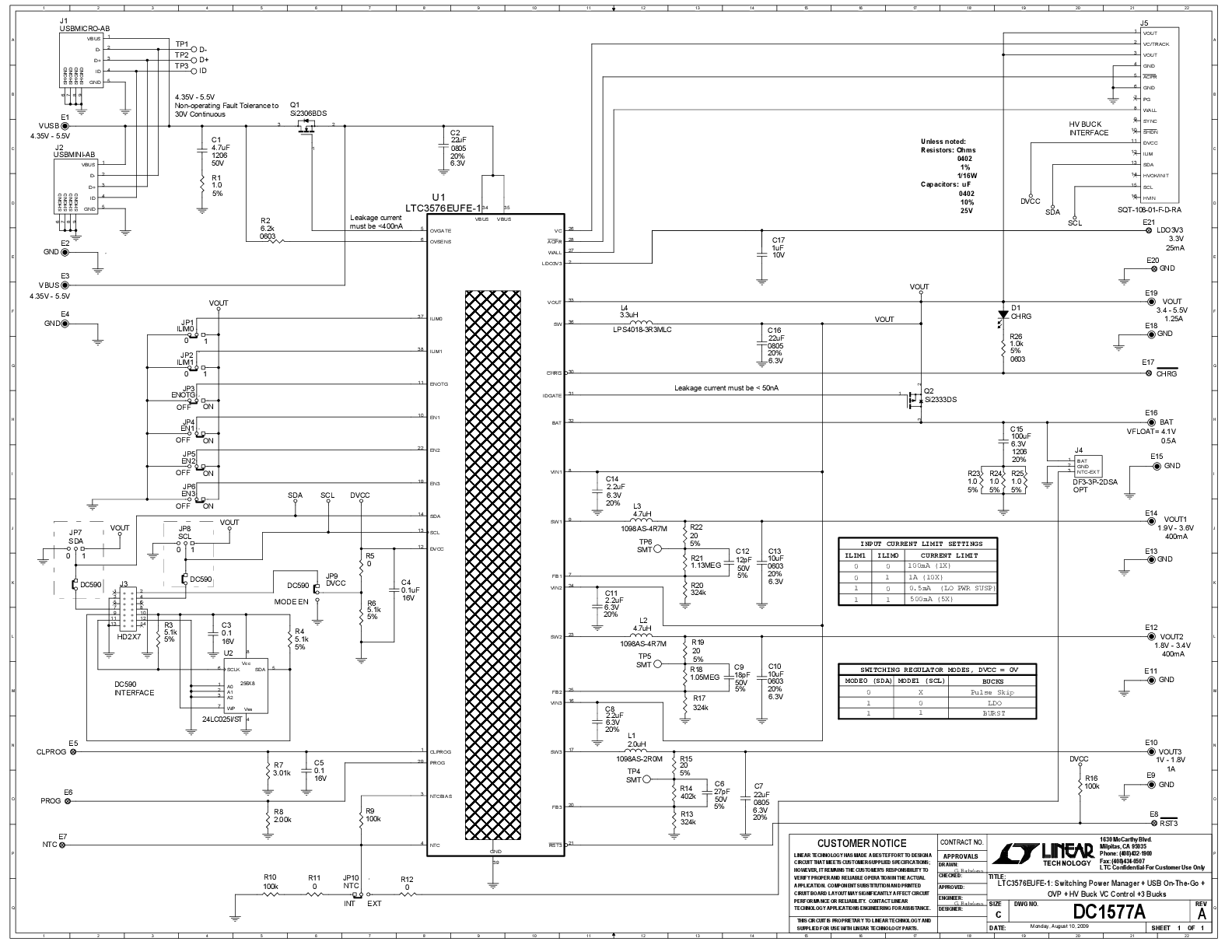

Demonstration Circuit DC1577A is a switching power manager that features a high-efficiency bidirectional PowerPath switching regulator for USB On-the-Go, a controller for an external high voltage step-down switching regulator, a 1A battery charger (4.1V VFLOAT), an ideal diode, an always-on LDO, an overvoltage protection circuit and three general purpose synchronous step-down switching regulators. The three DC/DC converters provide 1.9V to 3.6V @ 400mA, 1.8V to 3.4V @ 400mA and 1V to 1.8V @ 1A.


The DC1577A Demo Circuit can be controlled from a software GUI. Most of the features of the LTC3576EUFE-1 are only accessible via its I2C port.

Resources

pdf icon

PDF

DC1577A - Schematic Download

140.00K

pdf icon

ZIP

DC1577A - Design Files Download

1.00M

pdf icon

PDF

DC1577A - Demo Manual Download

1.00M

Show More Arrow image
reference details image

DC1334A

LTC3576EUFE Demo Board | Switching Power Manager with USB On-the-Go, Triple Step-Down DC/DC (1A, 0.4A, 0.4A)

zoom

DC1334A

LTC3576EUFE Demo Board | Switching Power Manager with USB On-the-Go, Triple Step-Down DC/DC (1A, 0.4A, 0.4A)

download icon

Download

 print icon

Print
DC1334A
LTC3576EUFE Demo Board | Switching Power Manager with USB On-the-Go, Triple Step-Down DC/DC (1A, 0.4A, 0.4A)
Buy Now View Details

Product Detail

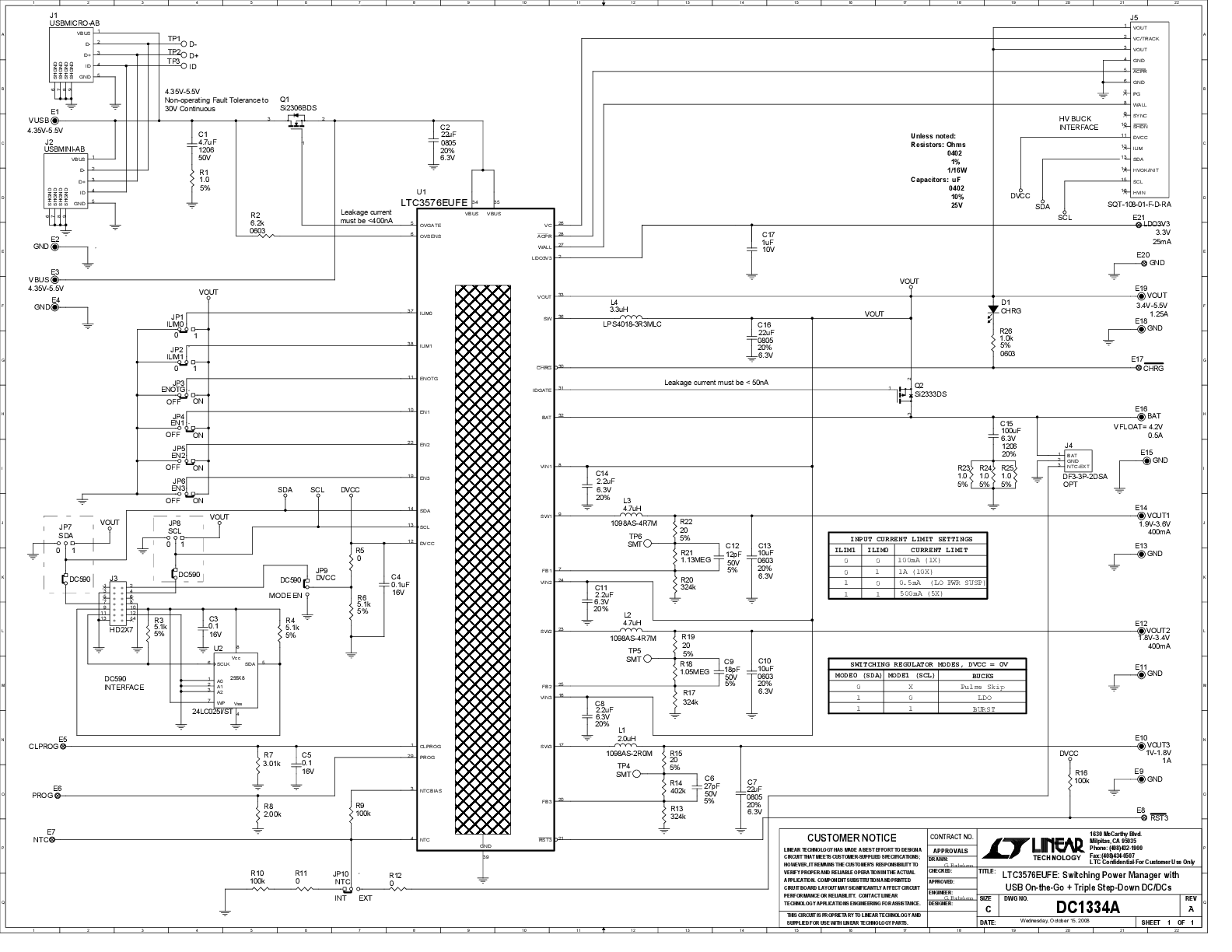

Demonstration Circuit DC1334A is a switching power manager that features a high-efficiency bidirectional PowerPath switching regulator for USB On-the-Go, a controller for an external high voltage step-down switching regulator, a 1A battery charger (4.2V VFLOAT), an ideal diode, an always-on LDO, an overvoltage protection circuit and three general purpose synchronous step-down switching regulators. The three DC/DC converters provide 1.9V to 3.6V @ 400mA, 1.8V to 3.4V @ 400mA and 1V to 1.8V @ 1A.


The DC1334A Demo Circuit can be controlled from a software GUI. Most of the features of the LTC3576EUFE are only accessible via its I2C port.



Resources

pdf icon

PDF

DC1334A - Schematic Download

140.00K

pdf icon

PDF

DC1334A - Demo Manual Download

437.00K

pdf icon

ZIP

DC1334A - Design File Download

1.00M

Show More Arrow image

Evaluation Kits2

evaluation kit item images

DC1577A

LTC3576EUFE-1 Demo Board | Switching Power Manager with USB On-the-Go, Triple Step-Down DC/DC (1A, 0.4A, 0.4A)
evaluation kit item images

DC1334A

LTC3576EUFE Demo Board | Switching Power Manager with USB On-the-Go, Triple Step-Down DC/DC (1A, 0.4A, 0.4A)
