Overview

Features and Benefits

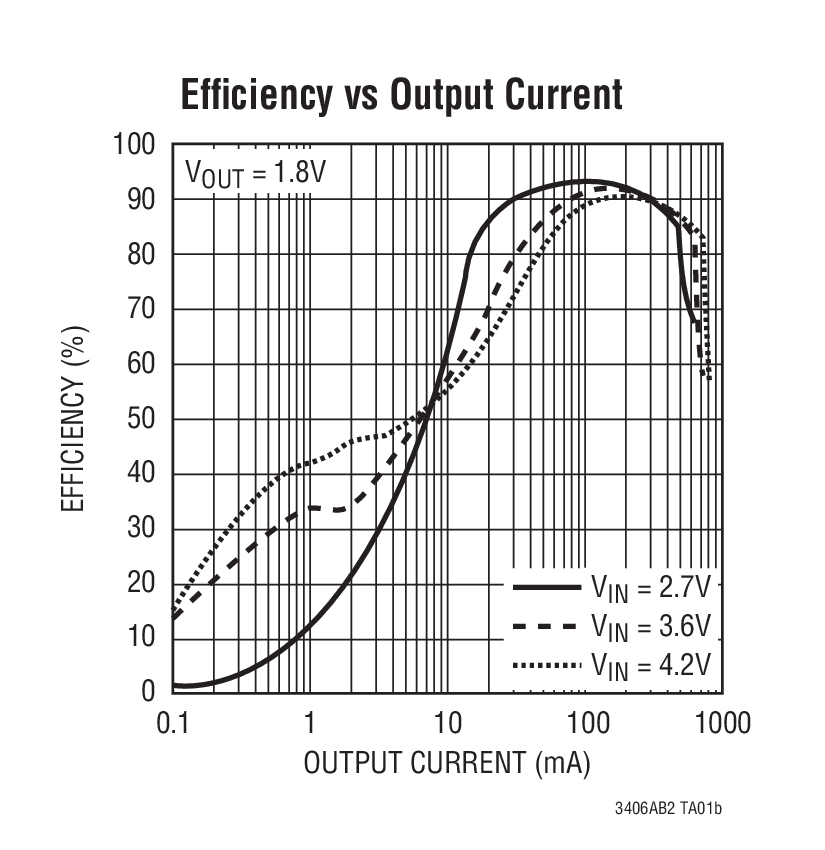

  • High Efficiency: Up to 96%
  • 600mA Output Current
  • 2.5V to 5.5V Input Voltage Range
  • 2.25MHz Constant Frequency Operation
  • No Schottky Diode Required
  • Low Dropout Operation: 100% Duty Cycle
  • ±2% Output Voltage Accuracy
  • Low Quiescent Current: 200µA
  • 0.6V Reference Allows Low Output Voltages
  • Shutdown Mode Draws <1µA Supply Current
  • Internal Soft-Start Limits Inrush Current
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Overtemperature Protected
  • Low Profile (1mm) ThinSOT Package

Product Details

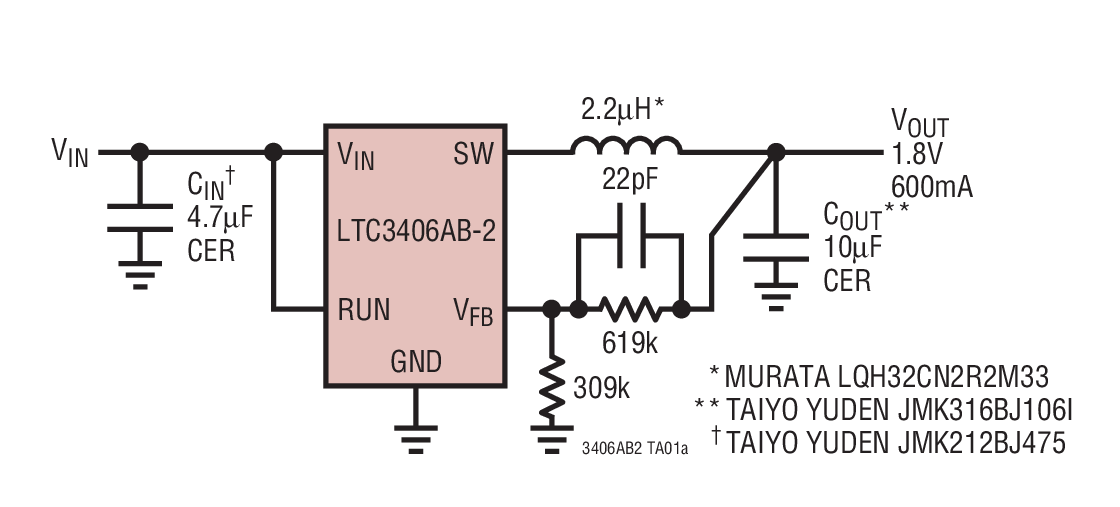

The LTC3406AB-2 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current with no load is 200µA and drops to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3406AB-2 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM pulse skipping mode operation provides very low output ripple voltage for noise sensitive applications.

Switching frequency is internally set at 2.25MHz, allowing the use of small surface mount inductors and capacitors. The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.6V feedback reference voltage. The LTC3406AB-2 is available in a low profile (1mm) ThinSOT package. Refer to LTC3406A for applications that require Burst Mode® operation.


VOUT FSW Features
LTC3406 Adj. 1.5MHz Burst Mode
LTC3406-1.2 1.2V 1.5MHz Burst Mode
LTC3406-1.5 1.5V 1.5MHz Burst Mode
LTC3406-1.8 1.8V 1.5MHz Burst Mode
LTC3406B Adj. 1.5MHz Burst Mode Disabled
LTC3406B-1.2 1.2V 1.5MHz Burst Mode Disabled
LTC3406B-2 Adj. 2.25MHz Burst Mode Disabled
LTC3406A Adj. 1.5MHz Low Ripple Burst Mode
LTC3406AB Adj. 1.5MHz Burst Mode Disabled
LTC3406AB-2 Adj. 2.25MHz Burst Mode Disabled

Applications

  • Cellular Telephones
  • Personal Navigation Devices
  • Wireless and DSL Modems
  • Digital Still Cameras
  • Media Players
  • Portable Instruments

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTspice

Models for the following parts are available in LTspice:

LTC3406
LTC3406-1.2
LTC3406-1.5
LTC3406-1.8
LTC3406A
LTC3406AB
LTC3406B
LTC3406B-1.2
LTC3406B-1.5
LTC3406B-1.8
LTC3406B-2

LTpowerCAD

LTpowerCAD® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

LTPowerCAD

Design tools for the following parts are available in LTpowerCAD:

LTC3406
LTC3406-1.2
LTC3406-1.5
LTC3406-1.8
LTC3406B
LTC3406B-2

Product Recommendations

LTC3406AB-2 Companion Parts

Recommended Related Parts

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

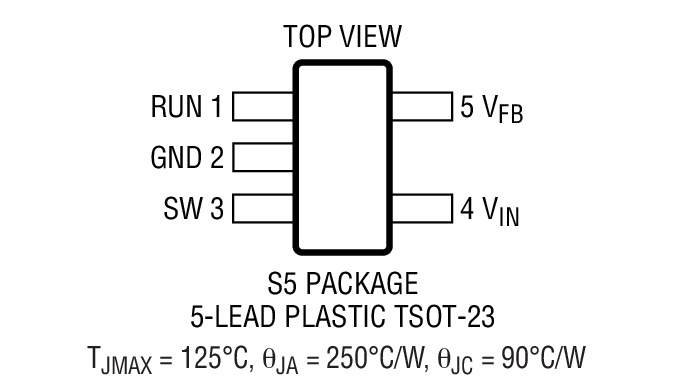

LTC3406ABES5-2#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
LTC3406ABES5-2#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
Wafer Fabrication Data R415 Reliability Data
