LTC2980

16-Channel PMBus Power System Manager

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 2
1ku List Price Starting From $19.96
Features
  • Sequence, Trim, Margin and Supervise 16 Power Supplies
  • Manage Faults, Monitor Telemetry and Create Fault Logs
  • PMBus Compliant Command Set
  • Supported by LTpowerPlay® GUI
  • Margin or Trim Supplies to Within 0.25% of Target
  • Fast OV/UV Supervisors Per Channel
  • Coordinate Sequencing and Fault Management Across Multiple LTC PSM Devices
  • Automatic Fault Logging to Internal EEPROM
  • Operate Autonomously without Additional Software
  • Internal Temperature and Input Voltage Supervisors
  • Accurate Monitoring of 16 Output Voltages, Two Input Voltages and Internal Die Temperature
  • I2C/SMBus Serial Interface
  • Can Be Powered from 3.3V, or 4.5V to 15V
  • Programmable Watchdog Timer
  • Available in 144-Pin 12mm × 12mm BGA Package
Additional Details
show more Icon

The LTC2980 is a 16-channel Power System Manager used to sequence, trim (servo), margin, supervise, manage faults, provide telemetry and create fault logs. PMBus commands support power supply sequencing, precision point-of-load voltage adjustment and margining. DACs use a proprietary soft-connect algorithm to minimize supply disturbances. Supervisory functions include overvoltage and undervoltage threshold limits for sixteen power supply output channels and two power supply input channels, as well as over and under temperature limits. Programmable fault responses can disable the power supplies with optional retry after a fault is detected. Faults that disable a power supply can automatically trigger black box EEPROM storage of fault status and associated telemetry. An internal 16-bit ADC monitors sixteen output voltages, two input voltages, and die temperature. In addition, odd numbered channels can be configured to measure the voltage across a current sense resistor. A programmable watchdog timer monitors microprocessor activity for a stalled condition and resets the microprocessor if necessary. A single wire bus synchronizes power supplies across multiple LTC Power System Management (PSM) devices. Configuration EEPROM with ECC supports autonomous operation without additional software.

APPLICATIONS

  • Computers and Network Servers
  • Industrial Test and Measurement
  • High Reliability Systems
  • Medical Imaging
  • Video
Part Models 2
1ku List Price Starting From $19.96

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2980CY#PBF
  • HTML
  • HTML
LTC2980IY#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 27, 2022

- 22_0086

LTC2980 Datasheet Limit Change

Sep 2, 2021

- 21_0198

LTC2980 Datasheet Limit Change

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

Jun 30, 2020

- 20_0244

Notification of Wafer Fab Location Change for 0.6µm CMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

Apr 25, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 27, 2022

- 22_0086

arrow down

LTC2980 Datasheet Limit Change

Sep 2, 2021

- 21_0198

arrow down

LTC2980 Datasheet Limit Change

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

Jun 30, 2020

- 20_0244

arrow down

Notification of Wafer Fab Location Change for 0.6µm CMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

Apr 25, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

Software & Part Ecosystem

Evaluation Kits 1

reference details image

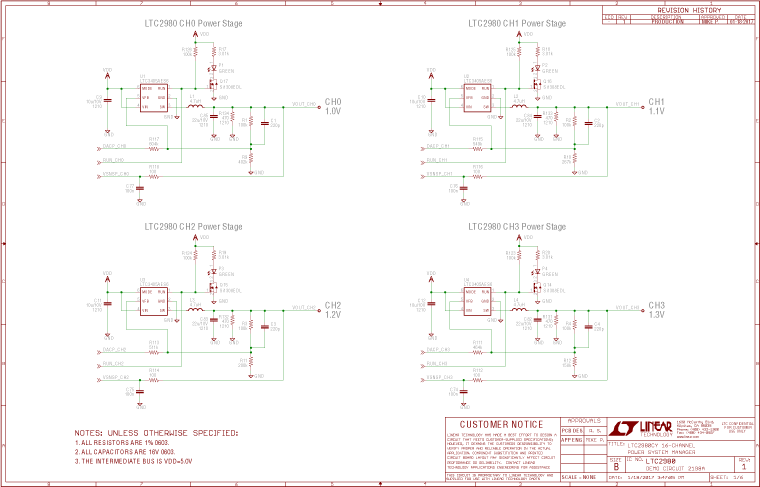

DC2198A

LTC2980 Demo Board | 16 Power Supply Manager [Requires DC1613]

zoom

DC2198A

LTC2980 Demo Board | 16 Power Supply Manager [Requires DC1613]

LTC2980 Demo Board | 16 Power Supply Manager [Requires DC1613]

Product Detail

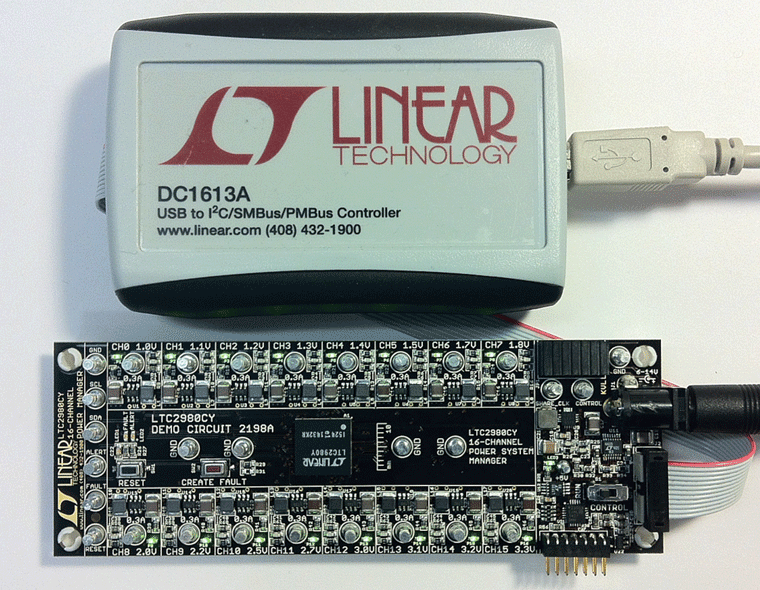

The DC2198A is a demonstration system for the LTC2980 16-channel I2C/SMBus/PMBus power system manager with EEPROM. The LTC2980 monitors and controls 16 power supply rails. The DC2198A demonstrates the ability of the LTC2980 to sequence, trim, margin, supervise, monitor, and log faults for sixteen power supply rails. Each power supply channel’s output voltage is monitored and the LTC2980 monitors its own internal die temperature.

Tools & Simulations 2

Linduino

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.
