LTC2952

Pushbutton PowerPath Controller with Supervisor

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC2952 - Supervisory Circuits, LT3010 - LDO Linear Regulators Download 4.28 KB
Part Models 8
1ku List Price Starting From $3.54
Features
  • Pushbutton On/Off Control

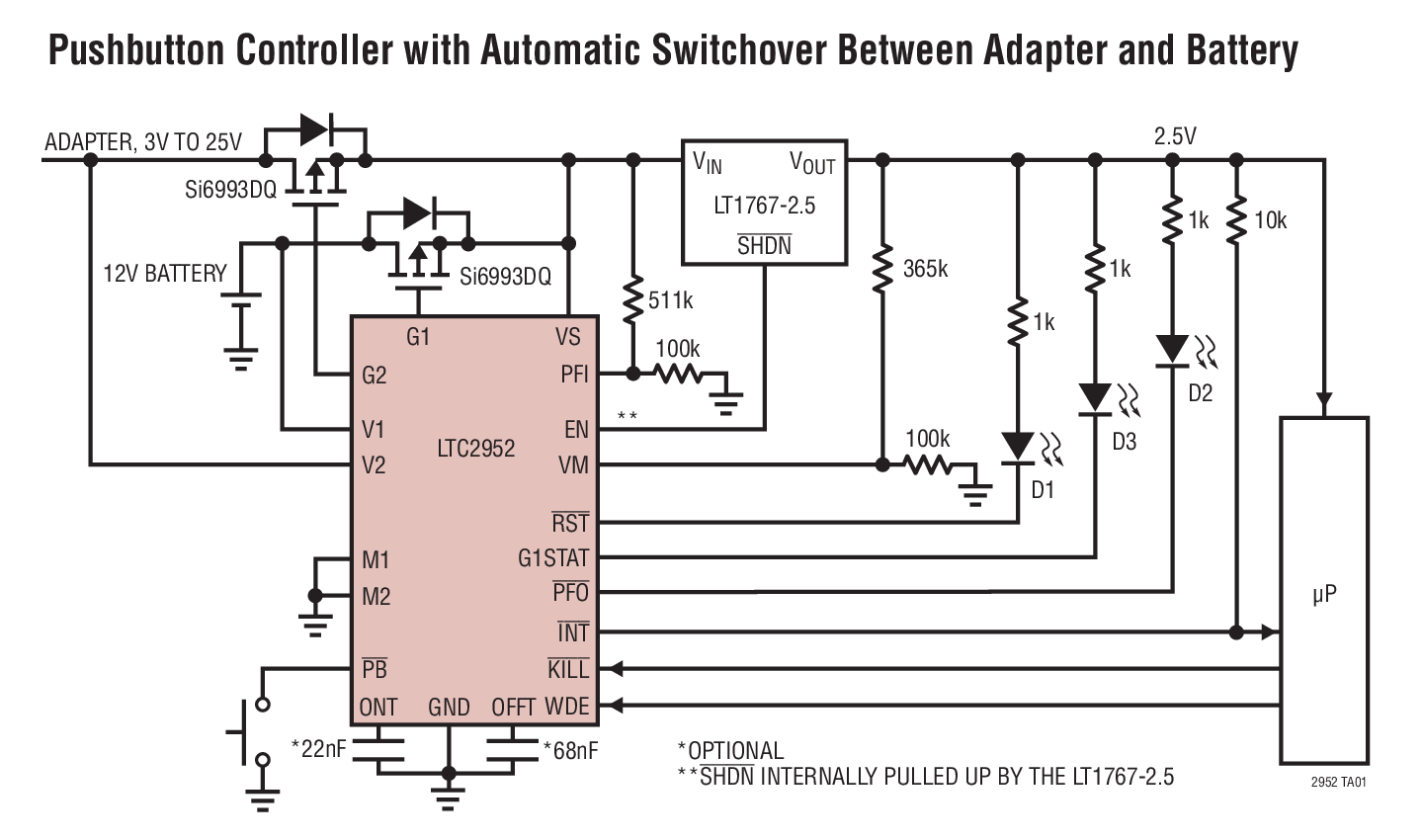

  • Automatic Low Loss Switchover Between DC Sources
  • Wide Operating Voltage Range: 2.7V to 28V
  • Low 25μA Shutdown Current
  • Guaranteed Threshold Accuracy: ±1.5% of Monitored Voltage Over Temperature
  • Adjustable Pushbutton On/Off Timers
  • Simple Interface Allows Graceful μP Shutdown
  • Extendable Housekeeping Wait Time Prior to Shutdown
  • 200ms Reset Delay and 1.6s Watchdog Timeout
  • ±8kV HBM ESD on PB Input

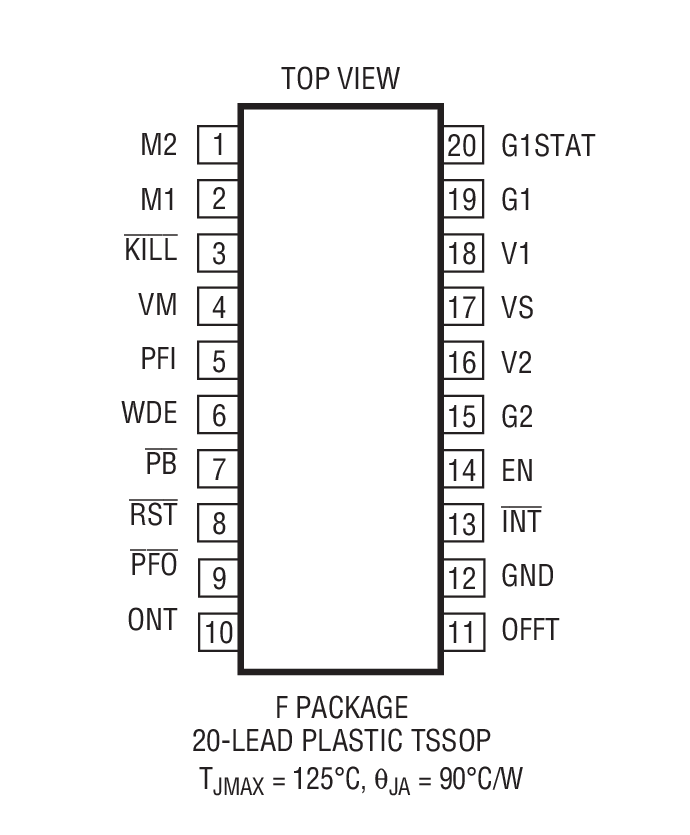

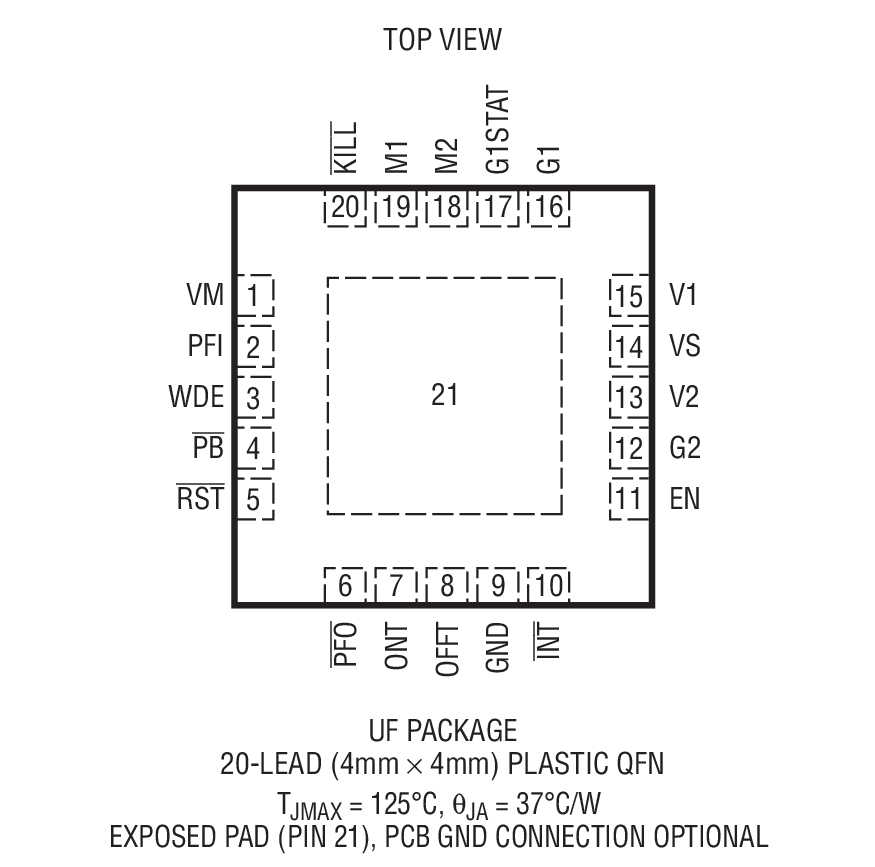

  • 20-pin TSSOP and QFN (4mm × 4mm) Packages
Additional Details
show more Icon

The LTC2952 is a power management device that features three main functions: pushbutton on/off control of system power, ideal diode PowerPath™ controllers and system monitoring. The LTC2952’s pushbutton input, which provides on/off control of system power, has independently adjustable ON and OFF debounce times. A simple microprocessor interface involving an interrupt signal allows for proper system housekeeping prior to power-down.

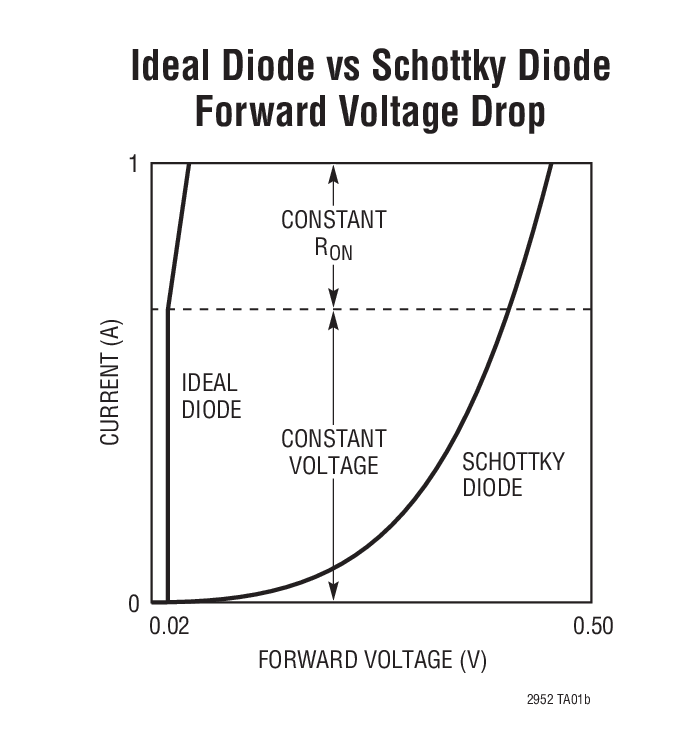

The ideal diode PowerPath controllers provide automatic low loss switchover between two DC sources by regulating two external P-channel MOSFETs to have a small 20mV forward drop.

High reliability systems may utilize the LTC2952’s monitoring features to ensure system integrity. These features include: power-fail, voltage monitoring and μP watchdog.

The LTC2952 operates over a wide operating voltage range to accommodate a large variety of input power supplies. The part’s combination of low 20mV external MOSFET regulation and very low standby current matches battery powered and power conscious application requirements.

Applications

  • Desktop and Notebook Computers
  • Portable Instrumentations
  • Cell Phones, PDA and Handheld Computers
  • Servers and Computer Peripherals
  • Battery Backup Systems
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC2952 - Supervisory Circuits, LT3010 - LDO Linear Regulators Download 4.28 KB
Part Models 8
1ku List Price Starting From $3.54
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC2952

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 09/20/2011
English

LTC2952: Pushbutton PowerPath Controller with Supervisor Data Sheet

Open PDF File

redirect
282.00K
download

Download PDF

PDF Vector

PDF

UPDATED 10/28/2011
Japanese

LTC2952: 監視機能付きプッシュボタン PowerPathコントローラ データシート

Open PDF File

redirect
575.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R536 Reliability Data redirect icon

49.04 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 05/13/2016
English
DC1033B - Demo Manual redirect icon

417.00K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2952CF#PBF 20-Lead TSSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2952CF#TRPBF 20-Lead TSSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2952CUF#PBF 20-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2952CUF#TRPBF 20-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2952IF#PBF 20-Lead TSSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2952IF#TRPBF 20-Lead TSSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2952IUF#PBF 20-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2952IUF#TRPBF 20-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC2952CF#PBF

PRODUCTION

LTC2952CF#TRPBF

PRODUCTION

LTC2952IF#PBF

PRODUCTION

LTC2952IF#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Jan 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC2952CUF#PBF

PRODUCTION

LTC2952CUF#TRPBF

PRODUCTION

LTC2952IUF#PBF

PRODUCTION

LTC2952IUF#TRPBF

PRODUCTION

pdf

PCN21_0269_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC2952CF#PBF

PRODUCTION

LTC2952CF#TRPBF

PRODUCTION

LTC2952IF#PBF

PRODUCTION

LTC2952IF#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Jan 20, 2022

- 21_0269

arrow down

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC2952CUF#PBF

PRODUCTION

LTC2952CUF#TRPBF

PRODUCTION

LTC2952IUF#PBF

PRODUCTION

LTC2952IUF#TRPBF

PRODUCTION

pdf

PCN21_0269_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Qualification Results Summary

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

TimerBlox1
LTC6991
popup image
Cart

PRODUCTION

TimerBlox: Resettable, Low Frequency Oscillator

Evaluation Kit

Evaluation Kits 1

reference details image

DC1033B

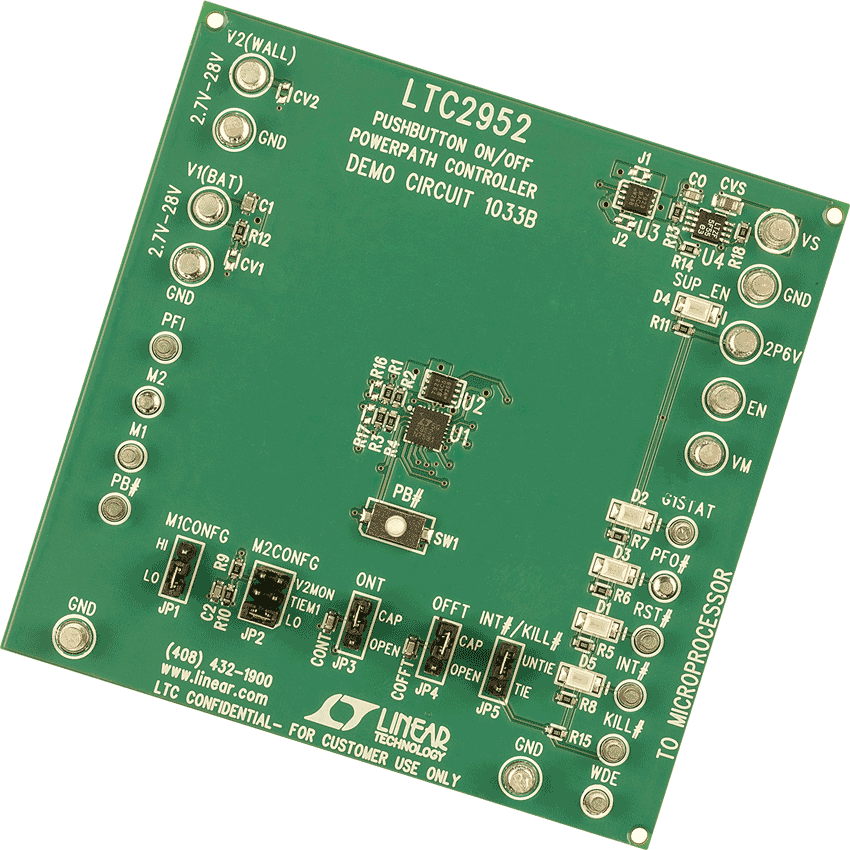

LTC2952 Demo Board | Push-Button Power Path Controller w/ Supervisor

zoom

DC1033B

LTC2952 Demo Board | Push-Button Power Path Controller w/ Supervisor

download icon

Download

 print icon

Print
DC1033B
LTC2952 Demo Board | Push-Button Power Path Controller w/ Supervisor
Buy Now View Details

Product Detail

Demonstration circuit 1033B features the LTC2952, a micropower, multipurpose, pushbutton On/Off PowerPath™ controller that provides voltage monitoring and supervisory features, as well as ideal diode power paths. Selectable PowerPath management modes allow a variety of power on and off configurations, including pushbutton on/off control and voltage detection on/off control.





Resources

pdf icon

PDF

DC1033B - Demo Manual Download

417.00K

pdf icon

ZIP

DC1033B - Design Files Download

933.00K

pdf icon

PDF

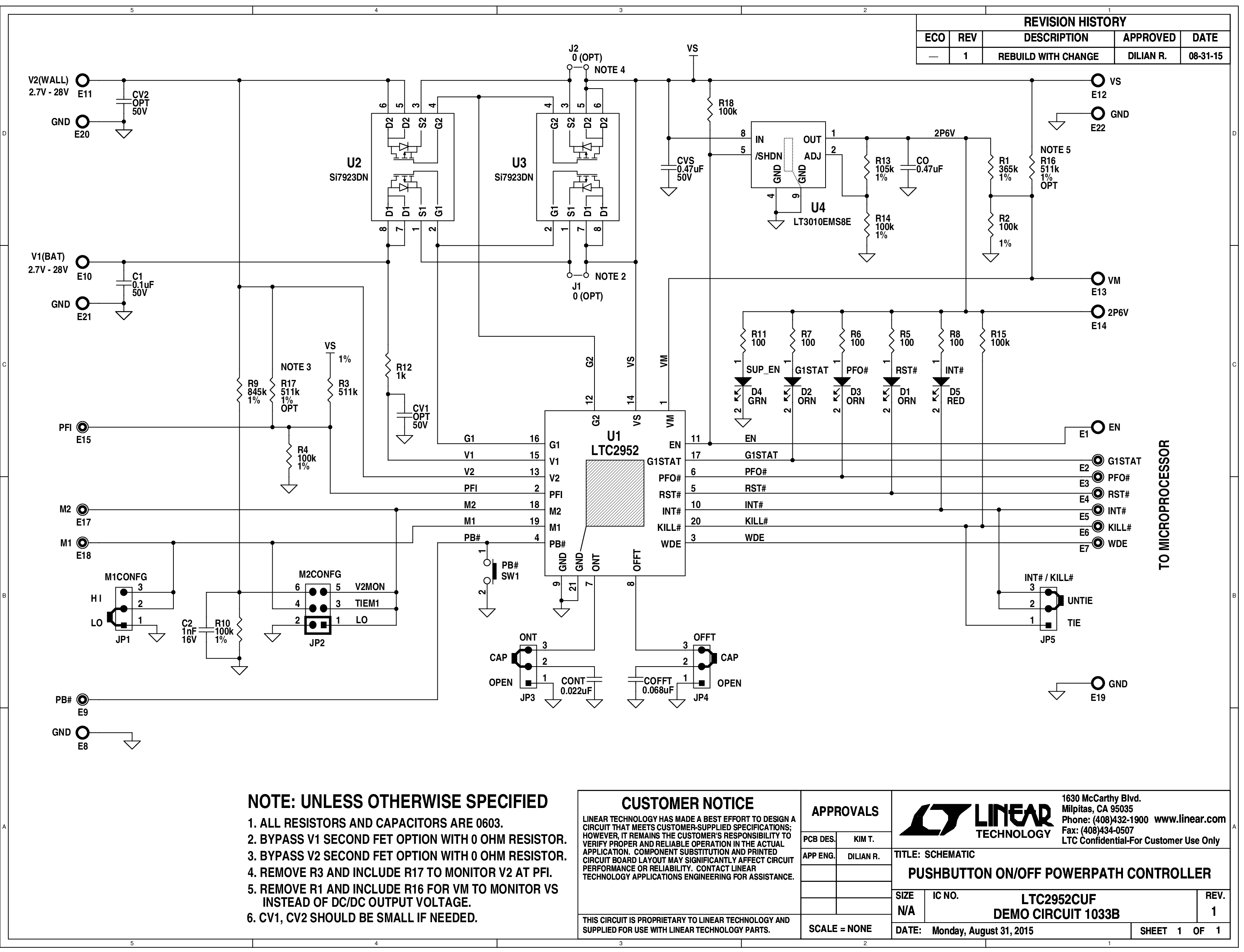

DC1033B - Schematic Download

38.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC1033B

LTC2952 Demo Board | Push-Button Power Path Controller w/ Supervisor
Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTC2952 - Supervisory Circuits, LT3010 - LDO Linear Regulators Download

4.28 K
