Overview

Features and Benefits

  • Program or Pin-Strap Six Output Ranges
  • 0V to 5V, 0V to 10V, –2.5V to 7.5V, ±2.5V, ±5V, ±10V
  • Maximum 16-Bit INL Error: ±1 LSB over Temperature
  • Guaranteed Monotonic over Temperature
  • Low Glitch Impulse 0.26nV•s (3V), 1.25nV•s (5V)
  • Serial Readback of All On-Chip Registers
  • Low 1μA Maximum Supply Current
  • 2.7V to 5.5V Single-Supply Operation
  • 16-Bit Settling Time: 2μs
  • Voltage-Controlled Offset and Gain Trims
  • Clear and Power-On-Reset to 0V Regardless of Output Range
  • 52-Pin 7mm × 8mm QFN Package

Product Details

The LTC2754 is a family of quad 12- and 16-bit multiplying serial-input, current-output digital-to-analog converters. They operate from a single 3V to 5V supply and are guaranteed monotonic over temperature. The LTC2754A-16 provides full 16-bit performance (±1LSB INL and DNL, max) over temperature without any adjustments. These SoftSpan™ DACs offer six output ranges (up to ±10V) that can be programmed through the 3-wire SPI serial interface, or pinstrapped for operation in a single range.

The content of any on-chip register (including DAC output- range settings) can be verified in just one instruction cycle; and if you change any register, that register will be automatically read back during the next instruction cycle.

Voltage-controlled offset and gain adjustments are also provided; and the power-on reset circuit and CLR pin both reset the DAC outputs to 0V regardless of output range.

Applications

  • High Resolution Offset and Gain Adjustment
  • Process Control and Industrial Automation
  • Automatic Test Equipment
  • Data Acquisition Systems

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

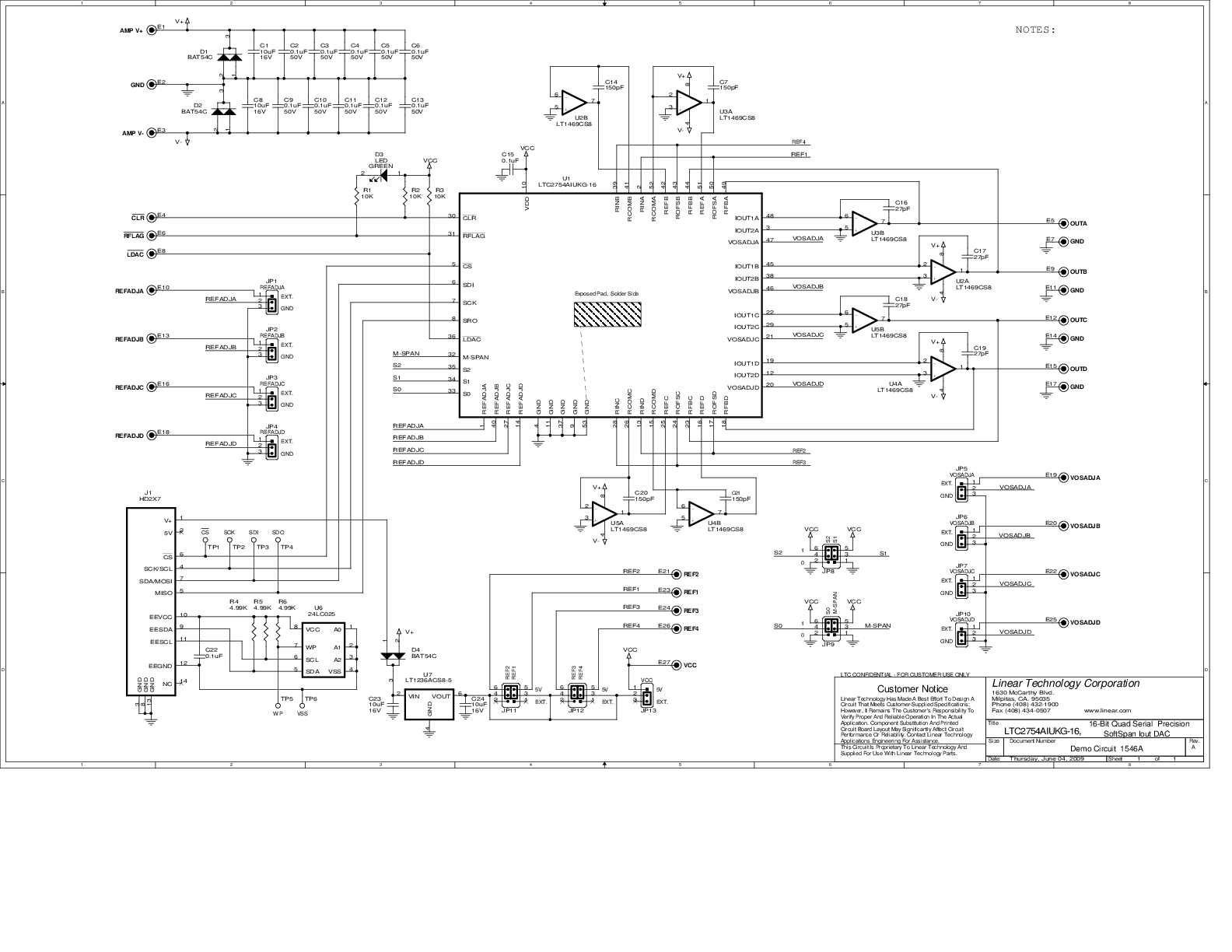

Evaluation Kits (1)

Documentation & Resources

  • View All (6)
  • Data Sheet (1)
  • Reliability Data (1)
  • User Guide (1)
  • Product Selector Card (3)
    • Document Type

    Product Recommendations

    LTC2754 Companion Parts

    Recommended µModule Isolator

    Recommended Related Parts

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC2754ACUKG-16#PBF Material Declaration Reliability Data 52-Lead QFN (7mm x 8mm x 0.75mm w/ EP)
    LTC2754ACUKG-16#TRPBF Material Declaration Reliability Data 52-Lead QFN (7mm x 8mm x 0.75mm w/ EP)
    LTC2754AIUKG-16#PBF Material Declaration Reliability Data 52-Lead QFN (7mm x 8mm x 0.75mm w/ EP)
    LTC2754AIUKG-16#TRPBF Material Declaration Reliability Data 52-Lead QFN (7mm x 8mm x 0.75mm w/ EP)
    LTC2754BCUKG-16#PBF Material Declaration Reliability Data 52-Lead QFN (7mm x 8mm x 0.75mm w/ EP)
    LTC2754BCUKG-16#TRPBF Material Declaration Reliability Data 52-Lead QFN (7mm x 8mm x 0.75mm w/ EP)
    LTC2754BIUKG-16#PBF Material Declaration Reliability Data 52-Lead QFN (7mm x 8mm x 0.75mm w/ EP)
    LTC2754BIUKG-16#TRPBF Material Declaration Reliability Data 52-Lead QFN (7mm x 8mm x 0.75mm w/ EP)
    LTC2754CUKG-12#PBF Material Declaration Reliability Data 52-Lead QFN (7mm x 8mm x 0.75mm w/ EP)
    LTC2754CUKG-12#TRPBF Material Declaration Reliability Data 52-Lead QFN (7mm x 8mm x 0.75mm w/ EP)
    LTC2754IUKG-12#PBF Material Declaration Reliability Data 52-Lead QFN (7mm x 8mm x 0.75mm w/ EP)
    LTC2754IUKG-12#TRPBF Material Declaration Reliability Data 52-Lead QFN (7mm x 8mm x 0.75mm w/ EP)
