LTC2752: Dual 16-Bit SoftSpan IOUT DACs Data Sheet6/30/2010PDF365K
Overview
Features and Benefits
- Program or Pin-Strap Six Output Ranges
0V to 5V, 0V to 10V, –2.5V to 7.5V, ±2.5V, ±5V, ±10V - Maximum 16-Bit INL Error: ±1 LSB over Temperature
- Guaranteed Monotonic over Temperature
- Glitch Impulse 0.6nV•s (3V), 2.2nV•s (5V)
- Serial Readback of All On-Chip Registers
- 1μA Maximum Supply Current
- 2.7V to 5.5V Single-Supply Operation
- 16-Bit Settling Time: 2μs
- Voltage-Controlled Offset and Gain Trims
- Clear and Power-On-Reset to 0V Regardless of Output Range
- 48-Pin 7mm × 7mm LQFP Package
Product Details
The LTC2752 is a dual 16-bit multiplying serial-input, current-output digital-to-analog converter. It operates from a single 3V to 5V supply and is guaranteed monotonic over temperature. The LTC2752A provides full 16-bit performance (±1LSB INL and DNL, max) over temperature without any adjustments. This SoftSpan™ DAC offers six output ranges (up to ±10V) that can be programmed through the 3-wire SPI serial interface, or pinstrapped for operation in a single range.
Any on-chip register (including DAC output-range settings) can be read for verification in just one instruction cycle; and if you change register content, the altered register will be automatically read back during the next instruction cycle.
Voltage-controlled offset and gain adjustments are also provided; and the power-on reset circuit and CLR pin both reset the DAC outputs to 0V regardless of output range.
Applications
- High Resolution Offset and Gain Adjustment
- Process Control and Industrial Automation
- Automatic Test Equipment
- Data Acquisition Systems
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R519 Reliability Data3/26/2018PDF25 K
-

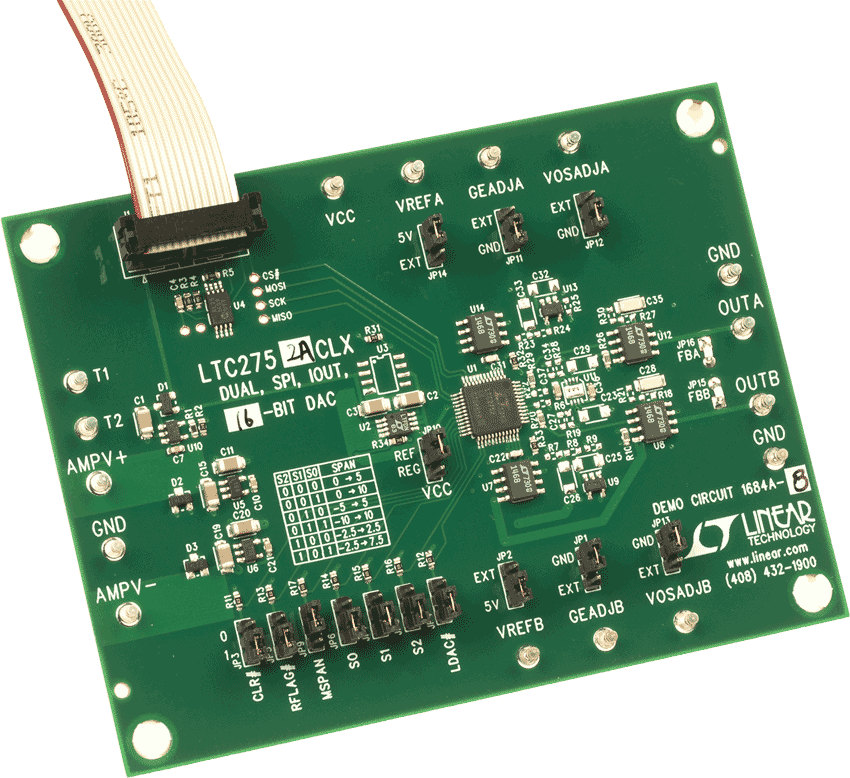

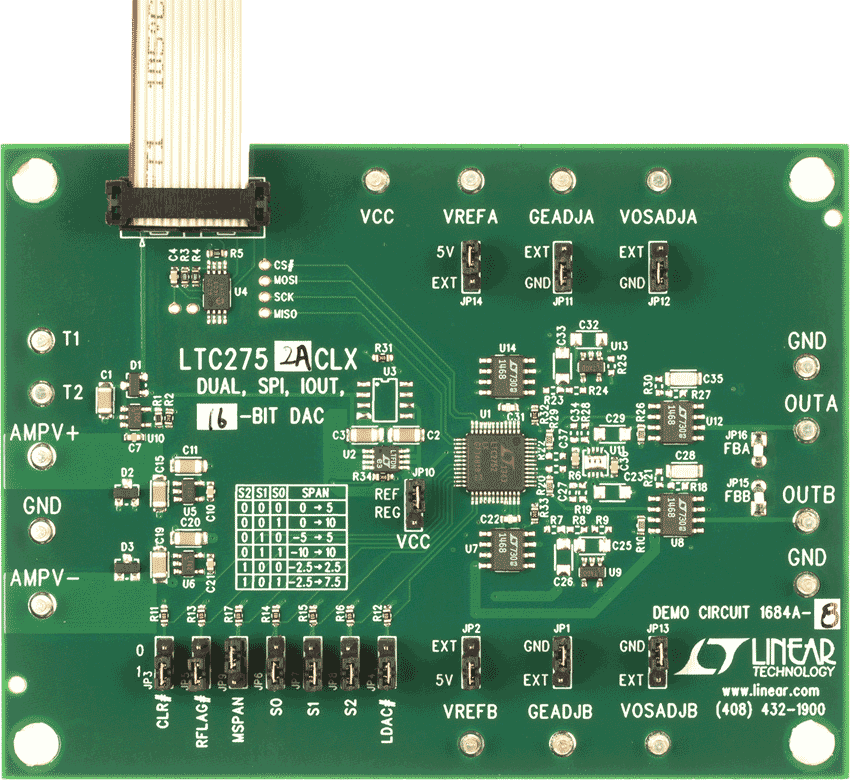

DC1684A - Demo Manual3/17/2014PDF367K
-
DAC Selector Card9/21/2015PDF587K
-
LTC2757 - ±1LSB 18-Bit DAC3/12/2012PDF548K
-
LTC2758 - ±1LSB 18-Bit Serial DACs2/27/2012PDF984K
Tools & Simulations
Linduino
Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.
Linduino code repository on GitHub and instructions on how to use the code.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC2752ACLX#PBF | Material Declaration | Reliability Data | 48-Lead LQFP (7mm x 7mm) | |
| LTC2752AILX#PBF | Material Declaration | Reliability Data | 48-Lead LQFP (7mm x 7mm) | |
| LTC2752BCLX#PBF | Material Declaration | Reliability Data | 48-Lead LQFP (7mm x 7mm) | |
| LTC2752BILX#PBF | Material Declaration | Reliability Data | 48-Lead LQFP (7mm x 7mm) | |
| Wafer Fabrication Data | R519 Reliability Data |
