Overview

Features and Benefits

  • ±0.5ppm INL (Typ)
  • 145dB Dynamic Range (Typ) at 61sps
  • 131dB Dynamic Range (Typ) at 4ksps
  • Guaranteed 32-Bits No Missing Codes
  • Configurable Digital Filter with Synchronization
    • Relaxed Anti-Aliasing Filter Requirements
  • Dual Output 32-Bit SAR ADC
    • 32-Bit Digitally Filtered Low Noise Output
    • 14-Bit Differential + 8-Bit Common Mode 1Msps No Latency Output
  • Wide Input Common-Mode Range
  • Guaranteed Operation to 85°C
  • 1.8V to 5V SPI-Compatible Serial I/O
  • Low Power: 24mW at 1Msps
  • 24-Lead 7mm × 4mm DFN Package

Product Details

The LTC2508-32 is a low noise, low power, high-performance 32-bit ADC with an integrated configurable digital filter. Operating from a single 2.5V supply, the LTC2508-32 features a fully differential input range up to ±VREF , with VREF ranging from 2.5V to 5.1V. The LTC2508-32 supports a wide common mode range from 0V to VREF simplifying analog signal conditioning requirements.

The LTC2508-32 simultaneously provides two output codes: (1) a 32-bit digitally filtered high precision low noise code, and (2) a 22-bit no latency composite code. The configurable digital filter reduces measurement noise by lowpass filtering and down-sampling the stream of data from the SAR ADC core, giving the 32-bit filtered output code. The 22-bit composite code consists of a 14-bit code representing the differential voltage and an 8-bit code representing the common mode voltage. The 22-bit composite code is available each conversion cycle, with no cycle of latency.

The digital filter can be easily configured for 4 different down-sampling factors by pin strapping. The configurations provide a dynamic range of 131dB at 3.9ksps and 145dB at 61sps. The digital lowpass filter relaxes the requirements for analog anti-aliasing. Multiple LTC2508-32 devices can be easily synchronized using the SYNC pin.

Applications

  • Seismology
  • Energy Exploration
  • Automated Test Equipment (ATE)
  • High-Accuracy Instrumentation

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

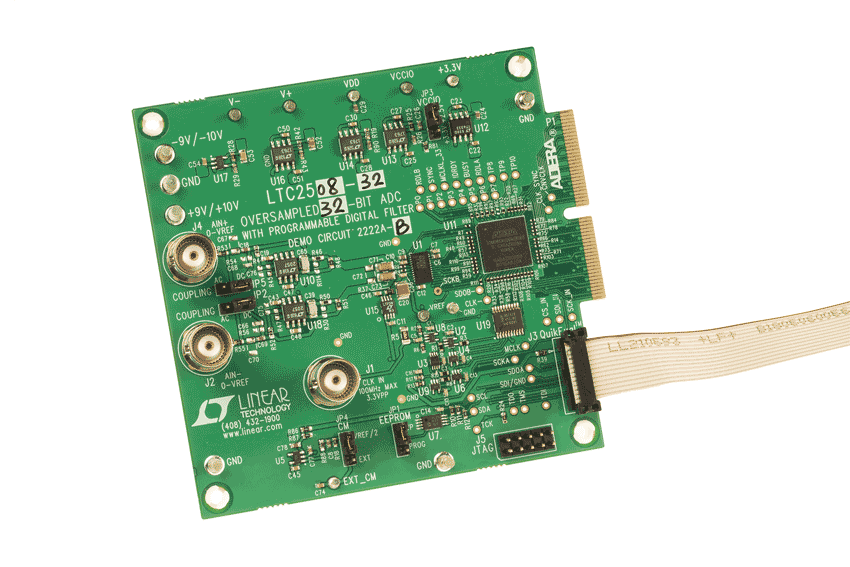

Evaluation Kits (1)

Documentation & Resources

  • View All (8)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Design Notes (1)
  • Product Selector Card (1)
  • Press Releases (1)
  • Technical Articles (2)
    • Document Type

    Software & Systems Requirements

    Evaluation Code

    ZIP
    201.00K

    FPGA cource code for DC2222A-B

    Evaluation Software

    LinearLab Tools
    A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.

    Tools & Simulations

    Linduino

    Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

    Linduino code repository on GitHub and instructions on how to use the code.

    Purchase Linduino

    Linduino

    Code Files

    LTC2508 - Linduino DC2222AB.ino File
    LTC2508 - Linduino Header File
    LTC2508 - Linduino CPP File

    Precision ADC Driver Tool

    The Precision ADC Driver Tool is a web application that simulates the performance of precision ADC and driver combinations. Potential issues with driver selection, kickback settling, and distortion are flagged, and design tradeoffs can be quickly evaluated. Simulations and calculations include system noise, distortion, and settling of the ADC input

    Precision ADC Driver Tool

    Software and Simulation

    Product Recommendations

    LTC2508-32 Companion Parts

    Recommended ADC Drivers

    Recommended External Voltage References

    Recommended Related Parts

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC2508CDKD-32#PBF Material Declaration Reliability Data 24-Lead DFN (7mm x 4mm w/ EP)
    LTC2508CDKD-32#TRPBF Material Declaration Reliability Data 24-Lead DFN (7mm x 4mm w/ EP)
    LTC2508IDKD-32#PBF Material Declaration Reliability Data 24-Lead DFN (7mm x 4mm w/ EP)
    LTC2508IDKD-32#TRPBF Material Declaration Reliability Data 24-Lead DFN (7mm x 4mm w/ EP)
    Wafer Fabrication Data R549 Reliability Data
