LTC2057
LTC2057HV

High Voltage, Low Noise Zero-Drift Operational Amplifier

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT1991 - Specialty Amplifiers, eval-adum540x - Digital Isolation Technology, LTC2057 - Operational Amplifiers (Op Amps) Download 2.54 KB
Part Models 32
1ku List Price Starting From $1.40

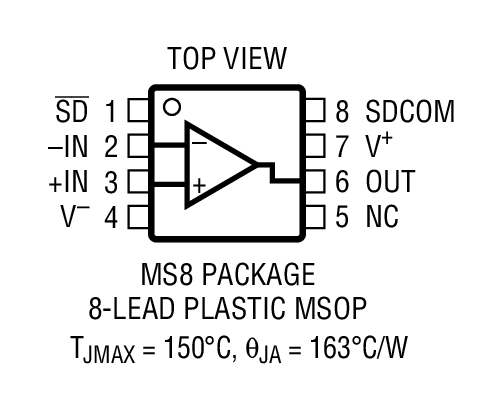

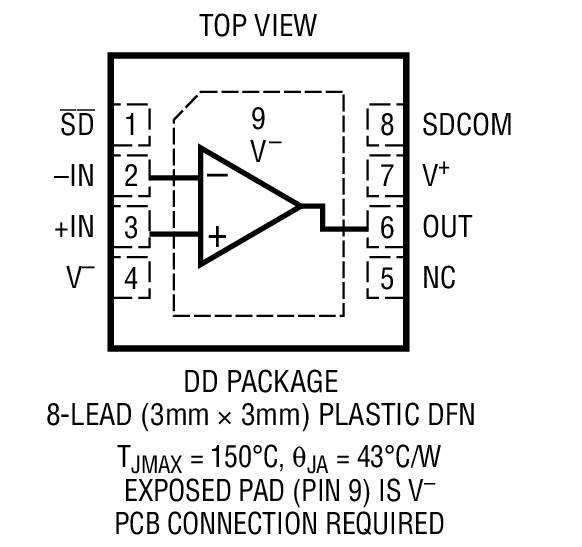

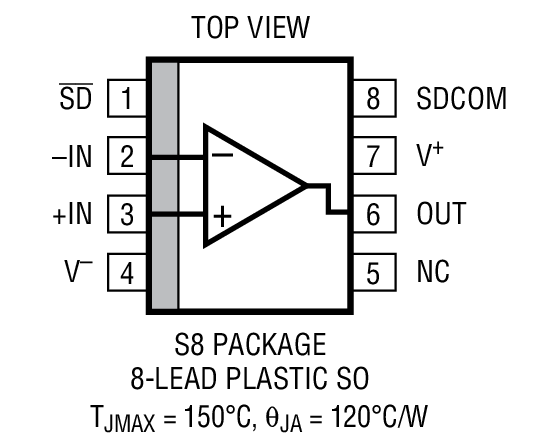

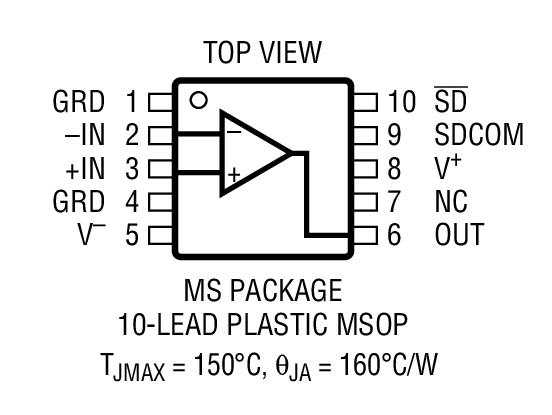

Features
  • Supply Voltage Range
    • 4.75V to 36V (LTC2057)
    • 4.75V to 60V (LTC2057HV)
  • Offset Voltage: 4μV (Maximum)
  • Offset Voltage Drift: 0.015μV/°C (Maximum, –40°C to 125°C)
  • Input Noise Voltage
    • 200nVP-P, DC to 10Hz (Typ)
    • 11nV/√Hz, 1kHz (Typ)
  • Input Common Mode Range: V– – 0.1V to V+ – 1.5V
  • Rail-to-Rail Output
  • Unity Gain Stable
  • Gain Bandwidth Product: 1.5MHz (Typ)
  • Slew Rate: 0.45V/μs (Typ)
  • AVOL: 150dB (Typ)
  • PSRR: 160dB (Typ)
  • CMRR: 150dB (Typ)
  • Shutdown Mode
Additional Details
show more Icon

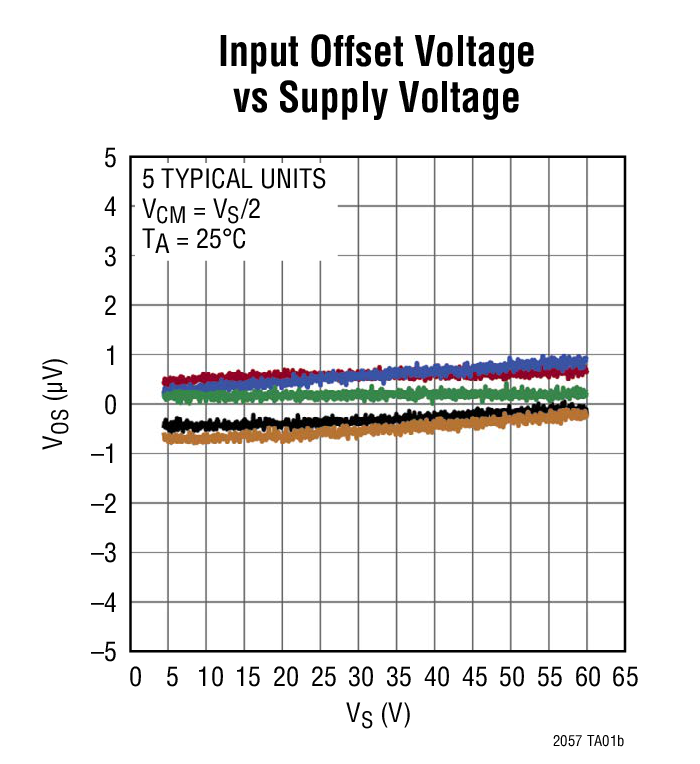

The LTC2057 is a high voltage, low noise, zero-drift operational amplifier that offers precision DC performance over a wide supply range of 4.75V to 36V or 4.75V to 60V for the LTC2057HV. Offset voltage and 1/f noise are suppressed, allowing this amplifier to achieve a maximum offset voltage of 4μV and a DC to 10Hz input noise voltage of 200nVP-P (typ). The LTC2057’s self-calibrating circuitry results in low offset voltage drift with temperature, 0.015μV/°C (max), and zero-drift over time. The amplifier also features an excellent power supply rejection ratio (PSRR) of 160dB and a common mode rejection ratio (CMRR) of 150dB (typ).

The LTC2057 provides rail-to-rail output swing and an input common mode range that includes the V– rail (V– – 0.1V to V+ – 1.5V). In addition to low offset and noise, this amplifier features a 1.5MHz (typ) gain-bandwidth product and a 0.45V/μs (typ) slew rate.

Wide supply range, combined with low noise, low offset, and excellent PSRR and CMRR make the LTC2057 and LTC2057HV well suited for high dynamic-range test, measurement, and instrumentation systems.

Applications

  • High Resolution Data Acquisition
  • Reference Buffering
  • Test and Measurement
  • Electronic Scales
  • Thermocouple Amplifiers
  • Strain Gauges
  • Low-Side Current Sense
  • Automotive Monitors and Control
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT1991 - Specialty Amplifiers, eval-adum540x - Digital Isolation Technology, LTC2057 - Operational Amplifiers (Op Amps) Download 2.54 KB
Part Models 32
1ku List Price Starting From $1.40
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC2057
LTC2057HV

Documentation

11
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • Application Note
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

3

PDF Vector

PDF

UPDATED 09/13/2013
English

LTC2057: High Voltage, Low Noise Zero-Drift Operational Amplifier Data Sheet

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 09/13/2013
Chinese

LTC2057/LTC2057HV: High Voltage, Low Noise Zero-Drift Operational Amplifier Data Sheet

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 08/20/2013
Japanese

LTC2057: 高電圧、低ノイズのゼロドリフト・オペアンプ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 02/01/2012
English
DC417B - Demo Manual redirect icon

137.00K

download

Download PDF

Application Note

2

PDF Vector

PDF

UPDATED 09/20/2017
English
AN167f - Buffered ADC Family Eliminates Signal Conditioning Complexity redirect icon

1.00M

download

Download PDF

PDF Vector

PDF

UPDATED 09/20/2017
Chinese
AN167f：缓冲ADC系列消除了信号调理的复杂性 redirect icon

1.00M

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R571 Reliability Data redirect icon

37.64 K

download

Download PDF

Technical Articles

4

PDF Vector

HTML

UPDATED 09/26/2017
English
Reference Filter Increases 32-Bit ADC SNR by 6dB redirect icon

PDF Vector

HTML

UPDATED 09/26/2017
Chinese
基准滤波器使 32 位 ADC SNR 增加 6dB redirect icon

PDF Vector

HTML

UPDATED 09/13/2013
English
Layout For Precision Op Amps redirect icon

PDF Vector

HTML

UPDATED 09/13/2013
Japanese
高精度オペアンプのレイアウト redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Solutions Bulletin & Brochure 1

60V Zero Drift

Product Selector Card 2

SAR ADC Drivers
High Voltage Amplifiers

Video

1

Thumbnail Image

Video

2017-09-18

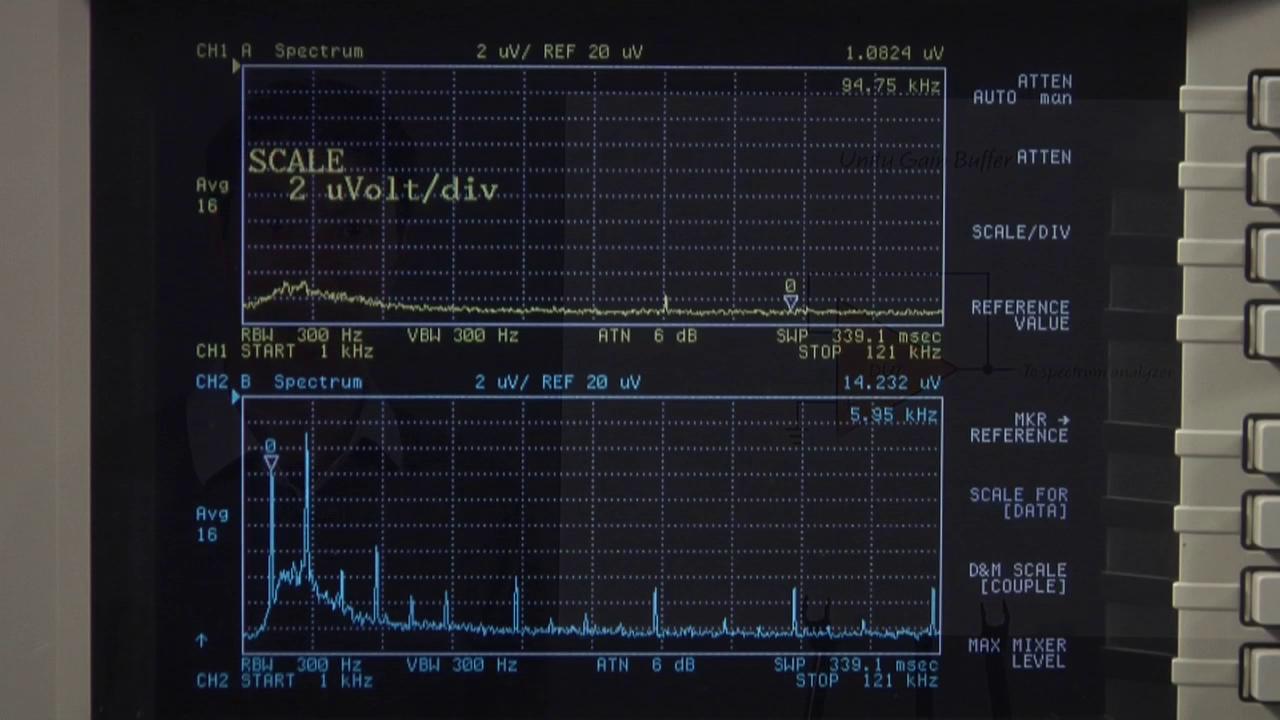

Evaluating Zero-Drift Amplifier Performance
