LTC2410

24-Bit No Latency ∆Σ™ ADC with Differential Input and Differential Reference

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $6.84
Features
  • Differential Input and Differential Reference with
    GND to VCC Common Mode Range
  • 2ppm INL, No Missing Codes
  • 2.5ppm Full-Scale Error
  • 0.1ppm Offset
  • 0.16ppm Noise
  • Single Conversion Settling Time for Multiplexed
    Applications
  • Internal Oscillator—No External Components
    Required
  • 110dB Min, 50Hz/60Hz Notch Filter
  • 24-Bit ADC in Narrow SSOP-16 Package
    (SO-8 Footprint)
  • Single Supply 2.7V to 5.5V Operation
  • Low Supply Current (200µA) and Auto Shutdown
  • Fully Differential Version of LTC2400
Additional Details
show more Icon

The LTC2410 is a 2.7V to 5.5V micropower 24-bit differential ∆Σ analog to digital converter with an integrated oscillator, 2ppm INL and 0.16ppm RMS noise. It uses delta-sigma technology and provides single cycle settling time for multiplexed applications. Through a single pin, the LTC2410 can be configured for better than 110dB input differential mode rejection at 50Hz or 60Hz ±2%, or it can be driven by an external oscillator for a user defined rejection frequency. The internal oscillator requires no external frequency setting components.

The converter accepts any external differential reference voltage from 0.1V to VCC for flexible ratiometric and remote sensing measurement configurations. The full-scale differential input range is from –0.5VREF to 0.5VREF. The reference common mode voltage, VREFCM, and the input common mode voltage, VINCM, may be independently set anywhere within the GND to VCC range of the LTC2410. The DC common mode input rejection is better than 140dB.

The LTC2410 communicates through a flexible 3-wire digital interface which is compatible with SPI and MICROWIRE protocols.

Applications

  • Direct Sensor Digitizer
  • Weight Scales
  • Direct Temperature Measurement
  • Gas Analyzers
  • Strain-Gauge Transducers
  • Instrumentation
  • Data Acquisition
  • Industrial Process Control
  • 6-Digit DVMs
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $6.84
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC2410

Documentation

11
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • User Guide
  • Application Note
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 08/18/2015
English

LTC2410: 24-Bit No Latency Delta Sigma ADC with Differential Input and Differential Reference Data Sheet

Open PDF File

redirect
785.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/22/2018
English
R411 Reliability Data redirect icon

32.58 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC575A - Demo Manual redirect icon

468.00K

download

Download PDF

Application Note

4

PDF Vector

PDF

UPDATED 10/15/2007
English
AN96 - Delta Sigma ADC Bridge Measurement Techniques redirect icon

226.00K

download

Download PDF

PDF Vector

HTML

UPDATED 08/07/2023
English
AN-96: Delta Sigma ADC Bridge Measurement Techniques redirect icon

PDF Vector

HTML

UPDATED 10/15/2020
English
AN-86: A Standards Lab Grade 20-Bit DAC with 0.1ppm/°C Drift redirect icon

PDF Vector

HTML

UPDATED 10/15/2020
Japanese
AN-86:研究所標準グレードのドリフト0.1ppm/°C 20ビットDAC redirect icon

Technical Articles

4

PDF Vector

HTML

UPDATED 05/01/2001
English
No Latency Delta-Sigma ADC Techniques for Optimized Performance redirect icon

PDF Vector

HTML

UPDATED 02/01/2004
English
Easy-to-Use Spread Spectrum Clock Generator Reduces EMI and More redirect icon

PDF Vector

HTML

UPDATED 11/01/2000
English
A New, Fully Differential, No Latency Delta-Sigma ADC Family redirect icon

PDF Vector

HTML

UPDATED 05/01/2001
English
Using Bipolar Preamplifiers in an LTC2411-Based Correlated Double Sampling Scheme Produces a Noise Floor of Under 100nVRMS redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 10
show more Icon

Data Sheet 1

LTC2410: 24-Bit No Latency Delta Sigma ADC with Differential Input and Differential Reference Data Sheet

Reliability Data 1

R411 Reliability Data

User Guide 1

DC575A - Demo Manual

Application Note 3

AN96 - Delta Sigma ADC Bridge Measurement Techniques
AN-96: Delta Sigma ADC Bridge Measurement Techniques
AN-86: A Standards Lab Grade 20-Bit DAC with 0.1ppm/°C Drift

Technical Articles 4

No Latency Delta-Sigma ADC Techniques for Optimized Performance
Easy-to-Use Spread Spectrum Clock Generator Reduces EMI and More
A New, Fully Differential, No Latency Delta-Sigma ADC Family
Using Bipolar Preamplifiers in an LTC2411-Based Correlated Double Sampling Scheme Produces a Noise Floor of Under 100nVRMS

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2410CGN#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2410CGN#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2410IGN#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2410IGN#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 3, 2024

- 24_0235

(QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking

LTC2410CGN#PBF

PRODUCTION

LTC2410CGN#TRPBF

PRODUCTION

LTC2410IGN#PBF

PRODUCTION

LTC2410IGN#TRPBF

PRODUCTION

pdf

PCN24_0235_Form

external-icon

xls

Material_Report

Download

pdf

Other

external-icon

xlsm

Delta Qualification Matrix

Download

Oct 11, 2022

- 22_0235

Epoxy Change from Henkel 8290 to 8290A for GN Package

LTC2410CGN#PBF

PRODUCTION

LTC2410CGN#TRPBF

PRODUCTION

LTC2410IGN#PBF

PRODUCTION

LTC2410IGN#TRPBF

PRODUCTION

pdf

PCN22_0235_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Apr 6, 2022

- 22_0066

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LTC2410CGN#PBF

PRODUCTION

LTC2410CGN#TRPBF

PRODUCTION

LTC2410IGN#PBF

PRODUCTION

LTC2410IGN#TRPBF

PRODUCTION

pdf

PCN22_0066_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 3, 2024

- 24_0235

arrow down

(QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking

LTC2410CGN#PBF

PRODUCTION

LTC2410CGN#TRPBF

PRODUCTION

LTC2410IGN#PBF

PRODUCTION

LTC2410IGN#TRPBF

PRODUCTION

pdf

PCN24_0235_Form

external-icon

xls

Material_Report

Download

pdf

Other

external-icon

xlsm

Delta Qualification Matrix

Download
Oct 11, 2022

- 22_0235

arrow down

Epoxy Change from Henkel 8290 to 8290A for GN Package

LTC2410CGN#PBF

PRODUCTION

LTC2410CGN#TRPBF

PRODUCTION

LTC2410IGN#PBF

PRODUCTION

LTC2410IGN#TRPBF

PRODUCTION

pdf

PCN22_0235_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Apr 6, 2022

- 22_0066

arrow down

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LTC2410CGN#PBF

PRODUCTION

LTC2410CGN#TRPBF

PRODUCTION

LTC2410IGN#PBF

PRODUCTION

LTC2410IGN#TRPBF

PRODUCTION

pdf

PCN22_0066_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

I²C Isolators1
LTM2883
popup image
Cart

PRODUCTION

SPI/Digital or I2C μModule Isolator with Adjustable ±12.5V and 5V Regulated Power

Precision Resistor Network1
LT5400
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Quad Matched Resistor Network

Series Voltage References1
LTC6655
popup image
Cart

PRODUCTION

0.25ppm Noise, Low Drift Precision References

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits 1

Evaluation Kits1

evaluation kit item images

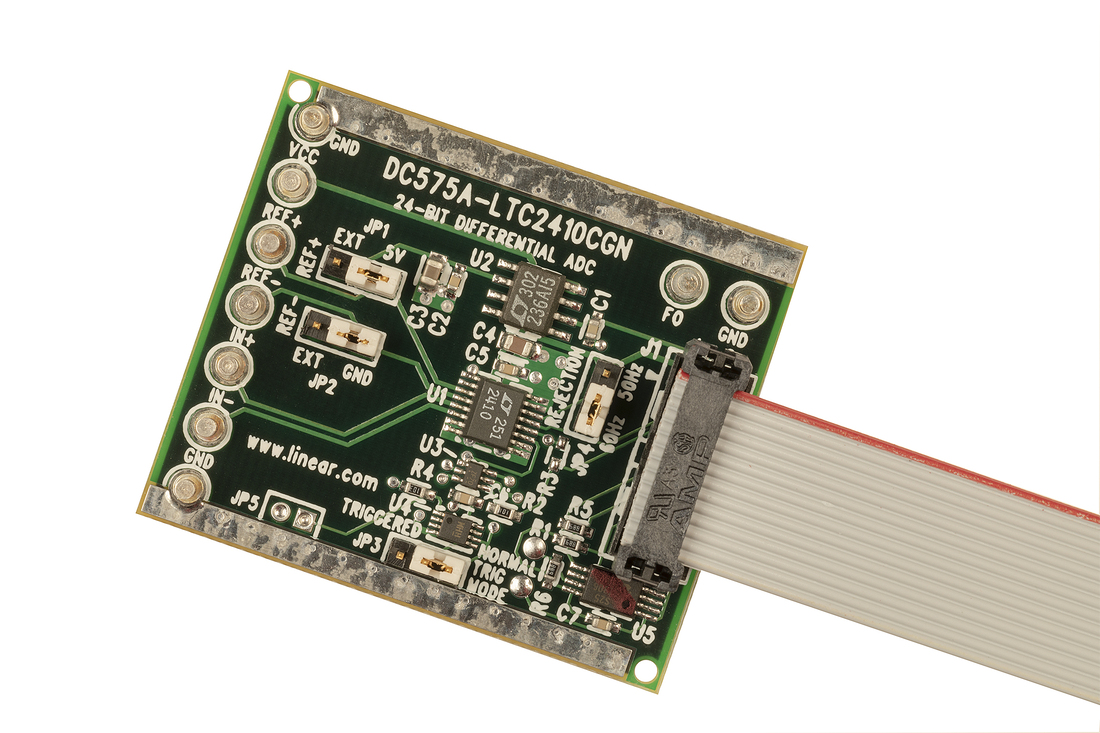

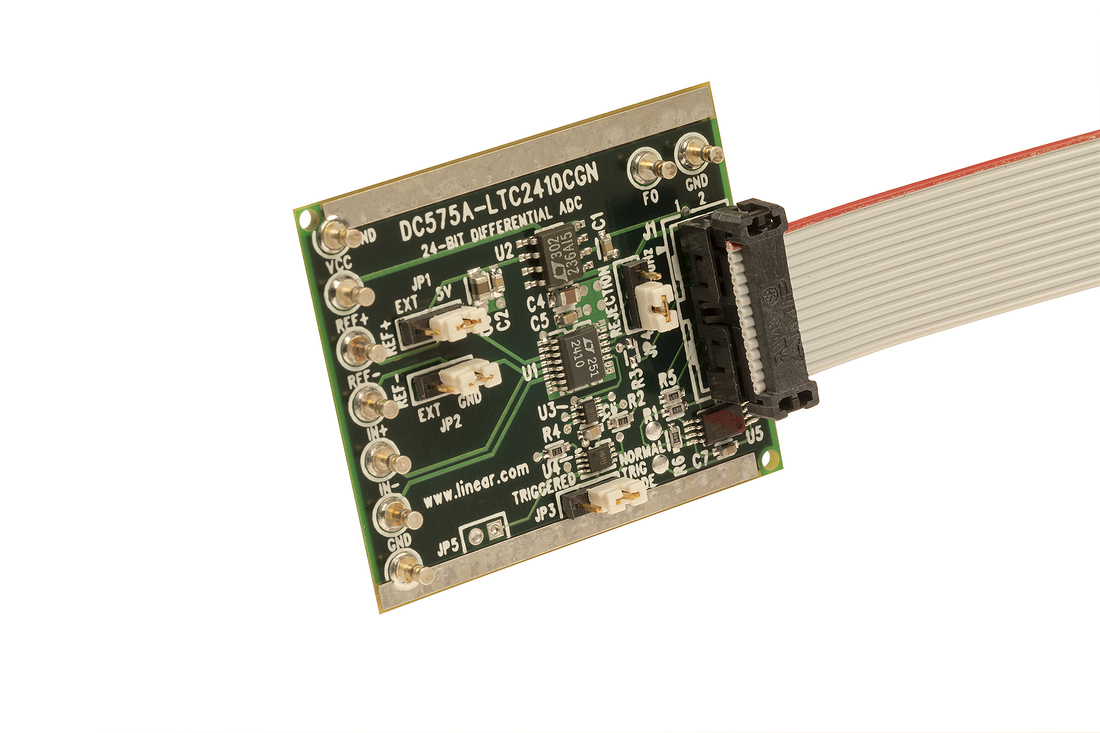

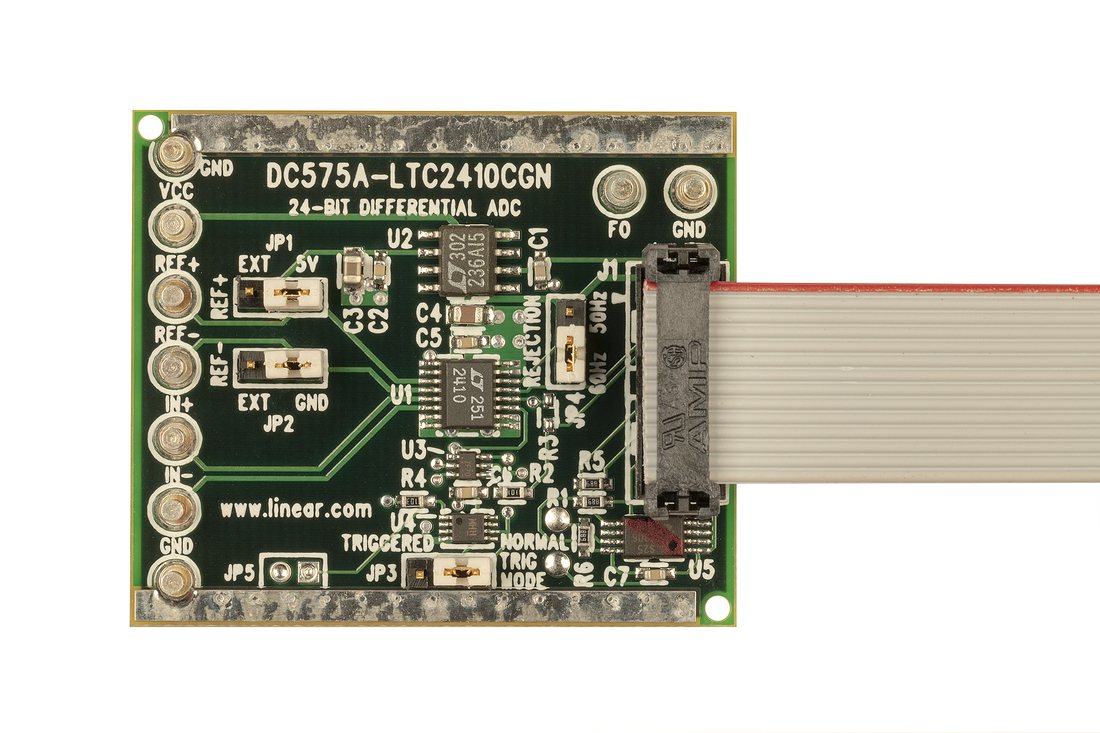

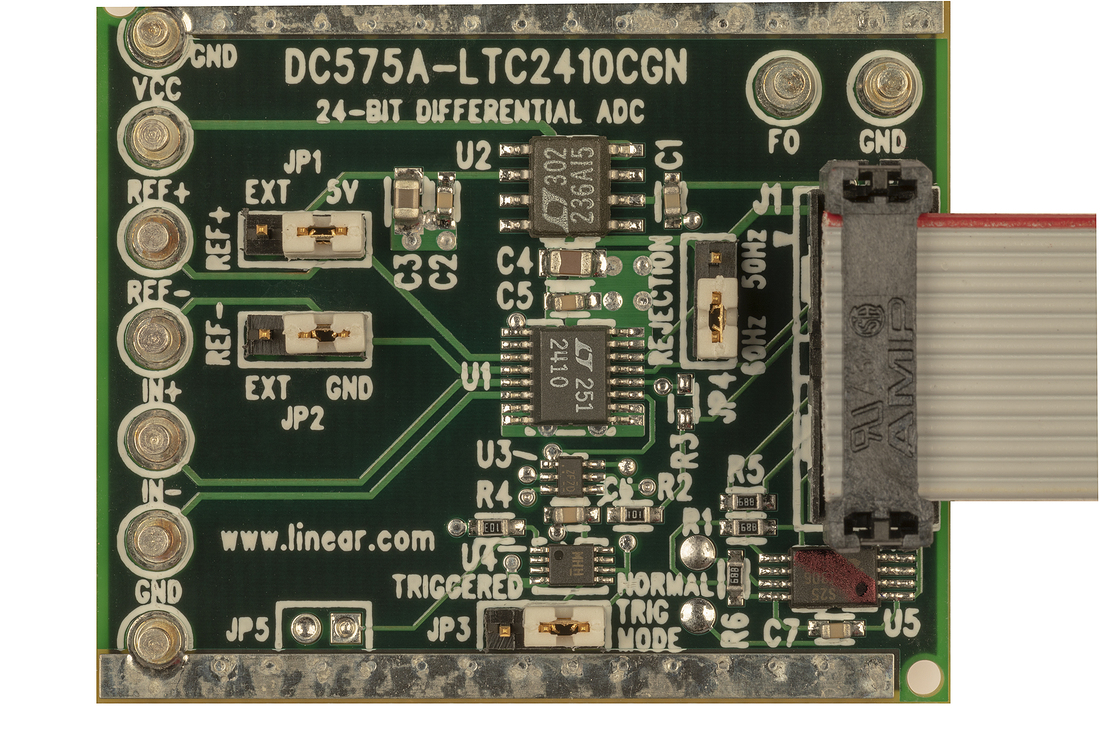

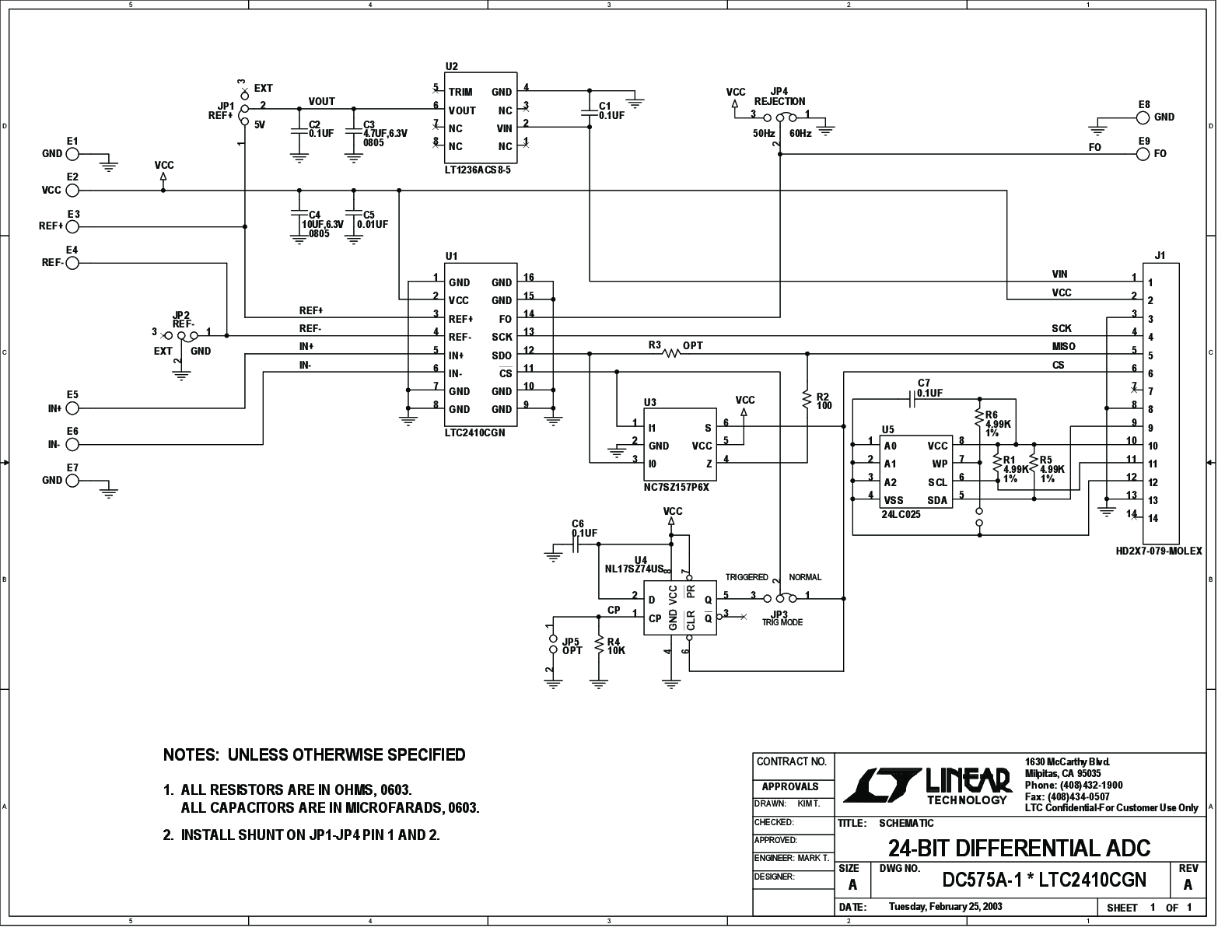

DC575A
