LTC2364-16

16-Bit, 250ksps, Pseudo-Differential Unipolar SAR ADC with 94.7dB SNR

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 10
1ku List Price Starting From $10.04
Features
  • 250ksps Throughput Rate
  • ±0.75LSB INL (Max)
  • Guaranteed 16-Bit No Missing Codes
  • Low Power: 3.4mW at 250ksps, 3.4μW at 250sps
  • 94.7dB SNR (Typ) at fIN = 2kHz
  • –120dB THD (Typ) at fIN = 2kHz
  • Guaranteed Operation to 125°C
  • 2.5V Supply
  • Pseudo-Differential Unipolar Input Range: 0V to VREF
  • VREF Input Range from 2.5V to 5.1V
  • No Pipeline Delay, No Cycle Latency
  • 1.8V to 5V I/O Voltages
  • SPI-Compatible Serial I/O with Daisy-Chain Mode
  • Internal Conversion Clock
  • 16-Lead MSOP and 4mm × 3mm DFN Packages
Additional Details
show more Icon

The LTC2364-16 is a low noise, low power, high speed 16-bit successive approximation register (SAR) ADC. Operating from a 2.5V supply, the LTC2364-16 has a 0V to VREF pseudo-differential unipolar input range with VREF ranging from 2.5V to 5.1V. The LTC2364-16 consumes only 3.4mW and achieves ±0.75LSB INL maximum, no missing codes at 16 bits with 94.7dB SNR.

The LTC2364-16 has a high speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3.3V and 5V logic while also featuring a daisy-chain mode. The fast 250ksps throughput with no cycle latency makes the LTC2364-16 ideally suited for a wide variety of high speed applications. An internal oscillator sets the conversion time, easing external timing considerations. The LTC2364-16 automatically powers down between conversions, leading to reduced power dissipation that scales with the sampling rate.

Applications

  • Medical Imaging
  • High Speed Data Acquisition
  • Portable or Compact Instrumentation
  • Industrial Process Control
  • Low Power Battery-Operated Instrumentation
  • ATE
Part Models 10
1ku List Price Starting From $10.04

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2364CDE-16#PBF
  • HTML
  • HTML
LTC2364CDE-16#TRPBF
  • HTML
  • HTML
LTC2364CMS-16#PBF
  • HTML
  • HTML
LTC2364CMS-16#TRPBF
  • HTML
  • HTML
LTC2364HMS-16#PBF
  • HTML
  • HTML
LTC2364HMS-16#TRPBF
  • HTML
  • HTML
LTC2364IDE-16#PBF
  • HTML
  • HTML
LTC2364IDE-16#TRPBF
  • HTML
  • HTML
LTC2364IMS-16#PBF
  • HTML
  • HTML
LTC2364IMS-16#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0132

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC2364CMS-16#PBF

PRODUCTION

LTC2364CMS-16#TRPBF

PRODUCTION

LTC2364HMS-16#PBF

PRODUCTION

LTC2364HMS-16#TRPBF

PRODUCTION

LTC2364IMS-16#PBF

PRODUCTION

LTC2364IMS-16#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0132

arrow down

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC2364CMS-16#PBF

PRODUCTION

LTC2364CMS-16#TRPBF

PRODUCTION

LTC2364HMS-16#PBF

PRODUCTION

LTC2364HMS-16#TRPBF

PRODUCTION

LTC2364IMS-16#PBF

PRODUCTION

LTC2364IMS-16#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem


LinearLab Tools
Info:False

A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.


DC1813A_REVB FPGA/CPLD Source Code
Info:False

PScope
Info:False

The PScope System is a USB-based product demonstration and data acquisition system for use with high performance ADCs and signal chain receiver family. PScope allows users to evaluate the SNR, SFDR, THD, as well as other key parameters, quickly and easily.


QuikEval
Info:False

The QuikEval system is a USB-based product demonstration and data acquisition system that allows users to quickly evaluate the performance of products. The system consists of a USB Data Acquisition Controller board (DC590B) that connects to individual daughter cards for specific products.

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 2

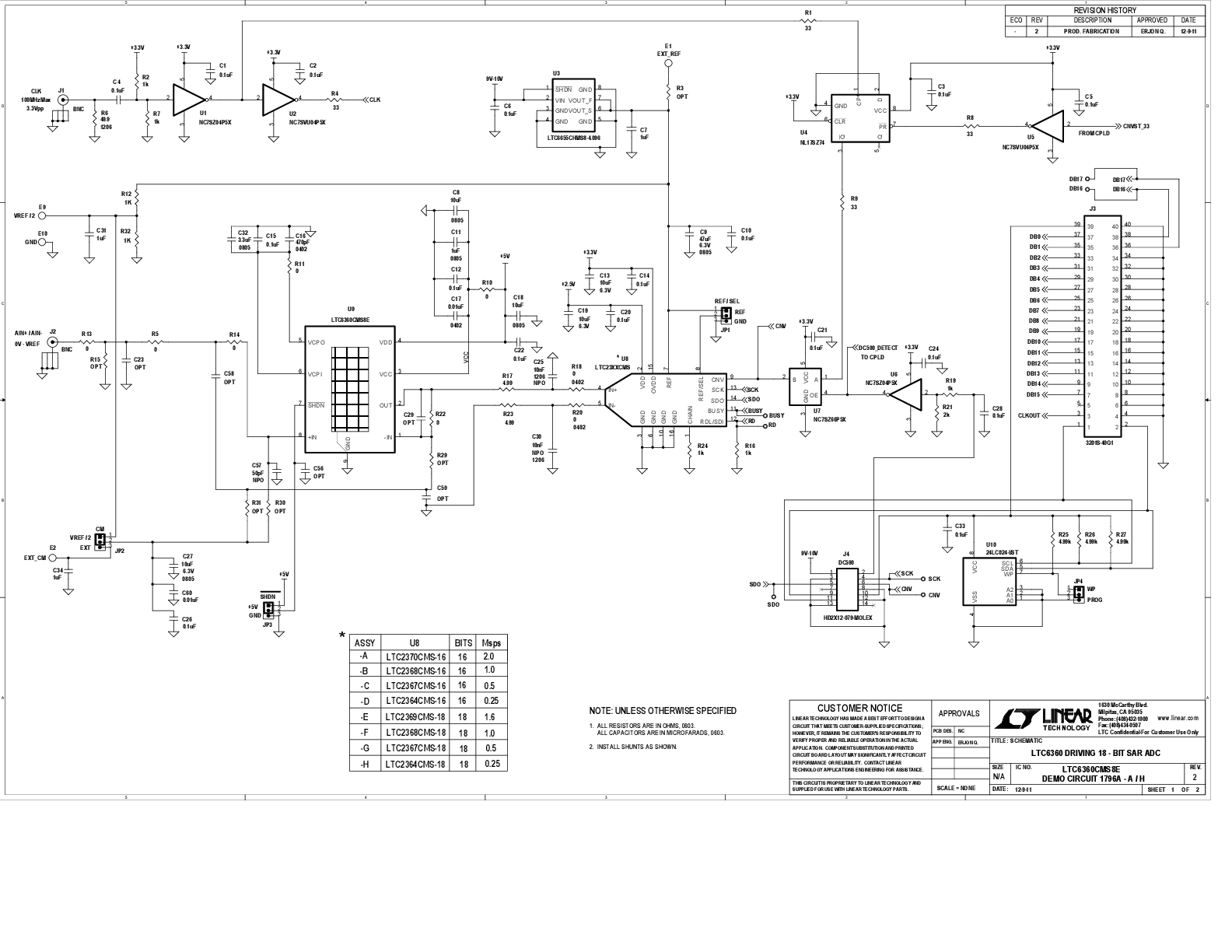

reference details image

DC1796A-D

LTC6360 Driving LTC2364-16 Demo Board | 16-Bit, 0.25Msps SAR ADC (Requires DC590 or DC718)

zoom

DC1796A-D

LTC6360 Driving LTC2364-16 Demo Board | 16-Bit, 0.25Msps SAR ADC (Requires DC590 or DC718)

LTC6360 Driving LTC2364-16 Demo Board | 16-Bit, 0.25Msps SAR ADC (Requires DC590 or DC718)

Product Detail

DC1796A-D Demo Board for:
LTC6360 Very Low Noise Single-Ended SAR ADC Driver with True Zero Output
LTC2364-16 16-Bit, 250ksps, Pseudo-Differential Unipolar SAR ADC with 94.7dB SNR





reference details image

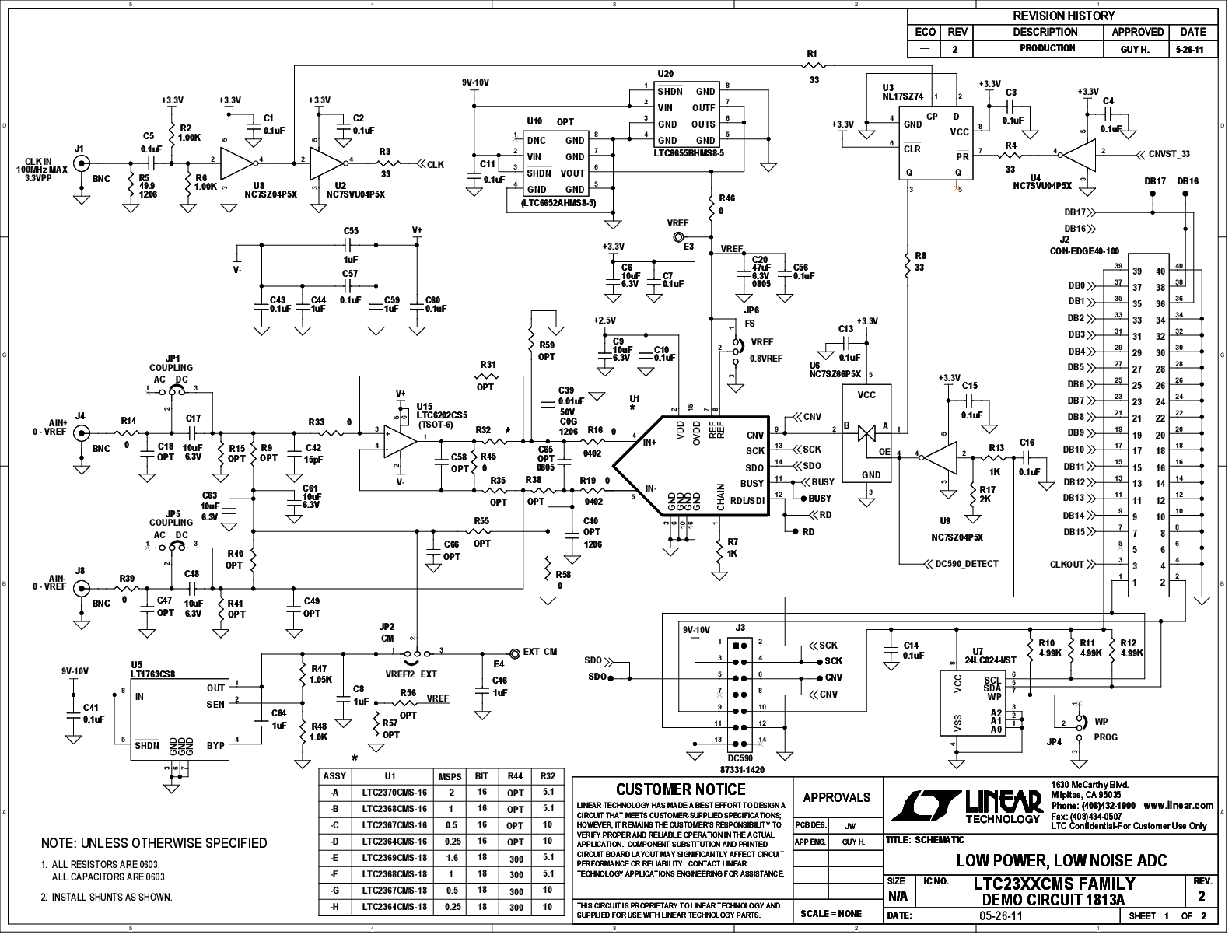

DC1813A-D
